HIK VISION DS-3WF03C-D Manuale utente

DS-3WF03C-D Outdoor Video Wireless Network

Bridge

User Manual

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to DS-3WF03C-D outdoor video wireless network bridge, the Manual includes

instructions for using and managing the product. Pictures, charts, images and all other information

hereinafter are for description and explanation only. The information contained in the Manual is

subject to change, without notice, due to firmware updates or other reasons. Please find the latest

version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Ackno ledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PE MITTED BY APPLICABLE LAW, THE P ODUCT DESC IBED, WITH ITS

HA DWA E, SOFTWA E AND FI MWA E, IS P OVIDED “AS IS”, WITH ALL FAULTS AND E O S, AND

HIKVISION MAKES NO WA ANTIES, EXP ESS O IMPLIED, INCLUDING WITHOUT LIMITATION,

ME CHANTABILITY, SATISFACTO Y QUALITY, FITNESS FO A PA TICULA PU POSE, AND NON-

INF INGEMENT OF THI D PA TY. IN NO EVENT WILL HIKVISION, ITS DI ECTO S, OFFICE S, EMPLOYEES,

O AGENTS BE LIABLE TO YOU FO ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, O INDI ECT

DAMAGES, INCLUDING, AMONG OTHE S, DAMAGES FO LOSS OF BUSINESS P OFITS, BUSINESS

INTE UPTION, O LOSS OF DATA O DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS

P ODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

EGA DING TO THE P ODUCT WITH INTE NET ACCESS, THE USE OF P ODUCT SHALL BE WHOLLY AT

YOU OWN ISKS. HIKVISION SHALL NOT TAKE ANY ESPONSIBILITES FO ABNO MAL OPE ATION,

P IVACY LEAKAGE O OTHE DAMAGES ESULTING F OM CYBE ATTACK, HACKE ATTACK, VI US

INSPECTION, O OTHE INTE NET SECU ITY ISKS; HOWEVE , HIKVISION WILL P OVIDE TIMELY

TECHNICAL SUPPO T IF EQUI ED.

SU VEILLANCE LAWS VA Y BY JU ISDICTION. PLEASE CHECK ALL ELEVANT LAWS IN YOU

JU ISDICTION BEFO E USING THIS P ODUCT IN O DE TO ENSU E THAT YOU USE CONFO MS THE

APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS P ODUCT IS USED WITH

ILLEGITIMATE PU POSES.

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATE

P EVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC ules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC ules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired

operation.

Attention that changes or modification not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: This product has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC ules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This product generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this product does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

— eorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with a minimum distance 20cm between the radiator

and your body

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the EMC

Directive 2014/30/EU, the LVD Directive 2014/35/EU, the oHS Directive 2011/65/EU.

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the European Union. For proper recycling, return this product to

your local supplier upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as

unsorted municipal waste in the European Union. See the product documentation for

specific battery information. The battery is marked with this symbol, which may include

lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

Table of Contents

Cha ter 1 Product Overview .....................................................................................6

13.1 Product Advantages..................................................................................................... 6

13.2 Electrical Specifications................................................................................................ 7

13.3 Features ...................................................................................................................... 9

13.4 Typical Application....................................................................................................... 9

13.5 Applications................................................................................................................10

13.6 Hardware Overview....................................................................................................10

13.7 LED Description ..........................................................................................................11

Cha ter 2 Installation ..............................................................................................12

2.1 Connections and Installation.......................................................................................12

2.2 estore to the Factory Settings ...................................................................................13

Cha ter 3 Quick Configuration ................................................................................14

3.1 Log In .........................................................................................................................14

3.2 Quick Configuration of the Device...............................................................................16

Cha ter 4 TDMA ......................................................................................................20

Cha ter 5 Status....................................................................................................... 21

5.1 Status.........................................................................................................................21

5.2 Monitor......................................................................................................................22

Cha ter 6 Wireless................................................................................................... 24

Cha ter 7 Network ..................................................................................................26

7.1 outer Mode ..............................................................................................................26

7.2 Bridge Mode...............................................................................................................28

7.3 Management..............................................................................................................28

7.4 Firewall.......................................................................................................................28

7.5 IP Aliases ....................................................................................................................29

7.6 Static outes...............................................................................................................29

7.7 Traffic Shaping............................................................................................................29

7.8 VLAN Settings.............................................................................................................30

Cha ter 8 Advanced.................................................................................................32

Cha ter 9 System .....................................................................................................34

Cha ter 10 Tools..................................................................................................... 36

Cha ter 11 AC Management..................................................................................40

Cha ter 12 Logout..................................................................................................41

Cha ter 13 Network Configuration Examples........................................................42

13.1 AP and Station Network..............................................................................................42

Cha ter 14 Appendix-A Troubleshooting...............................................................43

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

Cha ter 1 Product Overview

DS-3WF03C-D is a powerful WIFI Bridge/AP/CPE device, which allows WIFI access and

video/audio/data transmission device, enables long-range, fast speed and robust

wireless connections. Integrated with Hikvision’s XTrans technology, DS-3WF03C-D has

the advantages of long-distance, high-throughput, and Strong anti-interference.

XTrans technologies include TDMA, 5M/10M/20M/40MHz bandwidth, intelligent rate

control, Auto ACK Time-Out Adjust and so on. TDMA technology solves the problems of

hidden-node problem in the 802.11 network. 5M/10M/20M/40MHz bandwidth can be

flexibly configured by the uses in different working scenario to achieve the best link

quality. Intelligent rate control algorithm can be adapted to quick channel quality

variations automatically, thus stabilizing the wireless throughput. ACK Time-Out Auto

Adjust can automatically detect the distances of the DS-3WF03C-D devices, and thus

adjust the wireless parameters to achieve the best wireless link quality.

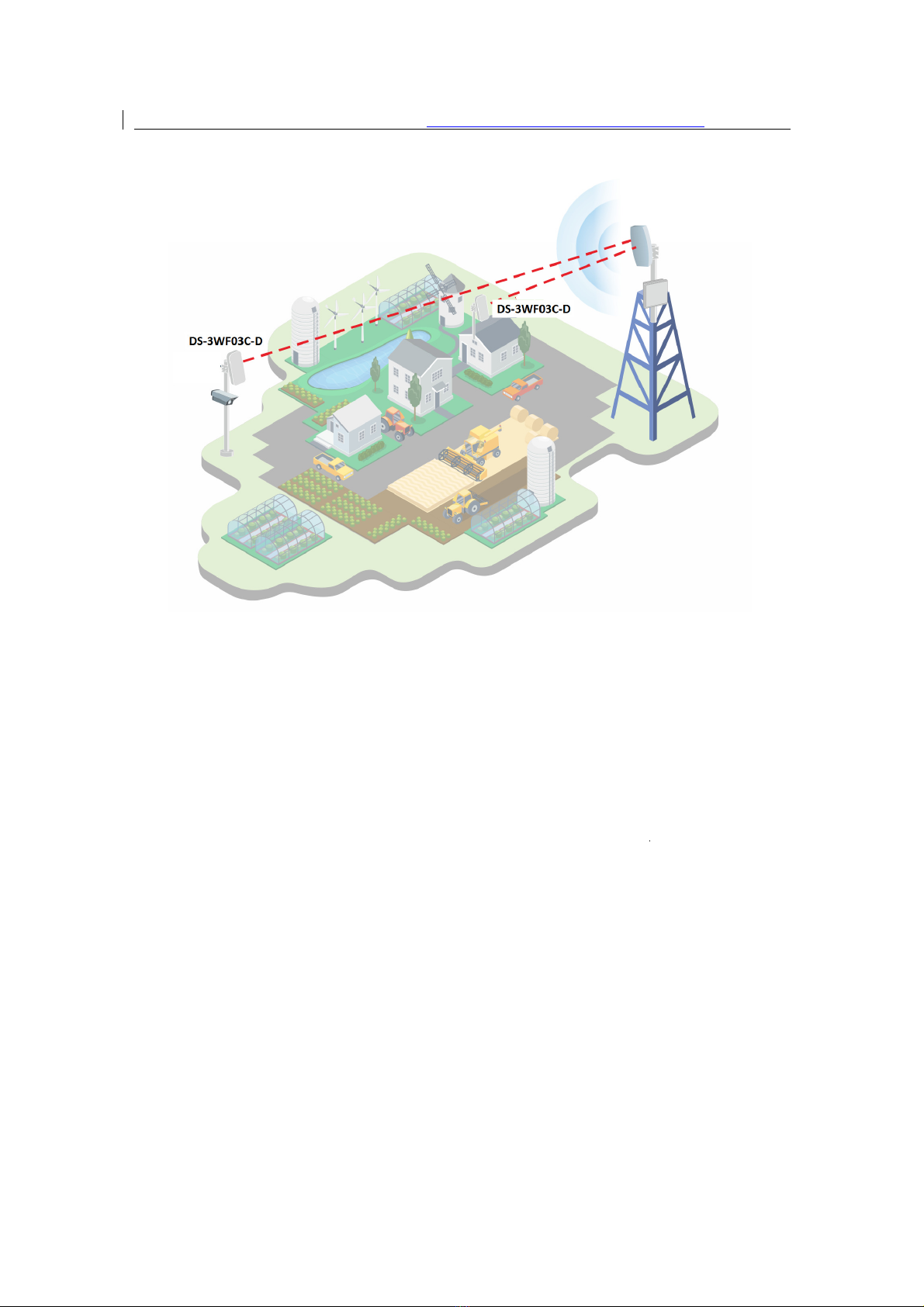

The longest transmission range and max speed of DS-3WF03C-D can be as high as 5Km

and 300Mbps, making it suitable for many applications of WIFI Bridge/CPE, especially

have advantages for point-to-multi-point communication.

13.1 Product Advantages

The DS-3WF03C-D has the industrial leading technology, owing the performance

capability of a wireless base station with only a small form factor, furthermore, it has

very attractive low cost.

DS-3WF03C-D has the following advantages compared to the competitors:

1. Embedded XTrans technology

DS-3WF03C-D devices is embedded with XTrans technology, including TDMA,

5/10/20/40MHz bandwidth, intelligent rate control, Auto ACK Time-out adjust. They

make the device have longer transmission distance, higher throughput and better point-

to-multi-point performance.

2. Longer transmission distance, higher throughput

The longest transmission distance of DS-3WF03C-D can be as far as 5 km, and the max

throughput can be 300Mbps. It can satisfy the needs of most of the applications.

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

3. Embedded hardware watchdog

DS-3WF03C-D is embedded with hardware watchdog, which is used to monitor the

working status of the device. Once the system is not working properly, the DS-3WF03C-

D device can be rebooted to guarantee the stability of the system.

4. Software Ping watchdog function

DS-3WF03C-D software ping watchdog function enable the device periodically ping

another device associated to, so that it can detect if the system is working well. If the

wireless link is lost or there is any problem, the device is rebooted. This is important

because the devices can be restored to work automatically if there is any problem, and

avoid the extra human labour to maintain the outdoor devices.

5. Outdoor industrial product

DS-3WF03C-D device can work at all kinds of outdoor severe environments, including -

30 to 70 degree temperature, 5% to 95% humidity, while maintain good performance.

13.2 Electrical Specifications

The electrical specifications are shown are the following table:

Table 1-1 Specifications

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

Items Specifications

Wireless

Standard IEEE802.11 a/n(2T2 300Mbps)

Operation frequency 5.15 to 5.25GHz

Modulation mode 802.11 a/n: OFDM

Antenna Internal, Gain 15dBi,H:40° V:15°

Output po er

Receive sensitivity -74dBm@65Mbps, -96dBm@6Mbps

Data rate

11n:13.5/15/27/30/40.5/45/54/60/81/90/108/120/121.5/135/150/162/180/2

16/240/270/300Mbps(40MHz)

130/117/104/78/65/58.5/52/39/26/13/6.5Mbps(20MHz)

11a :54/48/36/24/18/12/9/6Mbps(Auto)

Hard are

Po er supply 24V/0.5A PoE

Interface PoE*1+LAN*1

Operation temperature -30℃ to 75℃(-22℉ to 167℉ )

Storage temperature -40℃ to 85℃(-40℉ to 185℉)

Operation humidity 5% to 95% H non-condensing

Dimensions 270x40x88mm(10.6x1.57x3.46inch)

Soft are

Encryption 802.1x/WPA-PSK/WPA2-PSK

Net ork mode outer/Bridge

Operation mode Access Point, Station, WDS Access Point, WDS Station

Security IP/MAC filter, SSID hidden

Net ork protocol TCP/UDP/A P/ICMP/DHCP/HTTP/NTP

TDMA Supported (Avoid 802.11 hidden-node problems, and improve the point-to-

multi-point performance)

Auto ACK timing adjust Supported(It can automatically choose optimized parameter in long distance

transmission, keep the performance always the best)

Management and Logs NTP, Syslog, Telnet, AC

Web based

configuration Supported

Firm are update Support update firmware by Web page

Band idth supported 5M/10M/20M/40MHz

The Max E.I.R.P about 21dBm

User Manual of DS-3WF03C-D Outdoor Video Wireless Network Bridge

13.3 Features

High performance 802.11n 2×2 MIMO chip

Longest transmission range: 5Km, and max transmission throughput: 300Mbps

Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK

Time-out adjust

TDMA solves the problems of hidden-node problem in the 802.11 network, thus

having better long-distance and PTMP performance

5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS

epeater

Point-to-point, point-to-multipoint connection

Unique F and antenna design enables long-range transmission

Wireless multimedia optimization technology guarantees video/audio transmission

QoS

Web based working scenario selection makes the installation and setting much

easier

eliable PoE power supply

Web-based configuration, easy to use

Waterproof housing and accessory kit protects

13.4 Typical Application

The DS-3WF03C-D usage examples are shown in figure; it can be used as WIFI AP, CPE,

or outdoor PTP, PTMP topology. Therefore, DS-3WF03C-D is suitable for various

applications like wireless video transmission, and wireless signal coverage.

User Manual of

13.5

Applications

DS-3WF03C-D

can be used widely in the following applications:

•

Wireless video surveillance (free

•

Carrier wireless backhaul and rural area internet last

•

Enterprise local area network inter

•

WIFI signal coverage and rural wireless coverage

13.6

Hardware Overview

DS-3WF03C-D

’s hardware information is described in the following

User Manual of

DS-3WF03C-D

Outdoor Video Wireless Network

Figure 1-1 Typical Application

can be used widely in the following applications:

Wireless video surveillance (free

way, city, police, oil pipeline, forest and etc.)

Carrier wireless backhaul and rural area internet l

ast-

mile wireless solution

Enterprise local area network inter

-connection

WIFI signal coverage and rural wireless coverage

Hardware Overview

’s hardware information is described in the followi

ng t

able:

Outdoor Video Wireless Network

Bridge

way, city, police, oil pipeline, forest and etc.)

mile wireless solution

able:

Indice

Altri manuali HIK VISION Hardware di rete

HIK VISION

HIK VISION iDS-9600NXI-I16/4F Series Manuale utente

HIK VISION

HIK VISION DS-3WF Series Manuale utente

HIK VISION

HIK VISION DS-7600NI-E1/A Manuale utente

HIK VISION

HIK VISION HWN-2104H-4P Manuale utente

HIK VISION

HIK VISION iDS-9664NXI-M8/X Manuale utente

HIK VISION

HIK VISION S-7708NI-I4/8P Manuale utente

HIK VISION

HIK VISION DS-7100NI-K1/W/M Series Manuale utente

HIK VISION

HIK VISION HiLook IK-6288TH-MH/P Manuale utente

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION HWN-4116MH Manuale utente

HIK VISION

HIK VISION DS-7700NXI-I Series Manuale utente

HIK VISION

HIK VISION DS-7104NI-SL Guida utente

HIK VISION

HIK VISION DS-7600NI-12 Series Manuale utente

HIK VISION

HIK VISION DS-96128NI-F16 Manuale utente

HIK VISION

HIK VISION DS-7716NXI-I4/16P/4S Manuale utente

HIK VISION

HIK VISION DS-3WF03C Manuale utente

HIK VISION

HIK VISION DeepinMind iDS-6700NXI-I/8F(B) Series Manuale utente

HIK VISION

HIK VISION Network Video Recorder Guida utente

HIK VISION

HIK VISION iDS-96000NXI-I16B Series Manuale utente

HIK VISION

HIK VISION DS-8600NXI-I8/S Series Manuale utente

HIK VISION

HIK VISION DS-7032NI-Q4 Manuale utente

HIK VISION

HIK VISION DS-7200HGHI-SH Series Manuale utente

HIK VISION

HIK VISION DS-9616NI-I8 Manuale utente

HIK VISION

HIK VISION AX PRO M2 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
