HIK VISION 64 Series Manuale utente
Network Camera
Installation Manual (5.0.8)
UD.6L0201A1187A01
Installation Manual of Network Camera
31
64xx Series Camera Installation
6.1 Overview
1
2
6
8
7
ALARM
RS232
RXD TXD GND IN1 1B 1A
LAN(PoE)
DC 12V
RESET
SD
VIN1
AUDIO
OUT
AUDIO
IN
910 11
12 13 14
15
16 17
18

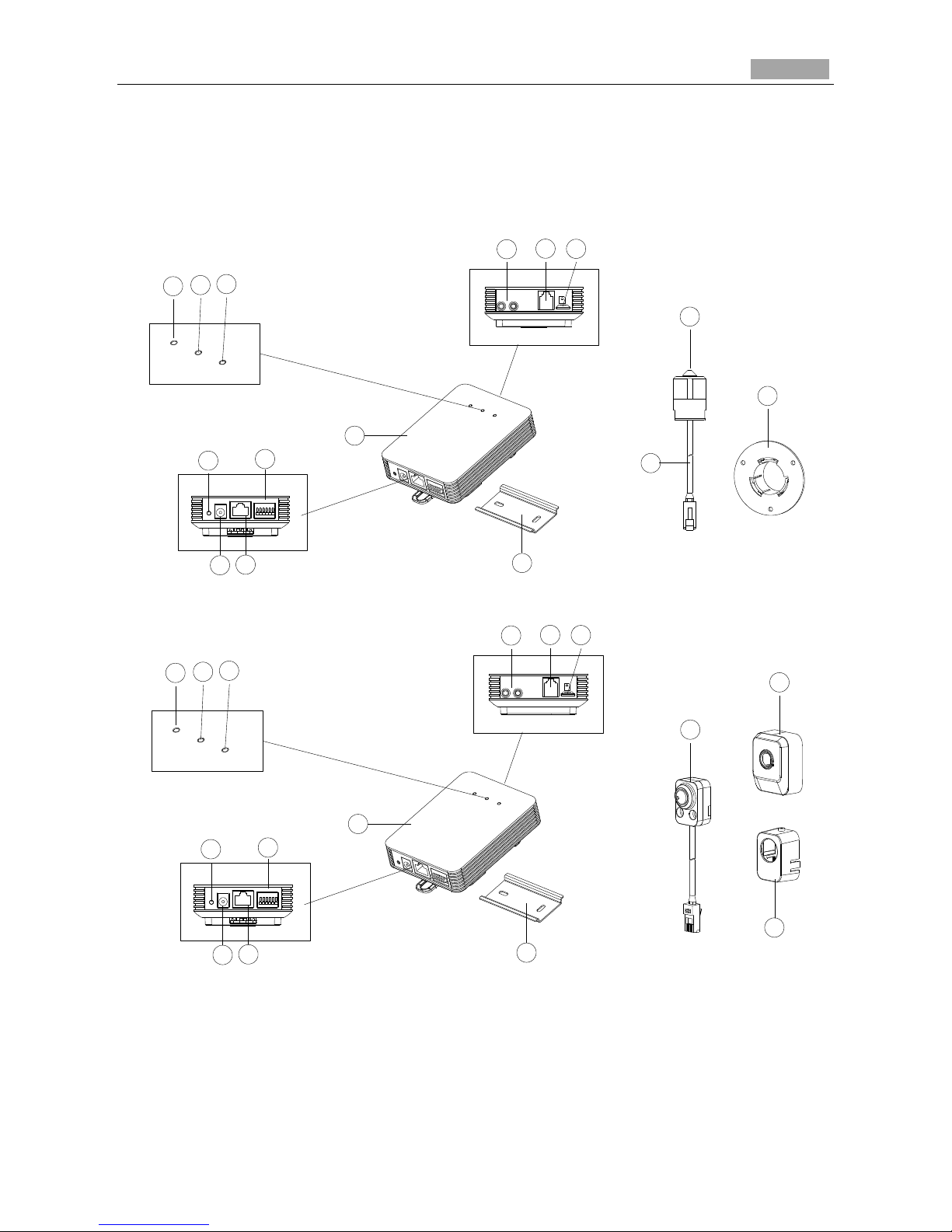

Figure 6-1 The Overview of Covert Camera with Cylindrical Sensor Unit
1
2
3
4
5
ALARM
RS232
RXD TXD GND IN1 1B 1A
LAN(PoE)
DC 12V
RESET
SD
VIN1
AUDIO
OUT
AUDIO
IN
910 11
12 13 14
15
16 17
18
Figure 6-2 The Overview of Covert Camera with Block-shaped Sensor Unit
Installation Manual of Network Camera
32

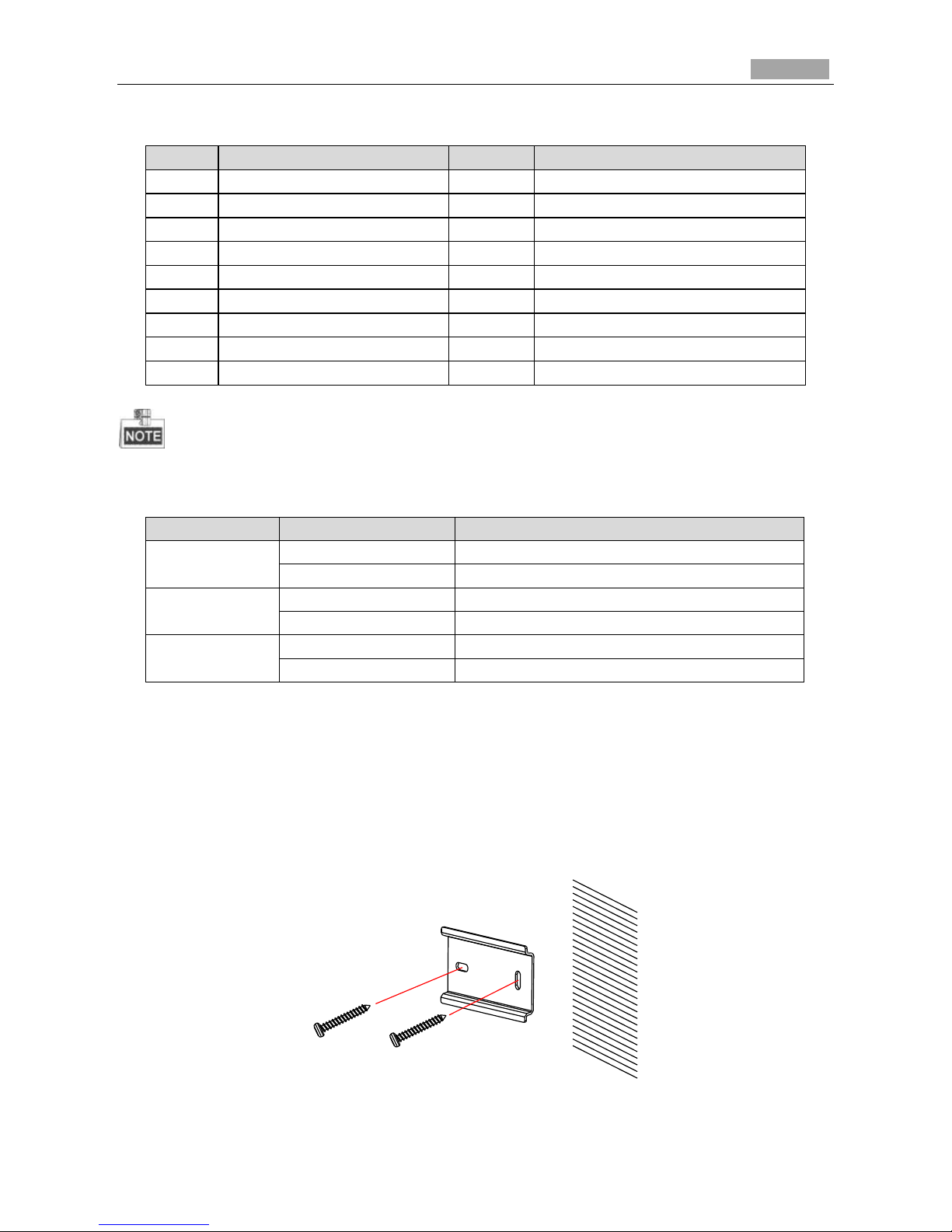

Table 1-8 Table 1 1 Description of the Camera
No.
Description
No.
Description
1
Main Unit
10
STATUS Indicator LED
2
Mounting Rail
11
LINK Indicator LED
3
Block-Shaped Sensor Unit
12
Audio Interface
4
Cover
13
RJ-12 Interface
5
Straight Mounting Bracket
14
Micro SD Card Slot
6
Cylindrical Sensor Unit
15
RESET Button
7
RJ-12 Cable
16
Power Interface
8
Round Rail Mounting Bracket
17
PoE & Network
9
POWER Indicator LED
18
RS-232 &Alarm Interface
To reset the camera, press and hold the Reset button for at least 10 seconds when powering
on or rebooting the camera.
Table 1-9 LED Indicator
LED
Color& Status
Indicator
POWER
Solid red
On normal operation
Unlit
Power Off
STATUS
Solid green
Camera works properly
Unlit
Camera does not work properly.
LINK
Flashing amber
Network connection is functioning properly
Unlit
No network connection
6.2 Installation
6.2.1 Installation of Main Unit
Steps:
1. Fix the standard mounting rail on the mounting surface. As shown in Figure 2-1.
Figure 6-3 Fix the Standard Mounting Rail
Installation Manual of Network Camera
33
For cement surface mounting, you need to use the expansion screw to fix the camera.
For wooden surface mounting, you can just use the self-tapping screw to fix the camera.

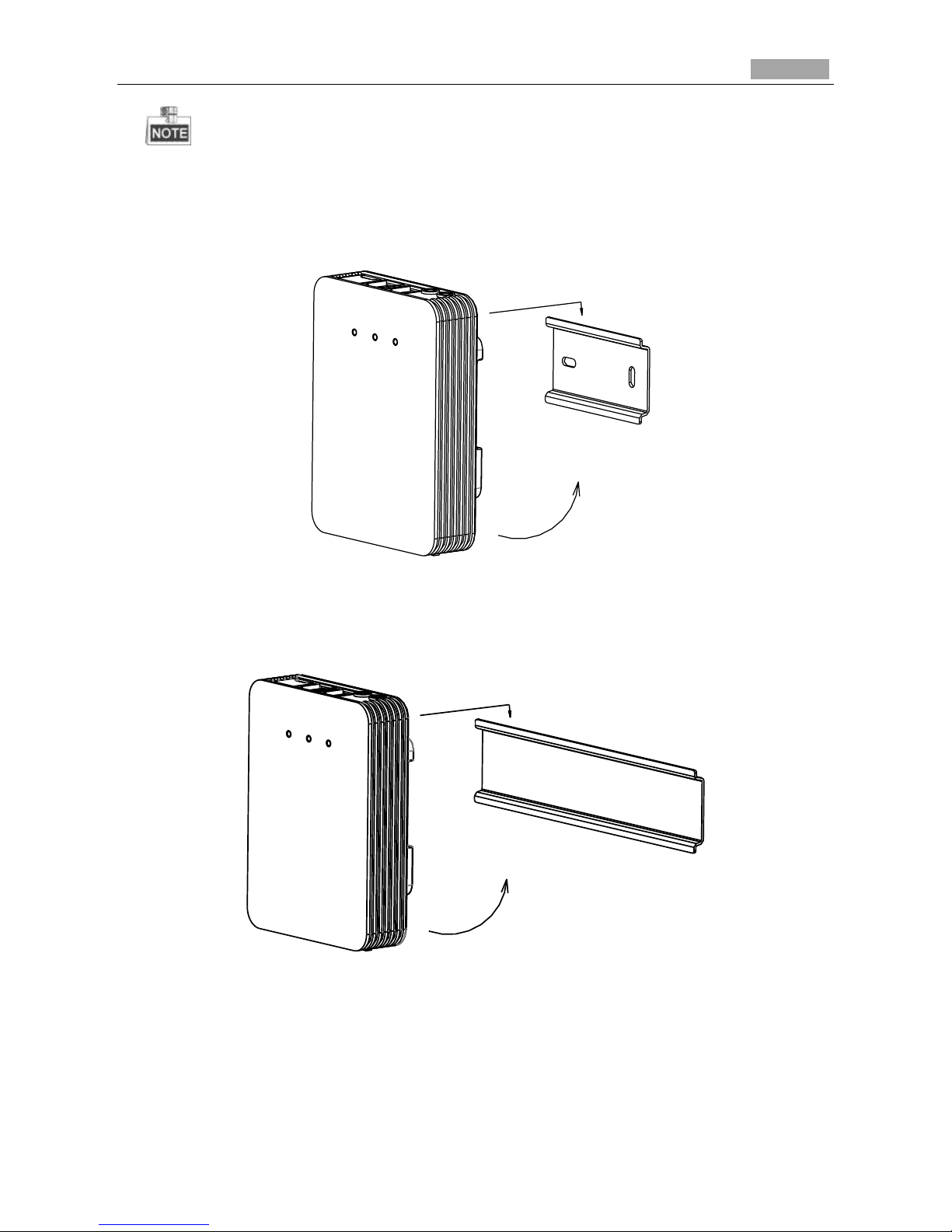

2. Hang the hook which is on upper-side of the main unit onto the rail, press a little harder on the
lower part of the main unit, and then the elastic clasp will be automatically buckled. As shown in
figure 6-4
Figure 6-4 Buckle the Main Unit
If you already had a standard rail to be installed, you can buckle the main unit onto the installed rail
directly.
Figure 6-5 Buckle the Main Unit onto Standard Rail
6.2.2 Installation of Block-Shaped Sensor Unit
This series of camera support concealed mounting and exposed mounting with a decorative cover.
Installation Manual of Network Camera
34
Concealed Mounting
Please make sure that the mounting surface is suitable for adhesive pasting.
Steps:
1. Drill on the mounting surface. As shown in Figure 6-6.
Figure 6-6 Drill on the Surface
Make sure the drilling hole is big enough for the camera lens.
2. Remove a side of the adhesive tape on the bracket. Paste the bracket on the mounting surface
with aligning with the drilling hole. As shown in Figure 6-7.
Figure 6-7 Paste the Bracket
3. Install the Block-shaped sensor unit into the bracket and make it to be buckled.
4. Tighten the fastening screw on the top of the bracket.
Installation Manual of Network Camera
35
Figure 6-8 Insert the Block-shaped Sensor Unit
Exposed Mounting
Steps:
5. Fix the Block-shaped sensor unit on the mounting surface with screws. As shown in Figure 2-7.
Figure 6-9 Fix the Block-shaped Sensor Unit
For cement surface mounting, you need to use the expansion screw to fix the camera.
For wooden surface mounting, you can just use the self-tapping screw to fix the camera.
6. Shield the sensor unit with the decorative cover. As shown in Figure 2-8.

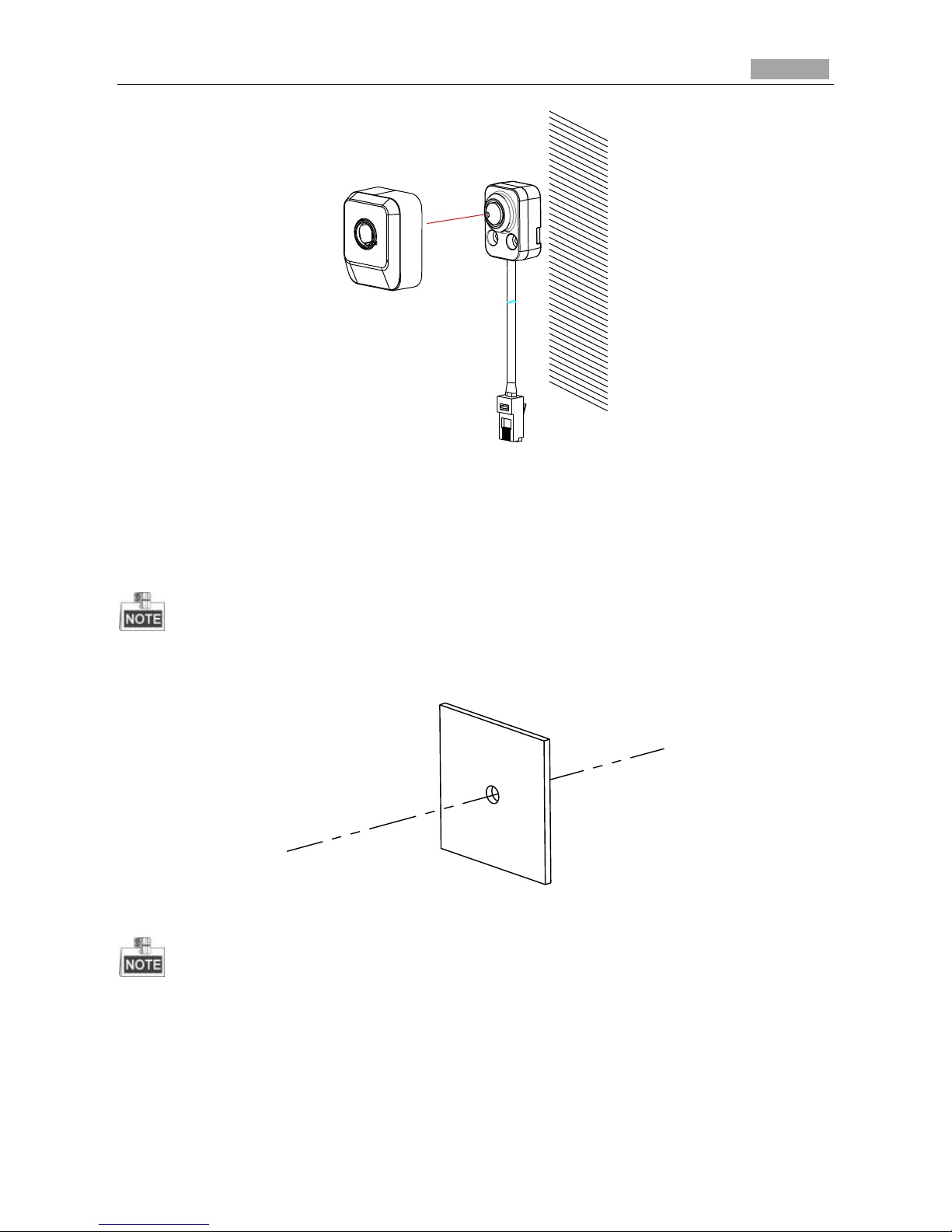

Installation Manual of Network Camera
36
Figure 6-10 Hood the Cover
6.2.3 Installation of Cylindrical Sensor Unit
This series of camera only support concealed mounting.
Please make sure that the mounting surface is suitable for adhesive pasting.
Steps:
1. Drill on the mounting surface. As shown in Figure 6-11.
Figure 6-11 Drill on the Surface
Make sure that the drilling hole is big enough for the camera lens.
2. Remove a side of the adhesive tape on the bracket. Paste the bracket on the mounting surface with
aligning with the drilling hole. As shown in Figure 6-12.
Installation Manual of Network Camera
37
Figure 6-12 Paste the Bracket
3. Install the cylindrical sensor into the mounting hole in the round rail bracket.
4. Turn the locking sleeve to fix the sensor. As shown in Figure 6-13.
Figure 6-13 Install the Cylindrical Sensor
Installation Manual of Network Camera
