HIK VISION DS-2CC5197P-VF Manuale utente

Hikvision Technical Manual

Color Camera

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does not represent any

commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data

that may appear in this documentation. The product(s) described in this documentation are furnished

subject to a license and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for the purposes for

which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or

be used for any other purpose without prior written consent of HIKVISION and then only on the

condition that this notice is included in any such reproduction. No information as to the contents or

subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,

shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party

being an individual, firm, or company or any employee thereof without the prior written consent of

HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use

this product. HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

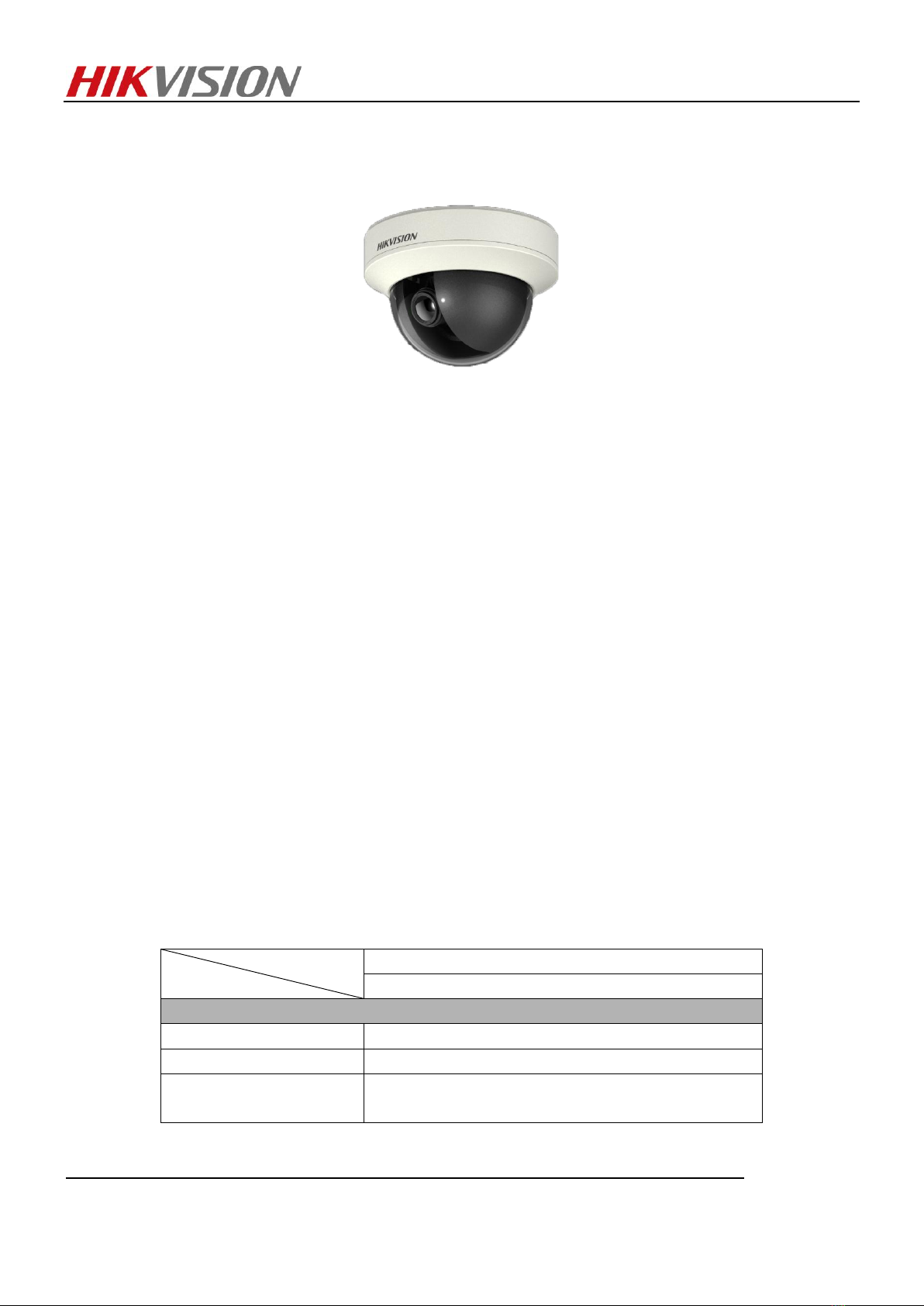

DS-2CC5197P(N)-VF

Key Features

Compact design

SONY Super HAD CCD II

Flickerless mode

75dB Wide Dynamic Range, suitable for strong backlight environment

3D-Digital Noise Reduction (3D-DNR)

Smart IR mode

High Light Reversion

Electronic image stabilization (EIS)

Min. illumination: 0.001 Lux @ F1.2 (Color) , 0.0001 Lux @ F1.2 (B/W)

IR cut filter with auto switch

OSD menu

Auto iris with DC drive

Auto white balance, auto gain control, electronic shutter control and backlight compensation

Support 2.8 - 12 mm auto iris lens

Internal or Power Synchronization

3-axis (pan/tilt/rotation) positioning allows adjustment for optimum camera rotation and placement

Specification

Model

Parameter

DS-2CC5197P(N)-VF

650 TVL CCD WDR ICR Dome Camera

Camera

Image Sensor

1/3” SONY Super HAD CCD II

Signal System

PAL/NTSC

Effective Pixels

PAL: 976 (H) × 582 (V)

NTSC: 976 (H) × 494 (V)

Hikvision Technical Manual

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON),

0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512)

B/W: 0.0001 Lux @ (F1.2, AGC ON),

0.00001 Lux @ (F1.2, AGC ON, sensitivity × 512)

Color: 0.0014 Lux @ (F1.4, AGC ON),

0.00014 Lux @ (F1.4, AGC ON, sensitivity × 512)

B/W: 0.00014 Lux @ (F1.4, AGC ON),

0.000014 Lux @ (F1.4, AGC ON, sensitivity × 512)

Shutter Time

PAL: 1/50 s to 1/100,000 s

NTSC: 1/60 s to 1/100,000 s

Lens

2.8 - 12 mm @ F1.4

Angle of view: 92°- 27.2°

Lens Mount

φ14

Auto Iris

DC drive

Angle Adjustment

Pan: 0 - 355°, Tilt: 0 - 180°, Rotation: 0 - 355°

Day & Night

IR cut filter with auto switch

Horizontal Resolution

650 TVL (Color), 700 TVL (B/W)

Wide Dynamic Range

75 dB

Synchronization

Internal/Power synchronization

Video Output

1Vp-p composite output (75 Ω/BNC)

S/N Ratio

More than 62 dB

Camera ID

On/Off (26 letters, adjusted position)

Auto Gain

Low/Middle/High/Off

D/N Mode

Auto /Day/Night

White Balance

Auto trace WB1/Auto trace WB2/Manual/Auto Control

Private Mask

On/Off, maximum 12 zones

Motion Detection

On/Off

BLC

Area/Value/Off

WDR

Value/ Contrast / Return

Anti-Flicker

On/Off

Language

English/Chinese

Video

SMART IR, High Light Reversion, Digital Noise Reduction,

Sharpness, Brightness, Saturation, Resolution, Electronic

image stabilization, Digital Zoom, Mirror, Blemish

Detection

Scene

Indoor Standard , Indoor Backlight , Outdoor, Low

illumination , Customize

General

Operating Conditions

-10 °C - 60 °C (14 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

24 V AC ± 10%, 12 V DC ± 10%

Hikvision Technical Manual

Power Consumption

Max. 4 W

(Max. 4.5 W with IR cut filter on)

Dimension

Φ 136 × 101 mm (Φ 5.35” × 3. 98”)

Weight

800 g (1.76 lbs)

Order Models

DS-2CC5197P-VF

DS-2CC5197N-VF

Dimension

Unit: mm

Hikvision Technical Manual
