TURBO HD

U7T Series Dome Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE59U7T-(A)VPIT3ZF

Type II Camera

DS-2CE5AU7T-(A)VPIT3ZF

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or update

the products or procedures described in the manual.

0100001080717

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European standards

listed under the Low Voltage Directive 2014/35/EU, the

EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This product

contains a battery that cannot be disposed

of as unsorted municipal waste in the

European Union. See the product

documentation for specific battery

information. The battery is marked with this

symbol, which may include lettering to indicate cadmium

(Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of the

warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of the

nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

The camera is powered by the external DC power

supply (12 VDC, 1 A) which is complied with the LPS,

and the output current of this external DC power

supply must be no more than 6 A.

Do not connect multiple devices to one power adapter

to avoid over-heating or a fire hazard caused by

overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical shock.

Do not touch senor modules with fingers.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty or

damp locations, and do not expose it to high

electromagnetic radiation.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for non-

water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

AC Voltage

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

Internal synchronization

SMART IR mode

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

3-axis adjustment

1.2 Overview

1.2.1 Overview of Type I Camera

Bubble Back Box

Lens Power Cord

Video Cable

Switch

Button

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

Bubble

Lens

Back Box

Power Cord

Switch Button

Video Cable

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

 Make sure that the device in the package is in good

condition and all the assembly parts are included.

 Make sure that all the related equipment is power-off

during the installation.

 Check the specification of the products for the

installation environment.

 Check whether the power supply is matched with your

power output to avoid the damage.

 Make sure the wall is strong enough to withstand

three times the weight of the camera and the mount.

 If the wall is cement, you need to insert expansion

bolts before you install the camera. If the wall is

wooden, you can use self-tapping screws to secure the

camera.

 If the product does not function properly, contact your

dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Ceiling Mounting of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the dome camera. Ceiling mounting will be taken as an

example in this section. You can take steps of ceiling

mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on the

ceiling according to the supplied drill template.

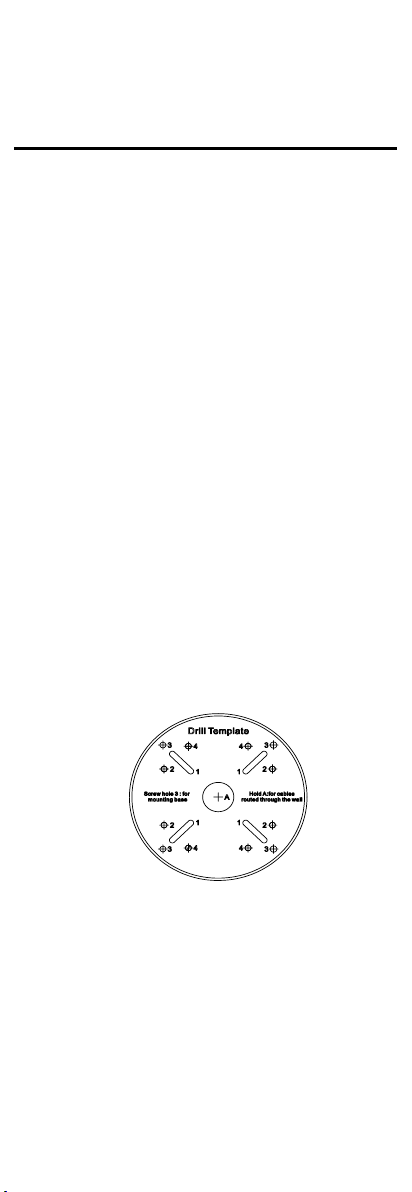

Figure 2-1 The Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

3. Loosen the screws on the bubble of the dome camera

to remove the bubble and the black liner.

4. Attach the back box of type I camera/base plate of

type II camera to the ceiling and secure them with

supplied screws.

Figure 2-2 Attach the Back Box/Base Plate

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Align the camera with the back box/base plate, and

tighten the screws to secure the camera with the back

box/base plate.

Figure 2-3 Fix the camera to the Ceiling

7. Connect the corresponding cables, such as power cord

and video cable.

8. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

0° to 355°

0° to 75°

Figure 2-4 3-Axis Adjustment

9. Fit the black liner back to the camera and tighten the

screws on the bubble of the dome camera to finish

the installation.

2.2 Wall Mounting of Type I Camera

Before you start:

You need to purchase a wall mount first.

Steps:

1. Drill 4 screw holes in the wall according to the holes of

the mount.

2. Attach the mount to the wall by aligning the 4 screw

holes of the mount.

3. Insert supplied expansion screws in the screw holes.

4. Secure the mount with 4 hex nuts and washers.

Figure 2-5 Install Wall Mounting Mount

5. Refer to step 3 of 2.1 Ceiling Mounting of Type I

Camera to remove dome camera’s bubble and the

black liner.

6. Attach the back box/base plate of the dome camera to

the wall mount and secure them with supplied screws.

Figure 2-6 Attach the Base Plate to the Mount

7. Route the cables through the mount.

8. Repeat steps 6 to 9 of the 2.1 Ceiling Mounting of Type

I Camera to complete the installation.

2.3 Ceiling Mounting of Type II Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the dome camera. Ceiling mounting will be taken as an

example in this section. And you can take steps of ceiling

mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on the

ceiling according to the supplied drill template.

Figure 2-7 The Drill Template

Note:

Drill the cable hole (hole A) when adopting the ceiling

outlet to route the cable.

3. Loosen the screws on the bubble of the dome camera

to remove the bubble.

Figure 2-8 Remove the Bubble and the Black Liner

4. Attach the back box of camera to the ceiling and

secure them with supplied screws.

Figure 2-9 Attach the Back Box

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables, such as power

cord, and video cable.

7. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

0° to 355°

0° to 75°

Figure 2-10 3-Axis Adjustment

8. Fit the bubble back to the camera.

Figure 2-11 Fit the Black Liner Back

9. Tighten the screws on the bubble of the dome camera

to finish the installation.

Figure 2-12 Finish Installation

2.4 Wall Mounting of Type II Camera

Before you start:

You need to purchase a wall mount first.

Steps:

1. Drill 4 screw holes in the wall according to the holes of

the mount.

2. Attach the mount to the wall by aligning the 4 screw

holes of the mount.

3. Insert supplied expansion screws in the screw holes.

4. Secure the mount with 4 hex nuts and washers.

Figure 2-13 Install Wall Mount

5. Refer to step 3 of 2.3 Ceiling Mounting of Type II

Camera to remove dome camera’s bubble.

6. Attach the back box of the dome camera to the wall

mount, and secure them with supplied screws.

Figure 2-14 Attach the Back Box to the Mount

7. Route the cables through the mount.

8. Repeat steps 6 to 9 of the 2.1 Ceiling Mounting of Type

II Camera to complete the installation.

3Menu Description

Purpose:

Call the menu by clicking the button on the PTZ

Control interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

MAIN MENU

VIDEO

SETTINGS

FACTORY

DEFAULT

EXIT

EXPOSURE MODE

CONTRAST

SHARPNESS

SATURATION

3DNR

MIRROR

BACK

AGC

EXPOSURE

VIDEO

FORMAT

BACK

EXIT

SAVE & EXIT

WHITE

BALANCE

BRIGHTNESS

SAVE & EXIT

EXIT

SAVE & EXIT

DAY/NIGHT

MODE

BACK

EXIT

SAVE & EXIT


MODE

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Telecamera di sicurezza

HIK VISION

HIK VISION 64 Series Manuale utente

HIK VISION

HIK VISION DS-2XC6245G0-L Manuale utente

HIK VISION

HIK VISION DS-2CD6445G1 Series Manuale utente

HIK VISION

HIK VISION TURBO HD DS-2CE56D8T-(A)VPIT3Z(E) Manuale utente

HIK VISION

HIK VISION HWI-D141H Manuale utente

HIK VISION

HIK VISION DS-2CD883F-EW series Manuale utente

HIK VISION

HIK VISION DS-2CD7D47G0-XS(2.8mm) Manuale utente

HIK VISION

HIK VISION DS-2CD2121G0-IWS/2AX Manuale utente

HIK VISION

HIK VISION DS-2DF5220S-DE4/Ww Manuale utente

HIK VISION

HIK VISION EZVIZ C6T MINI 360 PLUS Guida all'installazione

HIK VISION

HIK VISION DS-2AE7225TI-A Manuale utente

HIK VISION

HIK VISION DS-2TD2637T-15/QY Manuale utente

HIK VISION

HIK VISION DS-2AF1-611X Manuale utente

HIK VISION

HIK VISION I092000 Manuale utente

HIK VISION

HIK VISION DS-2XM6222FWD-I Manuale utente

HIK VISION

HIK VISION DS-2CV2046G0-IDW Manuale utente

HIK VISION

HIK VISION DS-2CD63C5G0-IS Manuale utente

HIK VISION

HIK VISION HiLook Series Manuale utente

HIK VISION

HIK VISION D3T Series Manuale utente

HIK VISION

HIK VISION DS-2CD6D54G1-ZS/RC Manuale utente

HIK VISION

HIK VISION DS-2CD2443G0-IW Series Manuale utente

HIK VISION

HIK VISION EPI-4215I-DE Manuale utente

HIK VISION

HIK VISION DS-2CD2047G1-L Manuale utente

HIK VISION

HIK VISION DS-2XM6825G0/C-IVSM Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
