Hiland F5020 Manuale utente
F5020 Flash lamp user manual Version: A5
F5020 Flash lamp user manual
I. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have
been eliminated
II. Technical Specification
1. working voltage：85-265VAC
2. Loading capacity：<2.5W
3. Flicker Frequency：1HZ
4. Working temperature：-20º～+60℃
5. IP Level: IP54
6．Size：φ90* 125mm
7．Weight：142g

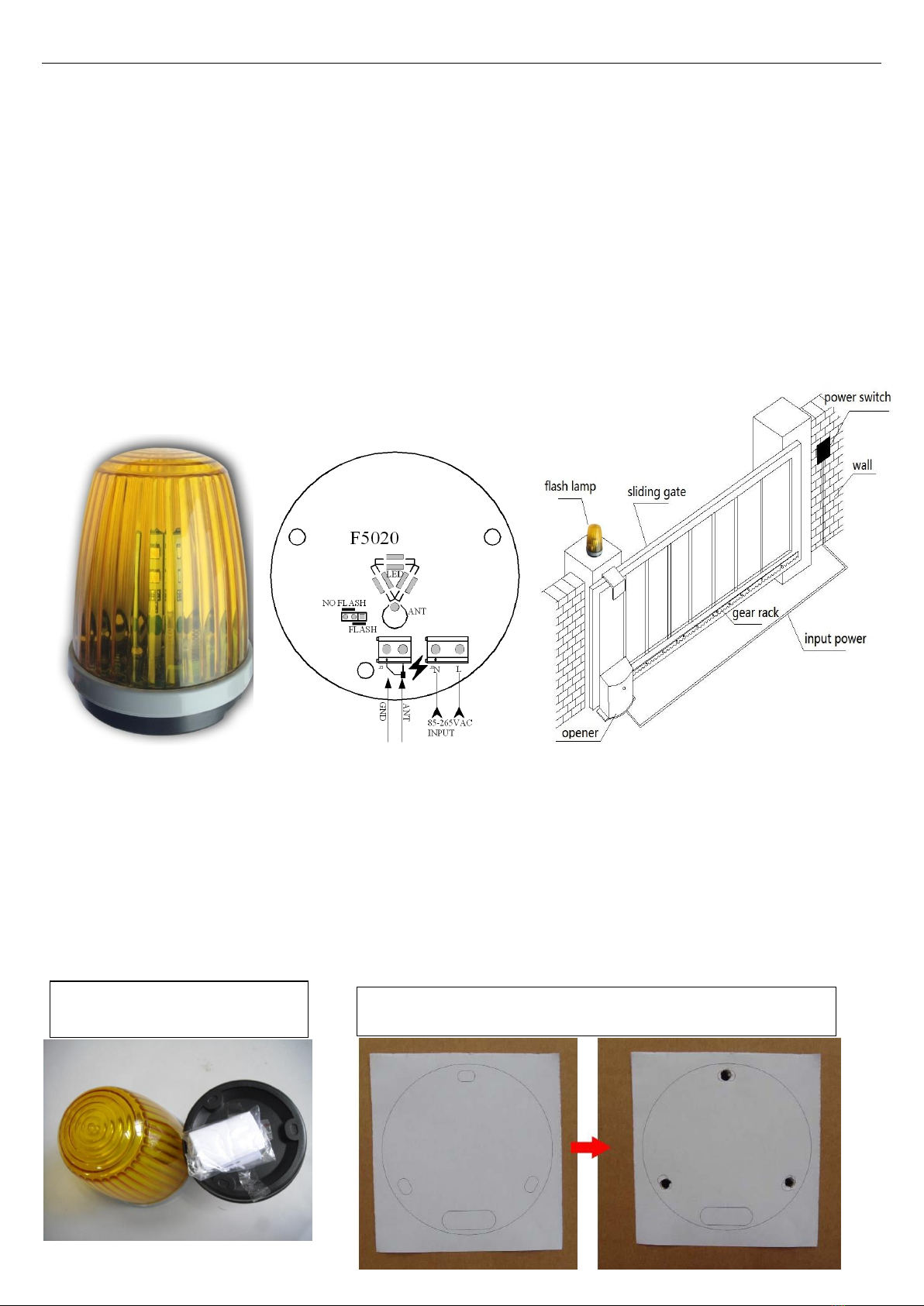

III. Connecting Instruction
1. Connect the wire with power supply is 85-265VAC
2. Antenna is for connecting to extend the effective distance of controller
IV. Instructions
4.1 LED will flicker in 1HZ after power on
4.2 JP1 switch
It’s the switch for switching LED in flickering or lighting,
When JP1 at FLASH, LED will flicker in 1Hz after power on;
When JP1 at left side, LED will light after power on
V. Installation
1．Open the package and take out
the accessories for installation.
2．Stick the paper on the proper place, and then drill the hole.
F5020 Flash lamp user manual Version: A5
The interpretation and ownership of this manual belong to Hiland company. Any change of the product can be without prior
notice.
3．Take out the paper and install the expansion tube into the hole.
4．Crush the screw hole of bottom.
5．Take out the lamp ring as the
direction showed.
6．Take off the yellow cover as the
direction showed.
7．Connect the power supply and
antenna.
8．Put board into black base, and fix
them with screw of Φ4*25.
9．Install the black seal ring
correctly.
.
10．Fasten the cover into the
bottom.
12．Put on the decorative ring
and finish the installation.
11．Fix the holder and cover
with screw Φ2.3*8
