Hisense 49WF Series Manuale utente
www.hisense-b2b.com
Window Facing Display
Quick Installation Guide
49WF/55WF
Series
TABLE OF CONTENTS
Safety Precautions
Safety Instruction & Cleaning
Exemptions
Installation
Package Contents
Hanging Installation
Wall-mount Installation
Installation Requirements
Terminal Connections
Network Connecting
Hdmi Signal Source
Specifications
...................................................... 01
.......................................01
.........................................................................04
................................................................... 05
........................................................... 05
...................................................... 06
............................................ 10
............................................ 13
............................................... 22
................................................. 26
.................................................... 28
.............................................................. 29
1. Read Instructions
All the safety and operating instructions should be read before the appliance is
operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions
All operating instructions should be followed.
5. Battery
Batteries shall not be exposed to excessive heat such as sunshine, fire or so on.
6. Earthing Connection
The apparatus shall be connected to a MAlNS socket outlet with a protective earthing
connection.
7. Water and Moisture
The appliance should not be used near water.
8. Ventilation
The appliance should be well situated so that its location or position does not
interfere with its proper ventilation.
9. Heat
This appliance should be placed away from heat sources such as radiators, heat
registers and stoves.
10. Power Sources
The appliance should only be connected to a power supply as described in the
operating instructions or as marked on the appliance.
11. Groundina or Polarization
Precautions should be taken.
Safety Instruction
01
12. Power Cord Protection
Power supply cord should be located so that it is not likely to be walked on or
pinched by items placed upon it.
13. Cleaning
The appliance should be cleaned only as recommended by the manufacturer.
14. Non-use Periods
The power cord of the appliance should be unplugged from the outlet when left
unused for a long period of time.
15. Objects and Liquids
Care should be taken so that objects do not fall, and liquids are not spilled into the
enclosure through openings.
16. Conditions Requiring Service
The appliance should be serviced by qualifed service personnel when: The
power-supplycord or the plug has been damaged. Objects have fallen on or liquid
has been spilledinto the appliance. The appliance has been exposed to rain. The
appliance does notappear to operate normally or exhibits a marked change in
performance.
17. This appliance should not be exposed to water and no objects filled with liquids such
as a vase should be placed on the unit. Where the mains plug or an appliance
coupleris used as the disconnect device, the disconnect device shall remain readily
operable.
18. Only for indoor used.
19. Caution
There is a button cell inside. Place away from the old and kids, avoiding to be eaten
by mistake. Once happened, please go to hospital for treating immediately.
20. Keep the key properly.
There are high voltage and dangerous live parts inside. It's better to maintain and
repair with a professional.
Safety Instruction
02
Safety Instruction
Warning
High voltages are used in the operation of
this product. Do not remove the back cover of
the cabinet. Refer servicing to qualified
service personnel.
Caution
If the screen is placed into a confined space
ensure that the minimum distances are
observed as shown.Heat build up can reduce
the service life of your screen, and can also be
dangerous.
Caution
When the product is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the AC
outlet.
Caution
Never stand on, lean on, push or apply force
to the product or its stand. You should pay
special attention to children.
Caution
Avoid exposing the main unit to direct
sunlight and other sources of heat. Do not
position screen receiver directly on other
products which give off heat.e.g. Video
cassette players, audio amplifiers. Do not
block the ventilation holes in the back cover.
Ventilation is essential to prevent electrical
failure. Do not squash power supply cord
under the main unit.
Caution
The panel used in this product is made of
glass.It can break if the product is dropped or
if force is applied to the panel. Individuals
should execute caution when dealing with
broken glass should the panel break.
Caution
Do not place the main unit on an unstable
cart stand, sheif or table. Serious injury to an
individual and damage to the screen, may
result should it fall.
Warning
To prevent fire or electrical shock hazard, do
not expose the main unit to rain or moisture.
Warning
Do not insert foreign objects into the screen
slots or openings. Never spill any kind of
liquid on the screen receiver.
03
Exemptions
• Not liable for any damage caused by fires, natural disaster ( such as thunderstorms
earthquake, etc.), acts by the third parties, accidents, owner's misuse or use in
otherimproper conditions.
• Not liable for incidental damages (such as profit loss or interruption in business
modification or erasure of record data, etc.) caused by use or inability to use of
product.
• Not liable for any damage caused by neglect of the instructions described in the
owner's manual.
• Not liable for any damage caused by misuse or malfunction through simultaneous
use of this product and the connected equipment.
04

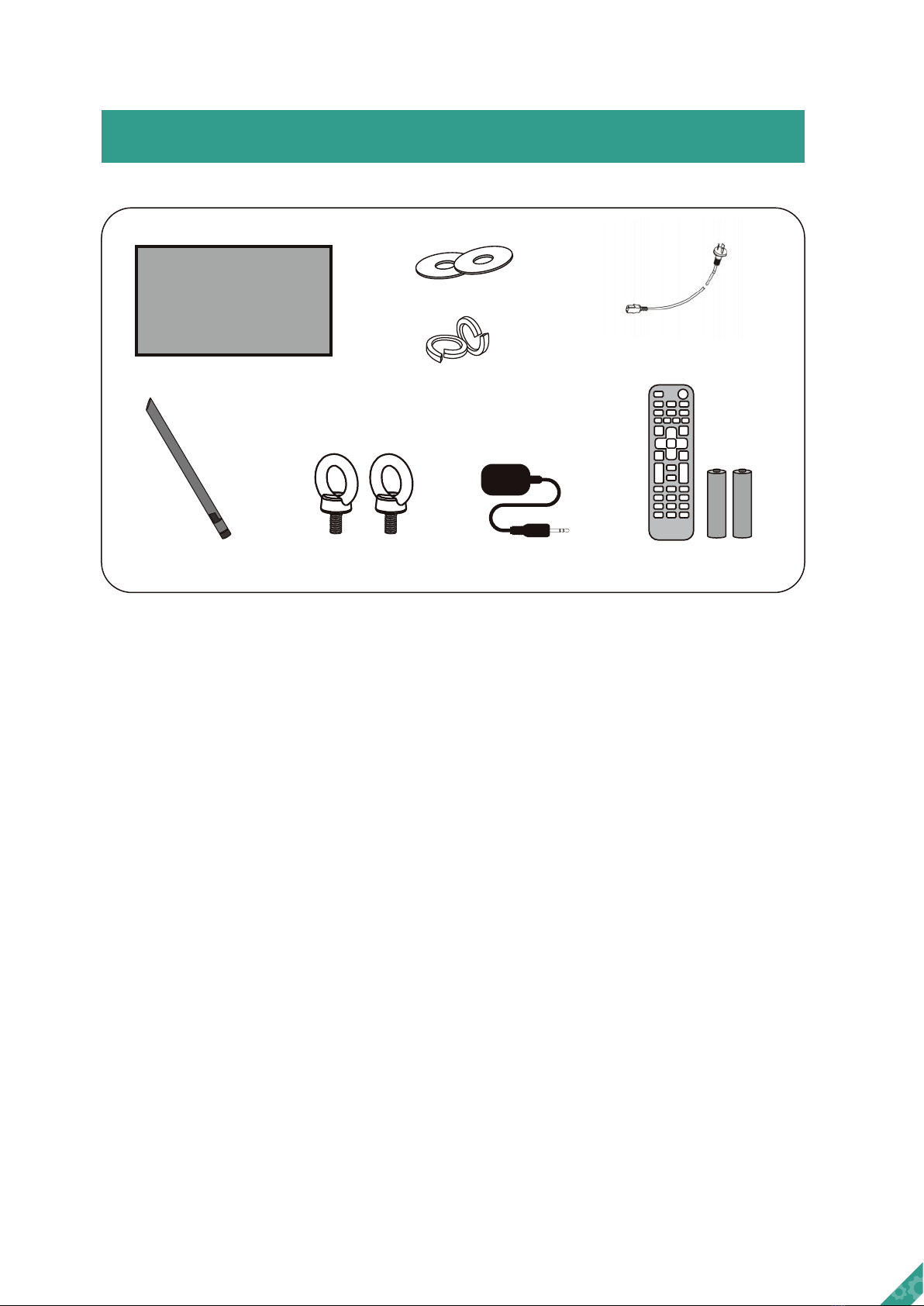

Package Contents
Fillier pad(M6) x 2
Screen
Power Cord
Lifting ring(M6) x 2Wifi antenna IR receiver
Spring pad(M6) x 2
Remote control x 1
AAA batteries x 2
05
Hanging Installation
Note:
Expansion hook
1. Install the expansion hook on the top
Ceiling wall
Hanging Type
The above installation methods are for reference only!Installation methods may be
different depending on the actual mounting situation.The standard accessories of
the complete machine do not include installationaccessories shown in the below
instruction, customer needs to purchase their ownaccording to the actual situation.
06
Hanging Installation
Screen
Small back
cover
2. Open the small back cover
M3 Countersunk head
screws
Main board
wiring terminal
Threading hole
Screen
Power line
Signal line
3. Threading & plug wires
Hanging Type
07
Hanging Installation
Backside
Steel cable
Small back
cover
M3 Countersunk head
screws
M6 Ring 2 pcs
5. Connect one end of the steel cable to ring screw, the other
end to be circled, and both ends are clamped with fixers.
Fixers
4. Close the small back cover, and fix the screws
Hanging Type
08
