Hisense 75B4E30T Manuale utente

HISENSE 75B4E30T ANDROID

SIGNAGE DISPLAY

INSTALLATION MANUAL

Status: Final

Version: A

Author: KAG

# of pages: 6 (Including this page)

Fall

R&D 2021-05-11 Page 2 of 6

1INTRODUCTION

1.1 Contents

Hisense 75B4E30T ANDROID SIGNAGE DISPLAY INSTALLATION MANUAL................... 1

1 Introduction........................................................................................................... 2

1.1 Contents.......................................................................................................................................2

1.2 Change log .................................................................................................................................2

2 Installation instructions......................................................................................... 3

2.1 Models covered by instruction ...........................................................................................3

2.2 Ethernet connection................................................................................................................3

2.3 How to do a “Factory Reset”................................................................................................3

2.4 Initial Installation ......................................................................................................................4

3 Nice to know.......................................................................................................... 6

3.1 TV software version.................................................................................................................6

1.2 Change log

Version

Status

Date

Modified by

Changes

Final

2021-04-30

KAG

R&D 2021-05-11 Page 3 of 6

2INSTALLATION INSTRUCTIONS

2.1 Models covered by instruction

75B4E30T

2.2 Ethernet connection

Use the LAN port to connect the screen to your network.

2.3 How to do a “Factory Reset”

Note: If the TV has not been set up before, the TV will power on in the” Install menu”,

shown below. The factory reset can then be skipped.

•Press the “menu” button on the remote to enter settings

•Select Factory Reset

oSelect Factory Reset –OK

•The screen will now factory reset

R&D 2021-05-11 Page 4 of 6

2.4 Initial Installation

2.4.1 Screen settings

•Power On TV

•Open Settings

oIf using wired ethernet: Check that the correct info is in the Ethernet

menu and the “Two computers” icon is white in the top right corner

oIf using WiFi: Open Wifi menu and turn on WiFi and then connect to your

WiFi. The WiFi icon in the top right corner should then be white.

•Date & Time: Check that time is correct. If not, you can check that you have the

correct timezone or you deactivate Automatic Date & Time and set the time

manually.

•Follow the General Settings described in 2.4.2

2.4.2 General Settings

To install Signage APP:

On your computer go to this url: https://a.dsig.tv/ and download the Android APK file

and place this in the root folder on a USB stick and insert into the back of the TV.

•Press the button saying “USB” under the Source button in the top left corner.

•Select USB drive

•Find the APK downloaded to install the Signage app.

oSelect install. When installation is finished, select OPEN to start the

Android Signage app.

•NOTE: You may get a message saying: FILE MANAGER: for your security, your

TV is not allowed to install unknown apps from this source.

oSelect settings –and select Allow from this source.

oPress the back button on the remote to continue installation

The signage app should now open and display the install code

•Access the signage management portal.

•Select add screen.

•Enter the Install Code presented on the screen.

After installation is completed, unplug the USB stick.

R&D 2021-05-11 Page 5 of 6

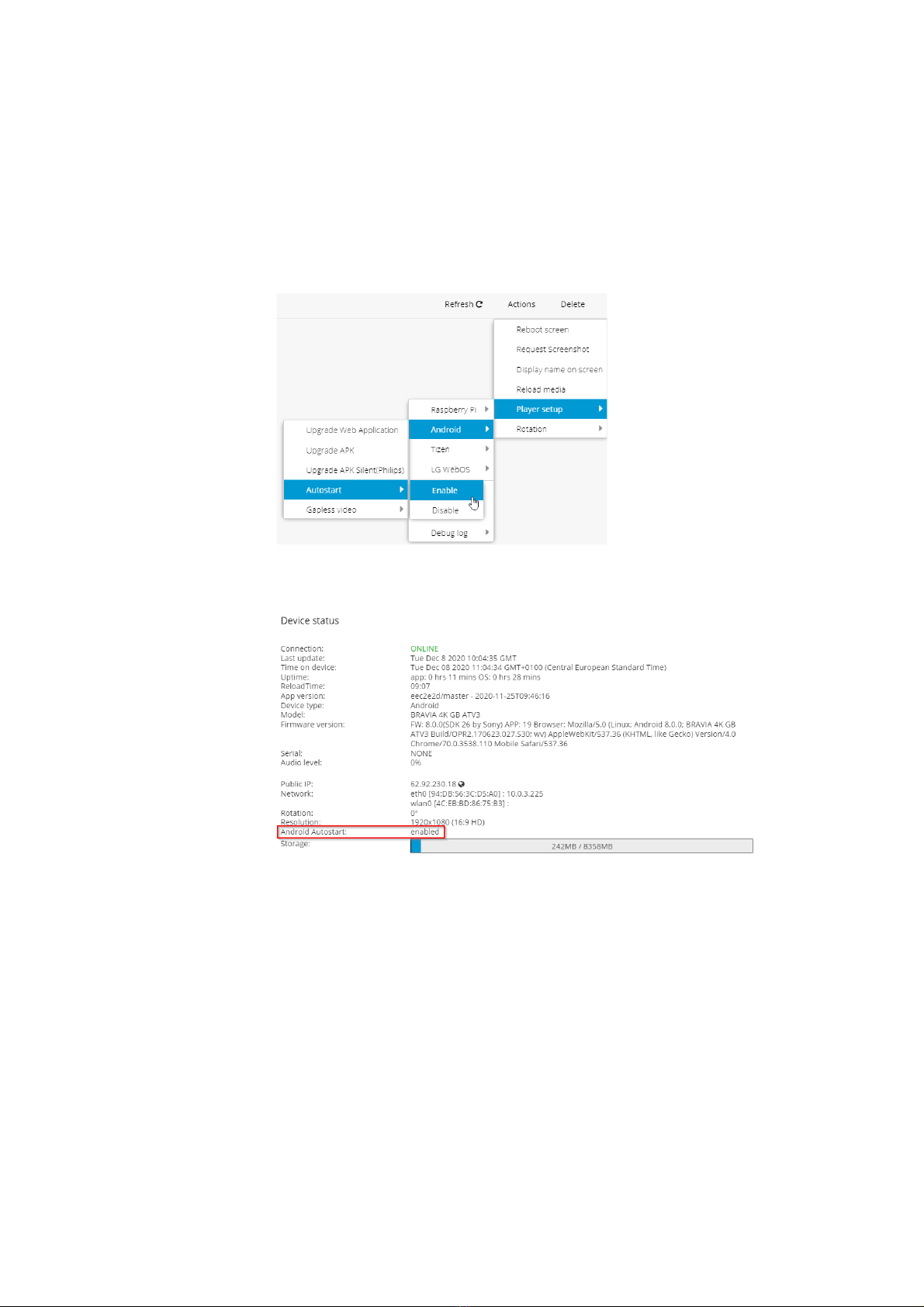

2.4.3 IMPORTANT

To get the screen to auto-start signage application you must activate this in

the signage management portal.

When screen shows up in the signage management portal, open settings for

this screen with the settings wheel when hovering mouse over the screen.

oOpen Actions –Player setup –Android –Autostart –Enable

oA message on the screen should display showing “Enabling

app autostart”

oConfirm that this is enabled in the portal by clicking on refresh

and the second lowest field should be: Android Autostart: enabled

R&D 2021-05-11 Page 6 of 6

3NICE TO KNOW

3.1 TV software version

Use the HISENSE controller and press the Home button

Select Settings and open About –Device Info.

Check for newer versions: Settings –System Update –see that Online Update

is activated. It will then check automatically when booting the screen.
