USER'S OPERATION MANUAL

R E F R I G E R A T O R

MODEL HTFF525AW

HTFF525AS

MODEL HTFF525AW

HTFF525AS

IMPORTANT: before you install your refrigerator PLEASE CHECK FOR ANY DAMAGE

OR MARKS. If you find that the refrigerator is damaged or marked you must report this

within 7 days if you wish to claim for the damaged marks under the manufactures

warranty.

This does not affect your statutory rights.

1. PARTS IDENTIFICATION

1. ice tray

2. ice box

3. air outlet

4. freezer shelf

5. freezer temperature control

knob

6. temperature regulator in

refrigerator chamber

7. light cover

8. refrigerator shelf

9. adjustable refrigerator shelf

10. side plate

11. crisper cover

12. crisper

13. hole for the base grille

14. wheel

15. freezer bin

16. refrigerator bin cover

17. door switch

18. small refrigerator bin

19. lower refrigerator bin

Note: Due to unceasing modification of our products your refrigerator may be slightly different

from this Instruction Manual, but its functions and using methods remain the same.

Refrigerator Chamber

This compartment should be used to stove food for normal household use. Here are some guidelines to

maximize refrigeration storage.

①Area: it is suitable for storing small bottles, etc.

②Area: it is suitable for storing butter and cheese, etc.

③Area: it is suitable for storing bottled liquid and canned food, etc.

④Area: it is suitable for storing cake, cooked-food and milk products, etc.

⑤Area: it is suitable for storing sweetmeats and canned food, etc.

⑥Area: it is suitable for storing fruits, vegetable and salad, etc.

Shelf of refrigerator chamber

There are two adjustable shelves in refrigerator chamber, and they can be taken out to be cleaned.

Crisper

It is suitable for storage of fruits and vegetable.

Crisper cover

Is used for controlling the temperature of the crisper and assists the

vegetable losing moisture. The controlling knob on the cover can be used to

regulate the humidity in the drawer.

Door bin

It is suitable for storage of eggs, canned liquid, bottles and packed food, etc. Do not place too many heavy

items in the bin.

Temperature regulator in refrigerator

zRefrigerator not cool enough? Set the temperature controller

to suit.

zSet the controller according to the ambient temperature

in different seasons

For normal operation, set the temperature controller at the

position between “Cold” and “Colder”.

Notice: Do not place the food on the air outlet, and block

airflow.

Changing the Light Bulb

Before removing the light bulb, disconnect the electricity leading into the refrigerator at the main power

supply. Failure to do so could result in electrical shock or personal injury.

zUse the cross screw driver to take the screws out.

zRemove the light cover by pushing down the two bottom ends of

the plastic cover and draw up the cover.

zUnscrew the bulb.

zReplace with a 10 watt-refrigerator bulb that is of the same

shape and size.

zReplace the light bulb cover

zThe method of changing the light bulb on the left side and the

right side is the same.

Freezer chamber

It is for freezing and storing frozen food including ice cream.

How to use the freezer compartment

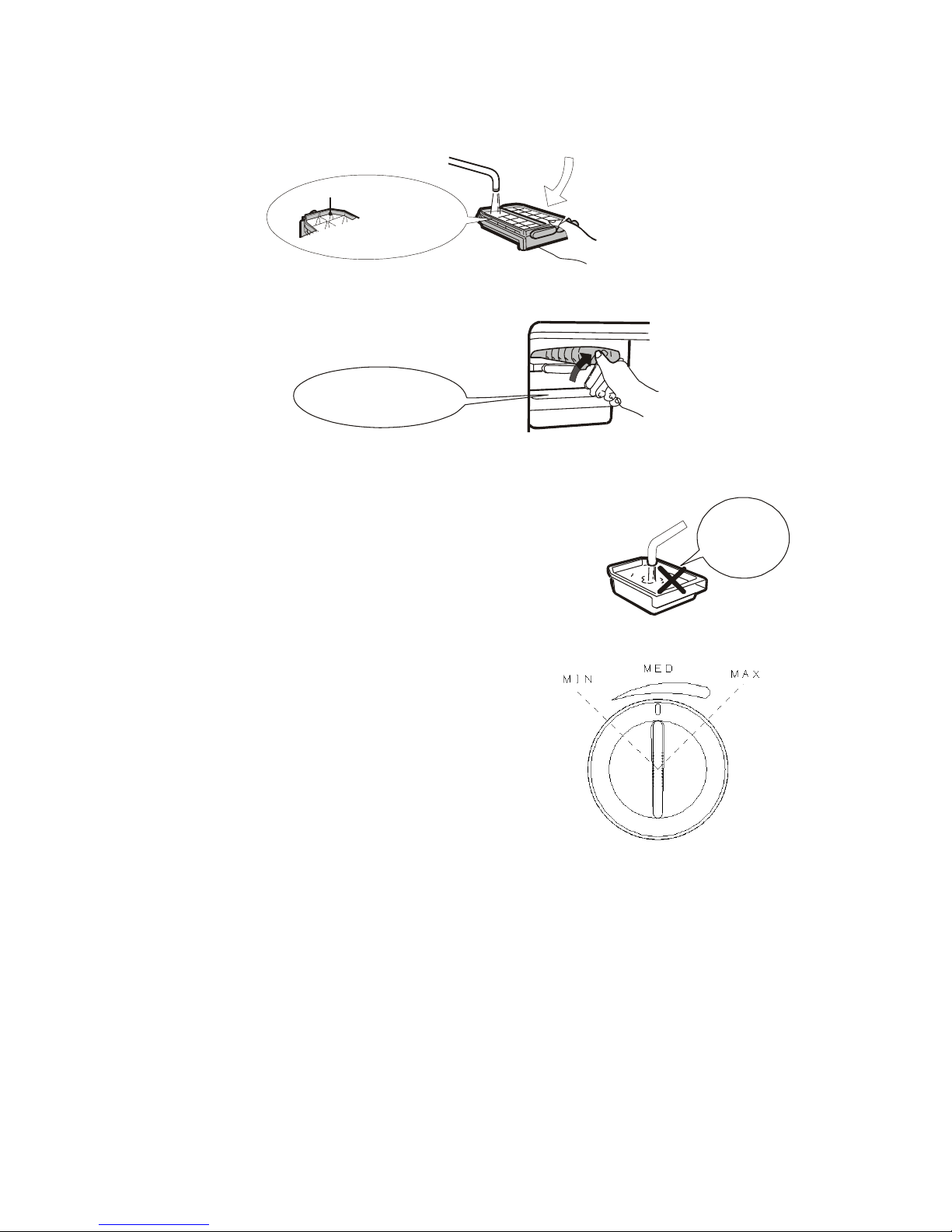

How to Make Ice

Ice cubes

1Take the tray out.

2Add water

Colder

Cold

Raise the rod a little

ADD WATER

water level

Fill to the level and

push it on the ice tray

Push the left Side of the

rod and move it

3When ice is formed, twist the rod according to the direction of the arrow.

Turning it to drop ice

cube into the ice box.

NOTICE:

(1) It takes about two hours to make ice.

(2) Ice bucker should not be used to make ice ,otherwise it may

crack.

CAUTION

zAvoid direct contact with ice tray as it may stick to your hands.

Temperature regulator in freezer chamber

zIn case of too much frozen food or ice making in chamber.

Please set the temperature control knob at “MAX” position.

zIn case of using the refrigerator in usual condition. Please set

the temperature regulator at “MED” position.

zIn case of a little frozen food in chamber.

Please set the temperature controller at “MIN” position.

Ice box is

inadvisable

to make ice

2. REVERSIBLE DOOR INSTRUCTION

The fridge has been built with the door hinges on the right. If you wish to change the opening direction,

follow the instruction below:

Note: Unplug the fridge from its electrical outlet.

Empty everything in the fridge, including shelves, food, etc.

All parts removed must be saved to reinstall the door.

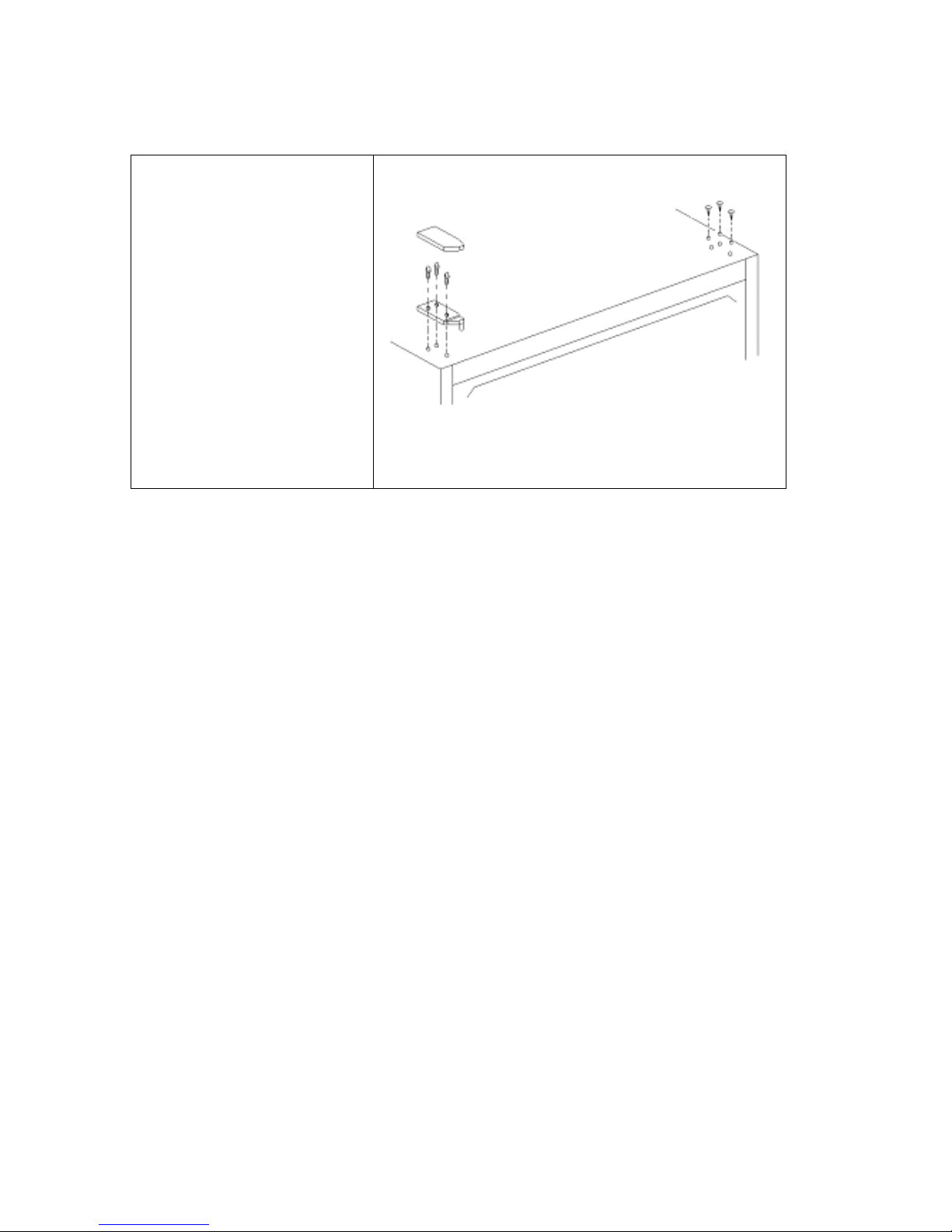

1. First, remove the 3 left hinge

cover. Then remove the right

upper hinge cover, and the

three bolts, then remove the

upper hinge that hold the door

in place. Lift the upper door

and place it on a padded

surface to prevent it from

scratching.

2. Remove the two flange screw,

then remove the middle hinge

that hold the lower door in

place. Lift the lower door and

place it on a padded surface to

prevent it from scratching.

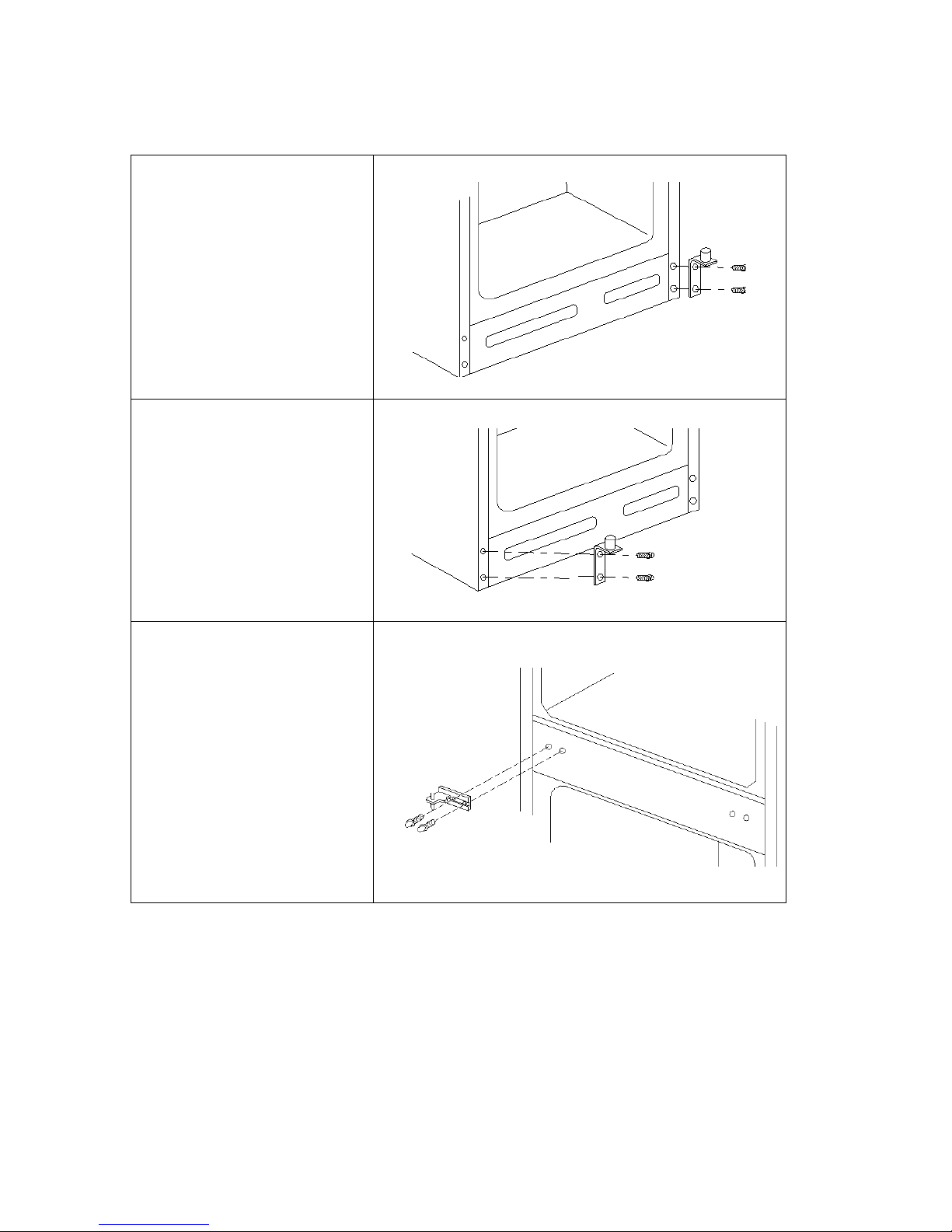

3. Remove the hinge hole cover

from the right holes as

illustrated and transfer them to

the uncover hole at the left

side.

4. Remove the screws that hold

the lower hinge, and transfer

them to the opposite side, and

tighten the screws.

5. Make the support reverse the

direction 180 degree, transfer

the support to the left property

position.

6. Transfer the lower door to the

property position. Secure the

door’s level, make the lower

hinge pin into the lower hole

of the door, then tighten the

bolts.

7. Make the middle hinge reverse

the direction 180 degree, then

transfer it to the left property

position. Make the middle

hinge pin in the upper hole of

the lower door, then tighten the

bolts.

8. Transfer the upper door to the

property position. Secure the

door’s level; make the middle

hinge pin into the lower hole

of the upper door.

9. Make the lower hinge reverse

the direction 180 degree, then

transfer it to the left property

position. Make the lower hinge

pin into the upper hole of the

door, then tighten the bolts,

tighten the screws to secure the

door.

10. Place the 3 right hinge cover at

the left position. Take another

right upper hinge from the

plastic bag that is used to cover

user manual, then set it to the

right property position.

3. HOW TO ASSEMBLE THE BASE GRILLE

The base grille is first placed in the refrigerator chamber. Before changing the reversible door, please take

the base grille out and then assemble the base grille by fixing two screws with a screwdriver according

to the direction of the arrowhead in the figure 1.

Figure 1
