USER’S OPERATION MANUAL

Before operating this unit, please read this manual

thoroughly, and retain for future reference

RS694N4ICE

RS694N4IBE

Contents

Safety and warning information…........2

Installing your new appliance………....8

Description of the appliance….......….13

Display controls…………………...…..14

Using your appliance……………........18

Helpful hints and tips………………

Cleaning and care……………………22

Troubleshooting………………………26

Disposal of the appliance……………28

For your safety and correct usage before installing and first

using the appliance, read this user manual carefully, including

its hints and warnings. To avoid unnecessary mistakes and

accidents, it is important to make sure that all people using the

appliance are thoroughly familiar with its

operation and safety features. Save these instructions and be

sure that they remain with the appliance if it is moved or sold,

so that anyone using it throughout its life, will be properly

informed on its usage and safety notices.

For the safety of life and property, keep the precautions of

these user's instructions as the manufacturer is not

responsible for damages caused by omission.

Hisense Refrigerator

Safety for children and otherswho are vulnerable people

According to EN standard

According to IEC standard

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Hisense Refrigerator

Keep all packaging away from children as there is risk of

suffocation.

If you are discarding the appliance, pull the plug out of the

socket, cut the connection cable (as close to the appliance

as you can) and remove the door to prevent children playing

from suffering an electric shock or from closing themselves

inside it.

If this appliance, featuring a magnetic door seals, is to

replace an older appliance having a spring lock (latch) on the

door or lid, be sure to make the spring lock unusable before

you discard the old appliance. This will prevent it from

becoming a death trap for a child.

General safety

WARNING —This appliance is intended to be used in

household and similar applications such as

-staff kitchen areas in shops, offices and other working

environments;

-farm houses and by clients in hotels, motels and other

residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

WARNING — Do not store explosive substances such as

aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING — Do not use mechanical devices or other

means to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are

of the type recommended by the manufacturer.

WARNING — Fill with potable water only.

Hisense Refrigerator

WARNING — The refrigerant and insulation blowing gas are

flammable. When disposing of the appliance, do so only at

an authorized waste disposal centre. Do not expose to

flame.

WARNING —When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING —Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

Refrigerant

The refrigerant isobutene (R600a) is contained within the

refrigerant circuit of the appliance, a natural gas with a high

level of environmental compatibility, which is nevertheless

flammable. During transportation and installation of the

appliance, ensure that none of the components of the

refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

WARNING:

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is

situated.

WARNING — Refrigerators contain refrigerant andgases in

the insulation. Refrigerant and gases must be disposed of

professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage

prior to proper disposal.

Replacing the illuminating lamps

WARNING—The illuminating lamps must not be replaced by

the user! If the illuminating lamps is damaged, contact the

customer helpline for assistance.

This warning is only for refrigerators that contain illuminating

lamps.

Risk of fire / flammable materials

Hisense Refrigerator

Daily use

Do not store flammable gass or liquids in the appliance,

There is a risk of an explosion.

Do not operate any electrical appliances in the appliance

(e.g.electric ice cream makers,mixers etc.).

When unplugging always pull the plug from the mains

socket,do not pull on the cable.

Do not place hot items near the plastic components of this

appliance.

Electrical safety

1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.

A crushed or damaged power plug may overheat and cause a

fire.

3. Make sure that you can access the main plug of the

appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire.

6.You must not operate the appliance without the interior

lighting lamp cover.

7.The fridge is only applied with power supply of single phase

alternating current of 220~240V/50Hz. If fluctuation of voltage

in the district of user is so large that the voltage exceeds the

above scope, for safety sake, be sure to apply A.C. Automatic

voltage regulator of more than 350W to the fridge. The fridge

must employ a special power socket instead of common one

with other electric appliances. Its plug must match the socket

with ground wire.

It is dangerous to alter the specifications or modify this

product in any way.

Any damage to the cord may cause a shortcircuit, fire, and/or

electric shock.

This refrigerating appliance is not intended to be used

as a built-in appliance.

Hisense Refrigerator

Do not place food products directly against the air outlet on

the rear wall.

Store pre-packed frozen food in accordance with the frozen

food manufacture’s instructions.

The appliances manufactures storage recommendations

should be strictly adhered to.Refer to relrelevant instructions

for storage.

Do not place carbonated or fizzy drinks in the freeze

compartment as it creates pressure on the container,which

may cause it to explode,resulting in damage to the

appliance.

Frozen food can cause frost burns if consumed straight from

the freezer compartment.

Do not place the appliance in direct sunlight.

Keep buring candles,lamps and other items with naked

flames away from the appliance so that do not set the

appliance on fire.

The appliance is intended for keeping food stuff and/or

beverages in normal household as explained in this

instruction booklet The appliance is heavy.Care should be

taken when moving it.

Do not remove nor touch items from the freezer

compartment if your hands are damp/wet,as this could cause

skin abrasions or frost/freezer burns.

Never use the base,drawers, doors etc. to stand on or as

supports.

Frozen food must not be refrozen once it has been thawed

out.

Do not consume ice popsicles or ice cubes straight from

the freezer as this can cause freezer burn to the mouth

and lips.

To avoid items falling and causing injury or damage to

the appliance, do not overload the door racks or put too

much food in the crisper drawers.

caution!

Care and cleaning

Hisense Refrigerator

Adequate air circulation should be around the appliance,

lacking this leads to overheating. To achieve sufficient

ventilation, follow the instructions relevant to installation.

Wherever possible the back of the product should not be too

close to a wall to avoid touching or catching warm parts

(compressor, condenser) to prevent the risk of a fire, follow

the instructions relevant to installation.

The appliance must not be locate close to radiators or cookers.

Make sure that the mains plug is accessible after the

installation of the appliance.

Service

Any electrical work required to do the servicing of the

appliance should be carried out by qualified electrician or

competent person.

This product must be serviced by an authorized Service

Center, and only genuine spare parts must be used.

1)If the appliance is Frost Free.

2)If the appliance contains freezer compartment.

Installation Important!

For electrical connection carefully, follow the instructions

given in this manual.

Unpack the appliance and check if there are damages on it.

Do not connect the appliance if it is damaged. Report

possible damages immediately to the place you bought it. In

this case retain packing.

It is advisable to wait at least four hours before connecting

the appliance to allow the oil to flow back in the compressor.

Before maintenance, switch off the appliance and disconnect

the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam

cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do not use sharp objects to remove frost from the appliance.

Use a plastic scraper.

Note: Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.(This clause applies only to the

EU region.)

130°

140°

≥100

50-70

Installing your new appliance

Before using the appliance for the first

time, you should be aware of the

following tips.

Ventilation of appliance

In order to improve efficiency of

the cooling system and save

energy, it is necessary to maintain

good ventilation around the appliance

for the dissipation of heat. For this

reason, sufficient clear space should

be available around the refrigerator.

Suggest: It is advisable for there to

be 50-70mm of space from the back to

the wall, at least 100mm from its top,

at least 100mm from its side to the

wall and a clear space upfront to allow

the freezer door to open 130°and

refrigerator door to open 140°. See

in follow diagrams. Please refer to the

diagrams below.

the

Relevant information (mm)

This appliance performs well in the

climate class from SN to T. It may not

work properly if being left at a

temperature above or below the

indicated range for a long period.

Note:

Stand your appliance in a dry place

to avoid high moisture damage.

Keep the appliance out of direct

sunlight, rain or frost. Stand the

appliance away from heat sources

such as stoves, fires or heaters.

WW1 W2 DD1

908 417.5 277 600 1142.5

adjusta e bottom f etbl e

Warning!

For proper installation, this refrigerator

must be placed on a level surface of

hard material that is the same height

as the rest of the flooring. This surface

should be strong enough to support a

fully loaded refrigerator.

The rollers, which are not castors,

should be only used for forward or

backward movement. Moving the

refrigerator sideways may damage

your floor and the rollers.

Leveling of appliance

For sufficient leveling and air

circulating in the lower rear section of

the appliance, the bottom feet may

need to be adjusted. Please use a

suitable spanner.

To allow the doors to self-close, tilt

back the top backwards at about

15mm or 0.5°by turning the

adjustable feet.

Whenever you want to move the

appliance, remember to turn the feet

back up, so that the appliance can roll

freely. Reinstall the appliance when

relocating.

0.5

15mm

Fixing the handle

Before you use the product, please

check the handle of the refrigerator. If

the handle is loose, you should fix it

with the hexangular screwdriver in the

clockwise direction, then it can be

used normally.

Installing the water lines and filter

Installing the water filter

Installing the filterthe water lines of

Note!

The water lines must be fully

inserted into the filter to prevent water

leaking.

Filter Holder Screw

To ,

follow the instructions of installing

steps below that referring to the

figures supplied.

install the water lines of the filter

Second,

mount the external filter. (Note: The

water filter should be mount on the

wall where it is convenient to be

replaced, and do not mount on the

wall behind the refrigerator.)

determine the location to

Third,

between the filter and the tap, and the

distance from the filter to the fridge.

Prepare lines as required lengths.

(Cut the proper lengths of water lines

which you determine to connect with

the filter inlet or outlet.)

determine the distance

Fourth, mount the filter holder onto

the wall by using a screwdriver and

attach the water filter.

Warning!

The water filter must be held upright

as shown in the figure above. It is

critical to connect the water inlet and

outlet hoses on the filter correctly.

Never mount the filter onto the

refrigerator. Coolant pipes might be

pierced.

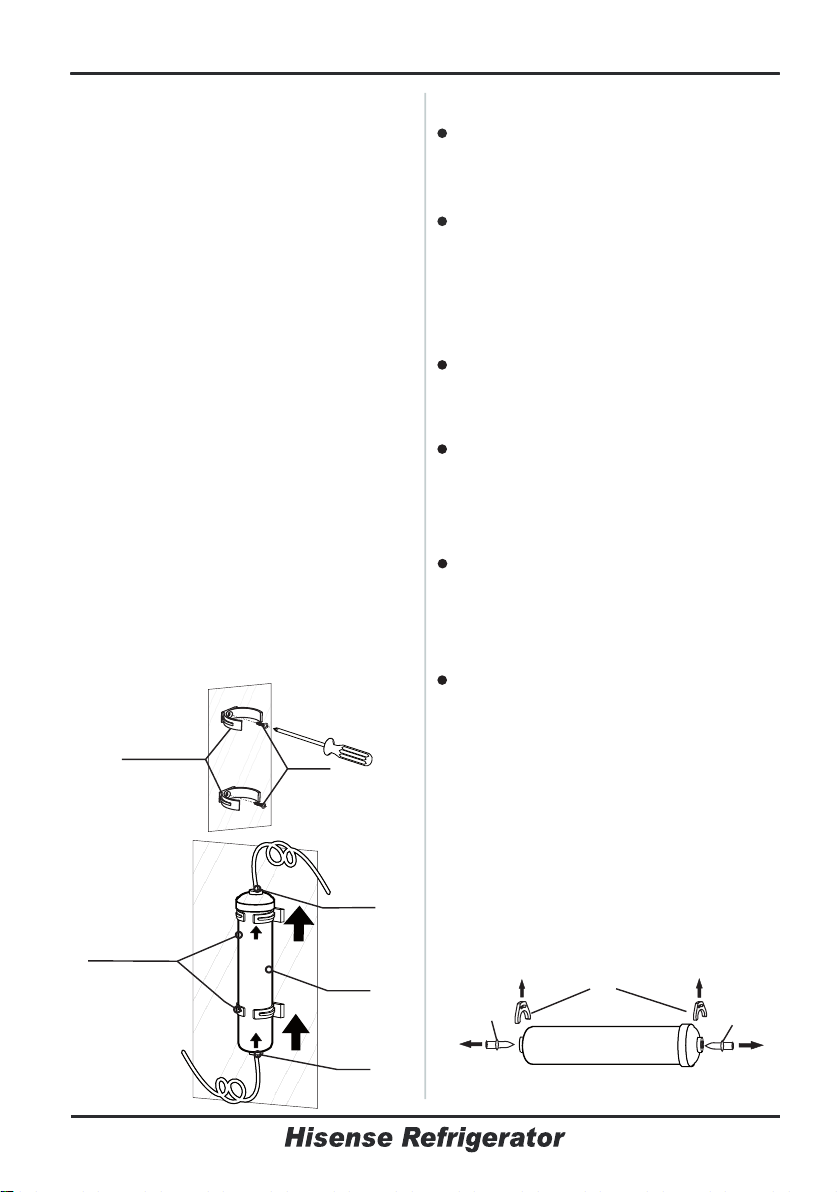

Filter Holder

Filter

Inlet

Outlet

FLOW

First, take out the water filter and

water lines from the fridge room.

To , follow the

installing steps below.

fit the water filter

First, the 2 clips out, then pull out

the 2 stopper of the water filter.

take

Clip

Stopper

Water Filter

It is recommended to have a

suitably qualified person to install the

product.

The line length should be less than

5m. If the water line is too long(>5m),

the ice and cold water content may be

affected due to insufficient water

pressure.

Cut the water line as required length

and avoid overbending the water

lines.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hisense Frigorifero

Hisense

Hisense RB327N4WB1 Istruzioni per il montaggio

Hisense

Hisense RF528N4AC1 Istruzioni per il montaggio

Hisense

Hisense HRCD609B Istruzioni per il montaggio

Hisense

Hisense HRM145N6AVD Manuale utente

Hisense

Hisense BCD440WYHC2 Istruzioni per il montaggio

Hisense

Hisense RR220D4ADF Istruzioni per il montaggio

Hisense

Hisense FTN461WCE1 Istruzioni per il montaggio

Hisense

Hisense RUR156D4AW1 Istruzioni per il montaggio

Hisense

Hisense RS-77WC1SQD/UPE-001 Manuale utente

Hisense

Hisense RL462N4WC1 Istruzioni per il montaggio

Hisense

Hisense RS670N4AC1 Istruzioni per il montaggio

Hisense

Hisense HRFD577B Istruzioni per il montaggio

Hisense

Hisense RR33D6ABE Istruzioni per il montaggio

Hisense

Hisense FV306N4BC1 Istruzioni per il montaggio

Hisense

Hisense RB645N4BFE Istruzioni per il montaggio

Hisense

Hisense FSN515W20C Istruzioni per il montaggio

Hisense

Hisense HTFF525AW Istruzioni per il montaggio

Hisense

Hisense RF26N6AFE Manuale utente

Hisense

Hisense HRQ215N6BVD Manuale utente

Hisense

Hisense RR197D4AGN Istruzioni per il montaggio

Hisense

Hisense RB338N4EW1 Istruzioni per il montaggio

Hisense

Hisense BCD-543WPAZR/HC1(E) Manuale utente

Hisense

Hisense BC-169 Istruzioni per il montaggio

Hisense

Hisense RF749N4SWSE Istruzioni per il montaggio

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
