Hitachi HEF-110M Manuale utente

User ManualI

Electric Fan

30cm

Model: HEF-110M

Made in Japan8

HITACHI

Inspire the Next

Contents

1. Safety rules …………………………………………………..2

2. Hardware included .…...………………………………....…...3

3. Installation………………………………………….….…......4

4. Operation…………………………………………….……….5

5. Maintenance……………………………………….…………6

6. Trouble shooting……………………………………………..6

Safety rules

・Turned off electricity at the circuit breaker or fuse box before maintenance.

・Avoid pouring water to the electric fan.

・The fan, the front guard, the rear guard and the base have been installed before

operating the electric fan.

・Pull the plug out of a socket to assemble or dismantle the electric fan.

・Hold the plug to pull it out of a socket.

・Avoid bending the power cord.

・Operation in the single phaseAC 100V has been required.

・Remove dust on the plug to prevent fire.

・Immediately turn off the electric fan if some nose or vibration occur.

・More than 1m range between human and the electric fan is required when it is

running.

・Pull the plug out of a socket while the electric fan is stopped.

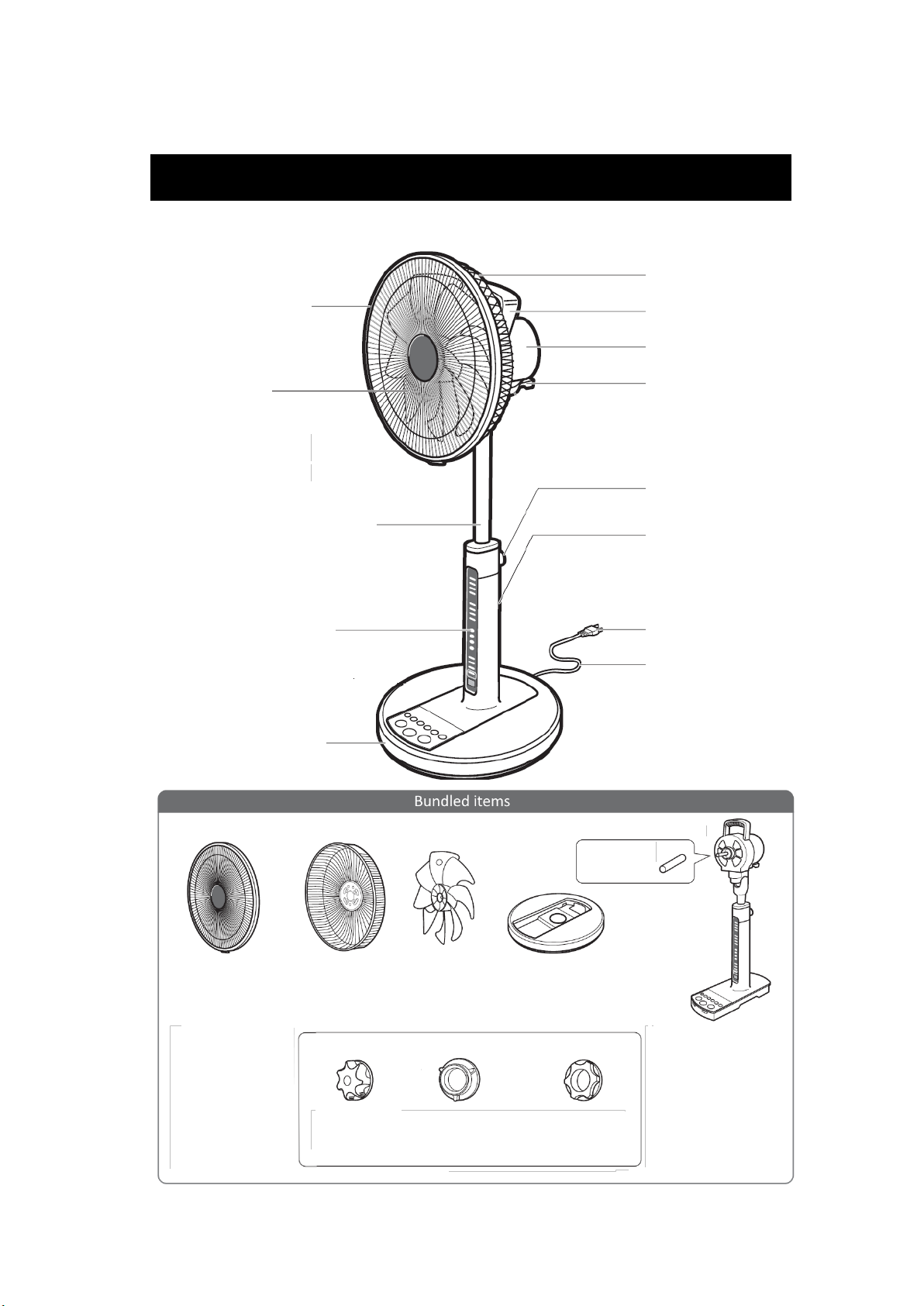

Hardware included

Front guard

Rear guard

Handle

Motor cover

Neck angle adjustment lever

Stand-by indicator

Tunable pipe

Fan

Base

Height adjustment button

Stand

Plug

Power cord

Front guard

Rear guard Fan Base

Motor

shaft

Body

They has been packed into the cushioning material.

Fan cap

Guard fixing

ring

Base fixing

ring

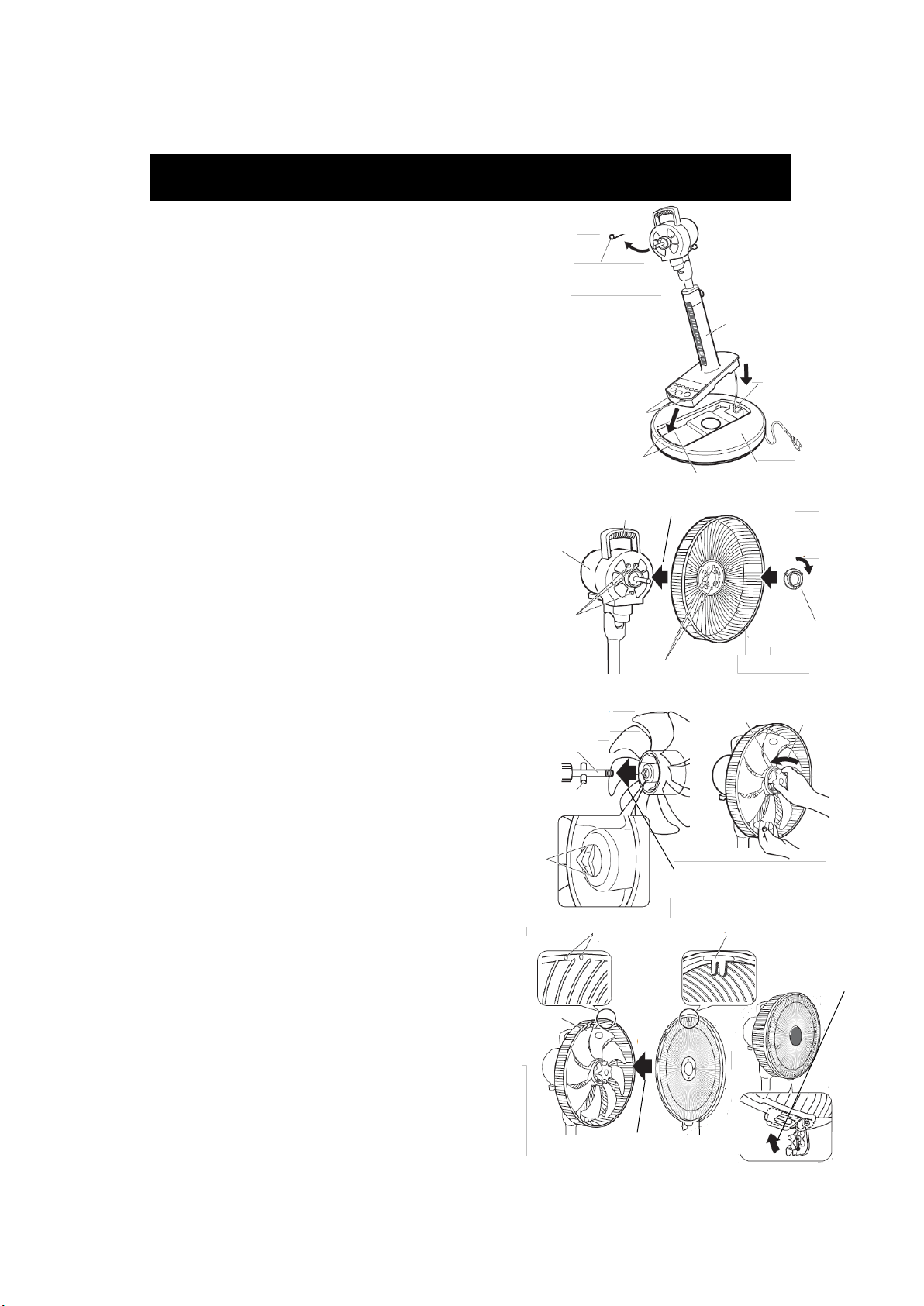

Installation

I. Attach the base.

1. Remove the motor shaft cover

from the motor shaft.

2. Thread the power cord into the

hole in the base.

3. Insert the stand to the base to fit

the convex portion of the stand

in the recess portion of the stand.

II. Attach the rear guard.

1. Insert the rear guard to the motor

cover to fit the convex portion of

the motor cover in the holes in

the rear guard.

2. Turn the guard fixing ring

clockwise to fix the motor cover.

III. Attach the fan.

1. Insert the fan to the motor shaft to

fit the pin of the motor shaft in the

convex portion of the fan.

2. Turn the fan cap

counterclockwise to fix the

Recess portion.

IV.Attach the front guard.

1. Insert the front guard to the rear

guard to attach the hook of the

guard ring to the mark of the rear

guard.

2. Close the hook to fix the front

guard to rear guard.

1. Remove

Motor shaft cover

Stand

Convex portion

Recess portion

3. Insert

Base

2. Thread the

power cord

Motor cover

Handle

1. Insert

Convex portion

Recess portion

Guard fixing ring

2. Turn clockwise

Motor shaft

Convex portion

1. Insert

Fan cap

2. Turn

counterclockwise

Mark

Hook

Rear guard

1. Insert

Guard ring

2. Close the hook

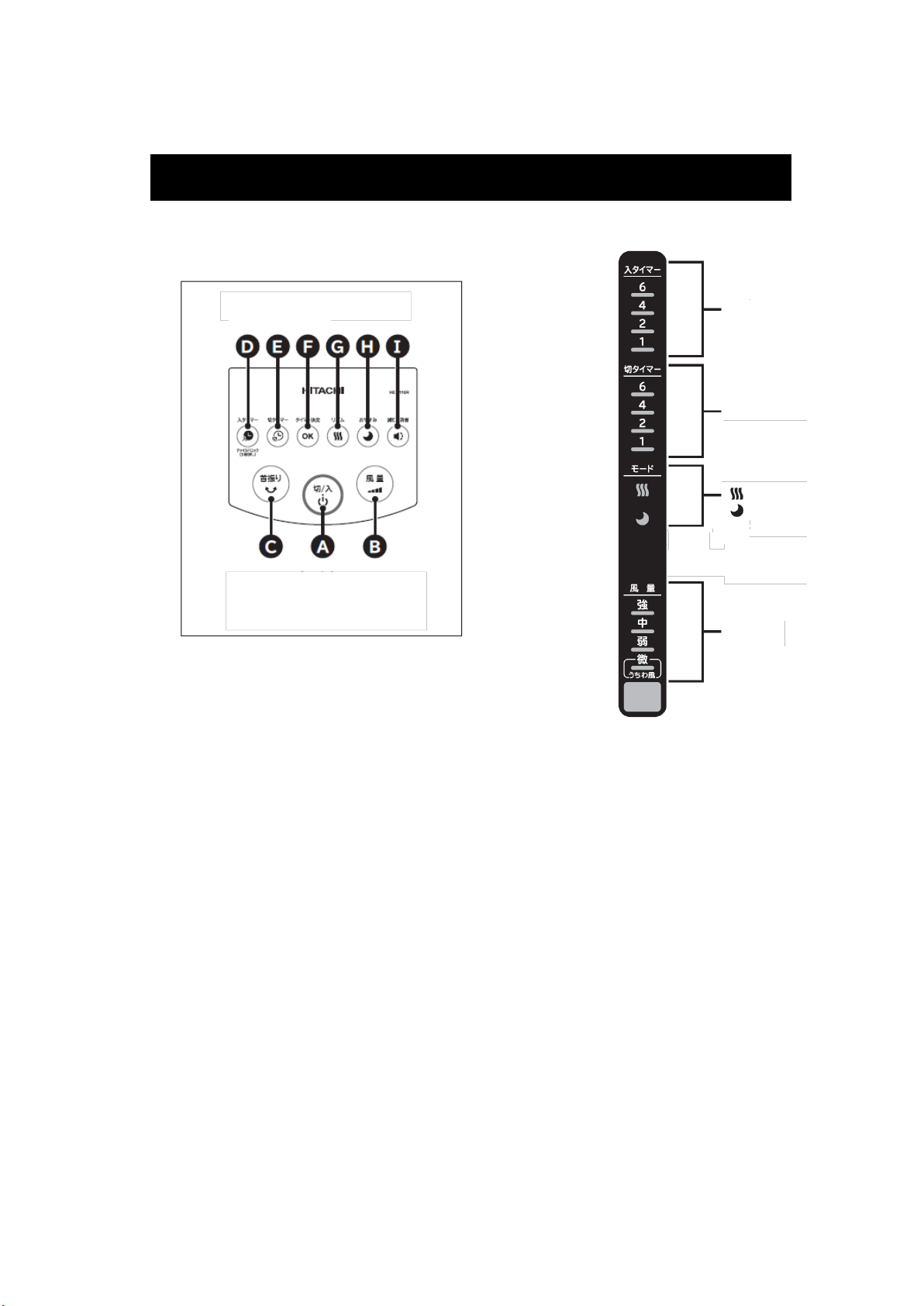

Operation

--------------Manual operation buttons----------- -------------Stand-by indicator------------

Names and functions of manual operation buttons

A. ON/OFF button:

The rotation of the fan is started or stopped.

B. Air volume button:

The air volume is adjusted in four steps of strength; fine, weak, medium and

strong.

C. Swing button:

Swing is started or stopped.

D. On timer button:

Start time of the rotation of the fan is selected.

E. Off timer button:

Stop time of the rotation of the fan is selected.

F. Time decision button:

The time you select by on or off timer button is decided.

G. Rhythm button:

Rhythm mode in which the air volume is rotated from strong to fine is set.

On timer display

Off timer display

Mode display

Rhythm mode

Good night mode

Air volume display

H. Good night button:

Good night mode in which the air volume is changed from week to fine and the

system is stopped in 2 hours is set.

I. Sound button:

The volume of operation sound is changed.

Method of operation

1. Insert the power plug into a wall outlet.

2. Push the A to I button for your purposes.

Maintenance

1. Pull the plug out of a socket.

2. Take out the guard and fan in reverse order to the assembling order.

3. Wipe them soft cloth dampened with water or neutral detergent.

Caution

Motor shaft is very hot immediately after stopping, so wait a minutes.

Trouble shooting

・The fan dose not rotate.

1. Check the plug is stuck to the wall outlet.

2. Check a fuse or circuit breaker is turned on.

・Running sound is very large.

1. Check the fan is fixed.

2. Check the guard is fixed.

3. Check the fan touches the guard.

・Motion is suddenly stopped.

1. Check the fan touches the guard.

2. Check the off timer.

3. Check the good night mode.
