Hitachi SJ-DN Manuale utente

INSTRUCTION MANUAL

Thank you for purchase of “HITACHI INVERTER”. This manual

explains about treatment of “SJ-DN (DeviceNet Option)”

. By reading this

manual and an instruction manual of inverter use practically for

installation, maintenance, and inspection. After reading this manual,

keep it handy for future reference.

Make sure to reach this manual to the end user.

Table of Contents

Chapter1 Introduction

Chapter2 Installation method of printed board 4

Chapter3 Wiring, Connecting 5

Chapter4 Setting 7

Chapter5 Operation 9

Chapter6 DeviceNet Communication Function 11

Chapter7 Countermeasure for abnormality 21

Appendix Parameter Object Lists 23

SJ300/L300P SERIES

SJ-DN

(DeviceNet Option)

NB618X

Hitachi Inverter

After reading this manual, keep it at handy for future reference.

- Request -

Thank you for purchase of “SJ-DN (DeviceNet Option)”.

This instruction manual explains about treatment and maintenance of “SJ-DN”. Before using the product,

carefully read this manual with the instruction manual of inverter, and keeps it handy for quick reference of

operator and maintenance inspector. Before installing, operating, maintenance and inspection read this

manual carefully and follow the instructions exactly.

Always keep various kinds of specification mentioned in this manual and use exactly. And make sure to

prevent trouble by correct inspection and maintenance. Make sure to reach this manual to the end user.

- About treatment of this manual -

(1)Please consent that mentioned items of this manual may be change without permission.

(2)Keep this manual carefully not to lose because it can not be reissued

(4)Contents in this manual is written to make assurance doubly sure but, but please contact if you have

some doubts about spelling mistakes, omitted word etc.

(5)Please agree that there is no responsibility for effects resulted, in spite of contents above mentioned.

- About trademark -

(1)DeviceNet is trademark of Open DeviceNet Vendor Association, Inc.

Revision History Table

No.Revision contents The date of issued Manual No.

1. Initial release of Manual NB618X Jan. 2001 NB618X

Except this table, revised only spelling mistakes omitted words, and error writings without notice.

SAFETY PRECAUTIONS

SAFTY PRECAUTIONS

Carefully read this manual and all of the warning labels attached to the inverter before installing, operating,

maintaining, inspecting, it. Safety precautions are classified into “Warning”and “Caution”in this manual.

：Indicates a potentially hazardous situation which, if not avoided, can result in serious

injury or death.

：Indicates a potentially hazardous situation which, if not avoided, can result in minor to

moderate injury, or serous damage to the product

The situation described in may, if not avoided, lead to serious results. Important safety

measures are described in CAUTION (as well as WARNING) so be sure observe them.

Notes are described in this manual in“(Note)”. Carefully read the contents and follow them exactly.

CAUTION

In all the illustrations in this manual, covers and safely device are occasionally removed to describe the

details. When the product is operated, make sure that the covers and safety devices are placed as they

were specified originally and operate it according to the instruction manual.

WARNING

CAUTION

SAFETY PRECAUTIONS

WARNING

Wiring:

Wiring work shall be carried out by electrical experts.

Otherwise, there is a danger of electric shock, fire and/or damage of product.

Implement wiring after checking that the power supply is off.

Otherwise, there is a danger of electric shock and/or fire.

Operating:

Be sure not to touch the surface or the terminal of option board while energizing.

Otherwise, there is a danger of electric shock and/or fire.

Be sure not to remove the DeviceNet option printed board while operating.

Otherwise, there is a danger of electric shock and/or fire.

Maintenance, Inspection and Part Replacement:

Wait at least 10 minutes after turning off the input power supply before performing maintenance and

inspection.

(Confirm the charge lamp on the inverter is off, checks direct current voltage between P-N terminals and

confirm it is less than 45V)

Otherwise, there is a danger of electric shock.

Make sure that only qualified persons will perform maintenance, inspection, and part replacement

(Before starting the work, remove metallic objects from your person (wristwatch, bracelet, etc.).

Be sure to use tools protected with insulation.)

Otherwise, there is a danger of electric shock and/or injury.

Note:

Never modify the unit.

Otherwise, there is a danger of electric shock and/or injury.

CAUTION

Installation:

Be sure not to let the foreign matter enter such as wire clippings, spatter from welding, metal shaving,

dust etc.

Otherwise, there is a danger of fire.

Be sure to fix inverter to option printed board with an attached fixed screw.

Otherwise, there is a danger of connecting error.

Be sure to fasten the screws connecting signal wire in side of option printed board. Check for any

loosening of screw.

Otherwise, there is a danger of connecting error.

Wiring:

Be sure to fasten the screws not to loose.

Otherwise, there is a danger of connecting error.

Operation:

Check rotary direction, abnormal motor noise and vibrations during operating.

Otherwise, there is a danger of injury to personnel and/or machine breakage

CHAPTER 1 INTRODUCTION

1.1 INSPECTION UPON UNPACKING

Make sure to treat the product carefully not to give shock and vibration while unpacking. Check that the

product is the one you ordered, no defect, and that there is no damage during transportation.

(Contents of packing)

(1) SJ-DN(DeviceNet option printed board):1

(2) Instruction manual:1

(3) DeviceNet connector:1

(4) Screws fixed printed board (M3 times 8 mm):2

If you discover any problems, contact your sales agent immediately.

1.2 INQUIRY OF THE PRODUCT AND WARRANTY FOR THE PRODUCT

1.2.1 REQUIRE WHILE INQUIRING

If inquiry of breakage, question, damage etc. is needed, please tell the following information to the supplier

you ordered or the nearest Hitachi Distributor.

(1) Type(SJ-DN)

(2) Manufacturing number (Item of label, that labeled surface of printed board. SJ-DN XXX )

(3) Date of purchasing

(4) Contents of inquiry

・Damage parts and its condition etc.

・Question parts and their contents etc.

In order to shorten impossible working time, standing spare unit is recommended.

1.2.2 WARRANTY OF THE PRODUCT

This product is guaranteed to last for one year after purchase. But, the next case is toll repair, even if within

warranty period.

(1) In case caused by operating mistake, and incorrect repair and modification.

(2) Trouble caused by reasons except the shipped product.

(3) In case of using in range over the value of specification.

(4) In case caused by natural calamity, disaster, and secondary disaster.

Warranty mentioned here means warranty for shipped product itself. Damage caused by trouble of shipped

product is not guaranteed.

[Toll repair]

Any explanation and repair after the warranty period (one-year) shall be charged to the purchaser. And also

any explanation and repair out of warranty mentioned above, even within warranty period, shall be charged

to the purchaser. If you require the toll repair, please contact your Hitachi distributor.

CHAPTER 1 INTRODUCTION

1.3 Outline of product

SJ-DN is DeviceNet communication board for SJ300/L300P series inverter.

SJ-DN conforms to open field Network DeviceNet and it activates as slave function (Group 2 only server).

SJ-DN is also conforms ODVA’s certification.

(SJ-DN has been tested by ODVA's authorized Independent Test Lab and found to comply with ODVA

Conformance Test Software Version A-13.)

The following functions are available via DeviceNet communication function by installing SJ-DN to

SJ300/L300P series.

Polled Input/Output message connection

This command can exchange the master’s I/O data for the slave (Inverter)’s I/O data.

Output data (from master to SJ-DN):

Run/Stop, reference frequency, Acceleration time, Deceleration time, Fault reset etc.

Input data (from SJ-DN to master):

Inverter status, output frequency, output current, trip history etc.

Explicit message connection

This function can reads and writes (configuration) the inverter’s parameter data, when it is necessary.

SJ-DN can use inverter below:

SJ300-004LF to 550LF, 007HF to 550HF, L300P-110LFR to 750LFR, 110HFR to 750HFR

(Note) RS485 communication function is disabled by installing SJ-DN to the inverter.

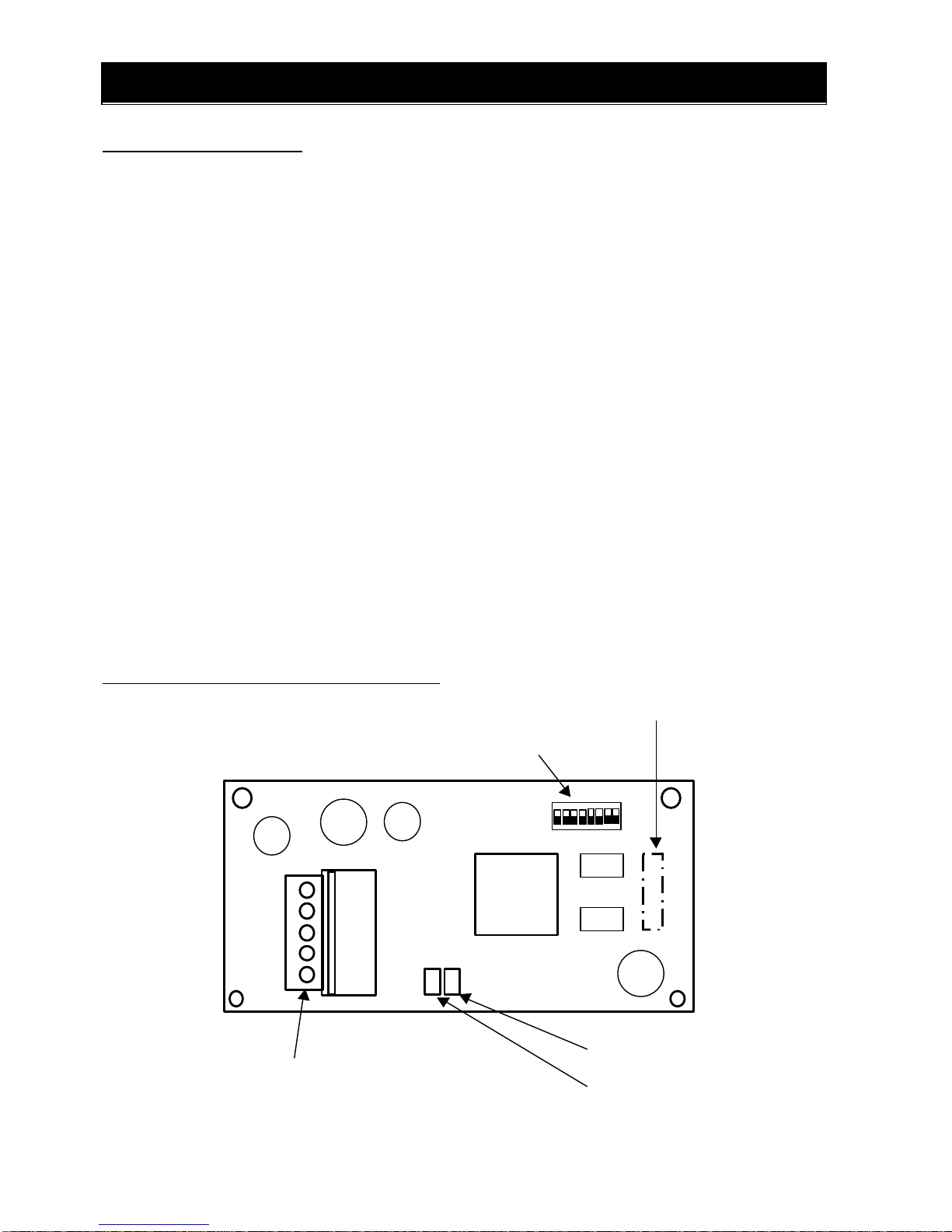

1.4 Appearance and Names of Parts

Figure 1-1 indicates the appearance of SJ-DN.

Connector for connecting to SJ300/L300P (Rear of unit)

DeviceNet connector (open type)

Phoenix Contact Co, Ltd. (MSTB2.5/5-ST-5.08AU) etc

Network status LED (NET)

Module status LED (MOD)

DIP SW (SW) for setting MAC ID and Baud rate

Figure 1-1 Appearance of SJ-DN

CHAPTER 1 INTRODUCTION

1.5 DeviceNet Support Version

SJ-DN can use following Production number(MFG No) of SJ300/L300P series.

After MFG No. : XX8KXXXXXXXXXXXX

(Note) Production number (MFG No) is written in specifications label on main body of

SJ300/L300Pseries. Refer to figure 1-2, figure 1-3.

(Figure1-2,1-3 are the example of SJ300 series. L300P series are the same manner as

SJ300 series.)

Specifications label

Figure 1-2 Position of specifications label

Figure 1-3 Contents of specifications label

Inverter model

Maximum applicable

motor

Input ratings

Output ratings

Production number

CHAPTER 2 INSTALLATION METHOD OF PRINTED BOARD

2.1 Mounting method of option board

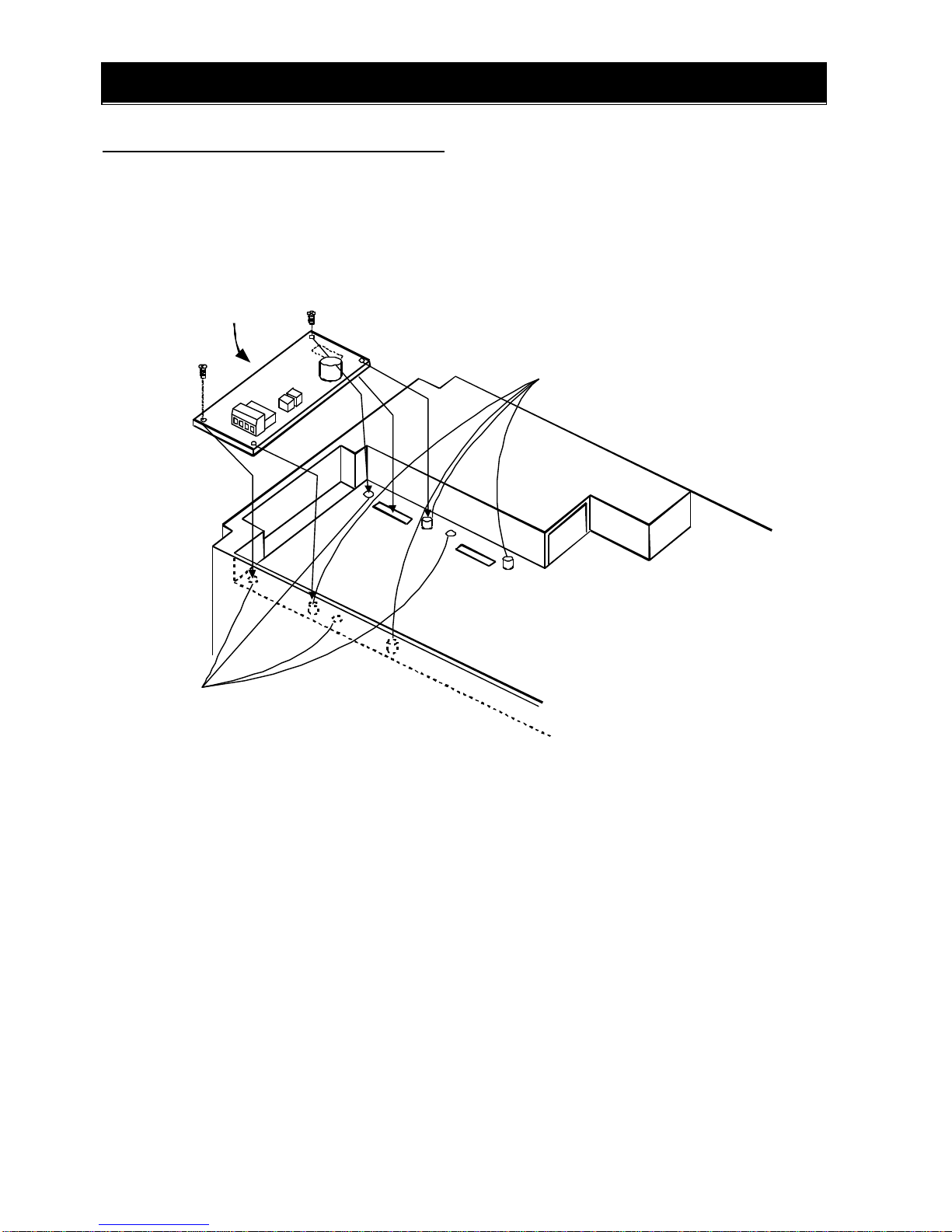

Figure 2-1 describes how to mount the option board to the option port 1 or 2.

There are four holes on the option board, match the two of them with the screw holes on the option port 1 or 2.

and mount the other two holes with the guide posts which are located on the option port 1 and 2. To avoid

connection failure, secure the option board with screws after connection.

Option board

Guide posts for mounting the

option board.

Option port 1

Option port 2

Screw holes for secure option board.

(M3 Screws)

Figure 2-1 Installation of option board

CHAPTER 3 WIRING, CONNECTING

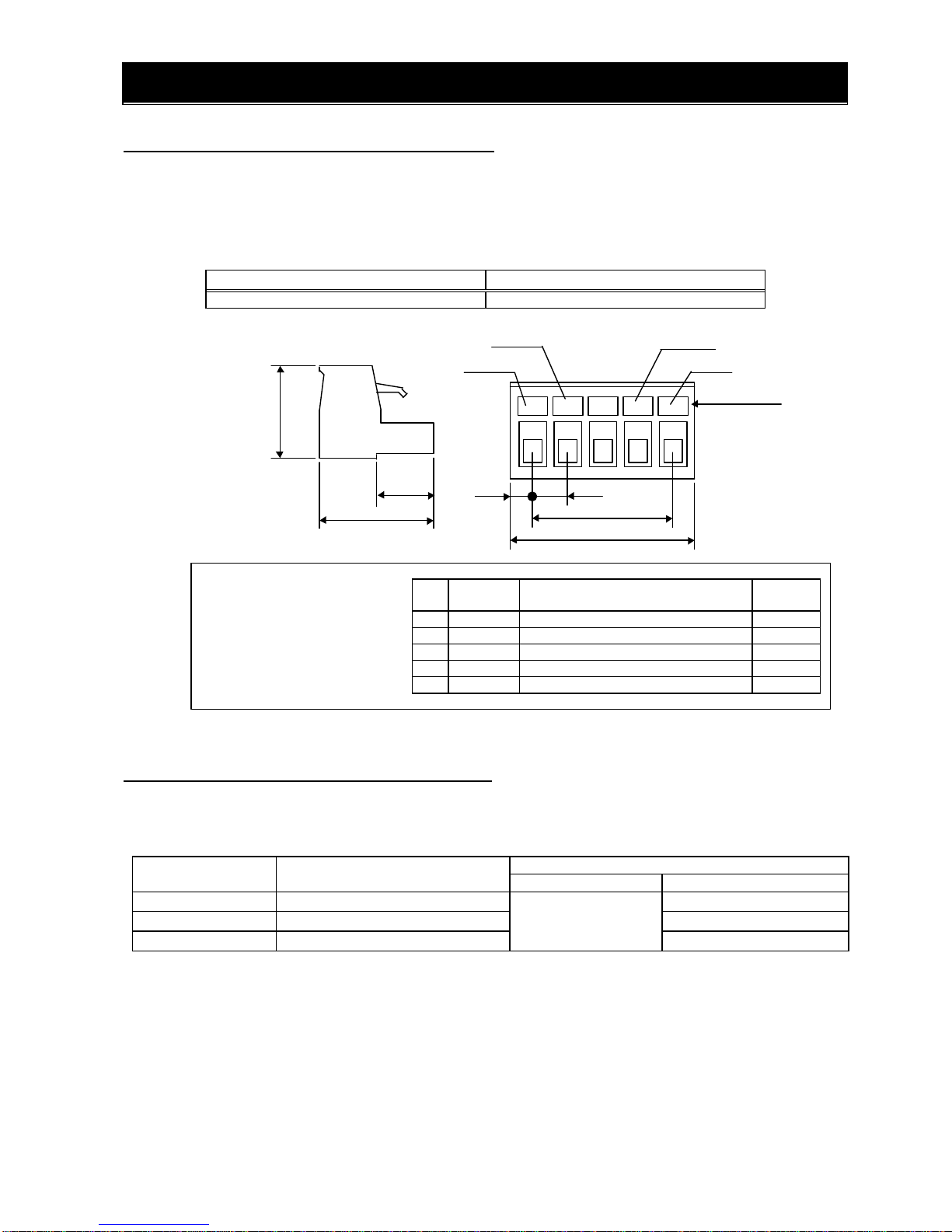

3.1 Connection for DeviceNet connector

SJ-DN has a Pluggable open connector (Male contacts), and a Network connector (Female contacts)

attached. The inverter and attach connector have a seal which is color coordinated to correspond to the

DeviceNet cable. Ensure the cable and contact are wired in the same color cable.

Cable side connector (attached connector)

Maker Type

Phoenix contact co, Ltd. MSTB 2.5/5ST-5.08 AU

Figure 3-1 Connector specification

3.2 Communication cable for DeviceNet

Use the connector which conforms to DeviceNet specification or five conductor cable and also make sure

that cable, connector and Network distance conform to DeviceNet specification.

Drop line

Baud rate(kbps) Maximum Trunk line length(m)

(Or Maximum system length(m)) Maximum length(m) Maximum total length(m)

125 500 156

250 250 78

500 100 639

8.3

18.2

Dimension

20.32

2.54

White

Black

Color label

Blue

Red

25.4

5.0

Wiring ofDeviceNet

Communication connector

No.

Signal

mark Type of signal Cable

color

1V- - (Minus) side of power supply Black

2CAN_L Communication data (Low) Blue

3Shield Shield Bare

CAN_H

Communication data (High) White

5V+ + (Plus) side of power supply Red

Dimension in mm

CHAPTER 3 WIRING, CONNECTING

3.3 Wiring note

1.Installing / removing the cable or connector must be done after checking the power supply off.

2.Wiring should not have bare cables exposed between connector contacts.

3.Network cables should be fixed without tension. Cables fixed under tension have potential of causing a

communication fault by to be removed a connector.

4.Provide a communication power source (DC24V).

5.A terminating resistor is not built-in the unit. Please provide it.

6.Ensure external emergency stop measures are taken to stop the inverter, in the event of a network fault.

(a) Remove the Power supply of the Inverter when the network master detects a communication fault.

(b) When the master detects a communication fault, turn on the intelligent input terminal which would be

allocated (FRS), (RS) and/or (EXT) function.

In this setting, the inverter is tripped, deceleration or free run stop when it detects a communication

fault itself. (Factory initialization of command P045 is trip after deceleration stop (code: 01).)

See “4.2 Setting of the Inverter”and “4.3 Explanation of additional parameters”about explanation of

P045 (Inverter action when communication error).

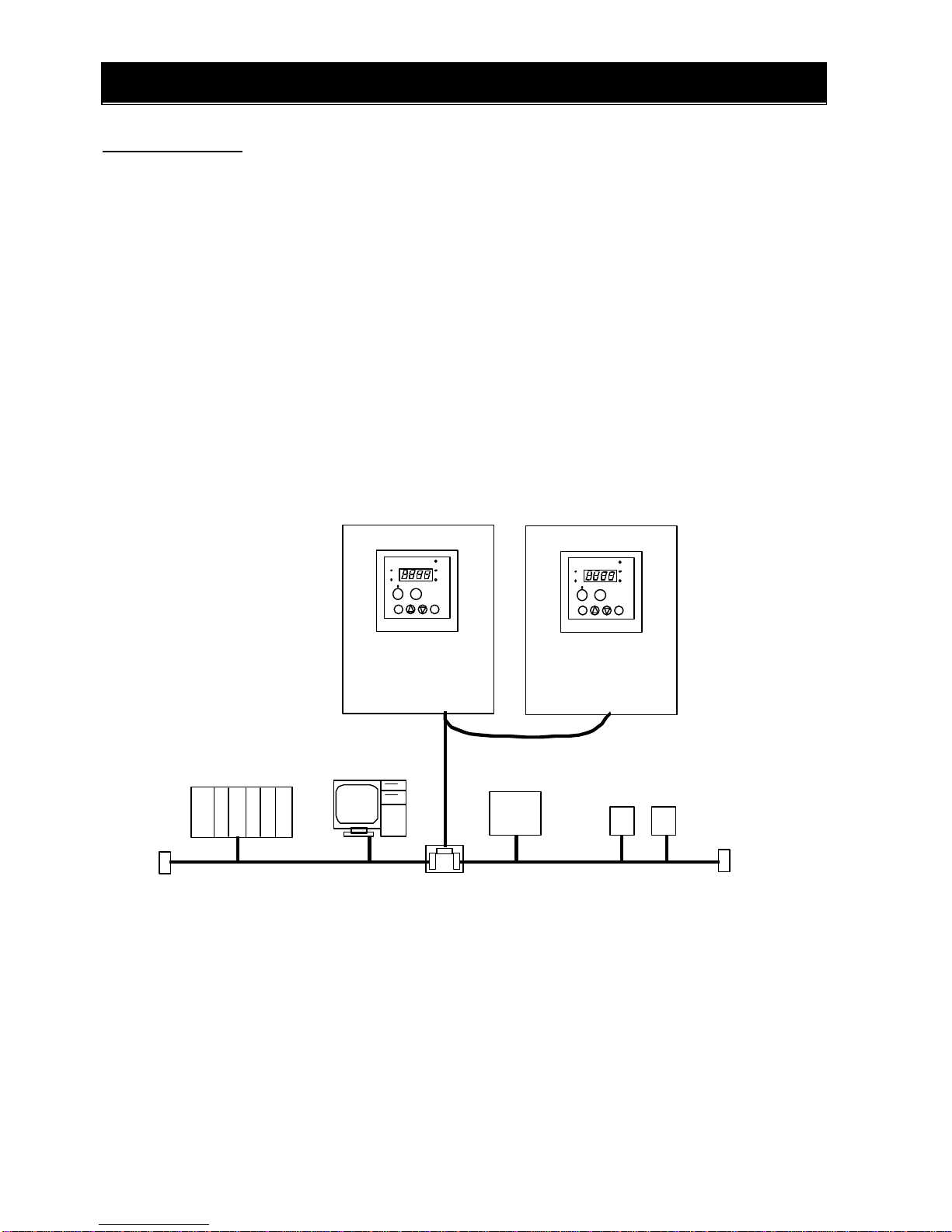

7.Basic components for construction of DeviceNet application are shown bellow.

Refer to the master’s description manuals when DeviceNet Network system comes into operation.

HITACHI

SJ300/L300P SJ300/L300P

Terminating

resistor（121Ω）

Terminating

resistor

(121Ω)

Multi port Tap

Other slave units

Power

Supply

DC24V

DeviceNet Master UNIT

(PLC)

Trunk line Trunk line

Drop

line

Multiple Node branching drop line.

Figure 3-2 Example of components for construction of DeviceNet application

Configurater (PC)

HITACHI

Indice

Altri manuali Hitachi Invertitore

Hitachi

Hitachi SJ300 Series Manuale elenco delle parti

Hitachi

Hitachi L200 Series Guida rapida

Hitachi

Hitachi WJ200 Series Software Manuale utente

Hitachi

Hitachi J300 Series Manuale di istruzioni

Hitachi

Hitachi WJ200 Series Software Manuale utente

Hitachi

Hitachi SJ700-4000HFU2 Manuale utente

Hitachi

Hitachi AN072803-1 Istruzioni per l'installazione e il funzionamento

Hitachi

Hitachi WJ200 Series Software Manuale utente

Hitachi

Hitachi AN032404-1 Rev. A Istruzioni per l'installazione e il funzionamento

Hitachi

Hitachi NT2021XA Manuale utente

Hitachi

Hitachi L300P Series Manuale utente

Hitachi

Hitachi WJ200-004MF Manuale utente

Hitachi

Hitachi L100 Series Manuale utente

Hitachi

Hitachi air core 600 Manuale di istruzioni

Hitachi

Hitachi BRD-EZ3-110K Manuale utente

Hitachi

Hitachi SJ700-2 Series Manuale utente

Hitachi

Hitachi SJ700 Series Software Manuale utente

Hitachi

Hitachi LH1 Series Guida utente

Hitachi

Hitachi P1-00080-L Guida utente

Hitachi

Hitachi NES1-OP Guida all'installazione

Hitachi

Hitachi J300U Series Manuale di istruzioni e di sicurezza

Hitachi

Hitachi L100 Series Manuale di servizio

Hitachi

Hitachi L300P Series Manuale utente

Hitachi

Hitachi SJ100 Series Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
