Hitachi SJ2002 Series Manuale utente

• Single-phase Input 200V Class

• Three-phase Input 200V Class

• Three-phase Input 400V Class

Manual No. NB6701X • Sept. 2006

Hitachi Industrial Equipment Systems Co., Ltd.

SJ2002Series Inverter

Quick Reference Guide

Caution: Be sure to read the SJ2002Inverter Manual and follow

its Cautions and Warnings for the initial product installation.

This Quick Reference Guide is intended for reference use by

experienced users in servicing existing installations.

UL®Cautions, Warnings, and Instructions

Wiring Warnings for Electrical Practices and Wire Sizes

The Cautions, Warnings, and instructions in this section summarize the

procedures necessary to ensure an inverter installation complies with

Underwriters Laboratories®guidelines.

Warning: “Use 60/75°C Cu wire only” or equivalent.

Warning: “Open Type Equipment.”

Warning: “Suitable for use on a circuit capable of delivering

not more than 100,000 rms symmetrical amperes, 240 V

maximum.” For models with suffix N or L.

Warning: “Suitable for use on a circuit capable of delivering

not more than 100,000 rms symmetrical amperes, 480 V

maximum.” For models with suffix H.

Warning: “Hot surface—risk of burn.”

Warning: “Install device in pollution degree 2 environment.”

Warning: “Maximum Surrounding Air Temperature 50°C.”

Warning: “Risk of electric shock—capacitor discharge time is at

least 5 minutes.”

Warning: “Solid state motor overload protection is provided in

each model.”

Warning: “Tightening torque and wire range for field wiring

terminals are marked adjacent to the terminal or on the wiring

diagram.”

Terminal Tightening Torque and Wire Size

The wire size range and tightening torque for field wiring terminals are

presented in the tables below.

200V Models

Motor output

Inverter Model Wire Size

(AWG)

Torque

kW HP ft-lbs (N-m)

0.2 1/4 –002NFE(F)2/NFU2

16 0.6 0.80.4 1/2 –004NFE(F)2/NFU2

0.55 3/4 –005NFE(F)2

0.75 1 –007NFE(F)2/NFU2 14

0.9 1.2

1.1 1 1/2 –011NFE(F)2

1.5 2 –015NFE(F)2/NFU2 12

2.2 3 –022NFE(F)2/NFU2 10

3.7 5 –037LFU2 10

5.5 7 1/2 –055LFU2 10 1.5 2.0

7.5 10 –075LFU2 8

400V Models

Motor output

Inverter Model Wire Size

(AWG)

Torque

kW HP ft-lbs (N-m)

0.4 1/2 –004HFE(F)2/HFU2

0.9 1.2

0.75 1 –007HFE(F)2/HFU2

1.5 2 –015HFE(F)2/HFU2

2.2 3 –022HFE(F)2/HFU2

3.0 4 –030HFE(F)2 14

4.0 5 –040HFE(F)2/HFU2

5.5 7 1/2 –055HFE(F)2/HFU2 12 1.5 2.0

7.5 10 –075HFE(F)2/HFU2

Wire Connectors

Warning: Field wiring connections

must be made by a UL Listed and CSA

Certified ring lug terminal connector

sized for the wire gauge being used.

The connector must be fixed using the

crimping tool specified by the con-

nector manufacturer.

Fuse and Circuit Breaker Sizes

The inverter’s input power wiring must include UL Listed, dual-element,

600V fuses, or UL Listed, inverse-time, 600V circuit breakers.

Terminal Connector

Wire Size

Range

(AWG)

Torque Range

ft-lbs (N-m)

Logic/Analog connector 30—16 0.16—0.19 0.22—0.25

Relay connector 30—14 0.37—0.44 0.5—0.6

200V Models

Motor output

Inverter Model Ampere Rating for

Fuse or Breaker

kW HP

0.2 1/4 –002NFE(F)2/NFU2 10

0.4 1/2 –004NFE(F)2/NFU2 10

0.55 3/4 –005NFE(F)2 10

0.75 1 –007NFE(F)2/NFU2 15

1.1 1 1/2 –011NFE(F)2 15

1.5 2 –015NFE(F)2/NFU2 20 (single ph.)

15 (three ph.)

2.2 3 –022NFE(F)2/NFU2 30 (single ph.)

20 (three ph.)

3.7 5 –037LFU2 30

5.5 7 1/2 –055LFU2 40

7.5 10 –075LFU2 50

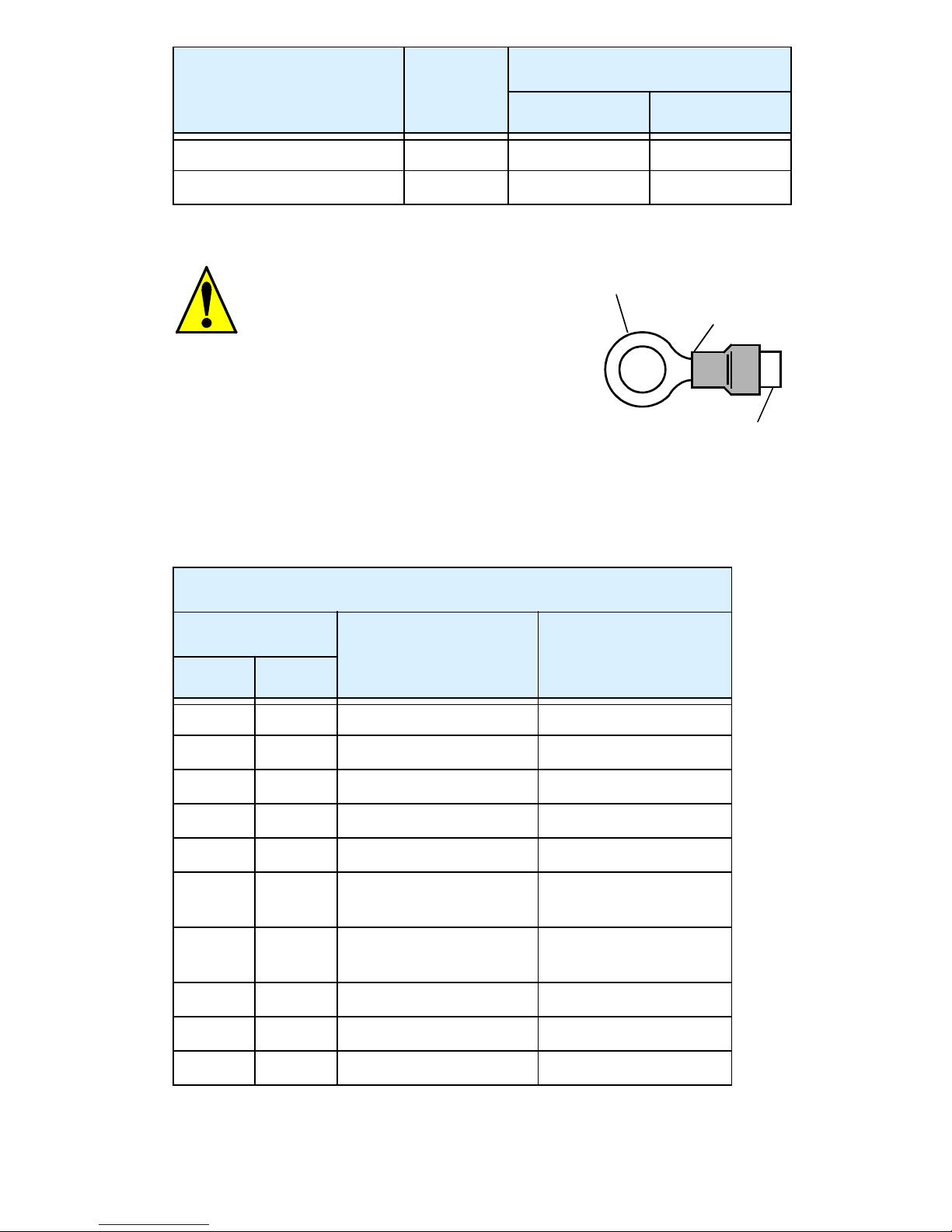

Terminal (ring lug)

Cable support

Cable

Motor Overload Protection

Hitachi SJ2002inverters provide solid state motor overload protection,

which depends on the proper setting of the following parameters:

• B012 “electronic overload protection”

• B212 “electronic overload protection, 2nd motor”

Set the rated current [Amperes] of the motor(s) with the above parame-

ters. The setting range is 0.2 * rated current to 1.2 * rated current.

Warning: When two or more motors are connected to the

inverter, they cannot be protected by the electronic overload pro-

tection. Install an external thermal relay on each motor.

400V Models

Motor output

Inverter Model Ampere Rating for

Fuse or Breaker

kW HP

0.4 1/2 –004HFE(F)2/HFU2 3

0.75 1 –007HFE(F)2/HFU2 6

1.5 2 –015HFE(F)2/HFU2 10

2.2 3 –022HFE(F)2/HFU2 10

3.0 4 –030HFE(F)2 15

4.0 5 –040HFE(F)2/HFU2 15

5.5 7 1/2 –055HFE(F)2/HFU2 20

7.5 10 –075HFE(F)2/HFU2 25

Power Circuit Terminals

Inverter models SJ200–002NFE(F)2/NFU2 to –005NFE(F)2/

NFU2

Jumper

+ –

U/T1 V/T2 W/T3

Chassis

Ground

Inverter models SJ200–007NFE(F)2 to –022NFE(F)2,

–007NFU2 to –037LFU2, –004HFE(F)2/HFU2 to

–040HFE(F)2/HFU2

Jumper

RB+ – U/T1 V/T2 W/T3

Chassis

Ground

Inverter models SJ200–055LFU2, –055HFE2/HFU2,

–075LFU2, 075HFE2/HFU2

Jumper

P/+ N/–

L1 L2 N/L3

PD/+1

Chassis

Ground

L1 L2 N/L3

R/L1 S/L2 T/L3

NFE(F)2,

NFU2

LFU2,

HFE(F)2,

HFU2

U/T1R/L1 S/L2 T/L3 V/T2 W/T3

U/T1 V/T2 W/T3

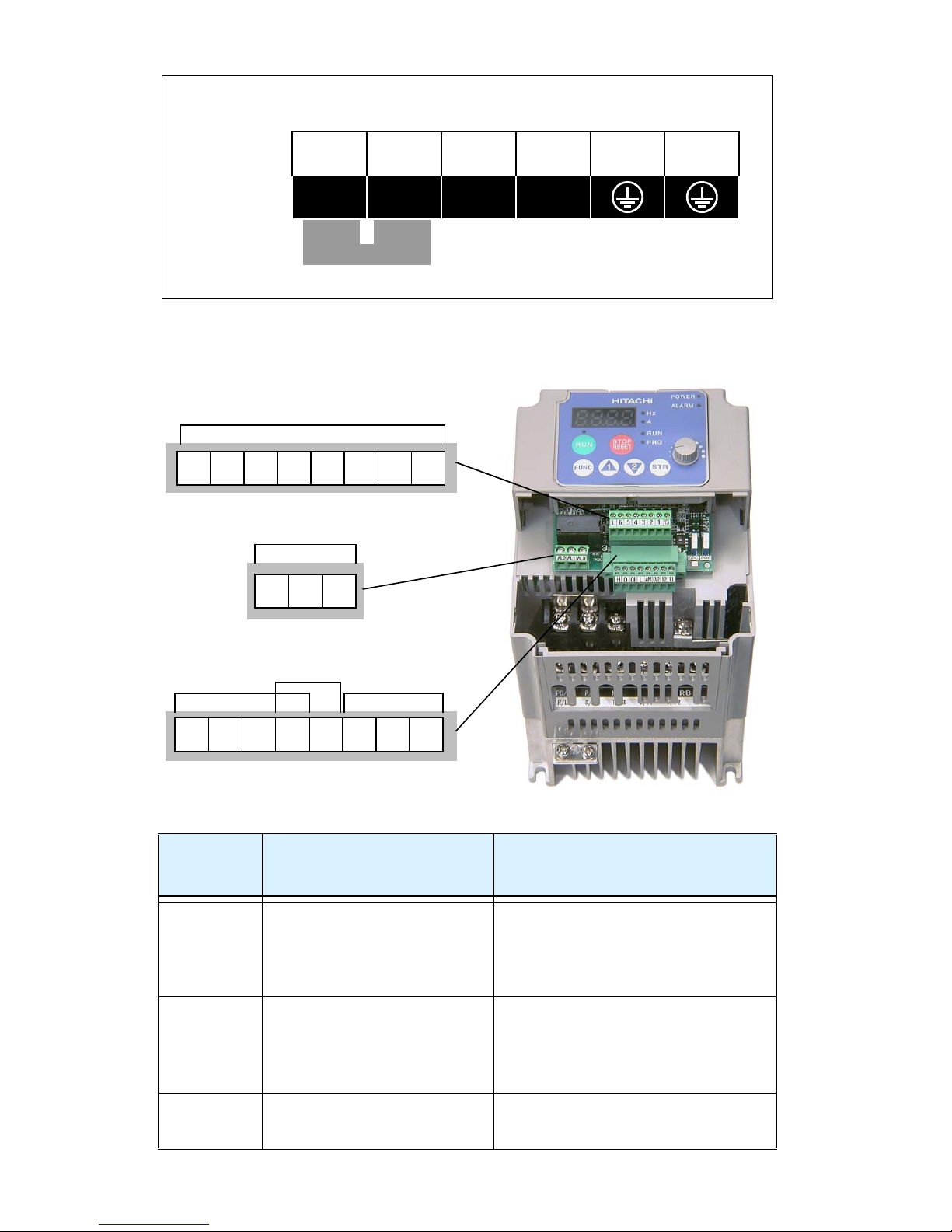

Control Circuit Terminals

Terminal

Name Description Ratings and Notes

PCS +24V for logic inputs 24VDC supply, 30 mA max.

(Notes: Do not use for network

power

Do not short to terminal L)

1, 2, 3, 4,

5, 6

Intelligent (program-

mable) discrete logic

inputs

27VDC max. (use P24 or an

external supply referenced to

terminal L), 4.7kΩinput

impedance

L (top

row)

GND for logic inputs Sum of input 1 to 6 currents

(Note: Do not ground)

Inverter models SJ200–HFEF2, –075HFEF2

Jumper

+ –

Chassis

Ground

U/T1 V/T2 W/T3L1 L2 L3

H O OI

PCS

Analog

inputs

Analog

outputs

Alarm relay

Logic

outputs

Logic inputs

6 5 4 3 2 1

CM2

12 11

AL2 AL1 AL0

11, 12 Discrete logic outputs 50 mA max. ON current,

27 VDC max. OFF voltage

CM2 GND for logic outputs 100 mA max for sum of

terminals 11 and 12 currents

AM Analog voltage output 0 to 10VDC, 1 mA max., 50%

duty cycle

L (bottom

row)

GND for analog signals Sum of OI, O, H, and AM

currents (return)

OI Analog input, current 4 to 19.6 mA range, 20 mA

nominal

O Analog input, voltage 0 to 9.6 VDC range, 10VDC

nominal, 12VDC max., input

impedance 10 kΩ

H +10V analog reference 10VDC nominal, 10 mA max.

AL0 Relay common contact Contact rating

Max resistive load = 250VAC,

2.5A; 30VDC 3A;

Max inductive load = 250VAC,

0.2A; 30VDC 0.7A

Minimum load = 5VDC 100mA,

100VAC 10mA

AL1 Relay contact, normally

closed during RUN

AL2 Relay contact, normally

open during RUN

Terminal

Name Description Ratings and Notes

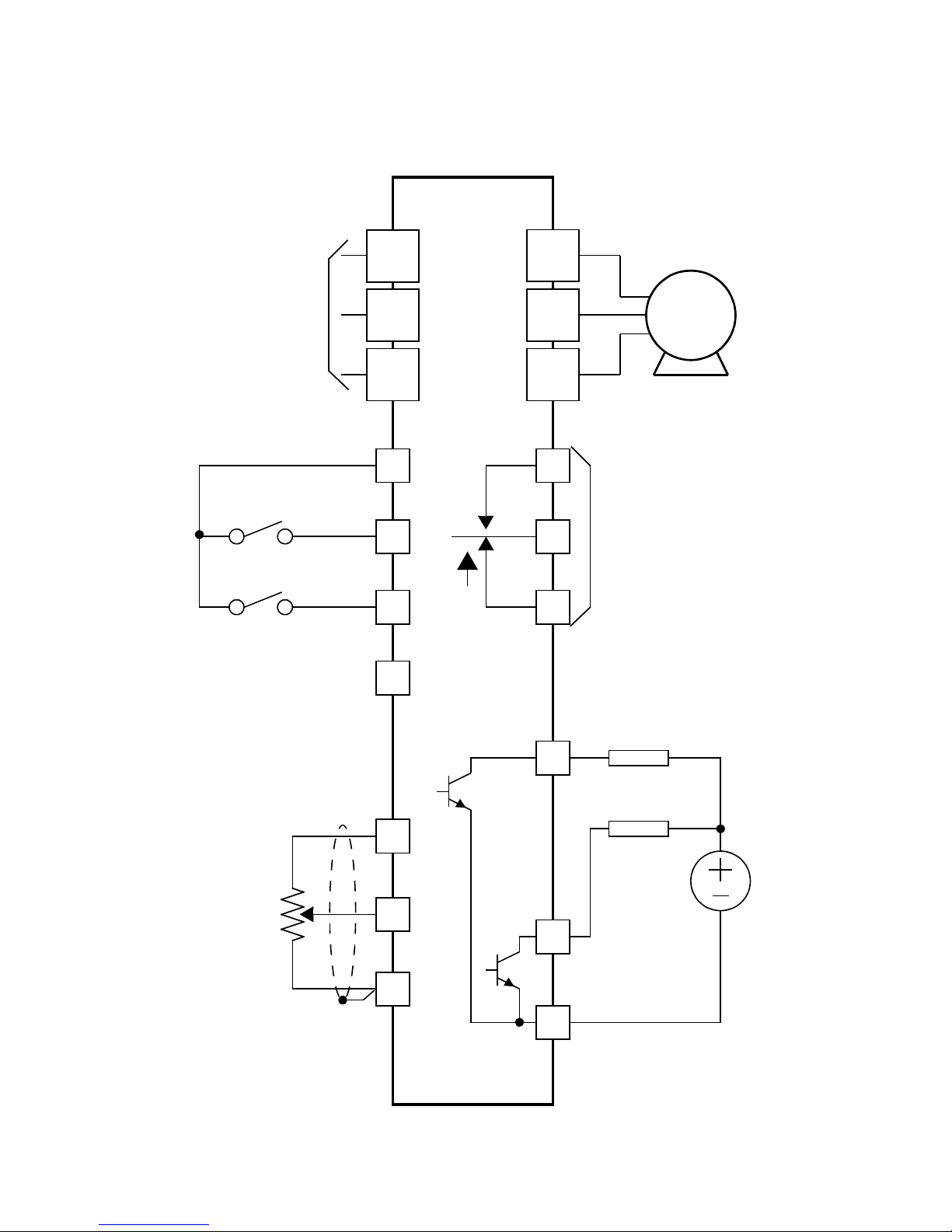

Basic Wiring Diagram

The following wiring diagram shows the power and motor connections

for basic operation. The optional signal input wiring supports external

Fwd and Rev Run command, and a speed potentiometer.

(L1)

(L2)

(N/L3)

(T2)

(T3)

(T1)

Motor

Forward

Reverse

Relay contacts,

1 Form C

Run signal

Frequency

arrival signal

Open collector

outputs:

External

speed

reference

pot.

SJ200

From 3-phase

power input

source (See

specifications

label on inverter

for details)

GND for logic

outputs

Load

GND for analog signals

Analog reference

PCS

CM2

AL0

AL1

AL2

Inputs:

GND for logic inputs
