INSTRUCTION MANUAL

Thank you for purchase of “HITACHI INVERTER”. This manual

explains about treatment of “SJ-LW (LonWorks Option)”. By reading this

manual and an instruction manual of inverter use practically for

installation, maintenance, and inspection. After reading this manual,

keep it handy for future reference.

Make sure to reach this manual to the end user.

Table of Contents

Chapter1 Introduction 1

Chapter2 Installation method of printed board 5

Chapter3 Wiring, Connecting 6

Chapter4 Setting 7

Chapter5 LonWorks Communication Function 8

Chapter6 ControlfromLonWorks 17

Chapter7 Countermeasureforabnormality 21

Appendix1 ParameterObjectLists 23

Appendix2 Trip monitor data address 32

SJ300/L300P SERIES

SJ-LW(LonWorks Option)

NB623X

Hitachi Inverter

After reading this manual, keep it at handy for future reference.

SAFTY PRECAUTIONS

- Request -

Thank you for purchase of “SJ-LW (LonWorks Option)”.

This instruction manual explains about treatment and maintenance of “SJ-LW”. Before using the product,

carefully read this manual with the instruction manual of inverter, and keeps it handy for quick reference of

operator and maintenance inspector. Before installing, operating, maintenance and inspection read this

manual carefully and follow the instructions exactly.

Always keep various kinds of specification mentioned in this manual and use exactly. And make sure to

prevent trouble by correct inspection and maintenance. Make sure to reach this manual to the end user.

- About treatment of this manual -

(1)Please consent that mentioned items of this manual may be change without permission.

(2)Keep this manual carefully not to lose because it can not be reissued

(4)Contents in this manual is written to make assurance doubly sure but, but please contact if you have

some doubts about spelling mistakes, omitted word etc.

(5)Please agree that there is no responsibility for effects resulted, in spite of contents above mentioned.

- About trademark -

(1) Echelon, Neuron, LON, LonTalk, LonWorks, 3120 are registered trademark of Echelon Corporation.

(LON: Local Operating Network)

(2) LonMaker, LonMark are trademark of Echelon Corporation.

- Reference

When Connecting SJ-LW to LON network,XIF file is necessary as external interface file.

XIF file is possible to download from the web site below.

http://www.hitachi-ds.com

General information regarding LonWorks and how to get LonWorks specifications , refer to the web site below.

http://www.lonmark.org

Revision History Table

No.Revision contents The date of issued Manual No.

1. Initial release of Manual NB623X Sep. 2001 NB623X

Except this table, revised only spelling mistakes omitted words, and error writings without notice.

SAFTY PRECAUTIONS

Carefully read this manual and all of the warning labels attached to the inverter before installing, operating,

maintaining, inspecting, it. Safety precautions are classified into “Warning” and “Caution” in this manual.

：Indicates a potentially hazardous situation which, if not avoided, can result in serious

injury or death.

：Indicates a potentially hazardous situation which, if not avoided, can result in minor to

moderate injury, or serous damage to the product

The situation described in may, if not avoided, lead to serious results. Important safety

measures are described in CAUTION (as well as WARNING) so be sure observe them.

Notes are described in this manual in “(Note)”. Carefully read the contents and follow them exactly.

CAUTION

In all the illustrations in this manual, covers and safely device are occasionally removed to describe the

details. When the product is operated, make sure that the covers and safety devices are placed as they

were specified originally and operate it according to the instruction manual.

WARNING

CAUTION

SAFTY PRECAUTIONS

WARNING

Wiring:

Wiring work shall be carried out by electrical experts.

Otherwise, there is a danger of electric shock, fire and/or damage of product.

Implement wiring after checking that the power supply is off.

Otherwise, there is a danger of electric shock and/or fire.

Operating:

Be sure not to touch the surface or the terminal of option board while energizing.

Otherwise, there is a danger of electric shock and/or fire.

Be sure not to remove the LonWorks option printed board while operating.

Otherwise, there is a danger of electric shock and/or fire.

Maintenance, Inspection and Part Replacement:

Wait at least 10 minutes after turning off the input power supply before performing maintenance and

inspection.

(Confirm the charge lamp on the inverter is off, checks direct current voltage between P-N terminals and

confirm it is less than 45V)

Otherwise, there is a danger of electric shock.

Make sure that only qualified persons will perform maintenance, inspection, and part replacement

(Before starting the work, remove metallic objects from your person (wristwatch, bracelet, etc.).

Be sure to use tools protected with insulation.)

Otherwise, there is a danger of electric shock and/or injury.

Note:

Never modify the unit.

Otherwise, there is a danger of electric shock and/or injury.

CAUTION

Installation:

Be sure not to let the foreign matter enter such as wire clippings, spatter from welding, metal shaving,

dust etc.

Otherwise, there is a danger of fire.

Be sure to fix inverter to option printed board with an attached fixed screw.

Otherwise, there is a danger of connecting error.

Be sure to fasten the screws connecting signal wire in side of option printed board. Check for any

loosening of screw.

Otherwise, there is a danger of connecting error.

Wiring:

Be sure to fasten the screws not to loose.

Otherwise, there is a danger of connecting error.

Operation:

Check rotary direction, abnormal motor noise and vibrations during operating.

Otherwise, there is a danger of injury to personnel and/or machine breakage

CHAPTER 1 INTRODUCTION

1.1 INSPECTION UPON UNPACKING

Make sure to treat the product carefully not to give shock and vibration while unpacking. Check that the

product is the one you ordered, no defect, and that there is no damage during transportation.

(Contents of packing)

(1) SJ-LW(LonWorks option printed board):1 (also Install Manual atached)

(2) Instruction manual:1

(3) Screws fixed printed board (M3 times 8 mm):2

If you discover any problems, contact your sales agent immediately.

1.2 INQUIRY OF THE PRODUCT AND WARRANTY FOR THE PRODUCT

1.2.1 REQUIRE WHILE INQUIRING

If inquiry of breakage, question, damage etc. is needed, please tell the following information to the supplier

you ordered or the nearest Hitachi Distributor.

(1) Type(SJ-LW)

(2) Manufacturing number (Item of label, that labeled surface of printed board. SJ-LW XXX )

(3) Date of purchasing

(4) Contents of inquiry

・Damage parts and its condition etc.

・Question parts and their contents etc.

In order to shorten impossible working time, standing spare unit is recommended.

1.2.2 WARRANTY OF THE PRODUCT

This product is guaranteed to last for one year after purchase. But, the next case is toll repair, even if within

warranty period.

(1) In case caused by operating mistake, and incorrect repair and modification.

(2) Trouble caused by reasons except the shipped product.

(3) In case of using in range over the value of specification.

(4) In case caused by natural calamity, disaster, and secondary disaster.

Warranty mentioned here means warranty for shipped product itself. Damage caused by trouble of shipped

product is not guaranteed.

[Replacement]

Any inspection and replacement after the expiration of warranty period (one-year) shall be charged to the

purchaser. And also any inspection and repair which are not covered in warranty mentioned above, even if it

is within warranty period, it shall be charged to the purchaser. If you require the replacement, please contact

your Hitachi distributor.

CHAPTER 1 INTRODUCTION

1.3 Outline of product

SJ-LW is LonWorks communication board for SJ300/L300P series inverter.

SJ300/L300P series inverter can get to connect another devices via LonWorks when install SJ-LW.

SJ-LW is possible to connect for all models of SJ300/L300P series.

The SJ-LW option card communicates according to the LonWorks Protocol Standard ANSI/EIA 709.1-A-1999.

This means that it can communicate with all LonWorks nodes that comply with this standard, but it does not

necessarily mean that all services available in the LonWorks standard are supported. The “LonMark

Functional Profile: Variable Speed motor Drive” (doc no. 6010_11) is supported.

In a control system the option board will act as a node that can be read and written to, from any other

LonWorks node that has SNVT’s that corresponds to the one on SJ-LW.

(Note) RS485 communication function is disabled by installing SJ-LW to the inverter.

1.4 Appearance and Names of Parts

Figure 1-1 indicates the appearance of SJ-LW.

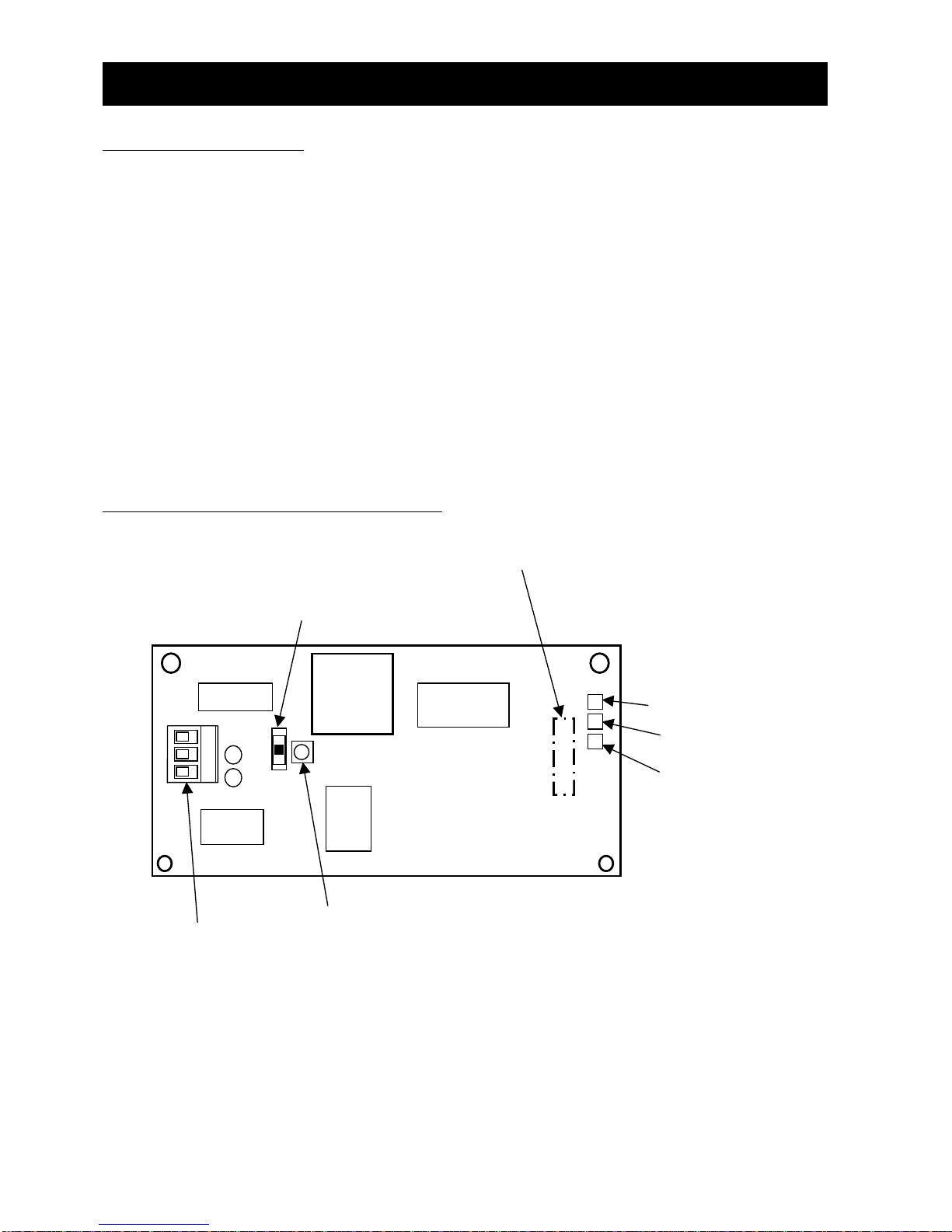

Figure 1-1 Appearance of SJ-LW

Serial Channel Status LED (SERIAL)

Terminal Switch(S2)

Power/Status LED (POWER)

BUS

Service Pin (S1)

LonWorks Service LED (SERV)

Connector for connection to SJ300/L300P(Rear of unit)

LonWorks contact (open type)

PhoenixContactCo.Ltd.(MC1.5/3‑ST‑3.81)etc

CHAPTER 1 INTRODUCTION

1.5 LonWorks Supported Version

SJ-LW can use following Manufacturing number (MFG No) of SJ300/L300P series.

After Manufacturing number : XX8KXXXXXXXXXXXX（SJ300-0.4-55kW / L300P-11-75kW supported）

XXEMXXXXXXXXXXXX（SJ300-75-132kW / L300P-90-132kW supported）

(Note) Manufacturing number is written in specifications label on main body of SJ300/L300Pseries. Refer to

figure 1-2, figure 1-3.

(Figure1-2, 1-3 are the example of SJ300 series. L300P series are the same manner as SJ300 series.)

1.6 Technical features of Lonworks

Transmission Technique:

- Free topology (FTT-10A) twisted pair cable

- Transmission rate 78kbits/s

Max Bus length: Bus up to 2000 m

Max. node-to-node distance: 500m

Max amount of nodes: 32.385 nodes divided as 127 nodes/subnet, 255 subnets/domain.

Medium Access: Predictive CSMA

Data types: Peer-to-peer communication

LonWorks communication ASIC: TMPN3120FE5 chip from Toshiba.

LonWorks transceiver: FTT10A from Echelon.

Figure 1-2 Position of specifications label

Figure 1-3 Contents of specifications label

Inverter model

Maximum applicable motor

Input ratings

Output ratings

Manufacturing number

118KT1234510001

118KT1234510001118KT1234510001

118KT1234510001

0101

ecifications label

CHAPTER 1 INTRODUCTION

1.7 Production specification

Bacicaly, the environmental specification of the SJ-LW is in accordance with SJ300/L300P series inverter.

Please refer the instruction manual of SJ300/L300P series.

But only application temperature of SJ-LW is different. Please note.

application temperature : 0 to 50 degree

CHAPTER 2 INSTALLATION METHOD OF PRINTED BOARD

2.1 Mounting method of option board

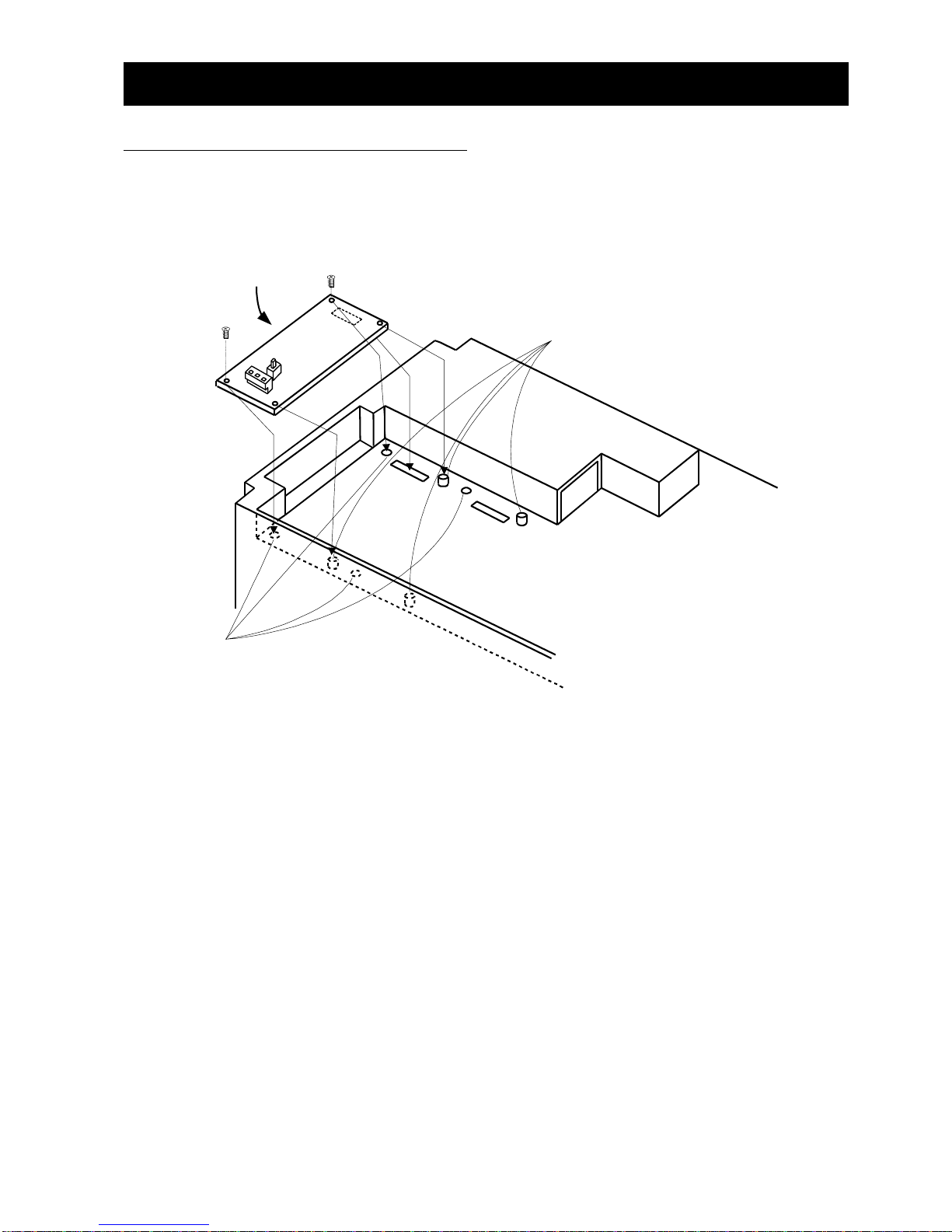

Figure 2-1 describes how to mount the option board to the option port 1 or 2.

There are four holes on the option board, match the two of them with the screw holes on the option port 1 or 2.

and mount the other two holes with the guide posts which are located on the option port 1 and 2. To avoid

connection failure, secure the option board with screws after connection.

tion

ort 1

tion

ort 2

Guide

osts for mountin

the o

tion board.

Screw holes for secure o

tion board.

(

M3 Screws

)

tion board

Figure 2-1 Installation of option board

CHAPTER 3 WIREING,CONNECTING

3.1 Connection for LonWorks connector

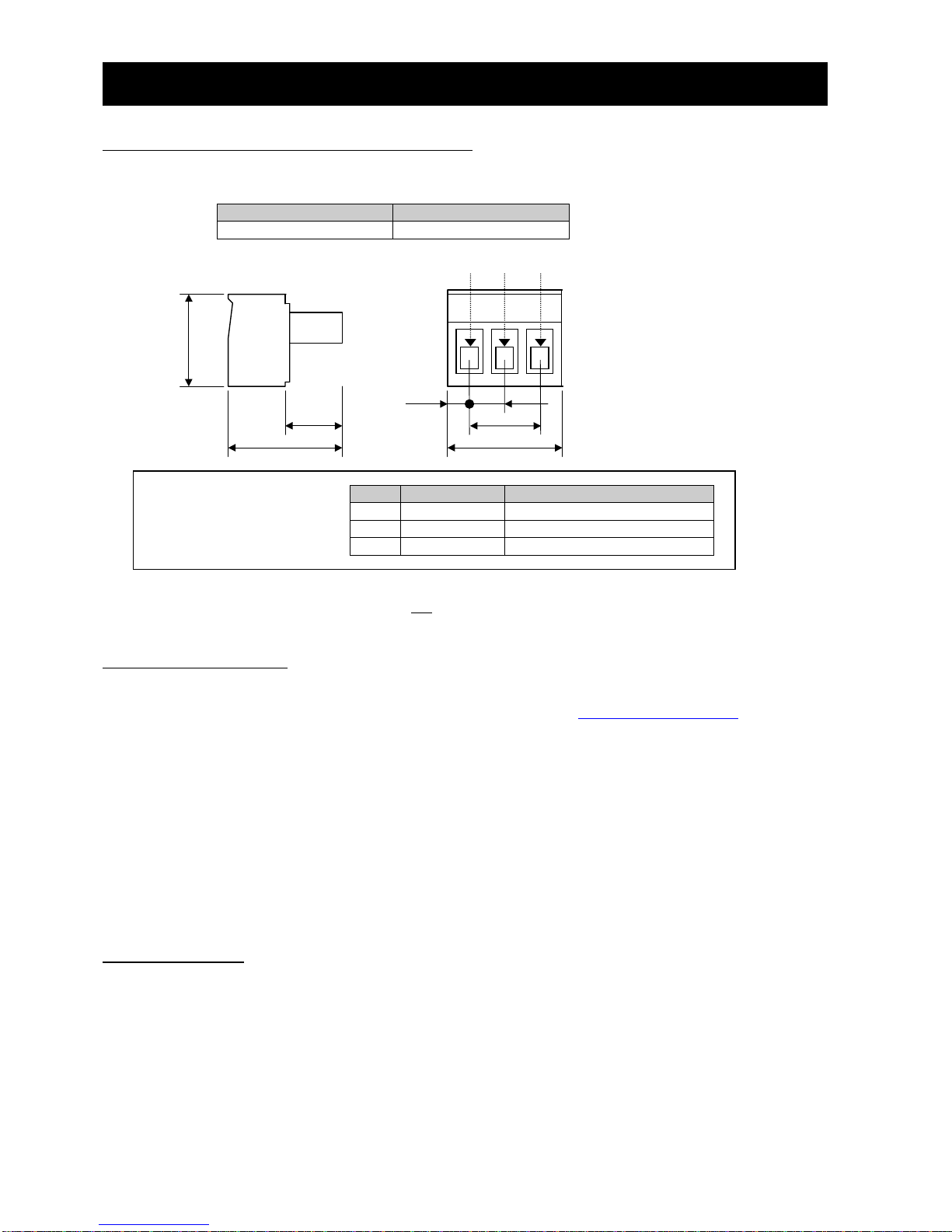

The SJ-LW connects to the LonWorks network with a 3-pin connector. For the pin layout, refer to Figure 3-1.

Cablesideconnector(attachedconnector)

Maker Type

Phoenix contact co, Ltd. MC 1.5/3-ST-3.81

Figure 3-1 Connector specification

NOTE : NET A and NET B connection is not polarity sensitive.

3.2 Network cabling

For detailed information about recommended cables for a LonWorks network, please see the FTT-10A Free

Topology Transceiver User’s Guide (doc.id.078-0156-01F) available at http://www.echelon.com

Below are some recommended cables :

-Belden 85102, unshielded

-Belden 8471, unshielded

-Level IV 22AWG, unshielded

-JY (St) Y 2x2x0.8, shielded

-TIA568A Cat.5 24AWG

Note) To be able to communicate in a noisy environment, and to fulfil all EMC-requirements, it’s

important that a shielded cable is used, and that proper grounding is provided.

3.3 Wiring note

1.Installing the cable to Network connector must be done after checking the power supply off.

2.Wiring should not have bare cables exposed between connector contacts.

3.Network cables should be fixed without tension. Cables fixed under tension have potential of causing a

communication fault by to be removed a connector.

4.Ensure external emergency stop measures are taken to stop the inverter, in the event of a network fault.

(a) Remove the Power supply of the Inverter when the network master detects a communication fault.

(b) When the master detects a communication fault, turn on the intelligent input terminal which would be

allocated (FRS), (RS) and/or (EXT) function.

Wiring of LonWorks

Communication connector

No. Signal mark Function

1 Shield Shield connection

2 NET A LonWorks NET A connection

3 NET B LonWorks NET B connection

Dimension

6.6

15.5

11.1

Dimension in mm

3.8

7.62

12.22

2.3

PinNo. 1 2 3

Indice

Altri manuali Hitachi Invertitore

Hitachi

Hitachi SJ700D-3 SERIES Manuale utente

Hitachi

Hitachi L300P Series Manuale utente

Hitachi

Hitachi AN072803-1 Istruzioni per l'installazione e il funzionamento

Hitachi

Hitachi L200 Series Guida rapida

Hitachi

Hitachi WJ200 Series Software Manuale utente

Hitachi

Hitachi SJ300-EL Series Guida alla configurazione

Hitachi

Hitachi J300 Series Manuale utente

Hitachi

Hitachi X200 Series Manuale di istruzioni

Hitachi

Hitachi SJ100DN DeviceNet Series Addendum Istruzioni per l'installazione e il funzionamento

Hitachi

Hitachi E10U Guida alla risoluzione dei problemi

Hitachi

Hitachi sj300CE series Manuale utente

Hitachi

Hitachi P1 VFD Manuale utente

Hitachi

Hitachi SJ200 Series Manuale utente

Hitachi

Hitachi L100DN DeviceNet Series Addendum Foglio di istruzioni

Hitachi

Hitachi L300P Series Guida alla configurazione

Hitachi

Hitachi X200 Series Manuale utente

Hitachi

Hitachi SJ100 Series Manuale utente

Hitachi

Hitachi SJ100 Series Manuale del proprietario

Hitachi

Hitachi IVX-ES Series Manuale utente

Hitachi

Hitachi YUTAKI S COMBI Series Manuale utente

Hitachi

Hitachi SJ200-055LFU Manuale utente

Hitachi

Hitachi WJ200 Series Software Manuale utente

Hitachi

Hitachi SJ-PB(T) Manuale utente

Hitachi

Hitachi SJ700-2 Series Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
