Projector
CP-A220N/CP-A300N
User's Manual (detailed)
Operating Guide – Technical
Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode
720 x 400 37.9 85.0 VESA TEXT
640 x 480 31.5 59.9 VESA VGA (60Hz)
640 x 480 37.9 72.8 VESA VGA (72Hz)
640 x 480 37.5 75.0 VESA VGA (75Hz)
640 x 480 43.3 85.0 VESA VGA (85Hz)
800 x 600 35.2 56.3 VESA SVGA (56Hz)
800 x 600 37.9 60.3 VESA SVGA (60Hz)
800 x 600 48.1 72.2 VESA SVGA (72Hz)
800 x 600 46.9 75.0 VESA SVGA (75Hz)
800 x 600 53.7 85.1 VESA SVGA (85Hz)
832 x 624 49.7 74.5 Mac 16” mode
1024 x 768 48.4 60.0 VESA XGA (60Hz)
1024 x 768 56.5 70.1 VESA XGA (70Hz)
1024 x 768 60.0 75.0 VESA XGA (75Hz)
1024 x 768 68.7 85.0 VESA XGA (85Hz)
1152 x 864 67.5 75.0 VESA
1152 x 864 (75Hz)
1280 x 768 47.7 60.0 VESA W-XGA (60Hz)
1280 x 800 49.7 60.0 VESA
1280 x 800 (60Hz)
1280 x 960 60.0 60.0 VESA
1280 x 960 (60Hz)
1280 x 1024 64.0 60.0 VESA SXGA (60Hz)
1280 x 1024 80.0 75.0 VESA SXGA (75Hz)
*1280 x 1024 91.1 85.0 VESA SXGA (85Hz)
1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)
1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)
*1600 x 1200 75.0 60.0 VESA UXGA (60Hz)
Example of computer signal
(Type nos. CP-A220N, CP-A220NM, CP-A300N, CP-A300NM)
2

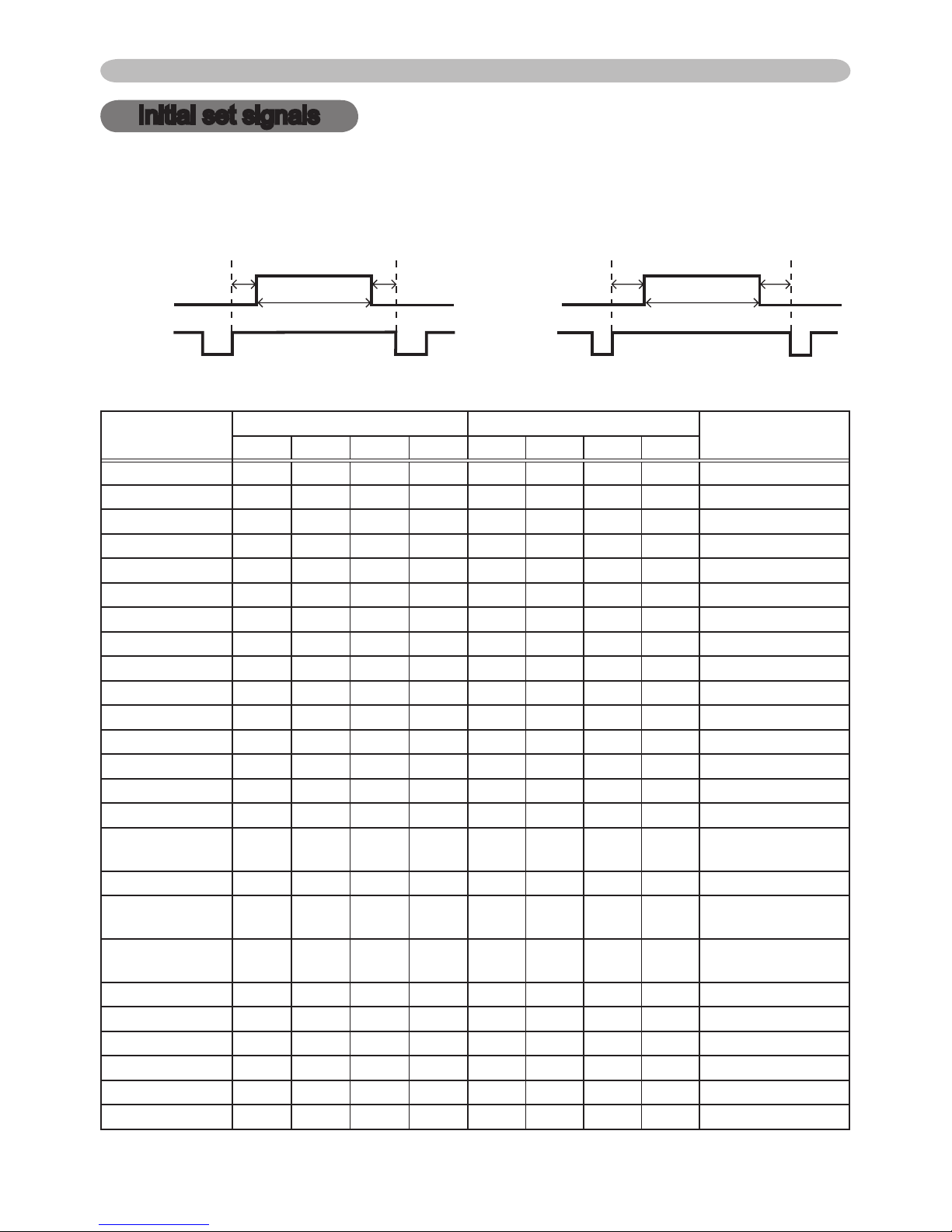

Initial set signals
Initial set signals
The following signals are used for the initial settings. The signal timing of some
computer models may be different. In such case, adjust the items V POSITION
and H POSITION in the IMAGE menu.
Back porch (B) Front porch (D) Back porch (b) Front porch (d)
Active video (C)
Data Data
H. Sync. V. Sync.
Sync (A) Sync (a)
Active video (c)
Resolution
(H x V)
Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode
(A) (B) (C) (D) (a) (b) (c) (d)
720 x 400 2.0 3.0 20.3 1.0 342 400 1TEXT
640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)
640 x 480 1.3 4.1 20.3 0.8 328 480 9 VGA (72Hz)
640 x 480 2.0 3.8 20.3 0.5 316 480 1VGA (75Hz)
640 x 480 1.6 2.2 17.8 1.6 325 480 1VGA (85Hz)
800 x 600 2.0 3.6 22.2 0.7 2 22 600 1SVGA (56Hz)
800 x 600 3.2 2.2 20.0 1.0 4 23 600 1SVGA (60Hz)
800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)
800 x 600 1.6 3.2 16.2 0.3 321 600 1SVGA (75Hz)
800 x 600 1.1 2.7 14.2 0.6 327 600 1SVGA (85Hz)
832 x 624 1.1 3.9 14.5 0.6 339 624 1Mac 16" mode
1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3XGA (60Hz)
1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3XGA (70Hz)
1024 x 768 1.2 2.2 13.0 0.2 328 768 1XGA (75Hz)
1024 x 768 1.0 2.2 10.8 0.5 336 768 1XGA (85Hz)
1152 x 864 1.2 2.4 10.7 0.6 332 864 11152 x 864
(75Hz)
1280 x 768 1.7 2.5 16.0 0.8 323 768 1W-XGA (60Hz)
1280 x 800 1.6 2.4 15.3 0.8 324 800 11280 x 800
(60Hz)
1280 x 960 1.0 2.9 11.9 0.9 336 960 11280 x 960
(60Hz)
1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1SXGA (60Hz)
1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1SXGA (75Hz)
1280 x 1024 1.0 1.4 8.1 0.4 344 1024 1SXGA (85Hz)
1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3WXGA+ (60Hz)
1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1SXGA+ (60Hz)
1600 x 1200 1.2 1.9 9.9 0.4 346 1200 1UXGA (60Hz)
3

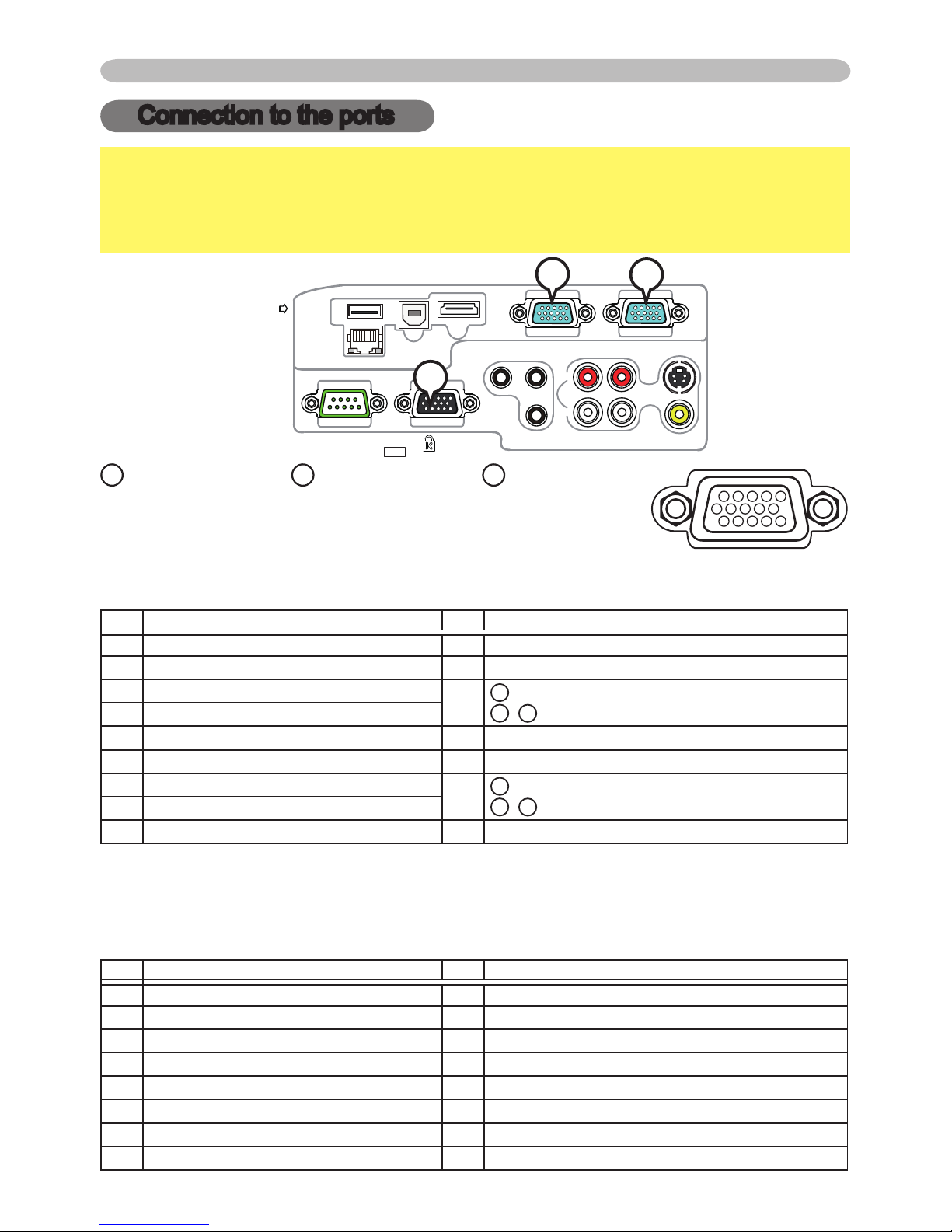

Connection to the ports
Connection to the ports
NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
►Only the signal that is input from the COMPUTER IN1 or IN2 can be output
from the MONITOR OUT port.
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
BA
C
ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1Video Red 10 Ground
2 Video Green 11 (No connection)
3Video Blue 12 A
: SDA (DDC data)
B, C
: (No connection)
4 (No connection)
5Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7Ground Green 15 A
: SCL (DDC clock)
B, C
: (No connection)
8Ground Blue
9 (No connection) - -
(2) for Component signal
• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1Cr/Pr 9 (No connection)
2 Y 10 Ground
3Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7Ground Y 15 (No connection)
8Ground Cb/Pb - -

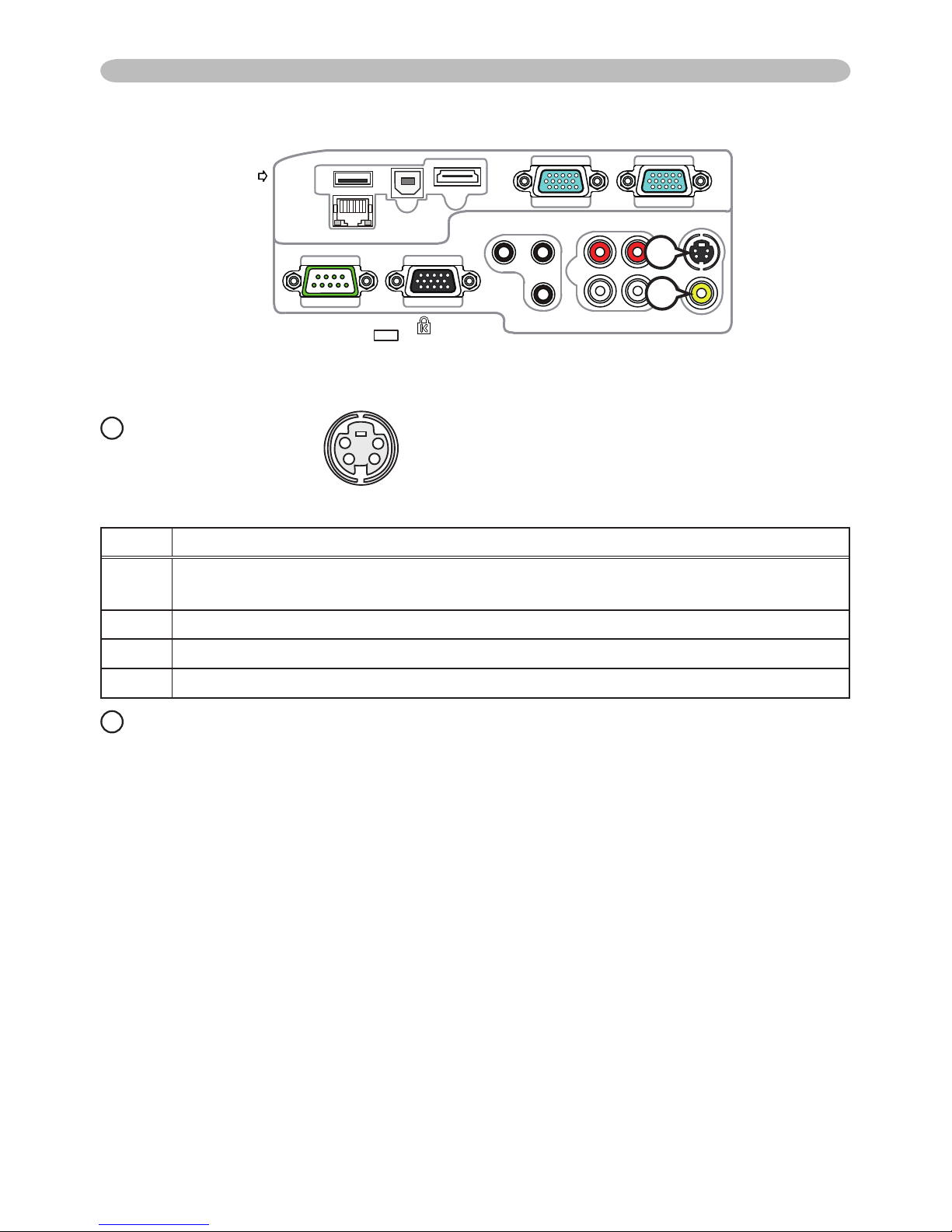

4
DS-VIDEO
Mini DIN 4pin jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3Ground
4 Ground
Connection to the ports (continued)
43
2
1
EVIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
D
E
5

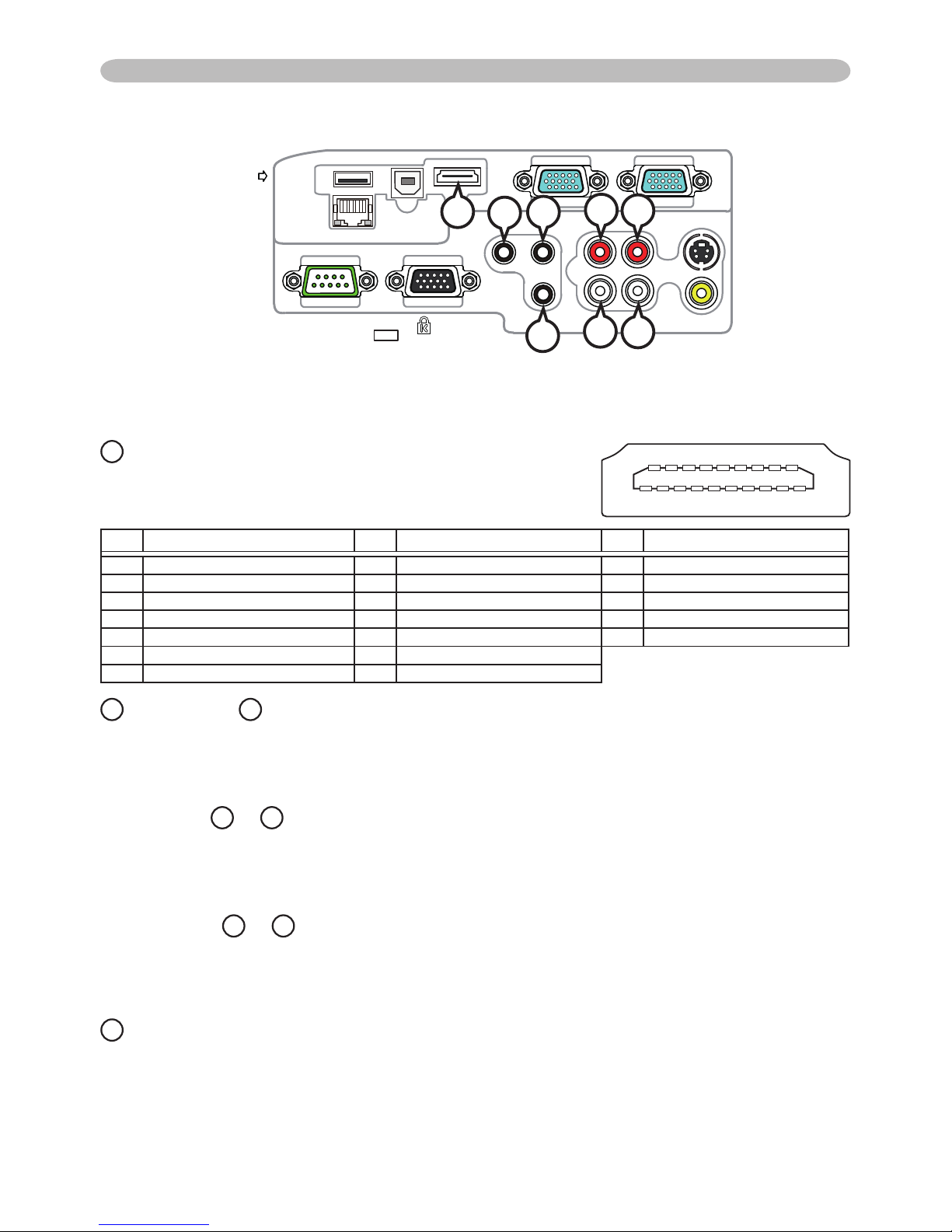

Connection to the ports (continued)
GAUDIO IN1,
H
AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms, 47kΩ terminator
AUDIO IN3
I
R,
J
L
RCA jack x2
• 200 mVrms, 47kΩ terminator
AUDIO OUT
K
R, LL
RCA jack x2
• 200 mVrms, 1kΩ output impedance
MMIC
Ø3.5 mono mini jack
<Low level>
• 2 mVrms, 1kΩ terminator
<High level>
• 20 mVrms, 1kΩ terminator
FHDMI
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1T.M.D.S. Data2 + 8T.M.D.S. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18
+5V Power
5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7T.M.D.S. Data0 + 14 Reserved(N.C. on device)
10 12 14 16 182468
911131517191357
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
I
H
F
J
GK
M
L
6
Connection to the ports (continued)
O
USB
TYPE B
USB B type jack
Pin Signal
1+5V
2 - Data
3+ Data
4Ground
43
21
P
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the section "RS-232C Communication".
Pin Signal Pin Signal Pin Signal
1(No connection) 4 (No connection) 7RTS
2 RD 5Ground 8CTS
3TD 6 (No connection) 9 (No connection)
Q
LAN
RJ-45 jack 87654
3
21
Pin Signal Pin Signal Pin Signal
1TX+ 4 - 7-
2 TX- 5-8-
3RX+ 6 RX-
NUSB TYPE A
USB A type jack 4321
Pin Signal
1+5V
2 - Data
3+ Data
4Ground
9
54321
6
7
8
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
NO
Q
P
7
Connection to the ports (continued)
To input component video signal to COMPUTER IN ports
ex.
To input component video signal to the COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1 and IN2 port (&3).
Y CB/PBCR/PR
COMPONENT VIDEO OUT
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
RCA plugs
D-sub plug
VCR/DVD/Blu-ray
Disc player
RCA connectors
8
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&17).
Connection
1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port
with a RS-232C cable (cross). Use the cable that ful lls the speci cation
shown in gure
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -
COMMUNICATION in the User's Manual - Operating Guide)
(cross)
RS-232C Cable
RS-232C CONTROL
CD (1) (1) −
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4) −
GND (5) (5) GND
DSR (6) (6) −
RTS (7) (7) RTS
DTS (8) (8) CTS
RI (9) (9) −
CONTROL port
of the projector
RS-232C port
of the computer
9
54321
6
7
8
1
2
43
8
9
5
7 6
9
RS-232C Communication (continued)
Communicaion settings
1. Protocol
19200bps,8N1
2. Command format ("h" shows hexadecimal)
Byte Number 01234567 8 9 10 11 12
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ag Action Type Setting
code
L H L H L H L H L H L H
<SET>
Change setting to
desired value [(cL)(cH)]
by [(eL)(eH)].
BEh EFh 03h 06h 00h
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
<GET>
Read projector
internal setup value [(bL)
(bH)] .
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
<INCREMENT>
Increment setup value
[(bL)(bH)] by 1.
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
<DECREMENT>
Decrement setup value
[(bL)(bH)] by 1.
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
<EXECUTE> Run a
command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0
~
4.
[CRC ag]
For byte number
5, 6,
refer to
RS-232C Communication / Network command
table
(&17).
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer to the Communication command table (&above).
[Type] [Setting code]
For byte number
9
～
12
, refer to
RS-232C Communication / Network command
table
(&17).
10
RS-232C Communication (continued)
3. Response code / Error code ("h" shows hexadecimal)
(1) ACK reply : 06h
When the projector receives the Set, Increment, Decrement or Execute
command correctly, the projector changes the setting data for the specied
item by [Type], and it returns the code.
(2) NAK reply : 15h
When the projector cannot understand the received command, the projector
returns the error code.
In such a case, check the sending code and send the same command again.
(3) Error reply : 1Ch + 0000h
When the projector cannot execute the received command for any reasons,
the projector returns the error code.
In such a case, check the sending code and the setting status of the projector.
(4) Data reply : 1Dh + xxxxh
When the projector receives the GET command correctly, the projector returns
the responce code and 2 bytes of data.
NOTE • For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
• Operation cannot be guaranteed when the projector receives an undened
command or data.
• Provide an interval of at least 40ms between the response code and any other
code.
• The projector outputs test data when the power supply is switched ON, and
when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the
projector ignore the excess data code. Conversely when the data length is
shorter than indicated by the data length code, the projector returns the error
code to the computer.
Altri manuali per CP-A220N
4
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali Hitachi Proiettore
Hitachi
Hitachi CP-X809W Manuale utente
Hitachi
Hitachi CP-X608 Documento tecnico
Hitachi
Hitachi CP-EX401 Manuale utente
Hitachi
Hitachi SM0547 Manuale utente
Hitachi
Hitachi CP-X275WA Manuale utente
Hitachi
Hitachi CP-A100 Series Documento tecnico
Hitachi
Hitachi ED-X22 Manuale utente
Hitachi
Hitachi Innovate CP-X3020 Documento tecnico
Hitachi
Hitachi PJ-LC5 Documento tecnico
Hitachi
Hitachi IPJ-AW250N Istruzioni di installazione e manutenzione
Hitachi
Hitachi CP-X2011N Manuale utente
Hitachi
Hitachi CP-X955 Manuale utente
Hitachi
Hitachi CP-TW3506 Manuale utente
Hitachi
Hitachi CP-X430 series Manuale utente
Hitachi
Hitachi CP-X3030WN Manuale utente
Hitachi
Hitachi CP-S420 Manuale utente
Hitachi
Hitachi IPJ-AW250N Documento tecnico
Hitachi
Hitachi ED-A100 - XGA LCD Projector Istruzioni di installazione e manutenzione
Hitachi
Hitachi CP-X3011N Istruzioni di installazione e manutenzione
Hitachi
Hitachi CP-X1200 Series Manuale utente
