CONFIDENTIAL

LCD PROJECTOR

PRODUCT SPECIFICATIONS

MODEL PJ-TX100 (C11H)

PJ-TX100E for Europe

PJ-TX100W for Asia, Australia

PJ-TX100U for USA, Canada

VER.1.2

Approved by

Date

May 19, 2004

Hitachi, Ltd.

Digital Media Division

Jiro Kawasaki

Senior Engineer

Ver1.1=>Ver1.2

Add PJ-TX100U

1.4 Lamp 2000hrs =>1000hrs

1.11 Delete 1035i@60Hz

1.13 Keystone input signal WVGA=>720p

1.14 DDC1/2B=>DDC2B RGB/DVI

1.25 Power code W/E/U

1.17 Power consumption

2.3A/1.1A=>2.3A/1.3A

3.Image quality condition

•Gamma: Default #1

• Temp: Custom (offset 0, gain 0)

1.25 Language 8=>10

3.25 DOT DEFECT

10% => 5%(G),10%(R),20%(B) : zero defect

4.2 Delete : WVGA

PJ-TX100W/E/U ver 1.2

1.GENERAL

1.1 OPTICAL STRUCTURE 3 LCD panels, one projection lens, RGB shutter method

1.2 LCD PANEL 0.7inch, P-Si TFT panel x 3, Stripe pixel configuration

1280 dots x 720 lines x 3 panels

Drive method: TFT Active Matrix, with micro lens

1.3 LENS F1.7~2.4 (f=20.0 ~ 31.9mm)

Manual Zoom x 1.6

Manual Focus

1.4 LAMP UHB 150W @ Normal mode

Lifetime 1000 hours This means below.

More than 50 % of lamps will operate 1000 hours.

Less than 50 % of them will stop operation before 1000 hours

including lamp burst. More than 50% performance is typical @ 1000 hours.

(Internal timer to shut projector down sets 1000 hours.

Lamp power drop around 10% down @ Whisper mode.)

1.5 FOCUS DISTANCE 0.8m ~ 8.6m (Wide), 1.3m ~ 13.8ｍ(TELE)

1.6 DISTANCE TO SCREEN WIDTH RATIO (:1) 1.15 (WIDE), 2.35 (TELE) --- reference purpose only

1.7 DISPLAY SIZE 30 inches ~ 300 inches (60 inches (16:9) at 1.5m, wide)

1.8 LENS SHIFT Vertical 5：-1 ~1：-5, Horizontal 3：1 ~ 1：3

1.9 COLOR 16.7 million colors

1.10 RESOLUTION

Video 720 TV lines (@ overscan mode)

RGB 1280 dots x 720 lines

1.11 SIGNAL

Composite Video NTSC, NTSC4.43, PAL(-BGDHI), SECAM, PAL-M, PAL-N, PAL60

Component Video 525i(480i), 525p(480p), 625i(575i),

1125i(1080i@50/60,) 750p(720p@60)

R,G,B IBM Compatible VGA, SVGA/XGA/SXGA/ (compressed)

MAC13",MAC16"

fv; 56 ~ 120Hz, fh; 31.5 ~ 91kHz (See 4.2table for compatibility)

1.12 AUDIO

Speakers NONE

Input NONE

Output NONE

PJ-TX100W/E/U ver 1.2

1.13 ADDITIONAL FEATURES

Mirror Reverse Image

Up-side Down Image

Picture Freeze by RS-232C

Magnify 4 times by RS232C

My Memory

2-3 Pull Down for NTSC

Digital Gamma Correction

R/G/B Color Adjustment

ASPECT selection

For Video: 4:3/16:9/Wide/MOVIE-1/MOVIE-2

For RGB: 4:3/16:9

15 Languages OSD (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese,

Portuguese, Chinese, Korean, Swedish, Russian, Finnish, Polish)

Vertical Digital Keystone Correction: ±15degrees

(Note: Input signal is 720p@60, Zoom position is Wide max.)

1.14PLUG & PLAY DDC 2B(VESA) for RGB INPUT and DVI

1.15 INTERFACE CONNECTORS

(1) VIDEO INPUT

Composite Video RCA jack X 1

S-Video Mini-Din 4 pin X 1

Component Video RCA jack x 3

Audio NONE

(2) RGB Input

Analog RGB 15 pin D-Sub shrink x 1

Pin Assignments See Table below

Audio NONE

(3) RGB MONITOR OUTPUT

NONE

(4) Control 9 Pin D-Sub shrink x 1

RS-232C (Serial)

NO Mouse emulation

(5) Audio output NONE

PJ-TX100W/E/U ver 1.2

R.G.Bin(RGB)

15 Pin D-Sub Pin assignments

NO. RGB Component Video NO. RGB Component Video

1 Red Cr/Pr 9 N.C. PLUG DETECT

2 Green Y 10 GND GND

3 Blue Cb/Pb 11 N.C. ID3

4 N.C. ID1 12 SDA (DDC) NC

5 GND GND 13 H/CompositeSync NC

6 GND(Red) GND(Cr/Pr) 14 Vsync ID2

7 GND(Green) GND(Y) 15 SCL (DDC) NC

8 GND(Blue) GND(Cb/Pb)

Control (RS232C)

9 Pin D-sub Pin assignments

2 RD

3 TD

5 GND

7 RTS

8 CTS

DVI-D

PIN No. TIRMINAL PIN No. TIRMINAL

1 TMDS DATA 2−13 NC (TMDS DATA 3+)

2 TMDS DATA 2＋14 ＋5V POWER

3 GND(TMDS DATA 2/4SHIELD) 15 GND

4 NC (TMDS DATA 4−) 16 HOT PLUG

5 NC (TMDS DATA 4＋) 17 TMDS DATA 0−

6 DDC CLK 18

TMDS DATA 0＋

7 DDC DATA 19 GND(TMDS DATA 0/5 SHIELD)

8 ANALOG VSYNC 20

NC (TMDS DATA 5−)

9 TMDS DATA 1−21 NC (TMDS DATA 5＋)

10 TMDS DATA 1＋22 GND (TMDS CLK SHIELD)

11 GND (TMDS DATA 1/3 SHIELD) 23 TMDS CLK ＋

12 NC (TMDS DATA 3−) 24 TMDS CLK −

1.16 POWER SUPPLY AC90 ~ 132V / AC198 ~ 264V (50/60Hz), 3 Wire Grounded

1.17 POWER CONSUMPTION 100 ~ 120V/220 ~ 240V, 50/60Hz 2.4 /1.3A typ., Max. + 10%

100V, 50/60Hz, 220W typ., Max. + 10%

1.18 DIMENSIONS 340X110X280 mm, 13.4X4.3X11.0 inch.(WXHXD)

Excluding extrusions

1.19 WEIGHT 4.4 kg, 9.7lbs

PJ-TX100W/E/U ver 1.2

1.20 NOISE LEVEL

Whisper mode; 27 dB average (A-weighted) at 1 m from the unit at 23 °C (Target)

Normal mode; 30dB average (A-weighted) at 1 m from the unit at 23 °C (Target)

1.21 TEMPERATURES (at 35°C ambient)

SURFACE Metal 60 °C maximum except screws and terminals

SURFACE Plastic 65 °C maximum except around ventilation holes

EXHAUST AIR 83 °C maximum around ventilation holes

SCREWS AND TERMINALS 75 °C maximum

PJ-TX100W/E/U ver 1.2

1.22 CONTAMINATION

AIR Filtration at intake vent

Dust Protection to prevent visible dust collection all optical component

on or near the focal plane. (*)

*) At just focused position on image, dust is not clearly noticed and size is 16 pixels

maximum (4x4, 3x5, 2x8)

1.23 KENSINGTONSLOT

1.24 REGULATORY (AGENCY, SAFETY, EMI/RFI) APPROVALS

US/Canada UL 60950/C-UL

FCC Part15 subpart B class B

Europe CE approval

EN61000-3-2, EN61000-3-3, EN55022, EN55024

UL-DEMKO EN60950, Low voltage directive

Australia AS/NZS3260

AS/NZS3548

PJ-TX100W/E/U ver 1.2

1.25 INCLUDED ACCESSORIES

Power Cord

PJ-TX100W: Asia/Australia; (US, Euro, UK) x 1

PJ-TX100E: For Europe; (UK, Euro) x 1

PJ-TX100U: For US/Canada;(US) x 1

Component Cable (3 m) x 1

Wireless Remote Control Unit

"AAA" Batteries x 2

Lens Cover x 1

Rivet x 1

Strap x 1

10 (*) Language Operator's Manual x 2 (total 10 language)

15 (**) Language Safety Instructions x 1

10 (*) Language Quick Guide x 1

(*) (English, French, Spanish, German, Italian, Dutch, Norwegian, Portuguese, Simplified Chinese, Korean)

(**) (English, French, Spanish, German, Italian, Norwegian, Dutch, Portuguese, Simplified Chinese,

Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish)

PJ-TX100W/E/U ver 1.2

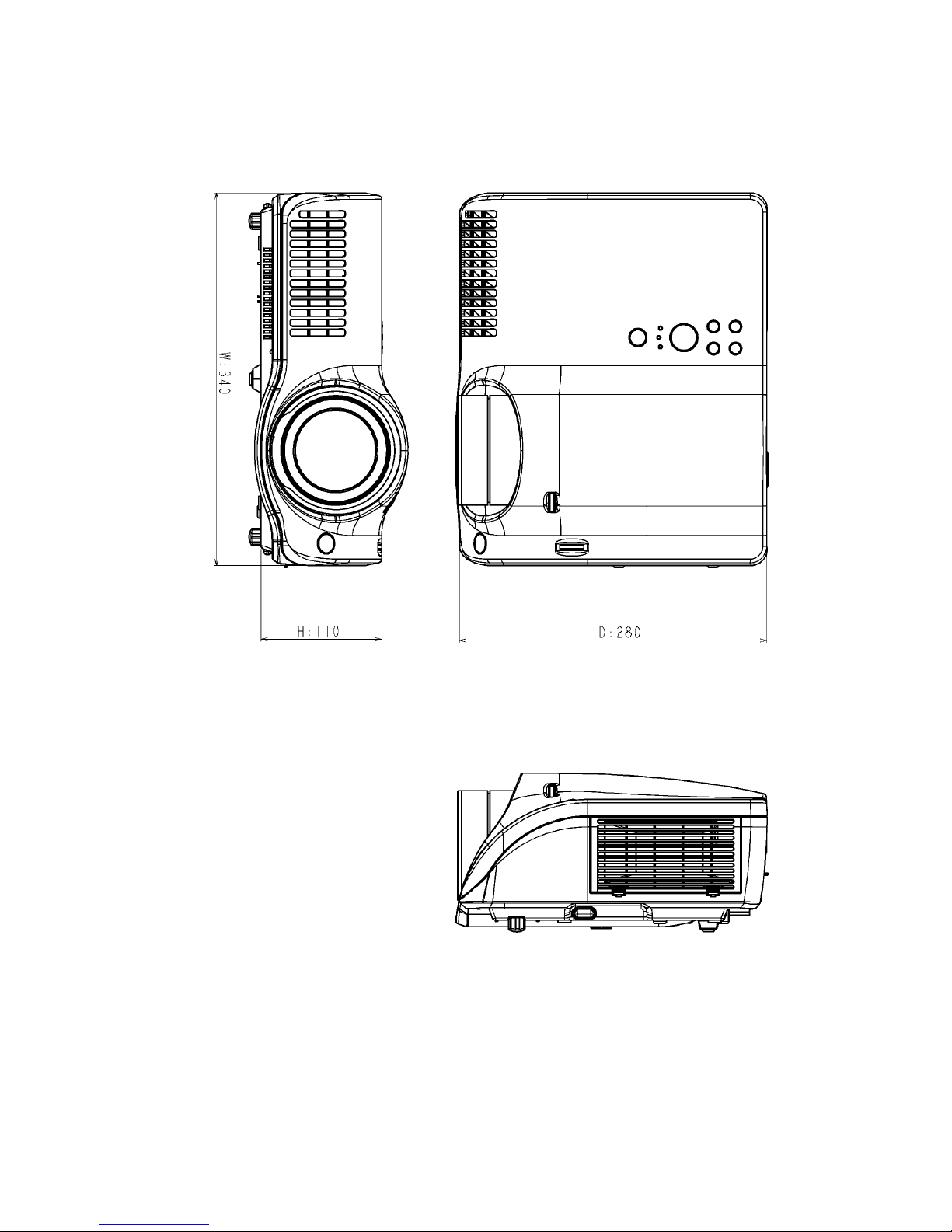

OUTWARD

PJ-TX100W/E/U ver 1.2

2. ENVIRONMENTAL CONDITION

2.1 AMBIENT TEMPERATURE

Operating 0 ~ 35 °C

Storage -20 ~ 60 °C

2.2 HUMIDITY

Operating 10 ~ 85% RH

Without condensation

Storage 10 ~ 85% RH

Without condensation

2.3 ALTITUDE From sea level to 6000 feet

2.4 SHOCK (HANDLING) Withstand 50 mm drop on bottom on wooden table

2.5 GAS No corrosive gas and combustible gas existed

2.6 ELECTROSTATIC DISCHARGE

Withstands 10 times 10kV electrostatic discharge from a 150 pF

Capacitor through a 100 ohms resistor on any exterior surface of the unit

PJ-TX100W/E/U ver 1.2

3. IMAGE QUALITY

Apply following condition except where noted.

• Apply heat-running for 10 minutes or more before checking

• Ambient temperature is 23 °C

• Whisper: Normal,

•Gamma: Default #1

•Temp: Custom (offset 0, gain 0)

• Vertical Lens shift: 1:1, Horizontal Lens shift: 1:1

• Zoom: Wide max, Foot adjust: Retracted (Set should be even with the ground.

3.1 BRIGHTNESS

960 lumens minimum

(Note 1) ANSI 9 point Standard measurement at Screen size 40inch, Meter CL-200

Brightness = Luminance intensity averaged over 9 points x screen area

Typical 1200 lumens (Target)

Brightness: Max. Contrast: Max.

3.2 BRIGHTNESS UNIFORMITY

BRIGHTNESS UNIFORMITY 60% minimum, 70% typical (Target)

(Note) ANSI Standard measurement

Brightness uniformity = Minimum of the four corner measurements/average of 9 points measurements

Zoom position: wide, Brightness/Contrast; Default setting

1/6W1/3W

1/6H

1/3H

1/20W

20H
