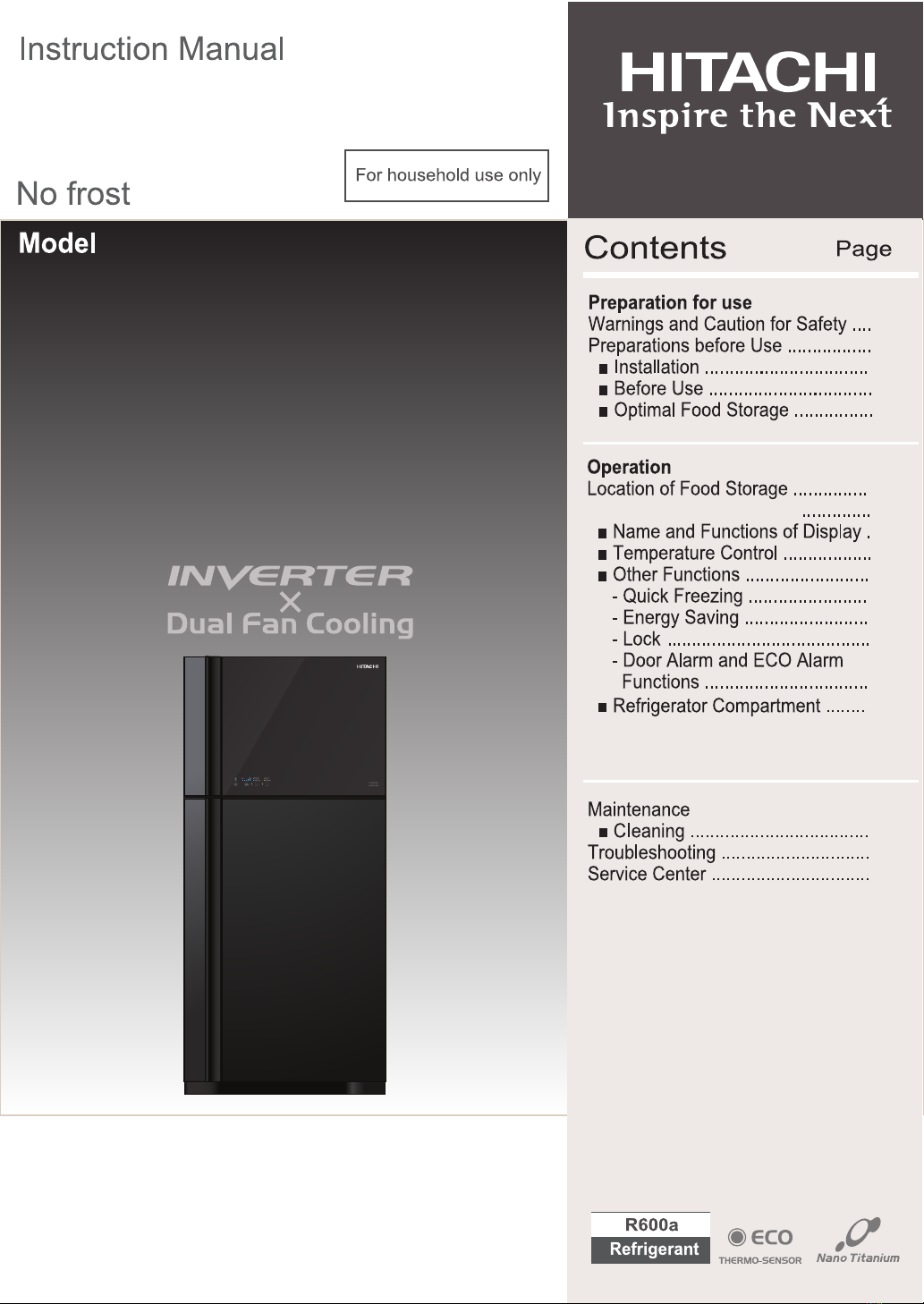

Hitachi R-VG550PDX Manuale utente

Hitachi Refrigerator

Thank you very much for purchasing the Hitachi refrigerator.

Before using this please read the instruction manual carefully

for the correct usage.

Maintenance work must only be carried out at workshop

by well-trained maintenance worker.

How to use Control Panel

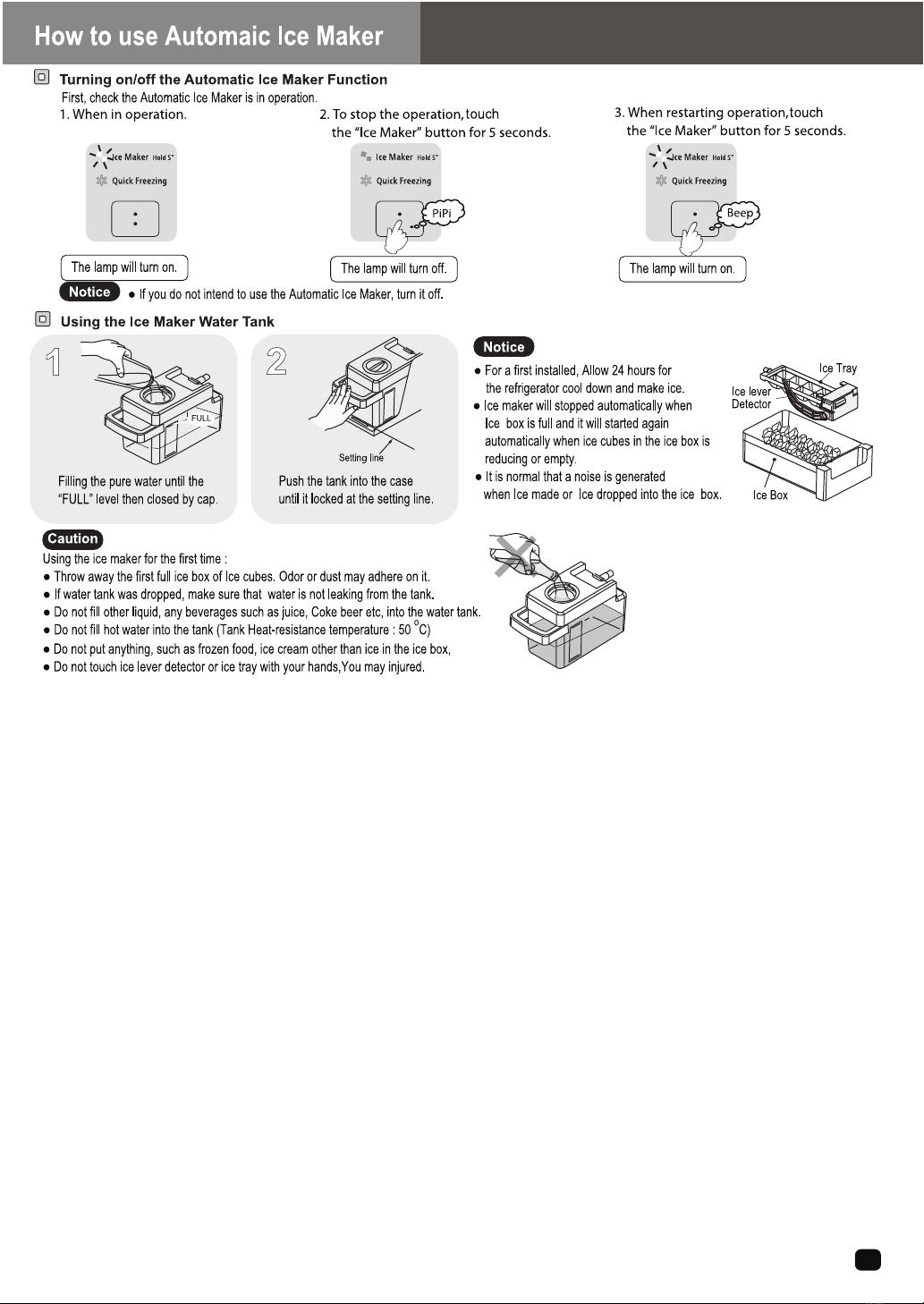

How to use Automatic Ice Maker....

R-VG510PDX

R-VG450PDX

R-VG550PDX

(Please consult with a retailer or Hitachi Service center.)

Hitachi Service center.

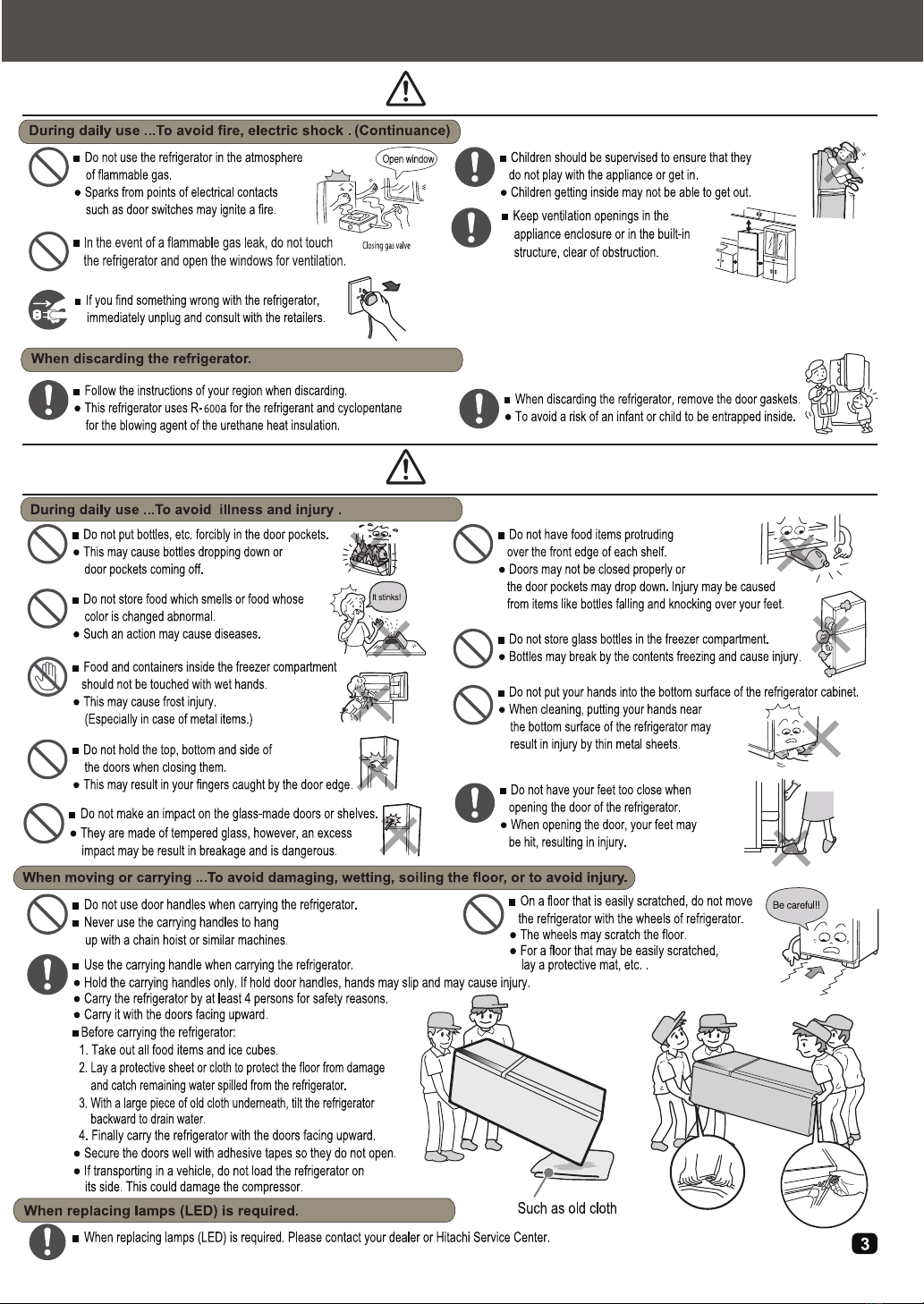

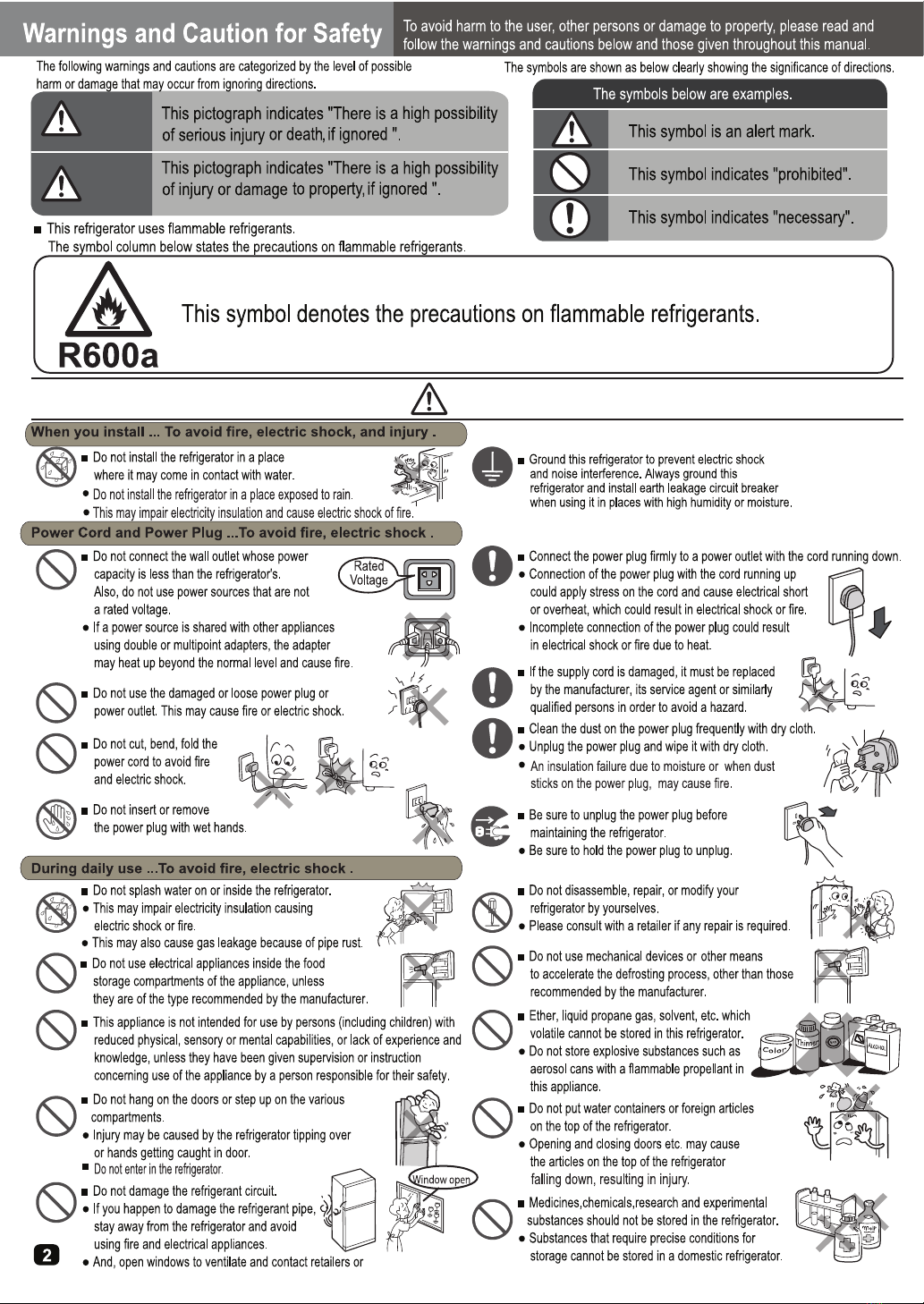

WARNING

CAUTION

WARNING

CAUTION

WARNING : When positioning the appearance, ensure the supply cord is not trapped or damaged.

WARNING : Do not locate multiple portable socket-outlets or portable power supplies

at the rear of the appliance.

Fresh select

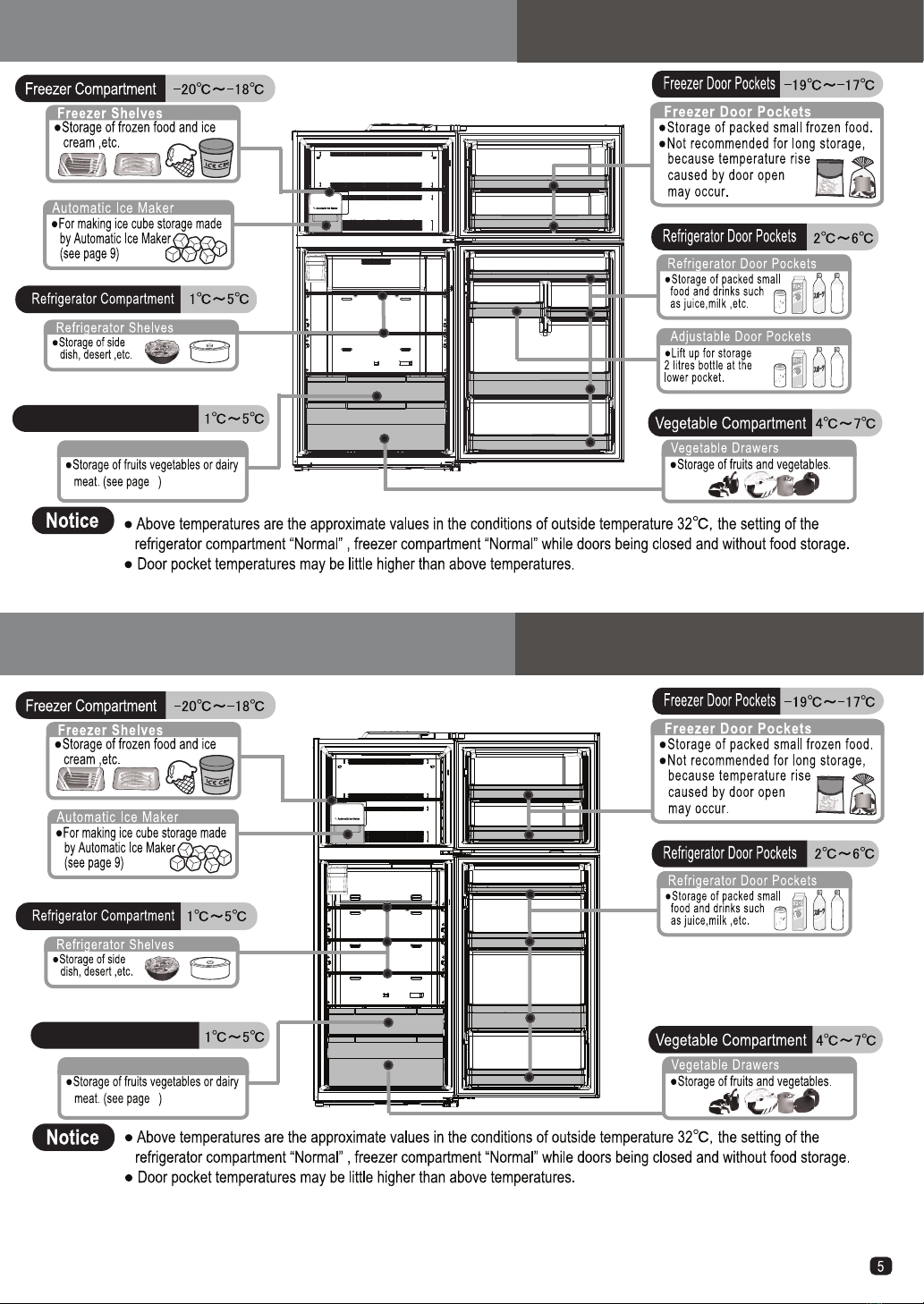

Location of Food Storage

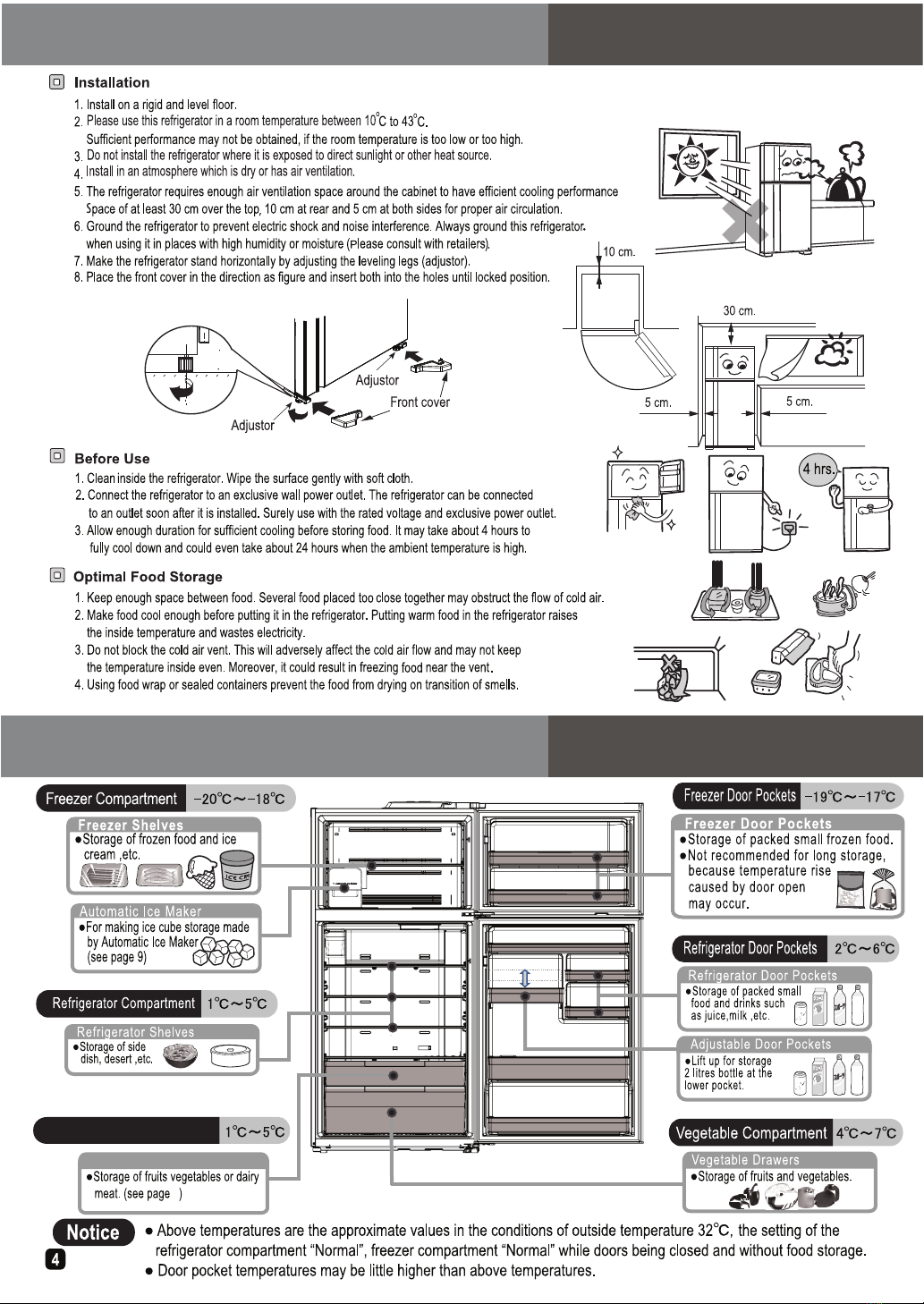

Preparations before Use

R-VG550PDX

Location of Food Storage

Fresh select

R-VG510PDX

R-VG450PDX

Fresh select

To set the fine adjustment of the temperature (Refrigerator compartment/ Freezer Compartment)

Touch “ Temp. Control ”

for 5 seconds until 1 “Peep!”

sound is heard.

Each time you touch the button, the corresponding indicator lamp changes in order shown below (9 steps).

To cancel the fine adjustment of the temperature.

Touch “ Temp. Control ” button for 5 seconds until “PiPi!” sound is heard and you can set temperature by normal step (5 steps)

( Lighting Blinking Turned off )

Touch “Select” and “Temp control” to make as adjustment.

This function is subjected to change according model type.

Notice

Touch “ Temp. Control ”

for 5 seconds until 1 “PiPi!”

sound is heard.

Factory setting, the adjustment temperatrure by normal step (5 steps).

●

PiPi!

How to use control panel

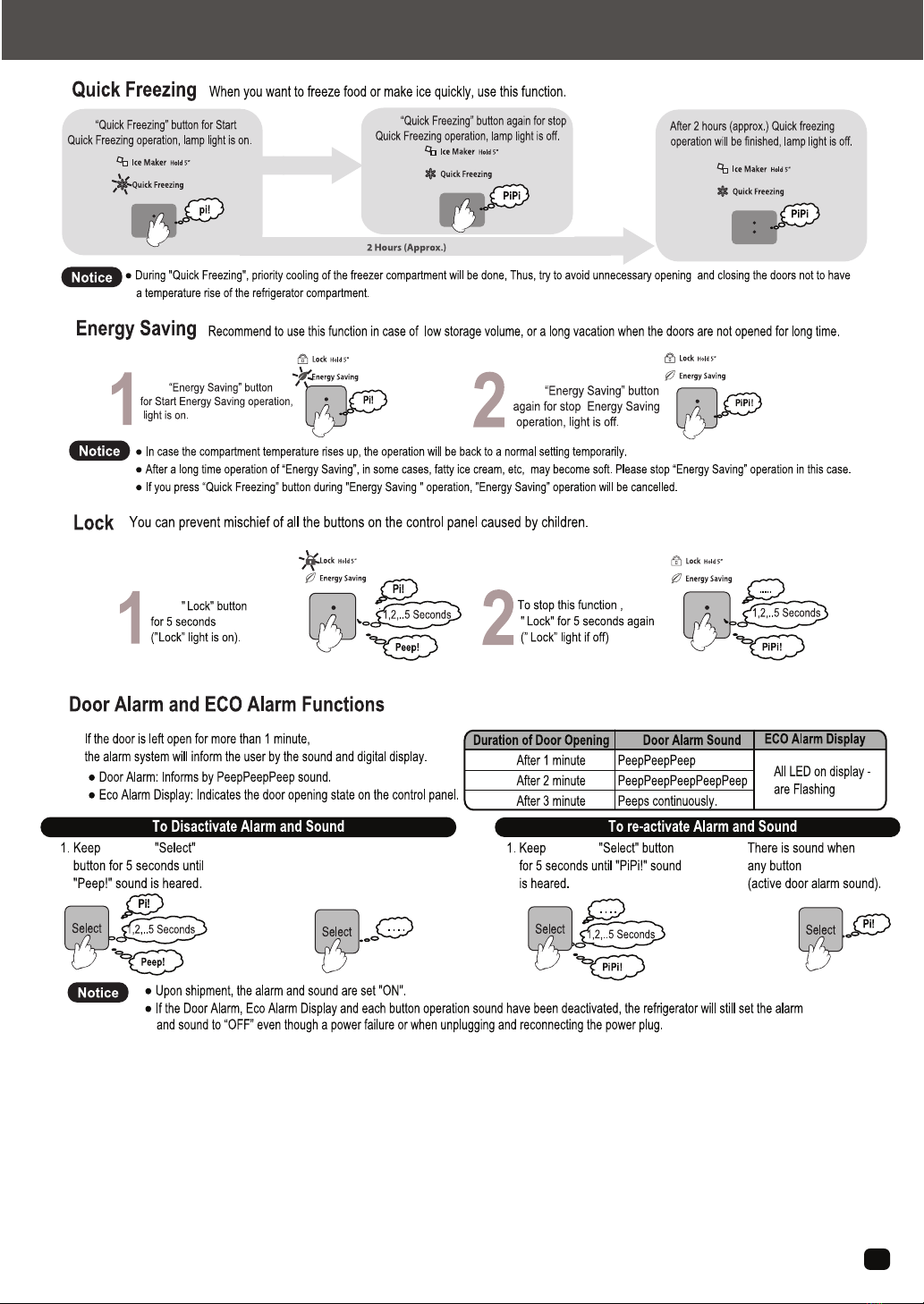

Other Function

Notice

●

If you unplug the power plug or a power failure occurs and

then the refrigerator restarts, the temperature display and

each setting will be automatically resumed ***. However,

“Quick Freezing” operation will be cancelled.

●

Approximately 30 seconds after the end of operation,

all LED become unlit.

●

Response of the touch panel may change depending on the

surrounding temperature, humidity, physical condition of the

user or operation status of the adjoining electric product.

●

The panel may not respond if it is wet or dirty.

*** There must setting more than 45 seconds before unplug the power or power failure. otherwise the temperature display shown as before setted.

Touch Touch

Touch

(Sound PiPi)

When making ice quickly or making

frozen food quickly. Or, a surrounding

temperature is high and the Freezer

compartment is not cold enough.

(Sound PiPi)

(Sound Pi)

“Temp. Control”

Touch“Temp. Control”

Indication

lamp

Setting Cold Coldest

Normal

Sound Pi! Pi! Pi! Pi! PiPi! Pi! Pi! Pi! Pi!

Touch Touch

Touch

Touch Touch

Touching Touching Touching

Touch

There is not sound when

touching any button

(disactive door alarm sound).

Rail Stops

● Pull up the back and pull out

the shelf forward.

● Set the refrigerator shelves

by combining with stored food.

Adjusting the shelves.

Shelf Trim

Drawer

CAUTION

Shelf trims are removable, Holding the shelf with both hands.

DO NOT holding trim or holding shelf with only one hand

otherwise it may drop or injury.

CAUTION
