Hitachi Ultrastar 15K147 Manuale utente

Page 1 version 1.0

Quick Installation Guide

Hitachi Ultrastar 15K147

Models:

HANDLING PRECAUTIONS

•Do not open the electrostatic discharge (ESD) bag containing the drive until required.

•Do not apply pressure on the drive during handling and installation.

•To prevent damage from impact or vibration always set the drive down gently.

•Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic

components.

•Do not cover the breather hole! Covering the breather hole may result in loss of data.

•Save the packaging materials including the ESD bag in the event that the drive must be returned.

INSTALLING THE DRIVE

1. Record the serial number and part number of your hard drive for future reference.

2. Turn off the computer and remove the computer system cover.

3. Before handling the hard disk drive, discharge any static electricity from yourself and your clothing. With

one hand touch an unpainted metal surface on the computer chassis, and then touch the ESD bag with the

other hand for a minimum of two seconds.

4. Remove the hard drive from the ESD bag.

5. Unplug the computer.

6. For the 68-pin model assign a SCSI ID address if necessary. The default ID is 6.

Page 2 version 1.0

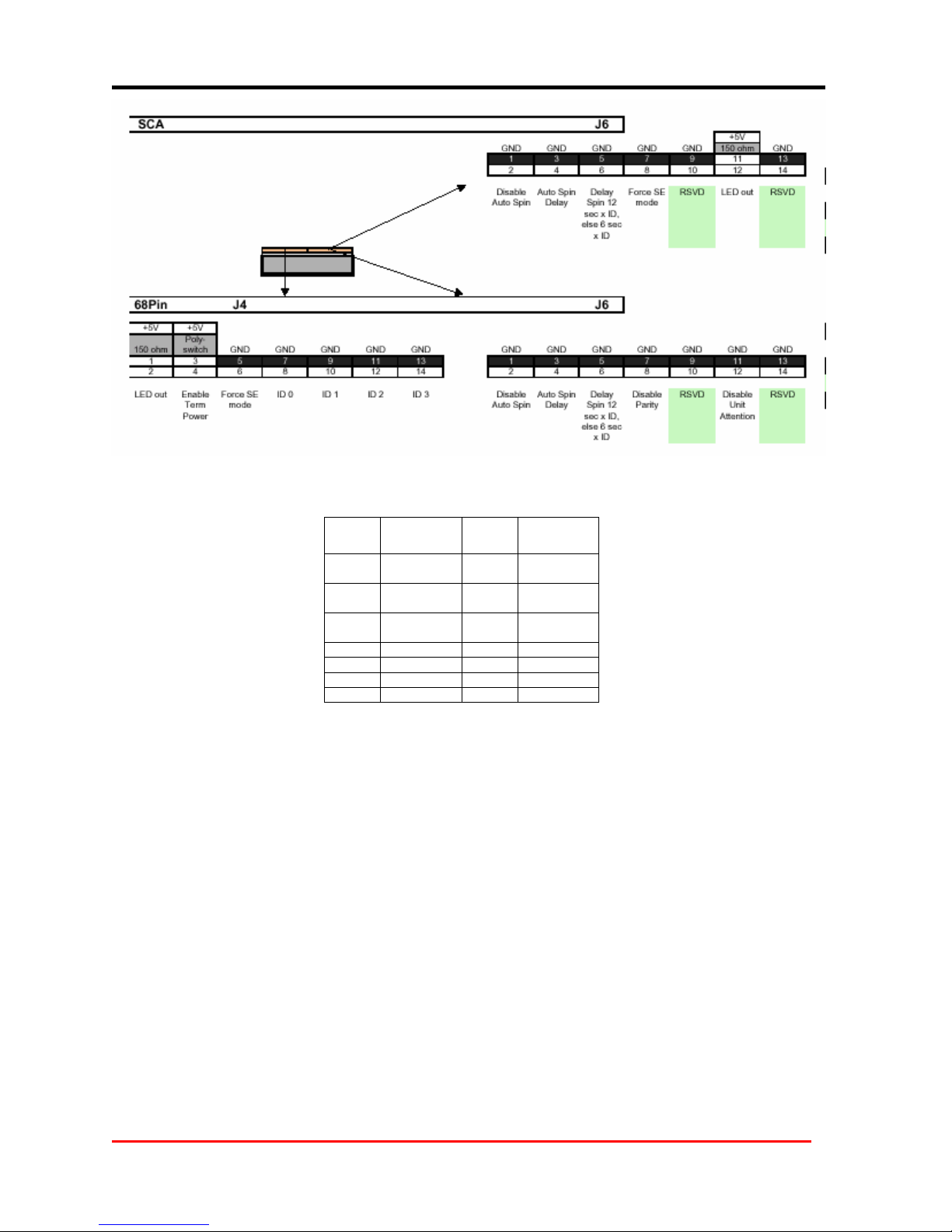

ADDRESS JUMPER AND DRIVE OPTION BLOCKS

HE 68PIN J4OPTIONS (from left to right)

Pin Signal

Name Pin Signal

Name

1 +5V 150

ohm 2 LEDout

3 +5V Pdy-

switch 4 Enable

Term Power

5 GND 6 Force SE

mode

7 GND 8 ID0

9 GND 10 ID1

11 GND 12 ID2

13 GND 14 ID3

JUMPERS ARE NOT REQUIRED ON THE 80 PIN CONNECTOR.

Page 3 version 1.0

Auxiliary Connector J6

7. Mounting Orientation

The drive may be installed horizontally or Vertically. Provide adequate airflow to cool drive. Use 4

Mounting screws(6x32UNC). Maximum screw penetration 3.8mm(0.15 in) into drive.

8. For a 68-pin drive attach the power cable and ensure that one end of the SCSI cable

is connected to the host adapter. The cable should be terminated. (The 80-pin drive is plugged

into the server backplanes and requires no cables)

9. Ensure that all cables are connected and properly routed.

10. Turn on your computer.

•If the system boots be sure the drive is recognized. If it is turn off the computer and replace the cover.

Proceed to install your operating system.

•If your system does not boot up, turn off your computer and check all connections and settings. Turn

on and boot the system.

•If the system fails to boot, turn off your system. Contact the Hitachi GST Technical Support Center for

assistance – www.hitachigst.com

Page 4 version 1.0

Special Notes:

•For this drive to operate in LVD mode all SCSI devices including the SCSI bus host adapter must be

LVD devices.

•The drive is designed to detect if the SCSI bus is LVD or SE. The drive will function based upon the

mode that it detects. To force SE ended mode on the 68-pin drive, place a jumper across pins 5 & 6

connector J4.

•For 68 pin drives termination power must be provided. In most cases the host adapter provides it. For

the drive to provide Term power install a jumper on pins 3 & 4 on option jumper J4. (The 80-pin drive does

not provide termination power.)

Page 5 version 1.0

©Copyright Hitachi Global Storage Technologies 2004

Hitachi Global Storage Technologies

5600 Cottle Road

San Jose, CA 95193

Produced in the United States 11/04

Ultrastar™is a trademark of Hitachi Global

Storage Technologies.

Other product names are trademarks or registered

trademarks of other respective companies.

References in this publication to Hitachi Global

Storage Technologies products, programs or

services do not imply that Hitachi Global Storage

Technologies intends to make these available in all

countries in which Hitachi Global Storage

Technologies operates.

Product information is provided for information

purposes only and does not constitute a warranty.

Information is true as of the date of publication and

is subject to change. Actual results may vary.

This publication is for general guidance only.

Photographs may show design models.

November 8, 2004
