HMS Networks Anybus Terminator T1 Manuale utente

Terminator T1

Active PROFIBUS DP segement termination

Installation Manual

Terminator T1 Manual

Version 1.3.2

•All baudrates

•Redundant power supply

•DB9 connector for maintenance activities

•IP 20 with DIN-rail mounting

HMS Technology Center B.V.

Vlasmarkt 1

3011 PW, Rotterdam

The Netherlands

T: +31-(0)174-671800

F: +31-(0)174-671801

E: [email protected]

W: www.procentec.com

Introduction

The T1 Terminator provides active and reliable

termination for PROFIBUS networks which are based

on RS 485. By using this component it is possible to

turn off, remove or replace devices without disturbing

the bus communication. This applies in particular to

the devices at the end of the segment.

The T1 has a couple of special features which makes

it a very useful infrastructure component; it has a

redundant power supply and diagnostic LEDs to

indicate the status of each power source. It is also

equipped with an additional DB9 connector for

ProfiTrace or other maintenance/engineering tool.

The DB9 connector can also be used as the primary

bus connection if circumstances so dictate.

The T1 Terminator can be installed on a standard

DIN-rail.

Installation instructions

Location

The T1 Terminator can be installed everywhere in a

non-hazardous area that complies with IP 20 (DIN 40

050) and the specified temperature range of -20 to

+60oCelsius.

Position

The T1 Terminator can be installed in every position,

but it is recommended to install it with the green

PROFIBUS connector pointing down. In this position

it is easier to read the status display and to perform

measurements on the DB9 connector.

Mounting and dismounting

The T1 Terminator has to be mounted on a 35 mm DIN-

rail with a minimum width of 60 mm. Fig. 1 and Fig. 2

illustrate how to mount and dismount the T1 on and

from the DIN-rail.





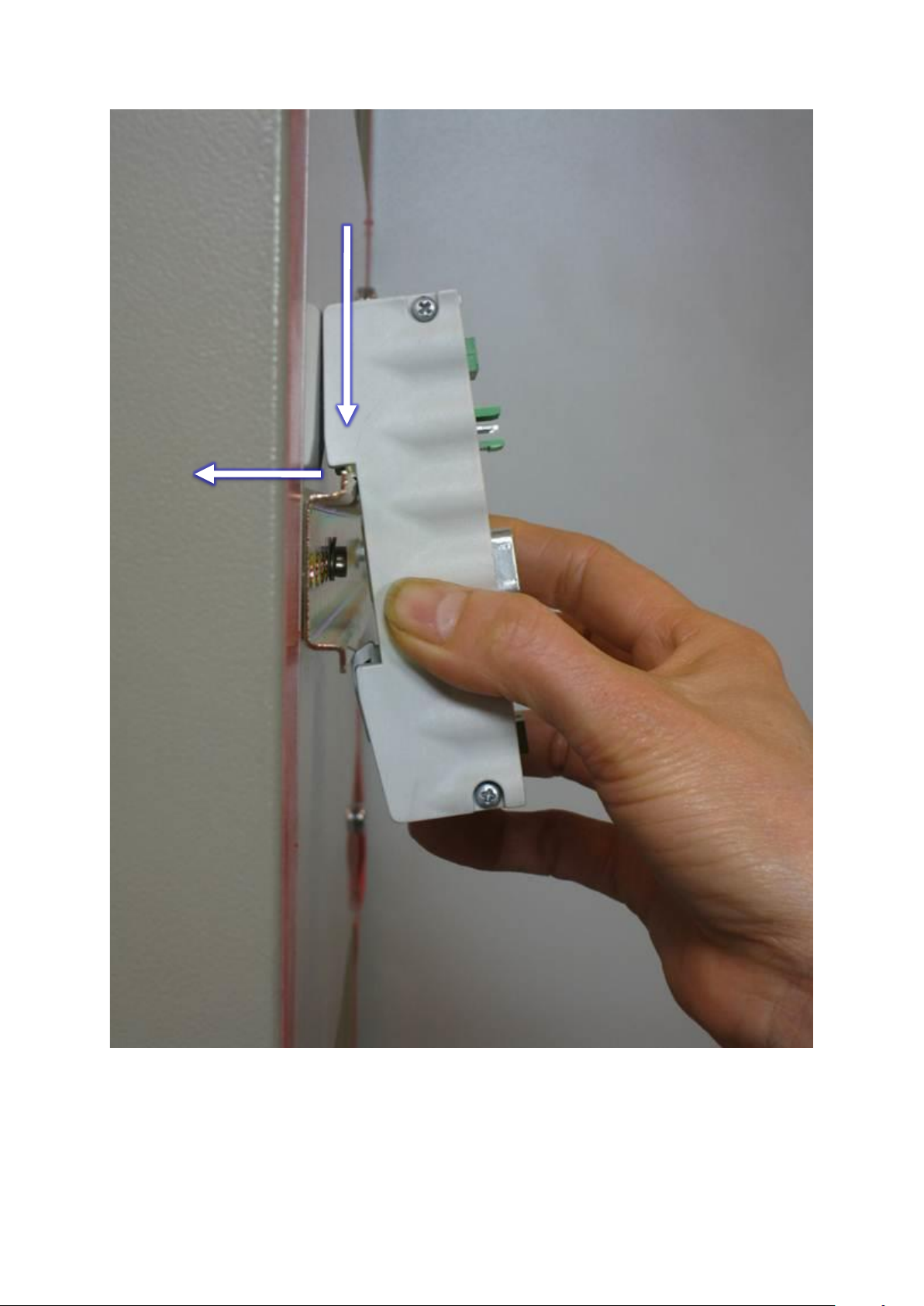

Fig. 1 Mounting; pull-down and push





Fig. 2 Dismounting; Push-up and pull

Power supply

Parameters

The power supply has to comply with the

following specifications:

Voltage: 19 to 28 Vdc

Current: Min. 65 mA

Wiring

The leads of both power connectors

have to be wired as follows:

“-“ = 0 V

“+” = Positive Voltage

SH = Earth

Redundancy

Both power connectors are linked 1-on-1 to the

internal power supply of the T1. If 1 power supply

would fail, the other takes over without delay time.

When redundancy is not required, it is sufficient to

use 1 power connector. When the T1 is flipped 180 o,

the connectors can be used without alteration. Fig. 3

illustrates the location of the power supply connectors.

Fig. 3 Structure of the T1

Bus cable in

Power

Piggy back

connector for

maintenance

activities

PROFIBUS

Screw connector

The T1 Terminator has 1 PROFIBUS connector, this is

where the DP segment ends. It is common practise

to connect the PROFIBUS cable to the green screw

connector. This keeps the DB9 connector available

for maintenance activities.

Pin layout

Pin “A”: Green wire

Pin “B”: Red wire

Pin “SH”: Cable shielding

Piggy back connector

The piggy back DB9 connector is connected

1-on-1 with the PROFIBUS screw connector.

Ground Clip

It is recommended to use the supplied GC-01 ground

clip to attach the cable shield to the screw connector,

as shown in figure 4, for easier shield connection and

better strain relief.

The Ground Clip GC-01 can be ordered separately per

25pcs with order code 101-00201B

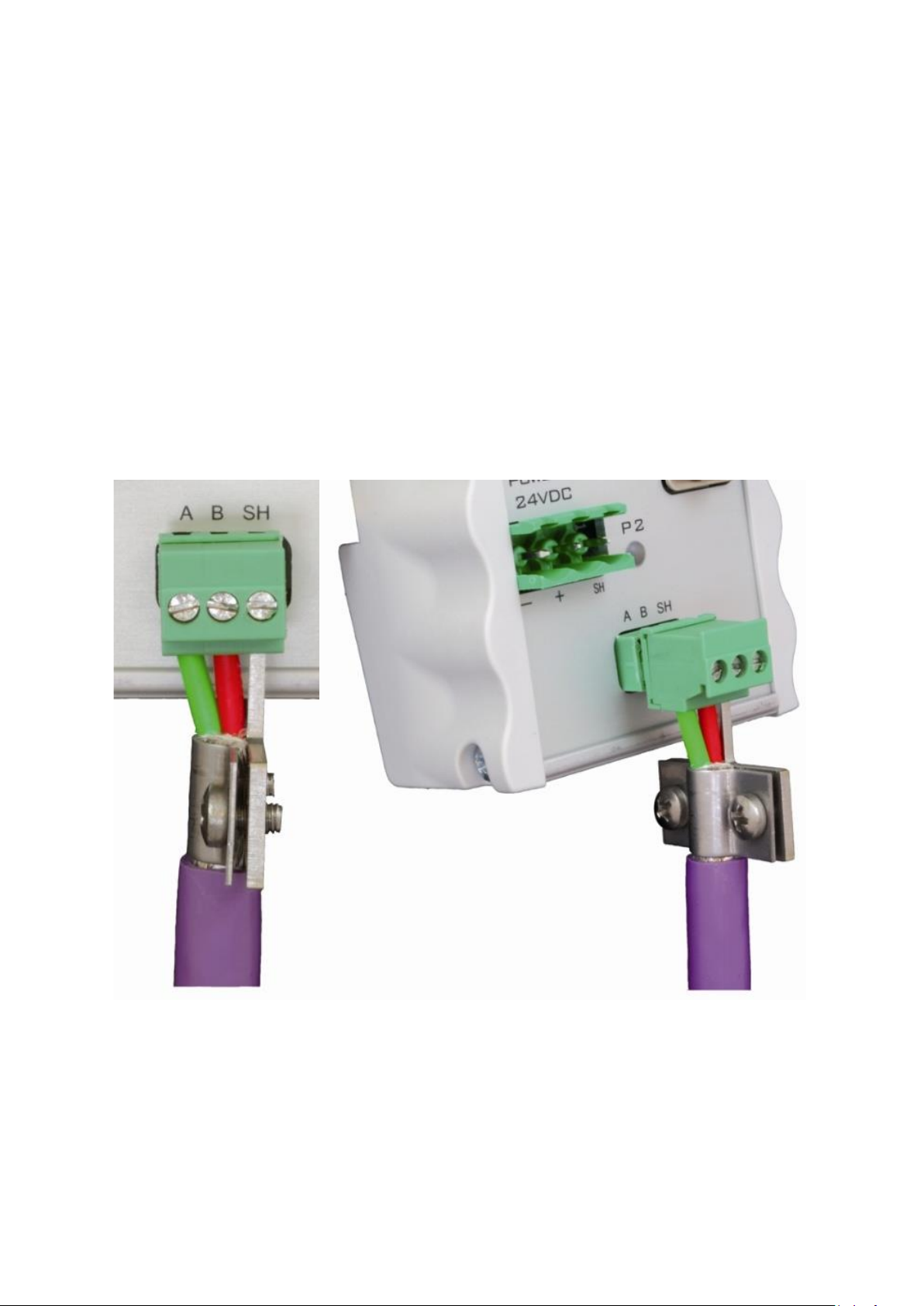

Fig. 4 Using the Ground Clip
