Hobby King FALCON TRAINER Manuale utente

Wing Span:73.2in/1860mm; Radio:4Channel 5Servos;

Wing Area:62sq.dm; Engine:20CC Gas

Length:61in/1550mm;

CAUTION : this plane is not a toy and should be kept away

this manual.

●First-time builders should seek advice from

p

eo

p

le havin

g

buildin

g

ex

p

erience in order to assemble the model correctl

y

and to

p

roduce its

●Assemble this kit onl

y

in

p

laces out of children’s reach!

●Take enou

g

h safet

y

p

ercautions

p

rior to o

p

eratin

g

this model.

You are res

p

onsible for this model’s assembl

y

and safe o

p

eration!

●Alwa

y

s kee

p

this instruction manual read

y

at hand for

q

uick

reference

,

even after com

p

letin

g

the assembl

y

.

children under 16 years of age! Before use , please carefully read

p

erformance to full extent .

All manuals and user guides at all-guides.com

all-guides.com

All the parts together

Main Wings

Connect the aileron and the main wing by hinges.Be sure to apply instant

type glue to both sides of each hinges.

Install the aileron horns in place with AB glue Align the holes in the horns

All manuals and user guides at all-guides.com

Cut the servo holes on the bottom of the main wings

Gather servo parts as shown.

Install the control horn.

All manuals and user guides at all-guides.com

Use screw to fixed it

Install the servo.as shown

Drill holes with the specified diameter(13mm) on the bottom wing

All manuals and user guides at all-guides.com

Servo extension through the hole

Put the servo into the hole then use screw fixed it

Connect the servo arm and control horn with push rod .

All manuals and user guides at all-guides.com

Connect the main wings and the fuselage with hard wood.

Main Landing Gear and Tail Wheel Unit

Cut hole at the Original design hole of the fuselage

Fix up main landing gear on the fuselage bottom with screws.

All manuals and user guides at all-guides.com

all-guides.com

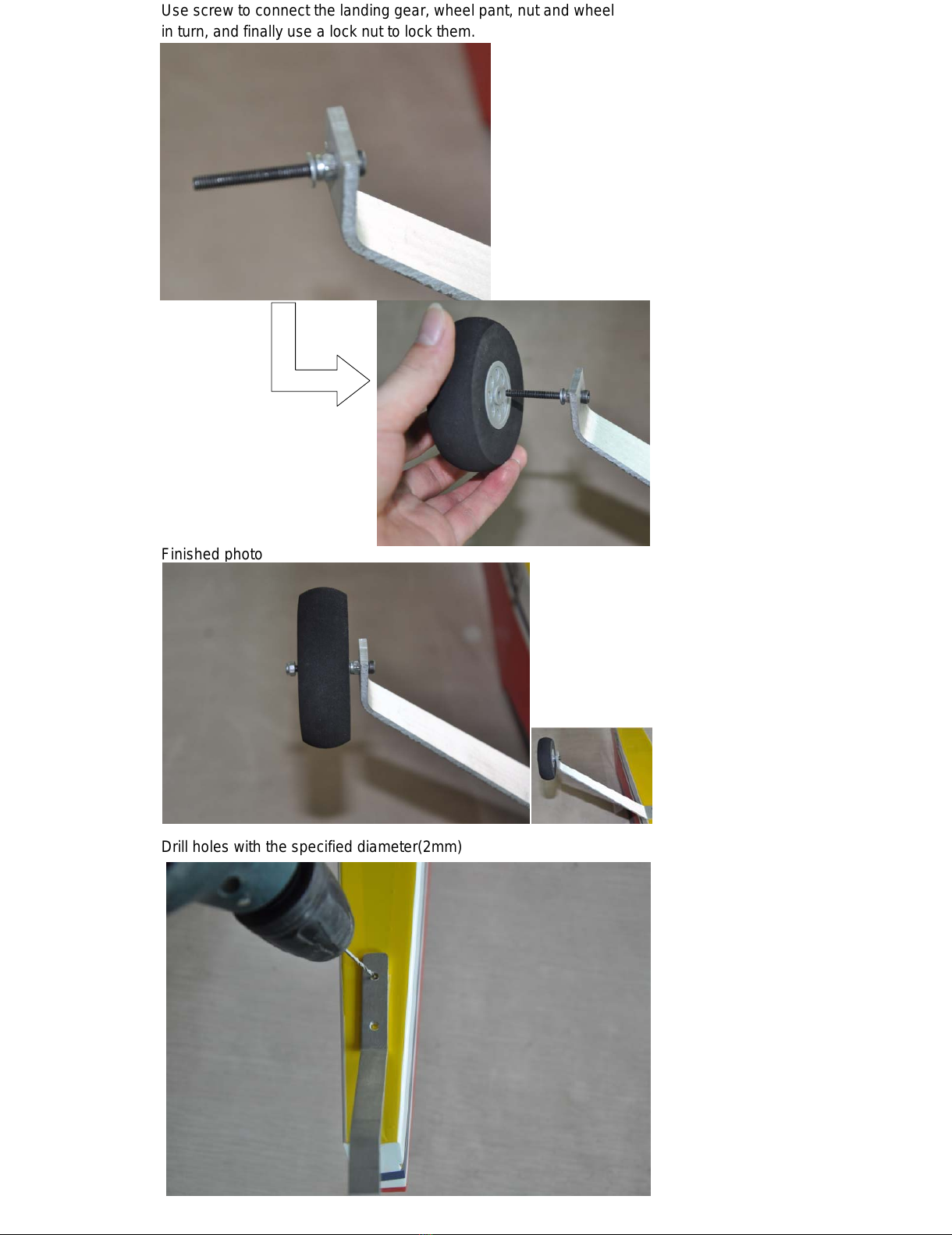

Use screw to connect the landing gear, wheel pant, nut and wheel

in turn, and finally use a lock nut to lock them.

Finished

p

hoto

Drill holes with the specified diameter(2mm)

Stabilizer And Rudder

All manuals and user guides at all-guides.com

Use screw to lock tail landing gear on the wing bottom

Stabilizer And Rudder

Apply epoxy into hinge hole of the elevator

Connect the vertical fin and the rudder by hinges.

All manuals and user guides at all-guides.com

Cut off shaded portion on the fuselage.

Cut the holes on the stabilizer

Install the elevator and vertail fin，as shown

All manuals and user guides at all-guides.com

Install the elevator horns and fix it with screws.

Finished photo

Install rudder horns and push-rod.

All manuals and user guides at all-guides.com
