Congratulations on your purchase of the WS-Bag! Since positive word
of mouth is the best way to grow our business, we want your install to go as
smoothly as it was designed to. If you have any questions or concerns, we are
here to help. Email or call us during regular business hours. If you still need
help, then please consider a professional installation by your dealer.
2
Hogtunes Contact Information
USA Tel: 608-554-7631 •Canada Tel: 705-719-6361
On the underside of the bag, there is a “X” grommet to allow a USB cable to pass
into the bag and an audio cable as per Fig 1.4. Skip to next page if not using.
From inside the zippered pouch, push the standard USB cable through as shown
in Fig 1.1. Pull all the slack through leaving enough slack for your USB powered
device as shown in Fig 1.2.
IMPORTANT: When mounted, MAKE SURE the bag does not obscure your
view of the road or surroundings. Install the bag so it will not shift or move while
riding with or without anything in the bag. Make sure the mounted bag will not
contact any controls or moving parts of your bike. Before riding, secure any cargo
inside the bag, taking special care with eyeglasses. Make sure all flaps/zippers etc
are in the closed position. Your Hogtunes WS-BAG is designed to slip in between
the windshield and the inner dash of your bikes fairing. Care must be taken when
mounting the bag so it stays firmly secured to your bike!
PREPARING THE BAG FOR INSTALLPREPARING THE BAG FOR INSTALLPREPARING THE BAG FOR INSTALL
WS-BAG INSTALLATIONWS-BAG INSTALLATIONWS-BAG INSTALLATION
3
Make a “U” as shown in Fig 1.3. This allows your USB to go around the top lip of
your fairing when installing the bag. On the far right of the bag is a 2nd “X”
grommet that allows Hogtunes audio cable to pass out of the bag to the “aux in”
on the radio. With USB power, and the audio out to the aux in, the zipper pouch
is the ideal place to have your audio device for long rides!

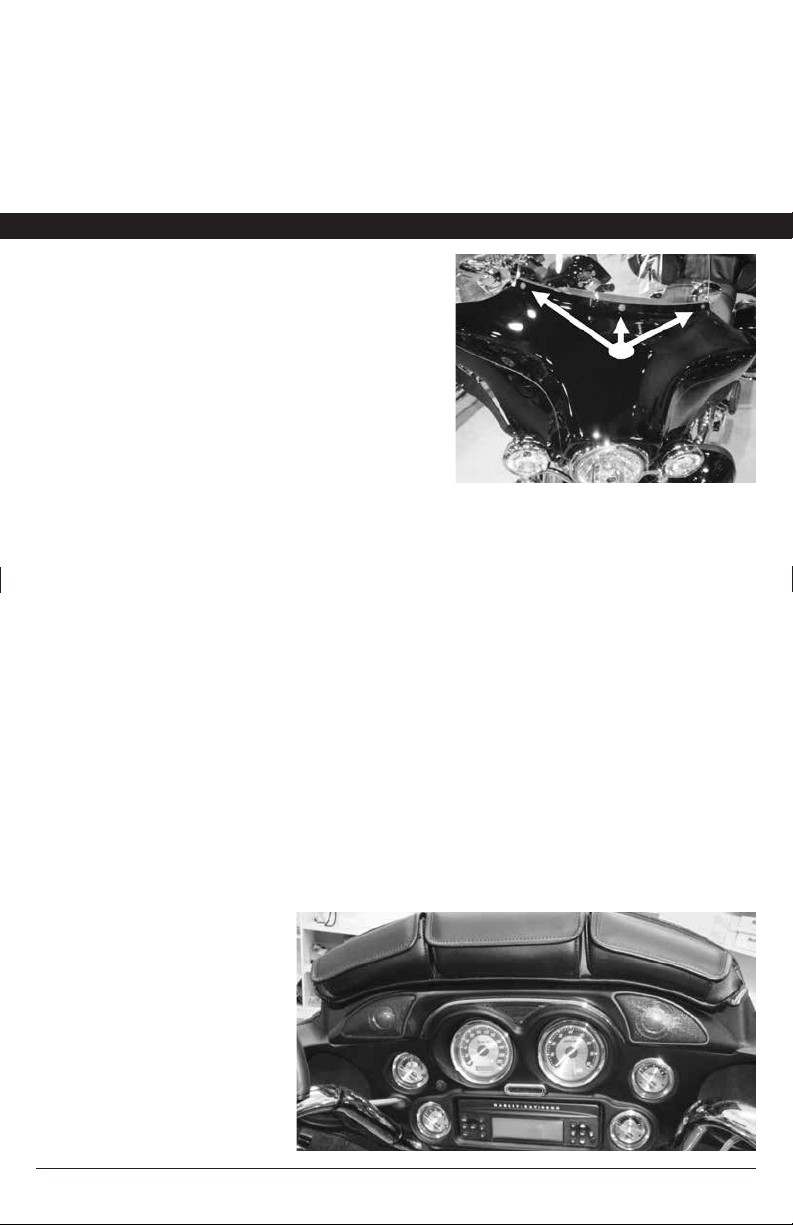

Step#1: Locate the 3 screws highlighted by
white arrows in the image below.
These are the screws that “clamp”
the windshield between the bikes
inner and outer fairing. In most
cases, the 3 screws will only need to
be loosened before moving to Step
#2, but may need to be removed
depending on the bike.
Step#2: Slide the lower, backing portion of the windshield bag down between
the inner dash and the windshield. NOTE: If using the USB cable option,
you may need to loosen all 7 fairing screws to allow the outer fairing to
pull back far enough to get the “U” around the top lip of the inner fairing
as shown in Fig 1.3. Once the bag is in place, take any slack out of the
loop.
Step#3: Align the center hole in the outer fairing, and windshield molding
(if present) with the center “slot” in the windshield bag and the center
threaded insert of the inner fairing.
Step#4: Loosely re-install the 3 screws. Check the fit and alignment of the
windshield and the bag before tightening the screws securely.
Step#5: Make sure that none of the parts of the bag will touch or interfere
with anything that can impair the operation of the bike! It is your
responsibility to make sure the installation of the bag does not create an
unsafe, or illegal
situation.
NOTE: After 50 miles of
riding (80km), recheck the
mounting of the bag to
make sure it is still securely
mounted to the fairing.
Hogtunes products will play much louder than the
Original Equipment, which can be a distraction to
the rider and/or passenger. Please use caution
when adjusting or playing your stereo
at high volume, especially in trac.
You are a valued customer so please:
Ride Alert
Arrive Alive!
Version 1.2
