HOMCOM A91-085 Guida all'installazione

SIT UP BENCH

ASSEMBLY & INSTRUCTION MANUAL

IN231000273V01_UK_FR_ES_DE_IT

A91-085

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

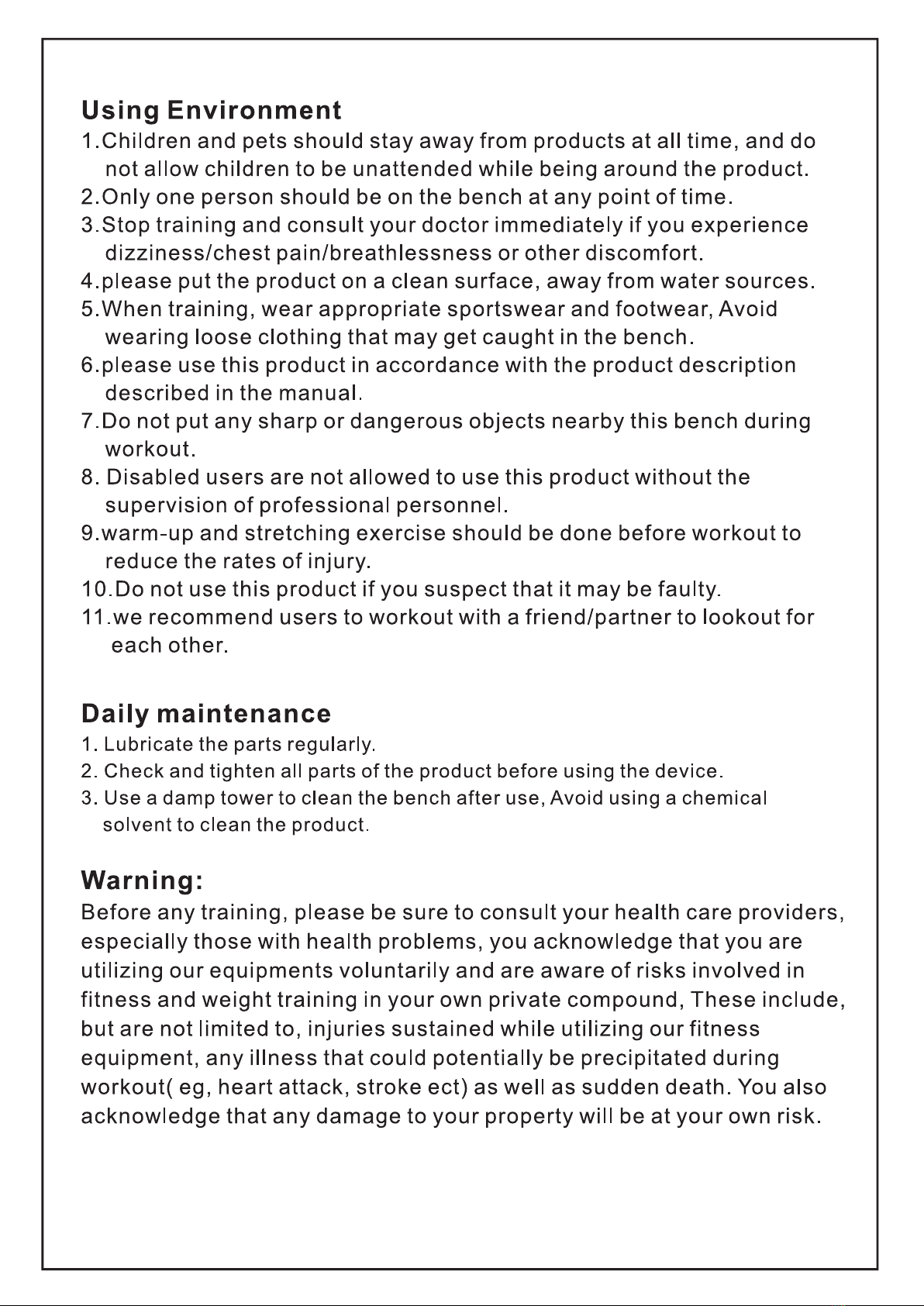

*The maximum user weight is 110 Kg (242lbs).

Main Frame Assembly

FrontLeg Tube

One HookFoam Unit

Foam

Front HookFootFoam Pull Handle

Rear Armrest Components

Drawstring

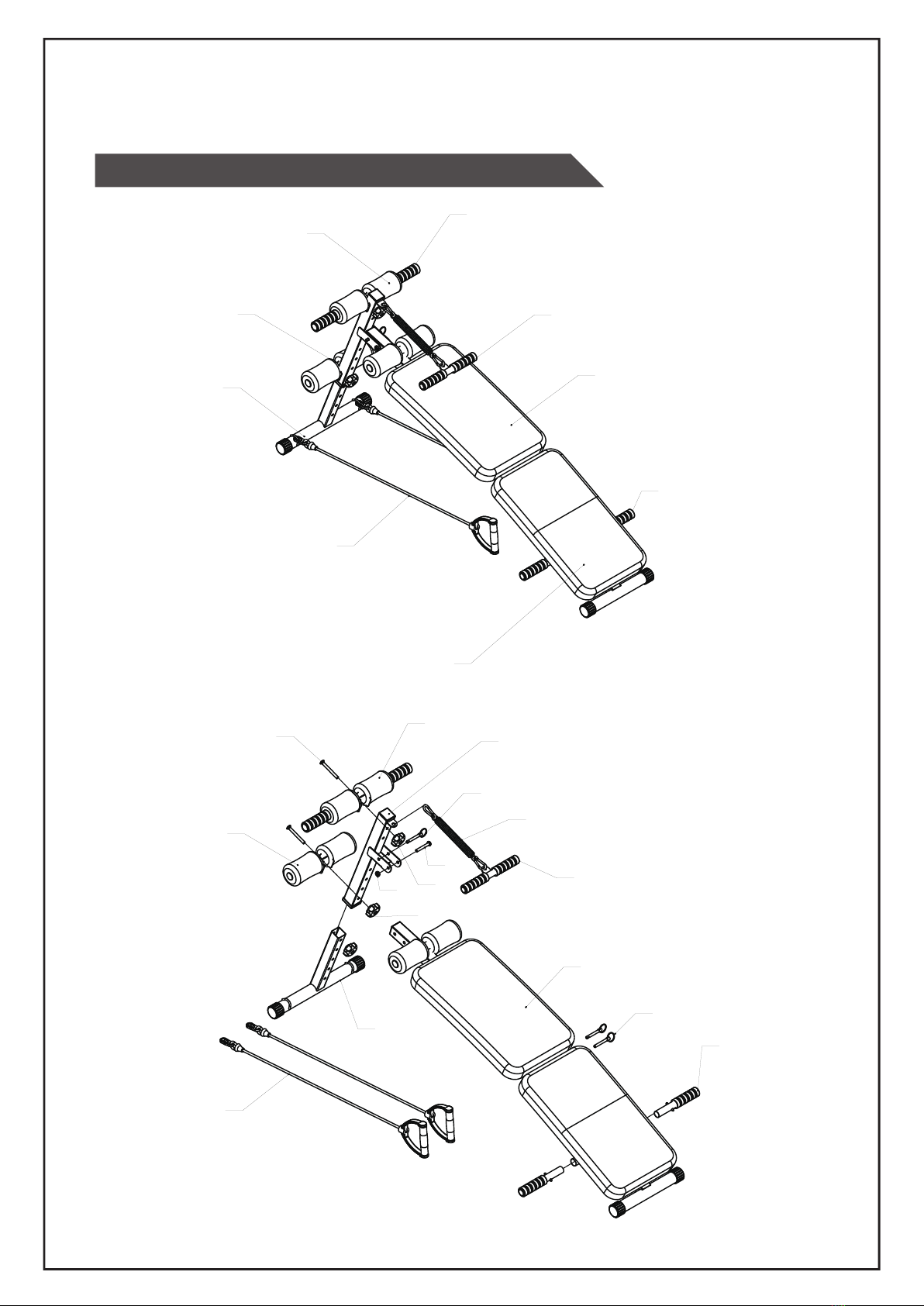

EXPLODED-VIEW

ASSEMBLY DRAWING

311

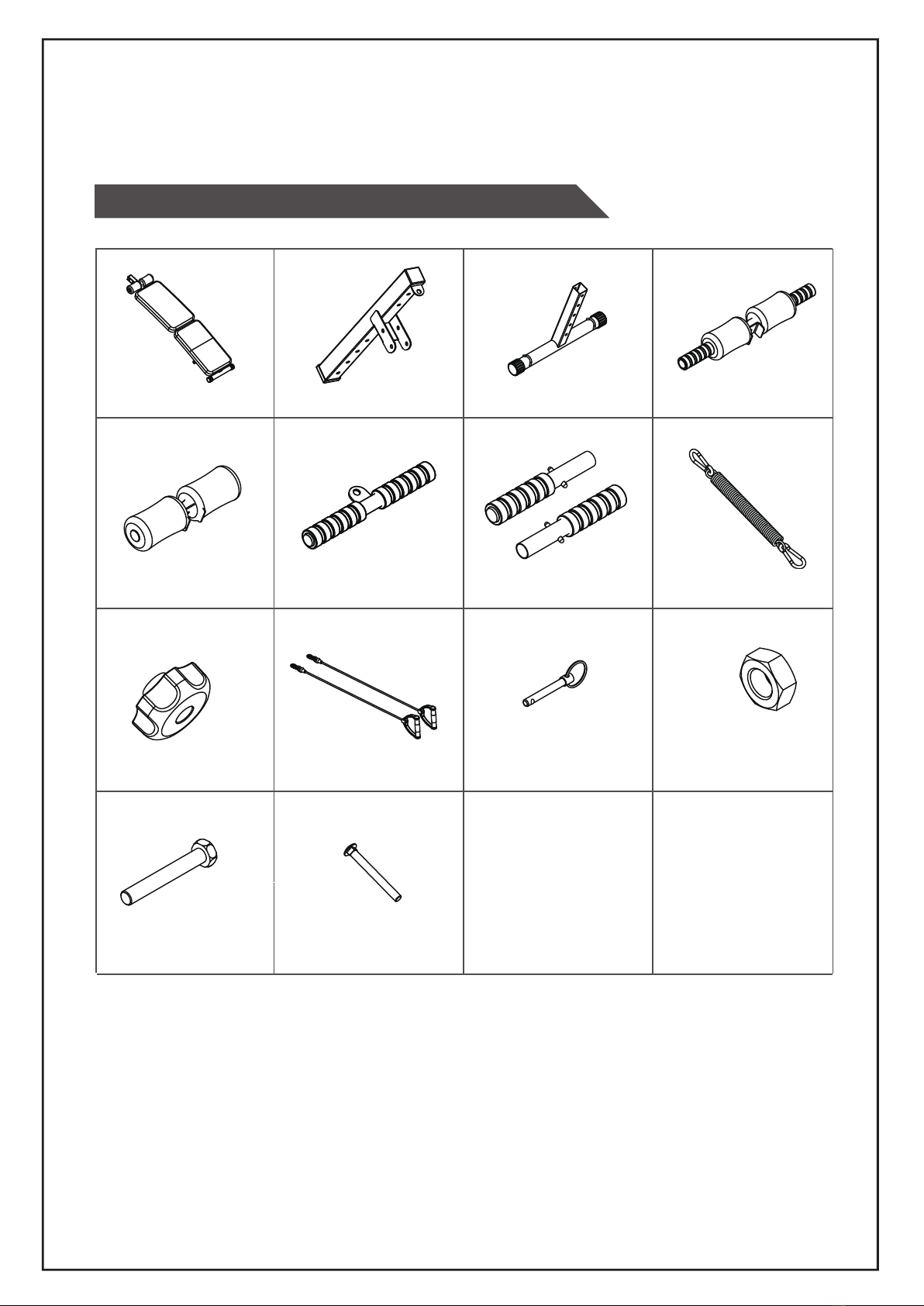

1.Main frame assembly1PCS 2.Front support tube1PCS 3.Frontleg tube 1PCS 4.Onehook foam unit 1PCS

5.Fronthook foot foam 1PCS 6.Pull handle 1PCS 7.Rear armrest components

2PCS 8. Extension spring 1PCS

9. Plumblossom knob nut

M10 2PCS

13. Hex head bolt M10 * 55 2PCS 14. Round head square

diameter bolt M10 * 75 1PCS

10.Drawstring 2PCS 11. With ring boltd10 * 55 1PCS 12. Hex bolt M10 3PCS

PARTS

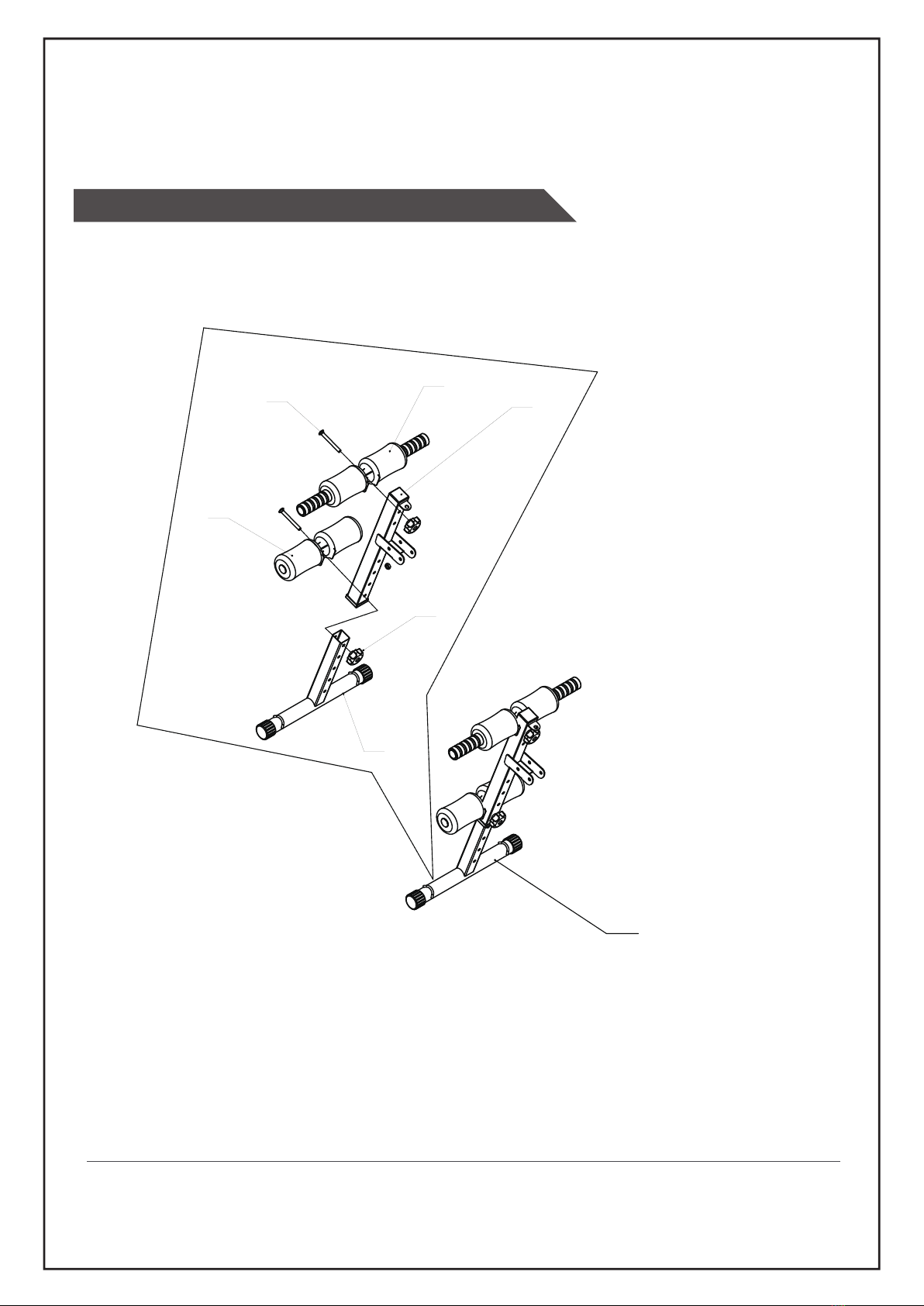

STEP 1

Take out the front support tube assembly (2), the front leg tube assembly (3), the outer hexagon bolt M10 * 55 (14) 1 piece

the Torx knob nut M10 (9) 1 piece, the hook foot foam component (4) 1 Pieces, front hook foot foam assembly (5) 1 piece.

As shown in Figure A, align the corresponding holes to install and tighten the related screws. The completed result is the

component in Figure A

INSTALLATIONSTEPS

Picture A

A PICTURE COMPONENTS

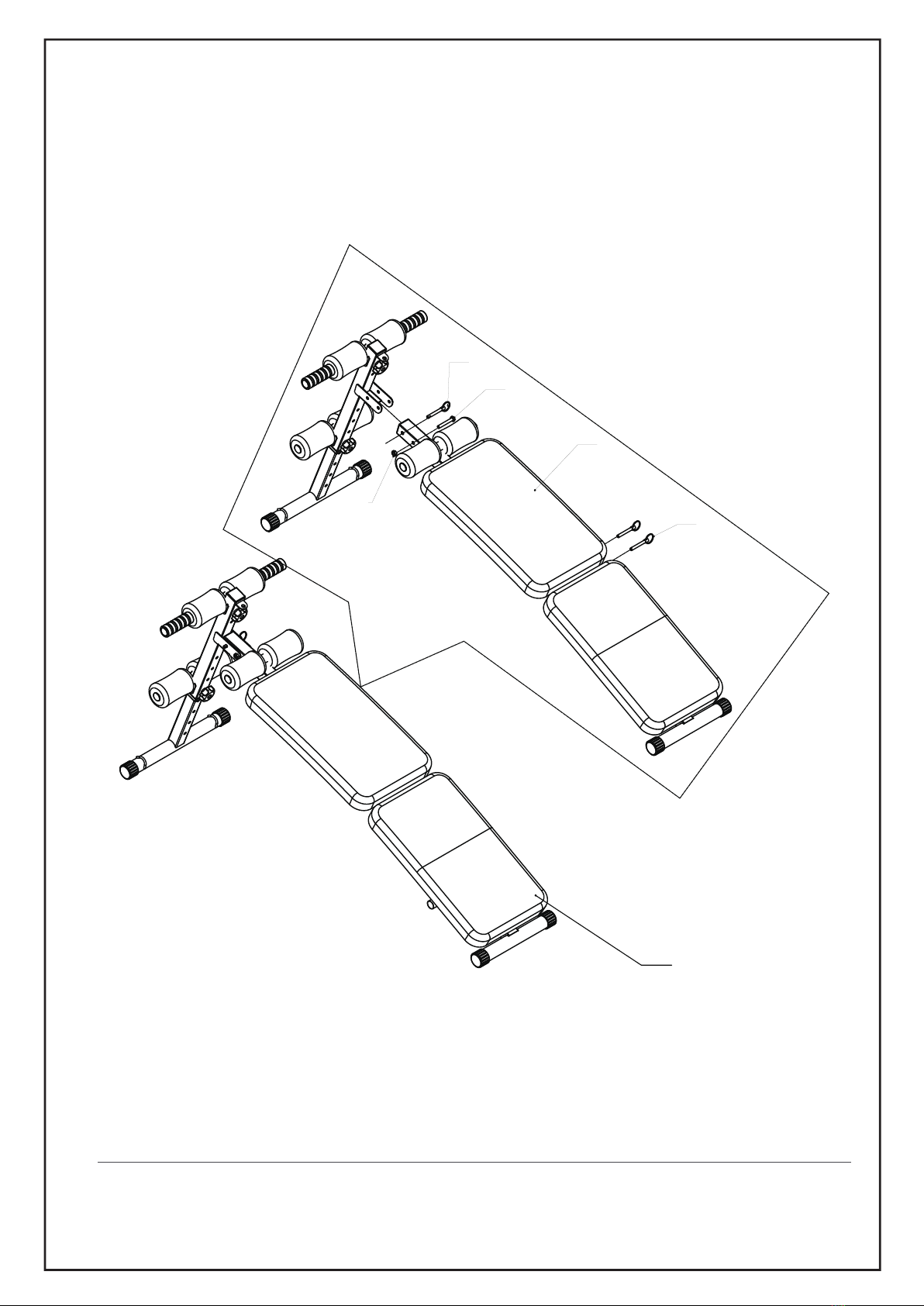

STEP 2

Ia. Take out the main frame assembly (1), 3 pieces of ring bolt d10 * 55 (66) (11), 1 piece of hexagon head bolt M10 * 55 (13)

and hexagon nut M10 (12). Align with the components in Figure A as shown in Figure B, align and install the corresponding

holes, and tighten the related screws. The result is B components

Picture B

B PICTURE COMPONENTS

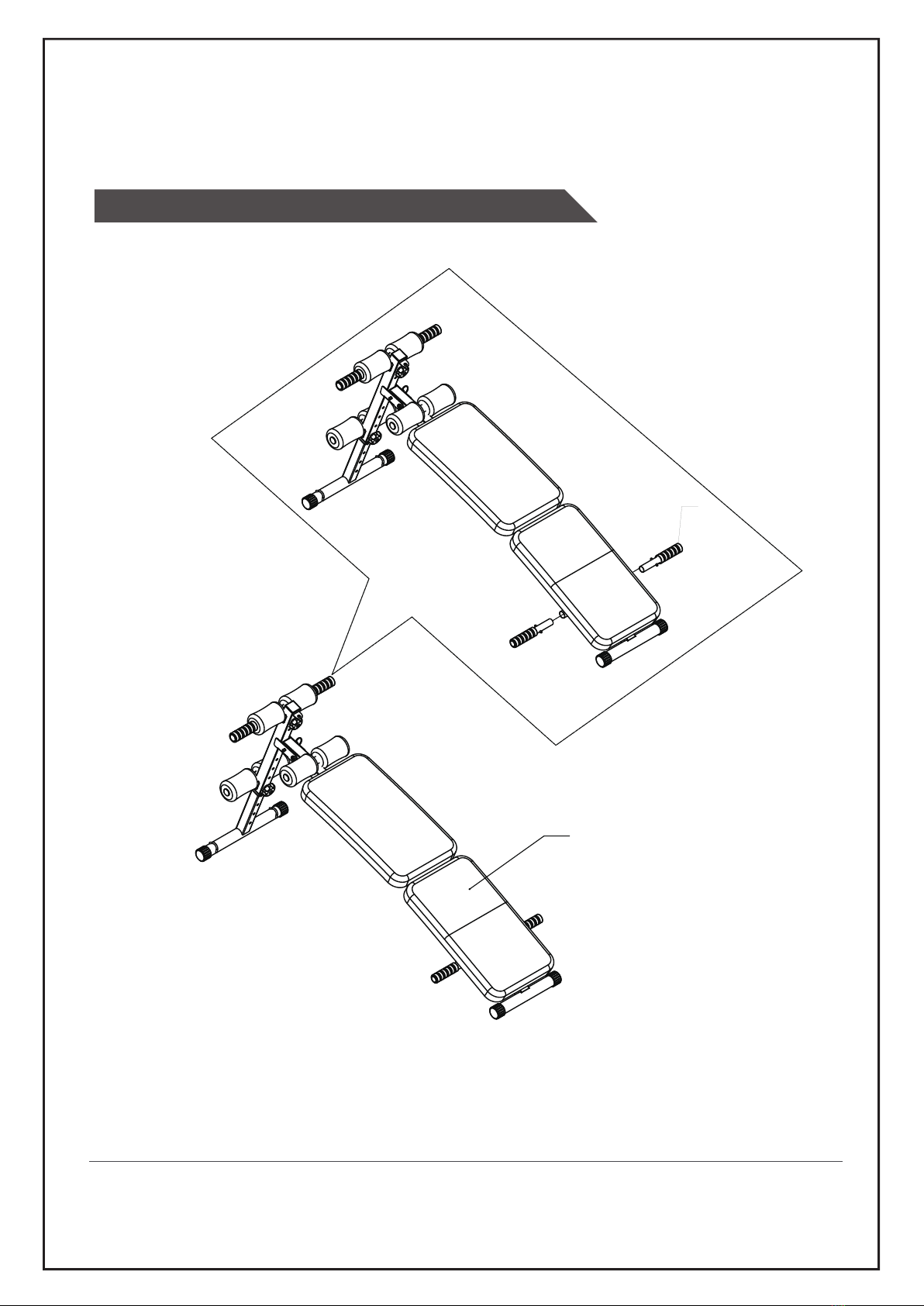

STEP 3

Take out the rear armrest assembly (7) 2 pieces and the assembly of B as shown in Fig. C, align and install the corresponding

holes, the result is the assembly of C

INSTALLATIONSTEPS

Picture C

C PICTURE COMPONENTS

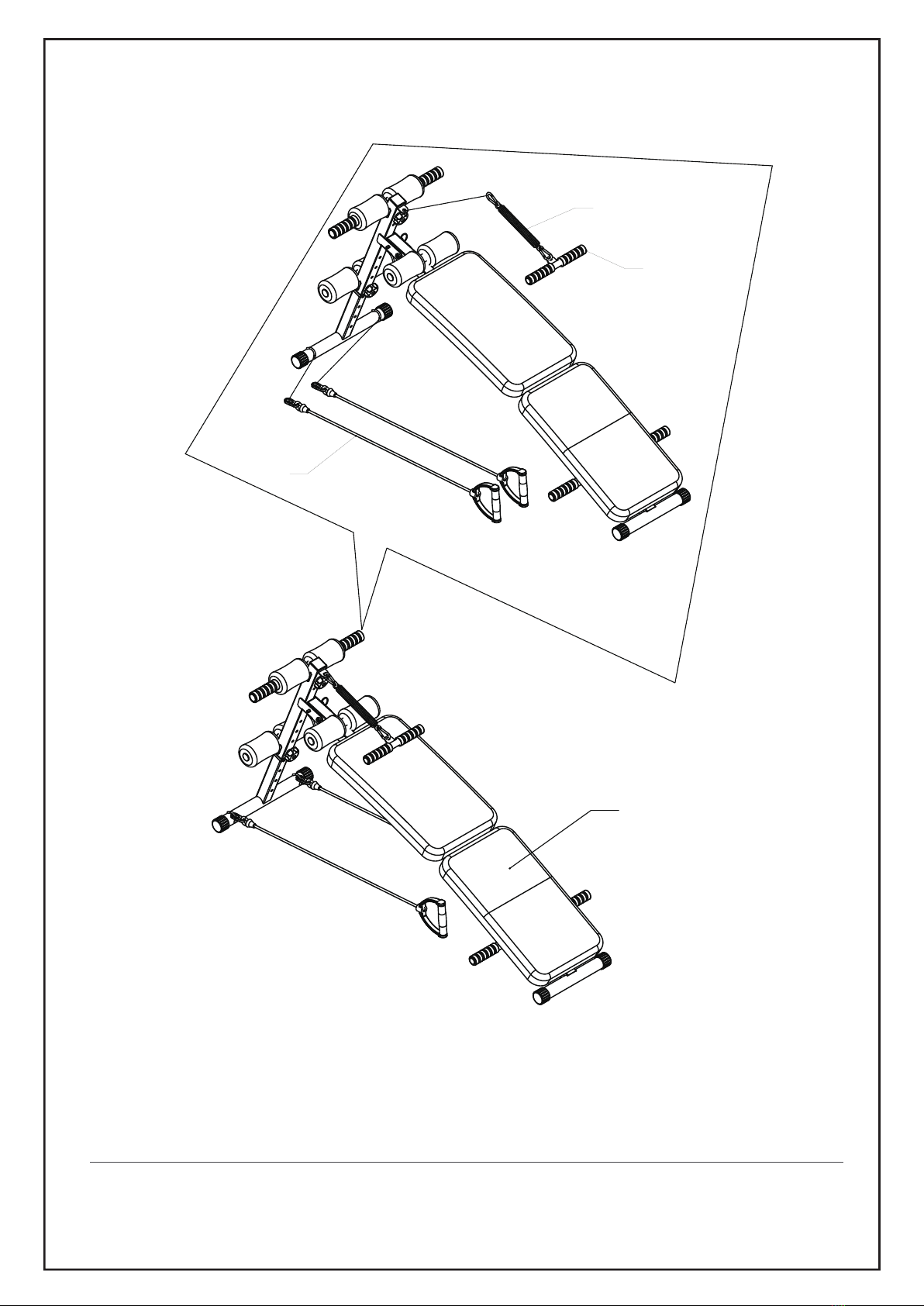

STEP 4

Take out the handle assembly (6), tension spring assembly (8), and pull rope assembly(10) Two pieces, as shown in Figure F

align and install the corresponding holes, and the completed result is the component D. At this point, the entire product

components are completed.

Picture D

D PICTURE COMPONENTS

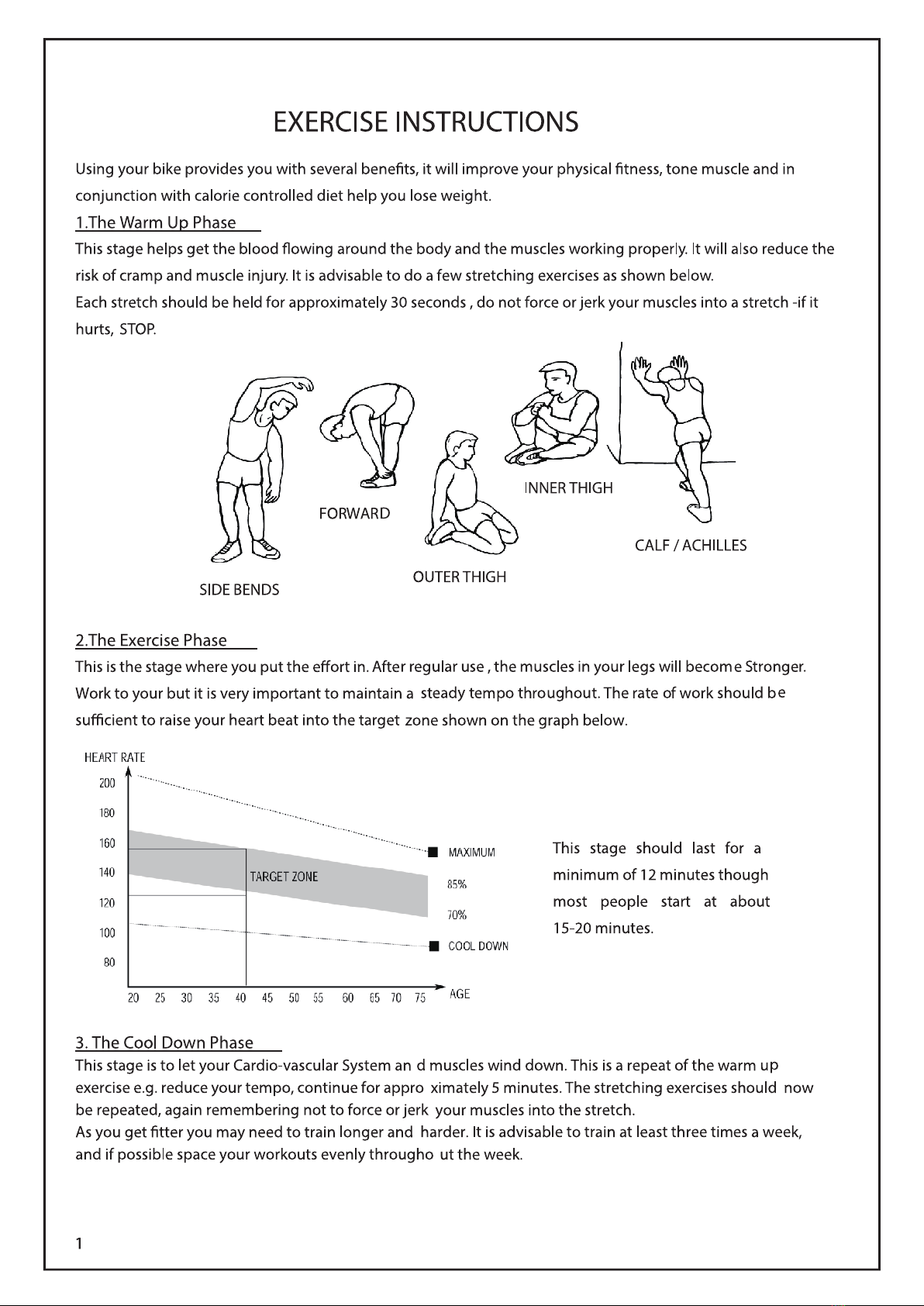

anc de musculation

*Le poids maximum de l'utilisateur est de 110 Kg (242lbs).

IMPORTANT - CONSERVEZ CES INFORMATIONS POUR VOTRE

CONSULTATION ULTÉRIEURE: LISEZ ATTENTIVEMENT

INSTRUCTIONS D’ASSEMBLAGE

A91-085

IN231000273V01_UK_FR_ES_DE_IT
