USE AND CARE GUIDE

1-800-986 3460

AMARETTO 70 INCH CEILING FAN

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

Item #1001 668 630

Model #CL11012

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday,

9 a.m. - 6 p.m., EST, Saturday

Installation .....................................................................

Table of Contents ..........................................................2

Safety Information .........................................................3

Warranty .........................................................................4

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ...................................................................

Assembly .......................................................................

Hanging the Fan ......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Table of Contents

Operation

Care and Cleaning 19

Troubleshooting 20

Service Parts 21

......................................................................

.......................................................

...........................................................

................................................................

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986 3460 for further assistance.

Safety Information

□ To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

□ All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

□ The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only UL Listed outlet boxes marked “FOR FAN

SUPPORT.”

□ The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

□ To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

□ Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

□ After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

□ All setscrews must be checked and retightened where

necessary before installation.

□ This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must

accept any interference received, including interference that

may cause undesired operation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades, or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: Changes or modications to this unit not

expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

WARNING:To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures: Reorient or relocate the receiving

antenna. Increase the separation between the equipment and

receiver. Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

□Read and save these instructions.

SPECIFICATION S

TOOLS REQUIRED

Phillips

screwdriver

Electrical

Tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-986 3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

70 in.

120

Fan size Watts RPM CFMSpeed Volts Amps

2.69 ft.

N.W. G.W. C.F.

0.04

0.05

0.06

2032

2695

3128

0.08 4 56 3894

0.10 6 64 4297

0.13 8 73 4929

0.17 11 82 5588

0.23 15 90 6243

0.38 26 107 7812

10.6 kg

(23.32 lb)

12.2 kg

(26.84 lb)

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986 3460 for further assistance.

Pre-Installation (continued)

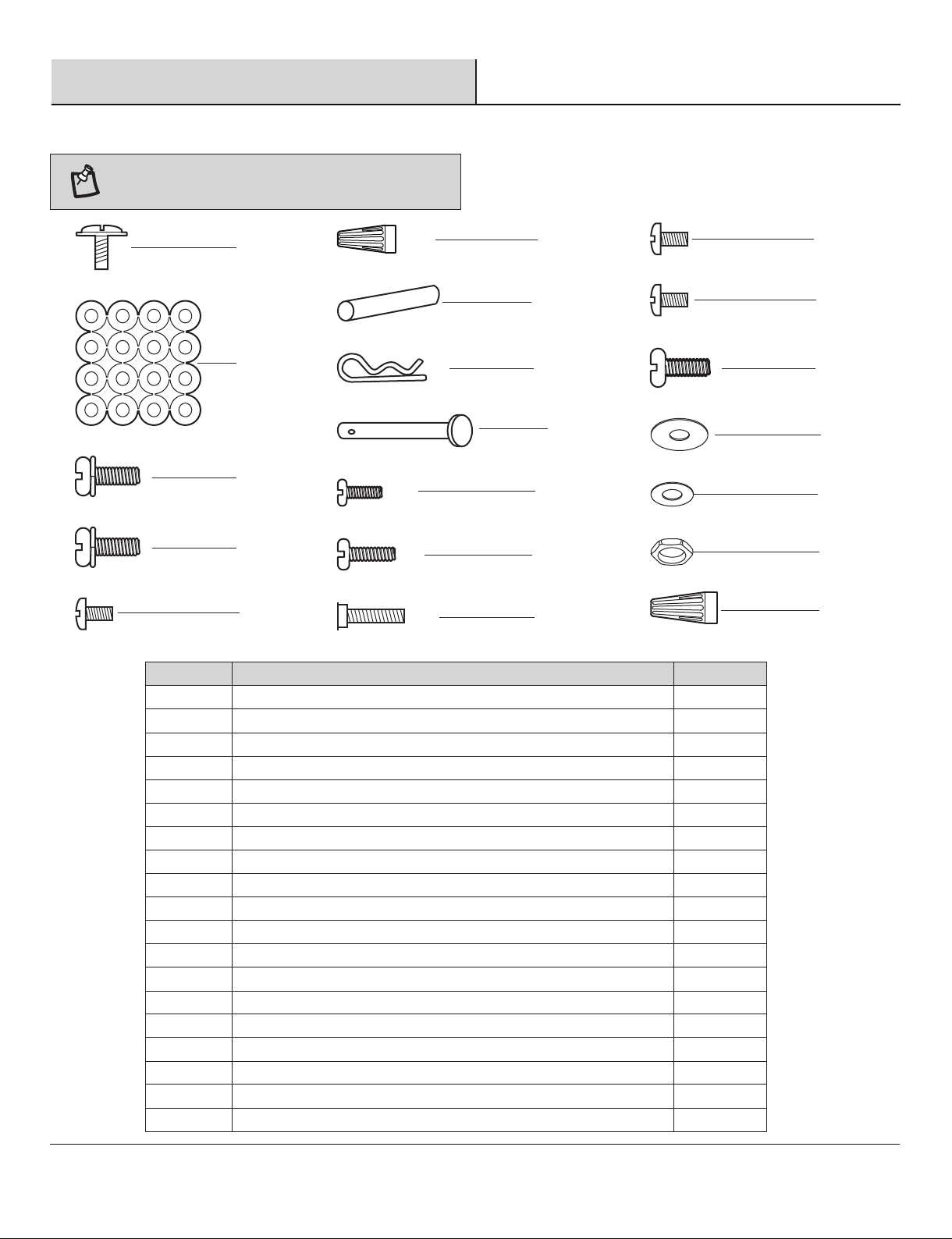

HARDWARE IN CLUDED

NOTE:Hardware shown to actual size unless noted

otherwise in the table below.

Blade screw

Fiber washer (not to scale)

Part Descriptio n

11Blade holder screw

Flywheel screw

Light shade bracket screw

Wire nut（P2）

Hitch pin (preassembled)

Lock pin (not to scale) (preassembled)

Hanger ball set screw (preassembled)

Mounting bracket screw (preassembled)

Cross pin (not to scale) (preassembled)

Quantity

Fan motor assembly coupling set screw (preassembled)

MM Fan motor assembly mounting ring screw (preassembled)

Light kit plate screw (preassembled) 4

Motor screw (preassembled)

Rubber washer (preassembled)

Hex nut (preassembled)

Metal washer (preassembled)

Wire nut（P3）

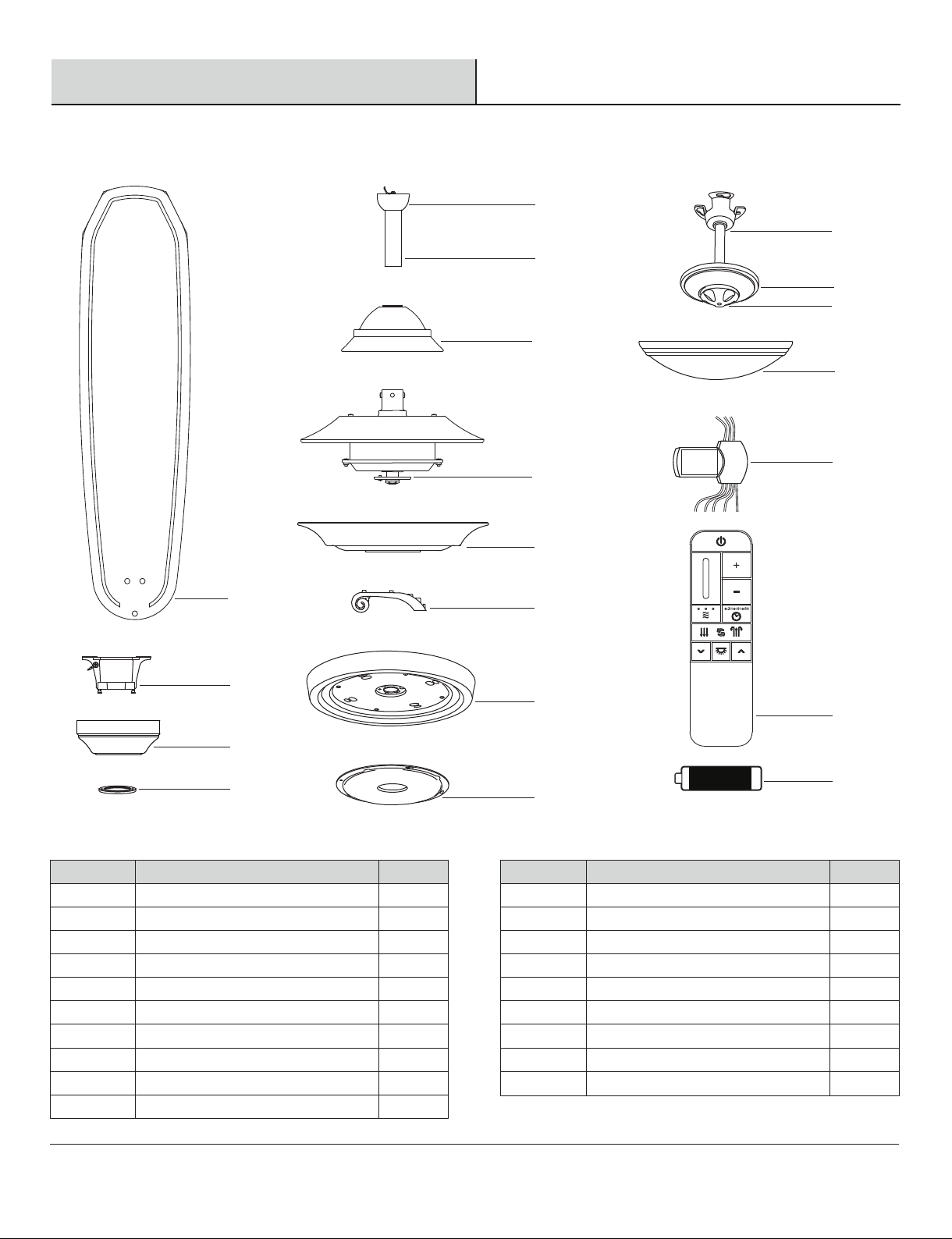

PACKAGE CONTENTS

Pre-Installation (continued)

Canopy cover

Hanger ball (preassembled)

Downrod (preassembled)

Part

Quantity

Descriptio n

Blade

Mounting bracket

Canopy

H Fan motor assembly

Flywheel

G 1Coupling cover

Metal cap (preassembled)

Finial (preassembled)

Light shade bracket

Light kit plate

26W LED asembly

Glass shade

Remote control

Receiver

Part

Quantity

Descriptio n

Blade holder

1.5V AAA Battery

Q 1

J 5

I 1 S 2

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986 3460 for further assistance.

WARNING:To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

Installation

MOUNTING OPTIONS

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□

Secure the outlet box (1) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

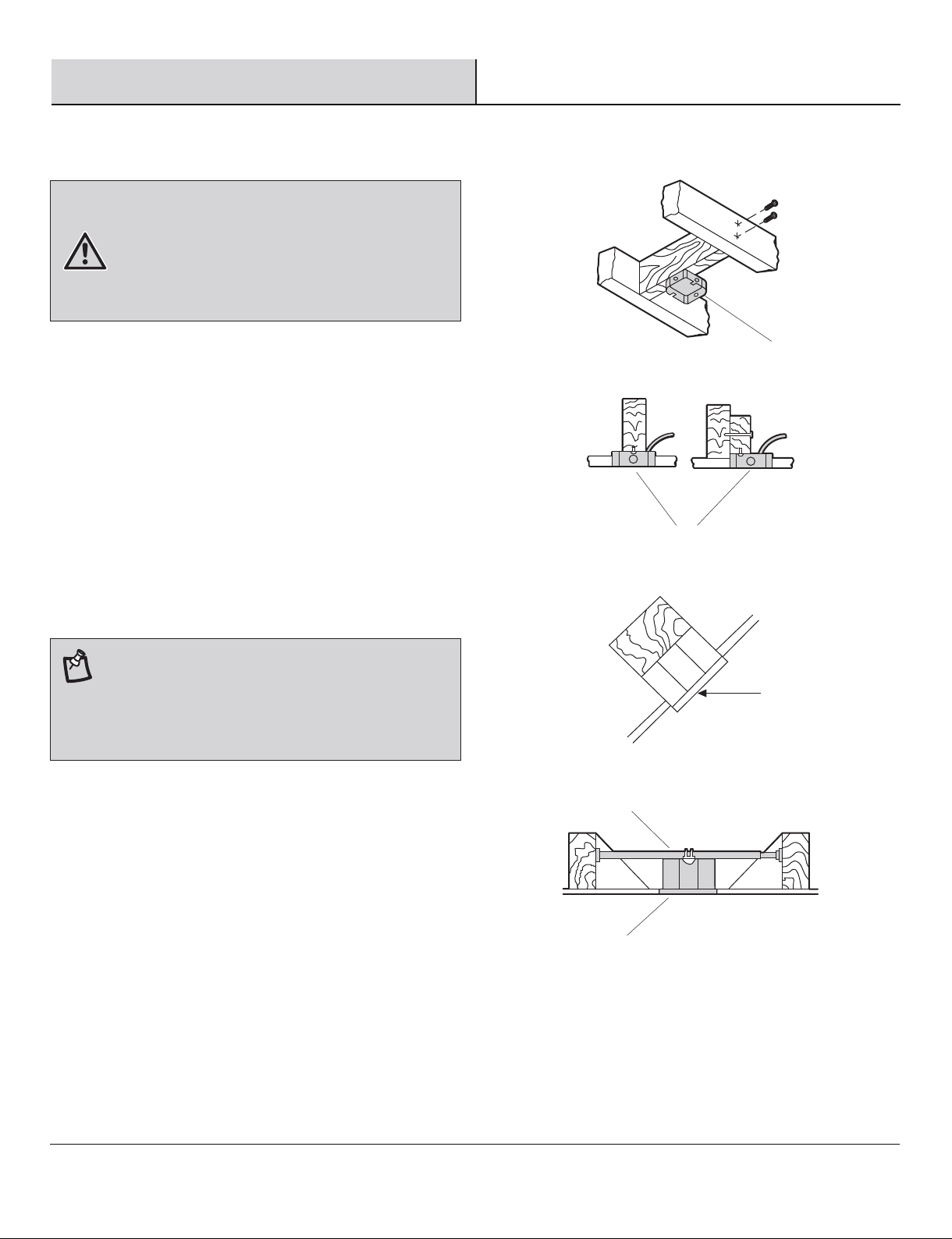

The illustrations to the right show three different ways to

mount the outlet box (not included).

□To hang your fan where there is an existing ﬁxture but no

ceiling joist, you may need an installation hanger bar (3) (not

included), as shown.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18°. If the canopy touches

the downrod, remove the decorative canopy bottom cover

and turn the canopy 180° before attaching the canopy to the

mounting plate (2).

Assembly -Hanging the Fan

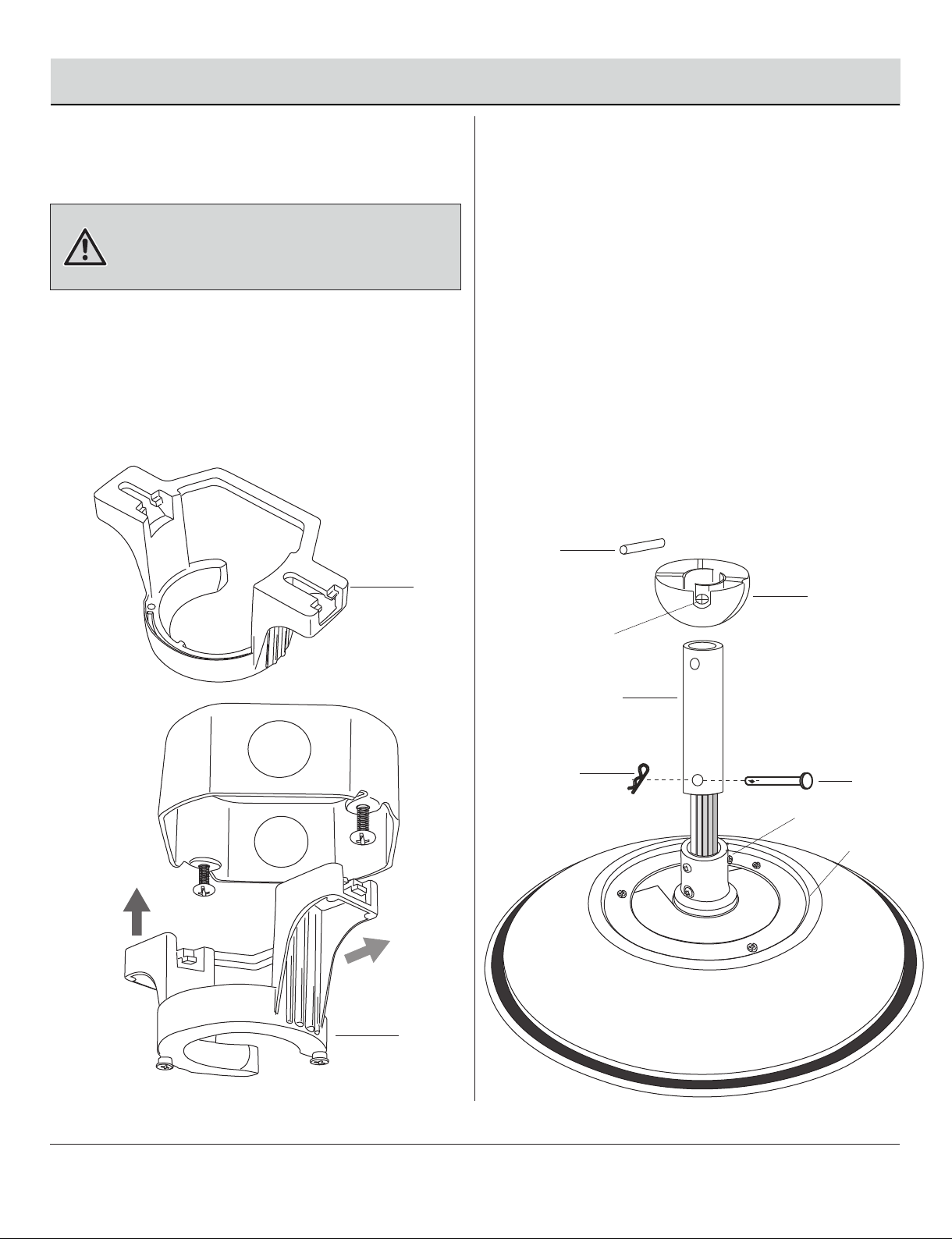

Attaching the mounting bracket to

1the electrical box

□Place the slots from mounting bracket (B) over the two

screws provided with the outlet box. Slide the mounting

bracket (B) until it locks in place at the narrow section

of the slots.

□Securely tighten the two mounting screws.

WARNING: To reduce the risk of ﬁre, electric shock, or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

□Loosen the two set screws (KK) from the fan motor

assembly (H) coupling.

□Remove the hitch pin (HH) and lock pin (II) from the

downrod (F). Remove the hanger ball (E) from the

downrod (F) by loosening the hanger ball set screw (JJ),

and removing the cross pin (GG), then sliding the hanger

ball (E) off of the downrod (F).

□Carefully feed the fan wires up through the downrod (F).

Thread the downrod (F) into the fan motor assembly (H)

coupling. Line up the holes and replace the lock pin (II)

and the hitch pin (HH). Tighten the set screws (KK).

Attaching the downrod to the

fan motor assembly

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986 3460 for further assistance.

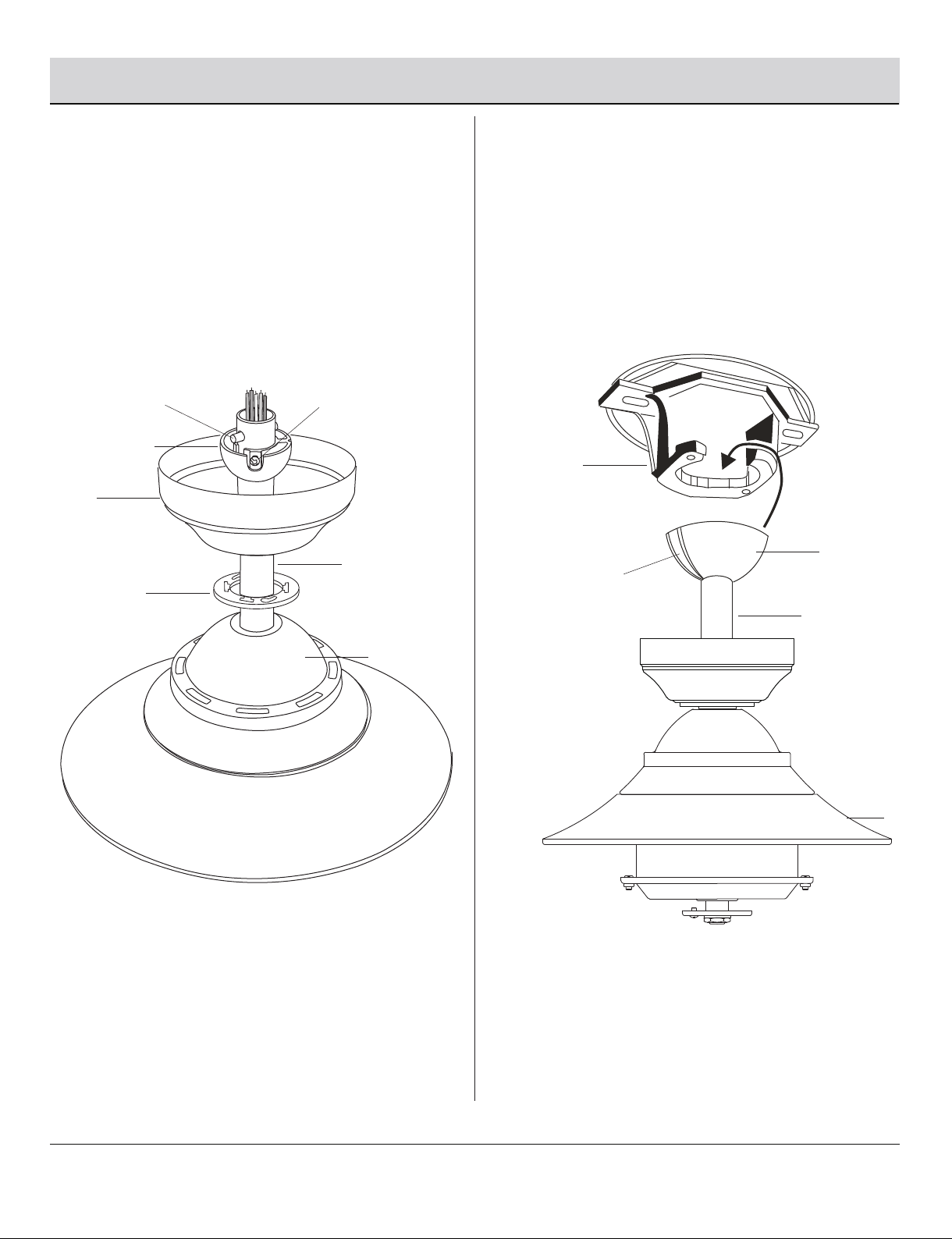

Attaching the coupling cover, canopy

Assembly -Hanging the Fan (continued)

cover, and canopy to the downrod

□Slip the coupling cover (G), canopy cover (D), and canopy

ball (E) onto the downrod (F), and ensure that the cross pin

(GG) is in the correct position, the set screws (JJ) are tight,

and the wires are not twisted.

Hanging the fan motor assembly

to the mounting bracket

□Lift the fan motor assembly (H) into position, and place the

hanger ball (E) into the mounting bracket (B). Rotate the

fan motor assembly (H) until the check groove drops into

the registration slot (TT) and seats firmly. The downrod (F)

should not rotate if this is done correctly.

Assembly -Hanging the Fan (continued)

Making the electrical connections

WARNING: To avoid possible electrical shock, ensure the

electricity is turned off at the circuit breaker or main fuse box

before wiring.

WARNING: Check to see that all connections are tight,

including the ground, and that no bare wire is visible at the

wire nuts, except for the ground wire.

Motor to Receiver Electrical Connections:

Connect the WHITE wire from the fan to the WHITE wire marked”

Light N” from the Receiver.

Connect the BLUE wire from the fan to the BLUE wire marked

”Light L” from the Receiver.

Connect the YELLOW wire from the fan to the YELLOW wire

marked” MOTOR 1” from the Receiver.

Connect the RED wire from the fan to the RED wire marked”

MOTOR 2” from the Receiver.

Connect the GREY wire from the fan to the GREY wire marked”

MOTOR 3” from the Receiver.

Receiver to House Supply Wires Electrical connections:

Connect the WHITE wire(Neutral) from the outlet box to the

WHITE wire marked ”AC in N” from the receiver.

Connect the BLACK wire(Hot) from the outlet box to the BLACK

wire marked “AC in L” from the receiver.

If your outlet box has a GROUND wire (Green or Bare

Copper),connect this wire to the Hanger Ball and Hanger

Bracket and receiver Ground wires.

If your outlet box does not have a Ground Wire, then connect the

Hanger Ball and Hanger Bracket and Receiver Ground Wire

together.

Secure wire connection with the plastic P2 wire nuts(FF)

provided. Especially , for the ground wires, please use P3 wire

nut (SS) provided.

After all splices are made, check to make sure there are no

loose strands.

□

Outlet Box

Blue

White

White Yellow

Yellow

Red

Red Grey

Grey

Black

Green

White

Note: Fan must be installed from a maximum distance of 40 feet

from the transmitting unit for proper signal transmission between

the transmitting unit and the fan’s receiving unit.

WARNING: To avoid possible electrical shock, ensure the

electricity is turned off at the main fuse box before wiring.

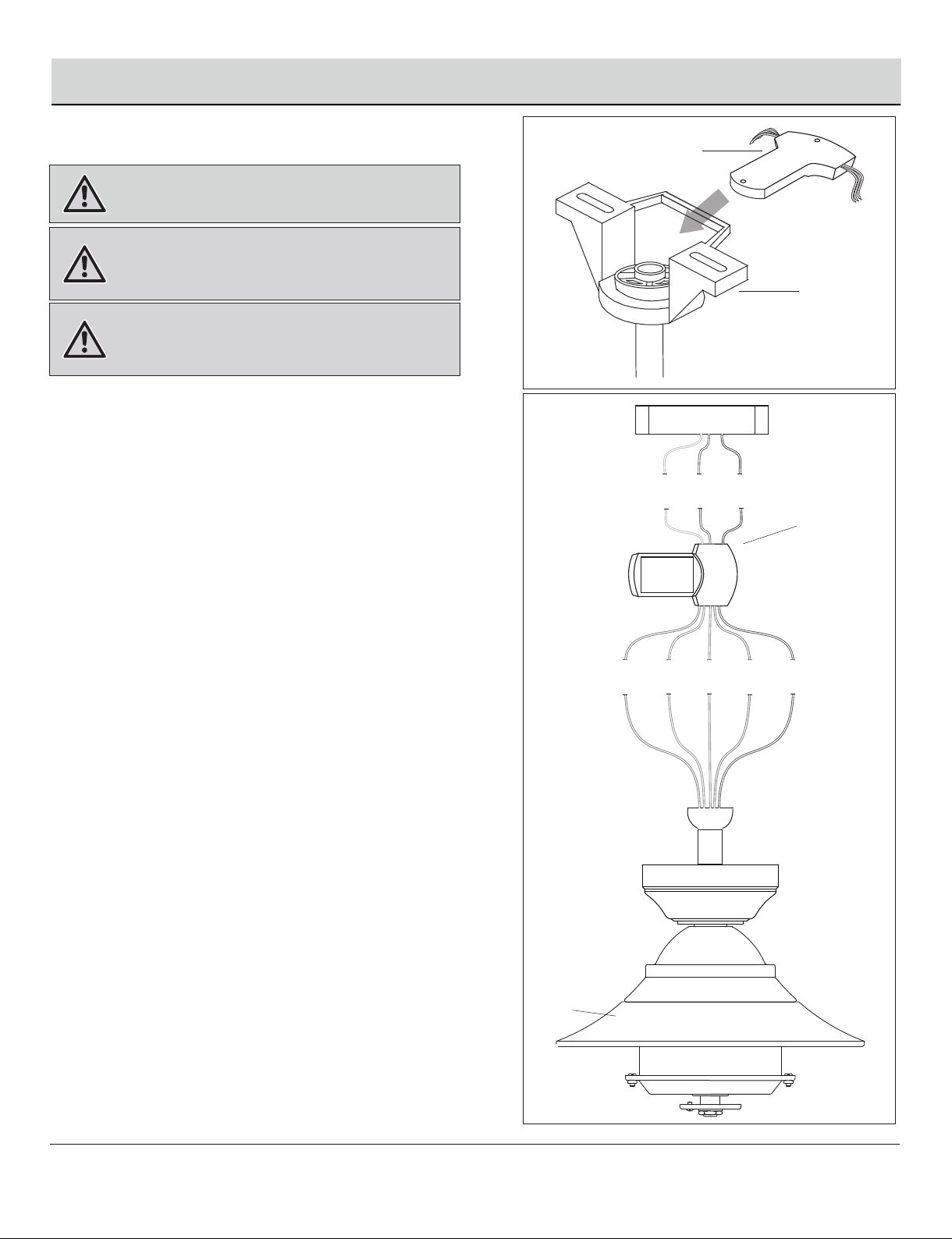

Insert the receiver (Q) into the mounting bracket (B)with the ﬂat

side of the receiver (Q) facing the ceiling.

Follow the steps below to connect the fan to your house supply

wires. Secure the wire nuts supplied with your fan by wrapping the

connections with electrical tape.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Home Decorators Collection Fan

Home Decorators Collection

Home Decorators Collection ROYALTY II AM590B-BN Manuale utente

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Manuale utente

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM Manuale utente

Home Decorators Collection

Home Decorators Collection VENDOME 51880 Manuale utente

Home Decorators Collection

Home Decorators Collection YG658-BN Manuale utente

Home Decorators Collection

Home Decorators Collection N383B-MBK Manuale utente

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Manuale utente

Home Decorators Collection

Home Decorators Collection WALES 56-WALS Manuale utente

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR Manuale utente

Home Decorators Collection

Home Decorators Collection YG612-EB Manuale utente

Home Decorators Collection

Home Decorators Collection ALTURA II 94468 Manuale utente

Home Decorators Collection

Home Decorators Collection PINE MEADOWS 52-ALLE Manuale utente

Home Decorators Collection

Home Decorators Collection HEXTON 52-MOBY Manuale utente

Home Decorators Collection

Home Decorators Collection Kayden 52060 Manuale utente

Home Decorators Collection

Home Decorators Collection HALLMAN 52-PLM Manuale utente

Home Decorators Collection

Home Decorators Collection ALISIO Manuale utente

Home Decorators Collection

Home Decorators Collection 51576 Manuale utente

Home Decorators Collection

Home Decorators Collection GRENADA YG522-BN Manuale utente

Home Decorators Collection

Home Decorators Collection CLERMONT Manuale utente

Home Decorators Collection

Home Decorators Collection DELMORE 56054 Manuale utente

Home Decorators Collection

Home Decorators Collection GAMALI 60-FORY Manuale utente

Home Decorators Collection

Home Decorators Collection TETIA Manuale utente

Home Decorators Collection

Home Decorators Collection CARLEY CF2003-W Manuale utente

Home Decorators Collection

Home Decorators Collection ASHBY PARK 59252 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
