Home Decorators Collection MARLON Manuale utente

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to nd

this fan and click the link of visual instruction in the product overview section.

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan.

We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for

your home improvement needs. Thank you for choosing Home Decorators Collection!

THANK YOU

USE AND CARE GUIDE

MARLON 66 IN. CEILING FAN

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Item #1005 711 223

1005 711 225

Model #YG825-BN

YG825-NI

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Specications ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Table of Contents

Operation ......................................................................

Preparing the Transmitter ......................................................

Learning Process ....................................................................

Operating Your Fan and Remote Control ...............................

Warm/Cool Weather Operating Instructions ...........................

Care and Cleaning ......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

READ AND SAVE THESE INSTRUCTIONS

Safety Information

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

WARNING: To reduce the risk of electric shock, this fan

must be installed with an isolating wall control/switch.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as anges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of re, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the oor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. Suitable for use with solid-state speed control (MR205A-D

only).

11. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

WARNING: Changes or modications to this unit not

expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: YG825-BN, YG825-NI

Company Name: TAL INTERNATIONAL CORPORATION

Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.

Full Name: James Lai Title: Manager

Telephone Number: (909) 923-2888 Fax: (909) 923-8337

Warranty

Pre-InstallationPre-Installation

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

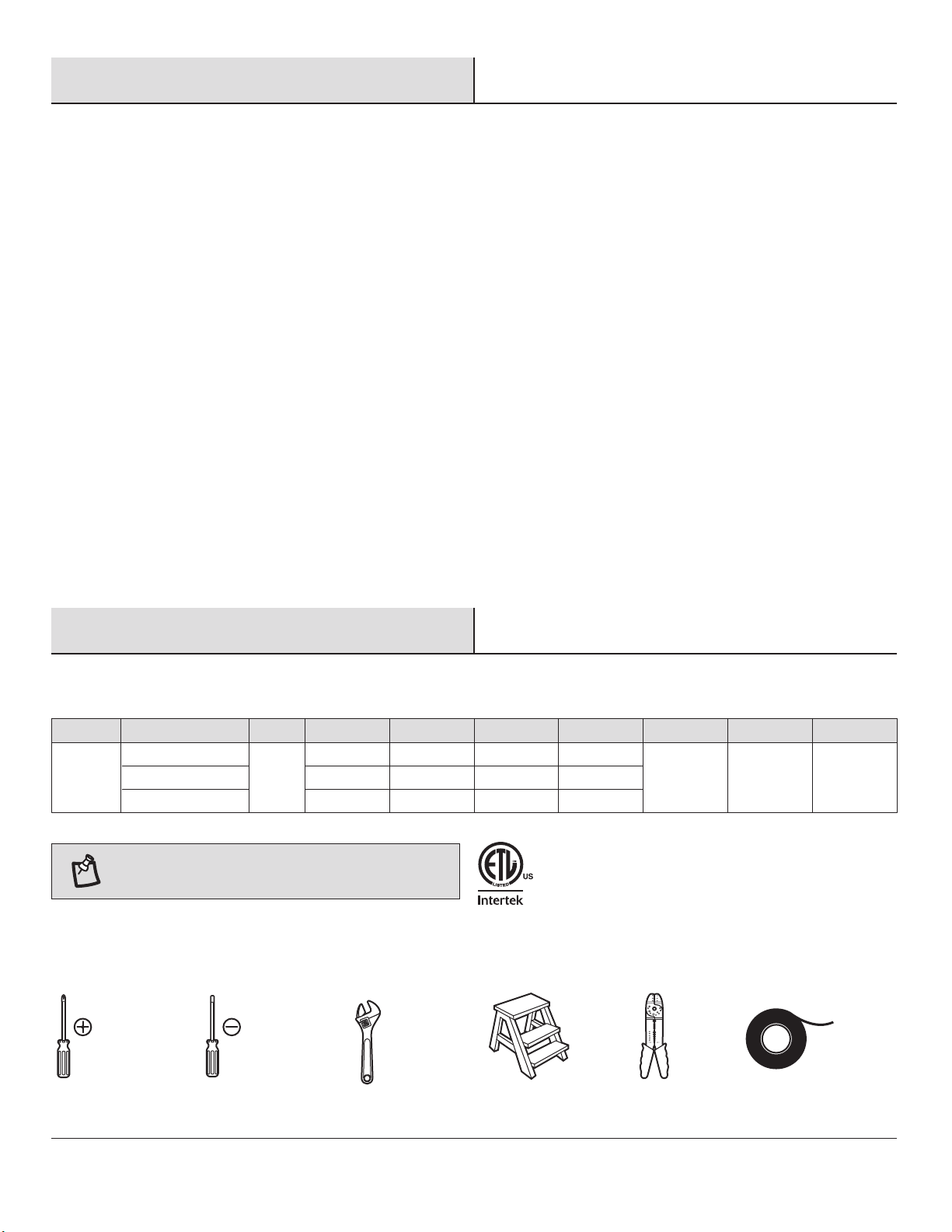

SPECIFICATIONS

9.6 kg

(21.12 lbs.)

12.1 kg

(26.62 lbs.) 4.16 cu. ft.66 in.

Low (Speed 1)

Medium (Speed 5)

High (Speed 9)

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

N.W.

G.W.

C.F.

0.05

0.12

0.43

2.46

7.50

32.36

124

1655

5084

8735

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the

factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any

glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after

the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper

installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not

cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest

useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a

defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby

disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the

express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to

you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a

claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Step

ladder

Wire

stripper

Electrical

tape

Adjustable

wrench

Pre-Installation (continued)

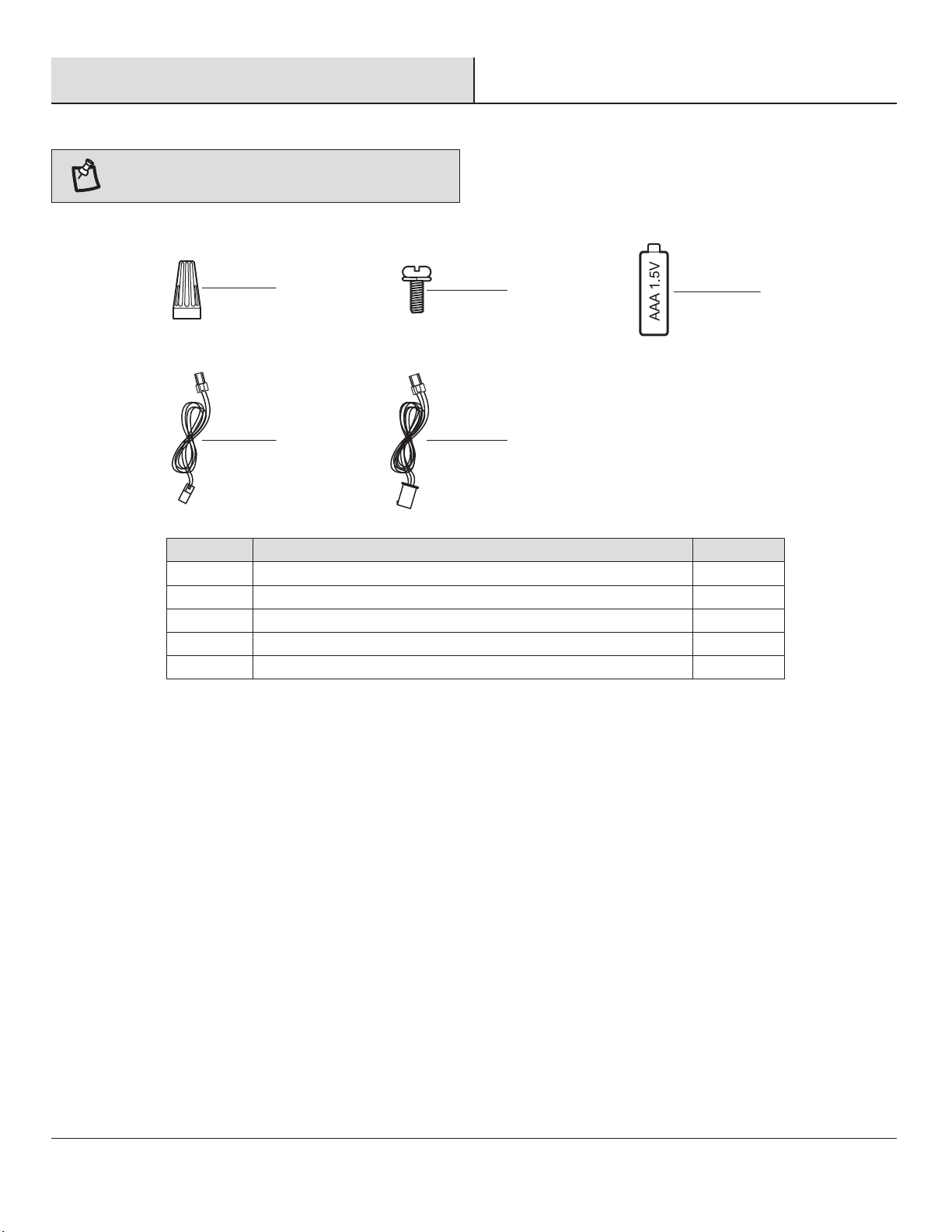

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Plastic wire nut

Blade screw with lock washer

1.5V AAA battery

2-Pin Extension cord

3-Pin Extension cord

Part

Description

Quantity

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part

Description

Blade support plate

Light kit mounting plate

25 watt LED Light kit

Glass shade

Receiver

Remote control

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy ring (preassembled)

Canopy

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

Blade

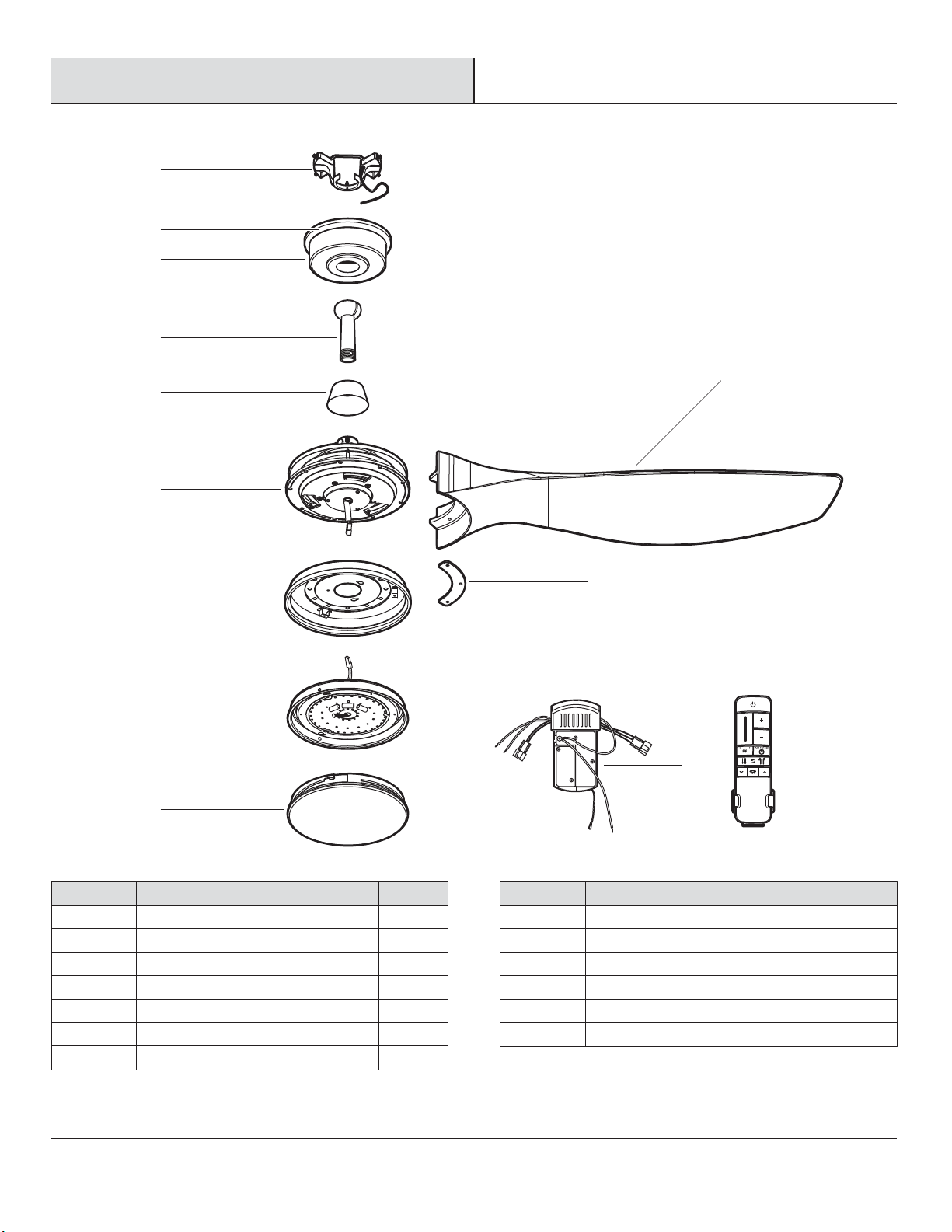

PACKAGE CONTENTS

Pre-Installation (continued)

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (not included) as

shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

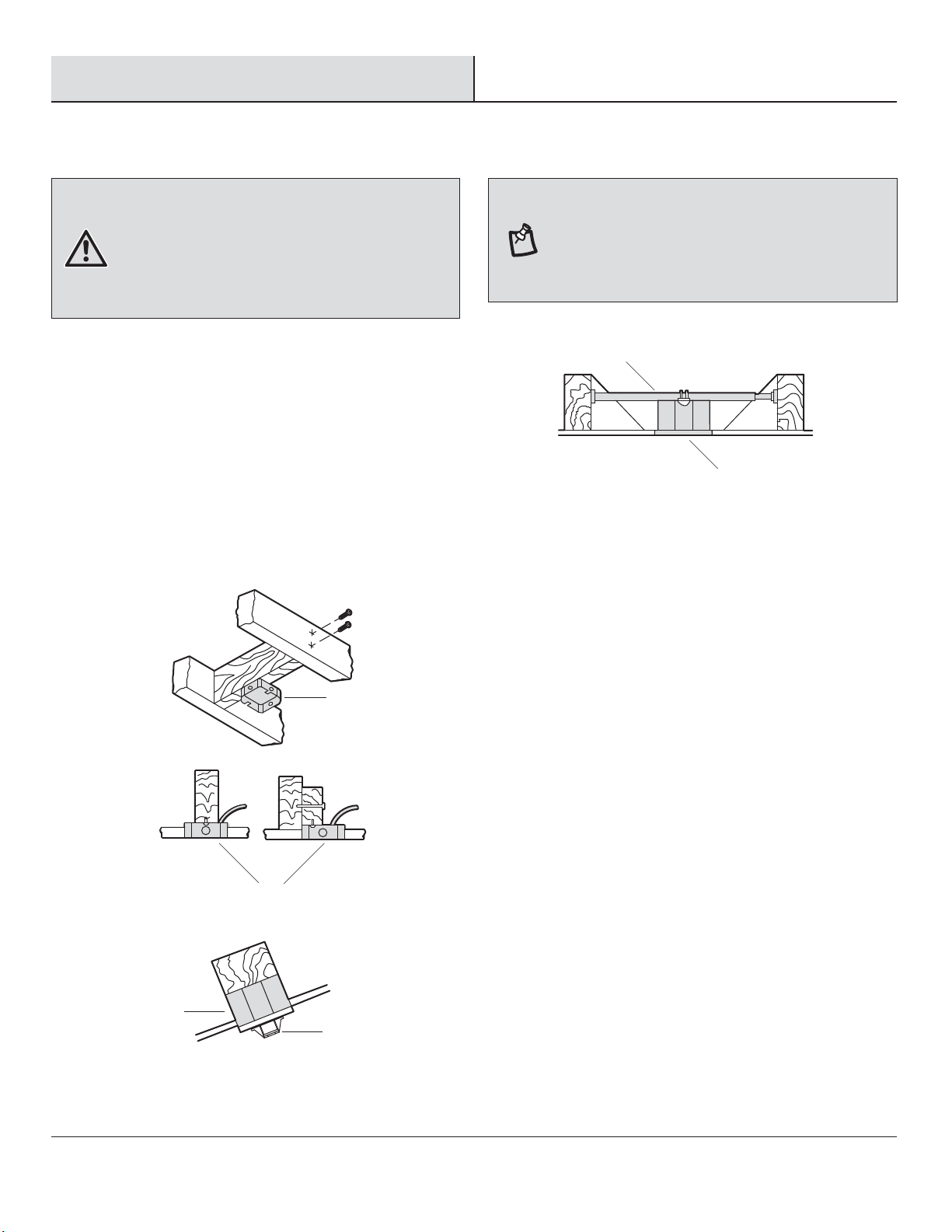

The illustrations below show three different ways to mount the

outlet box (not included).

Outlet Box

Hanger Bar

Outlet Box

Recessed

Outlet

Box A

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (C) touches the hanger ball/downrod assembly

(D), turn the canopy (C) 180° before attaching the canopy (C)

to the mounting bracket (A).

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

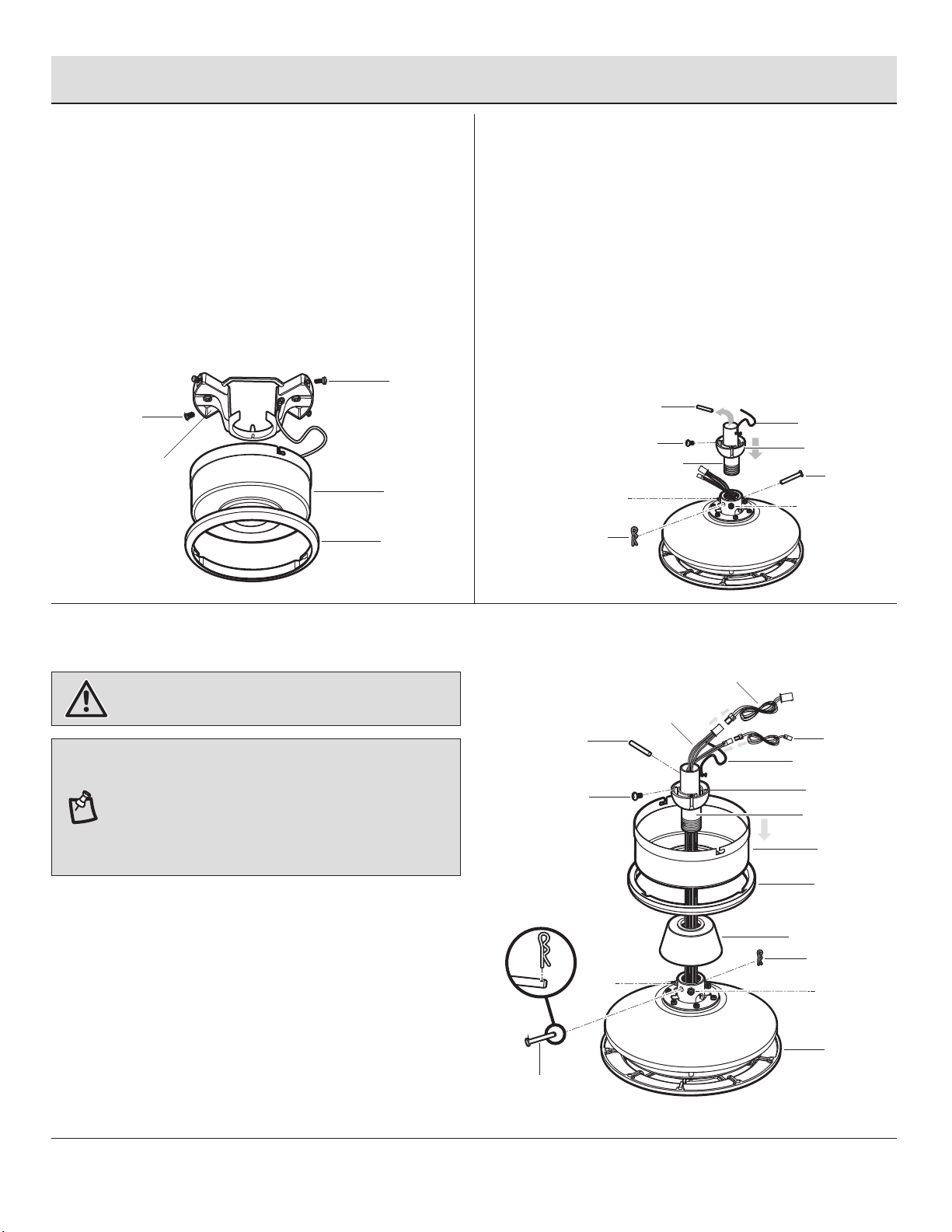

1Preparing the canopy 2Preparing the motor

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screws

with lock washers (FF) from the canopy (C), and

loosen the slotted canopy mounting screws with lock

washers (FF) on the canopy (C).

□Remove the canopy (C) from the mounting bracket (A)

by turning the canopy counterclockwise.

3Assembling the fan

Assembly

□Remove the cotter pin (GG) and clevis pin (HH), and

loosen the two collar setscrews (II) from the motor

collar.

□Take out the setscrew (JJ) located in the hanger ball

(KK), lower the hanger ball (KK) and remove the cross

pin (LL). Remove the hanger ball (KK) from the hanger

ball/downrod assembly (D).

□Remove the ground lead (MM) from the downrod

assembly (D).

□Carefully feed the motor wires up through the

downrod (NN). Thread the downrod (NN) into the

collar.

□Align the holes and replace the clevis pin (HH) and

cotter pin (GG). Tighten the two collar setscrews (II).

□Slip coupling cover (E), canopy ring (B), and canopy

□Carefully reinstall the hanger ball (KK) onto the

downrod (NN) and reinstall the ground lead (MM) onto

the downrod (NN), being sure that the cross pin (LL)

is in the correct position, the setscrew (JJ) is

tightened and wires are not twisted.

WARNING: Failure to properly install the cotter pin (GG)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take out

the screw located in the hanger ball (KK), lower the hanger ball

(KK) and remove the pin (LL). Remove all three pieces from the

downrod and assemble them onto the new longer downrod

before proceeding to the downrod installation. Be sure to snap

together the 2-PIN and 3-PIN connectors, the two male plugs

(OO) from the fan and female plug from the extension cord

(DD) and (EE).

BGG

II II

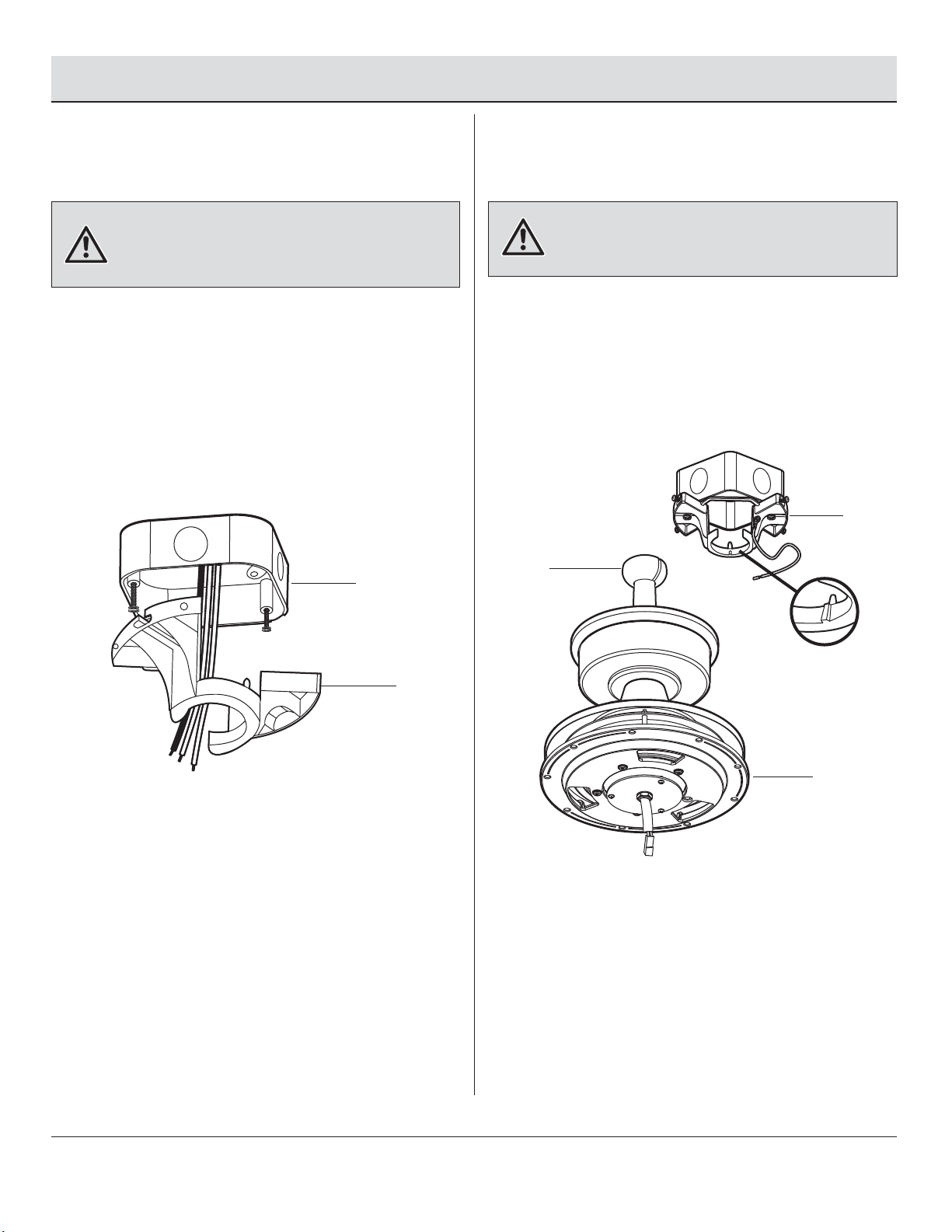

4Installing the mounting bracket

to the electrical box

Hanging the fan to the mounting

bracket

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A) and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

Assembly — Hanging the Fan

WARNING: To reduce the risk of re, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□Attach the mounting bracket (A) on the outlet box by

sliding the mounting bracket (A) over the screws

provided with the outlet box. Note that the at side of

the mounting bracket (A) is toward the outlet box.

□Securely tighten the two mounting screws.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Outlet box

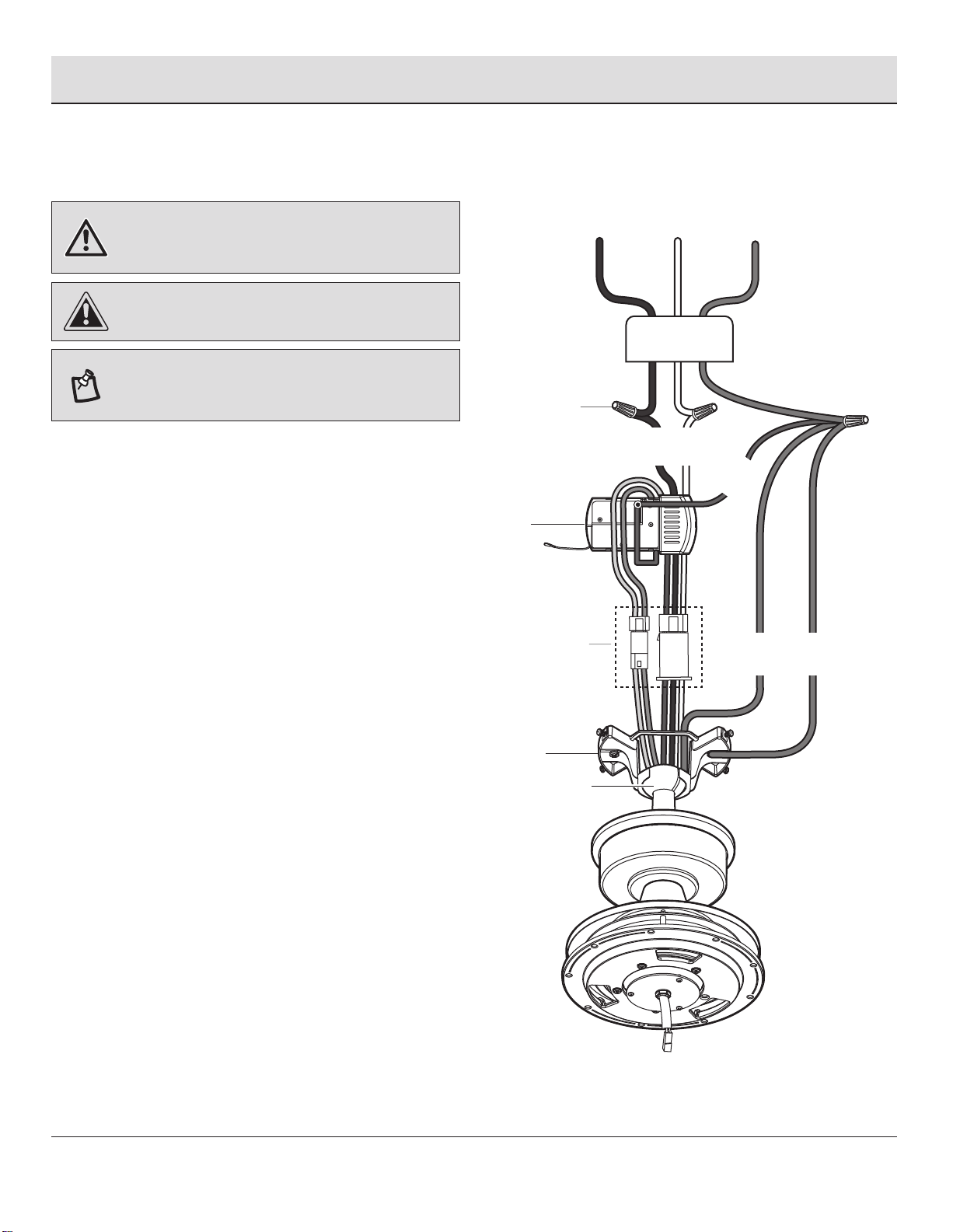

Making the electrical connections

Assembly — Hanging the Fan (continued)

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts, except for the ground wire.

NOTE: The fan must be installed at a maximum distance of

20 ft. from the remote control for proper signal transmission

between the remote control and the fan's receiving unit.

CAUTION: To reduce the risk of electric shock, this fan

must be installed with an isolating wall control/switch.

2-Pin and 3-Pin

connectors

White

Green

Black

Ground

White conductor

Green

If you feel you do not have enough electrical wiring knowledge

or experience, have your fan installed by a licensed electrician.

Follow the steps below to connect the fan to your household

wiring. Use the plastic wire nuts (AA) with your fan. Secure the

plastic wire nuts (AA) with electrical tape. Make sure there are

no loose strands or connections.

□Insert the receiver (L) into the mounting bracket (A) with

the at side of the receiver (L) facing the ceiling.

□Make wire connections from the fan to the receiver (L).

From Fan To Receiver

2-Pin Connector--------------- 2-Pin Connector

3-Pin Connector--------------- 3-Pin Connector

□Make wire connections from the receiver (L) and fan to

the outlet box as follows, using the wire nuts (AA).

From Receiver To Outlet Box

Black Wire "AC in L" ---------- Black Wire (Hot)

White Wire "AC in N" --------- White Wire (Neutral)

From Fan and Receiver To Outlet Box

Green Wires* ----------------- Green or Bare Wire (Ground)

* There are three green grounding leads: one from the mounting

bracket (A), one from the hanger ball/downrod assembly (D) and

one from the receiver (L).

□Turn the wire nut connections upward, spreading them

apart so the green (ground) and white wires will be on

one side of the outlet box and the black wire will be on

the other side. Carefully tuck the connections up into the

outlet box.

Green

Outlet box

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Home Decorators Collection Fan

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN Manuale utente

Home Decorators Collection

Home Decorators Collection Trudeau YG545-BN Manuale utente

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493ODC-MBK Manuale utente

Home Decorators Collection

Home Decorators Collection SFL-550L1 Manuale utente

Home Decorators Collection

Home Decorators Collection HARBOR ISLE 59299 Manuale utente

Home Decorators Collection

Home Decorators Collection PINE MEADOWS 52-ALLE Manuale utente

Home Decorators Collection

Home Decorators Collection ARLEIGH Manuale utente

Home Decorators Collection

Home Decorators Collection YG618-NI Manuale utente

Home Decorators Collection

Home Decorators Collection FAWNDALE 46-FAWNRC Manuale utente

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493OD-ORB Manuale utente

Home Decorators Collection

Home Decorators Collection BRECKENRIDGE YG543-BN Manuale utente

Home Decorators Collection

Home Decorators Collection HAYDEN LAKE 59929 Manuale utente

Home Decorators Collection

Home Decorators Collection DIALSTONE AK480-BN Manuale utente

Home Decorators Collection

Home Decorators Collection 51860 Manuale utente

Home Decorators Collection

Home Decorators Collection EASTWIND 43260 Manuale utente

Home Decorators Collection

Home Decorators Collection FAWNDALE 37803 Manuale utente

Home Decorators Collection

Home Decorators Collection HIGHSTONE 56040 Manuale utente

Home Decorators Collection

Home Decorators Collection KYLAND YG612-BN Manuale utente

Home Decorators Collection

Home Decorators Collection SFZ-500-R Manuale utente

Home Decorators Collection

Home Decorators Collection DRISKOL Manuale utente

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Manuale utente

Home Decorators Collection

Home Decorators Collection YG825A-BN Manuale utente

Home Decorators Collection

Home Decorators Collection ROYALTY II AM590B-BN Manuale utente

Home Decorators Collection

Home Decorators Collection EMERY YG641H-NI Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
