USE AND CARE GUIDE

VARUCHI 52 IN. CEILING FAN

Item #752 974

#752 972

Model #

YG591-BN

YG591-NI

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

Operation ......................................................................

Remote Control Operating Instructions ..................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-Installation ..............................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Dual Mounting Instructions ......................................................

Installation .....................................................................

Assembly ........................................................................

Standard Ceiling Mounting .......................................................

Close-to-Ceiling Mounting .....................................................

Hanging the Fan ....................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Safety Information

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Warning: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void

the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

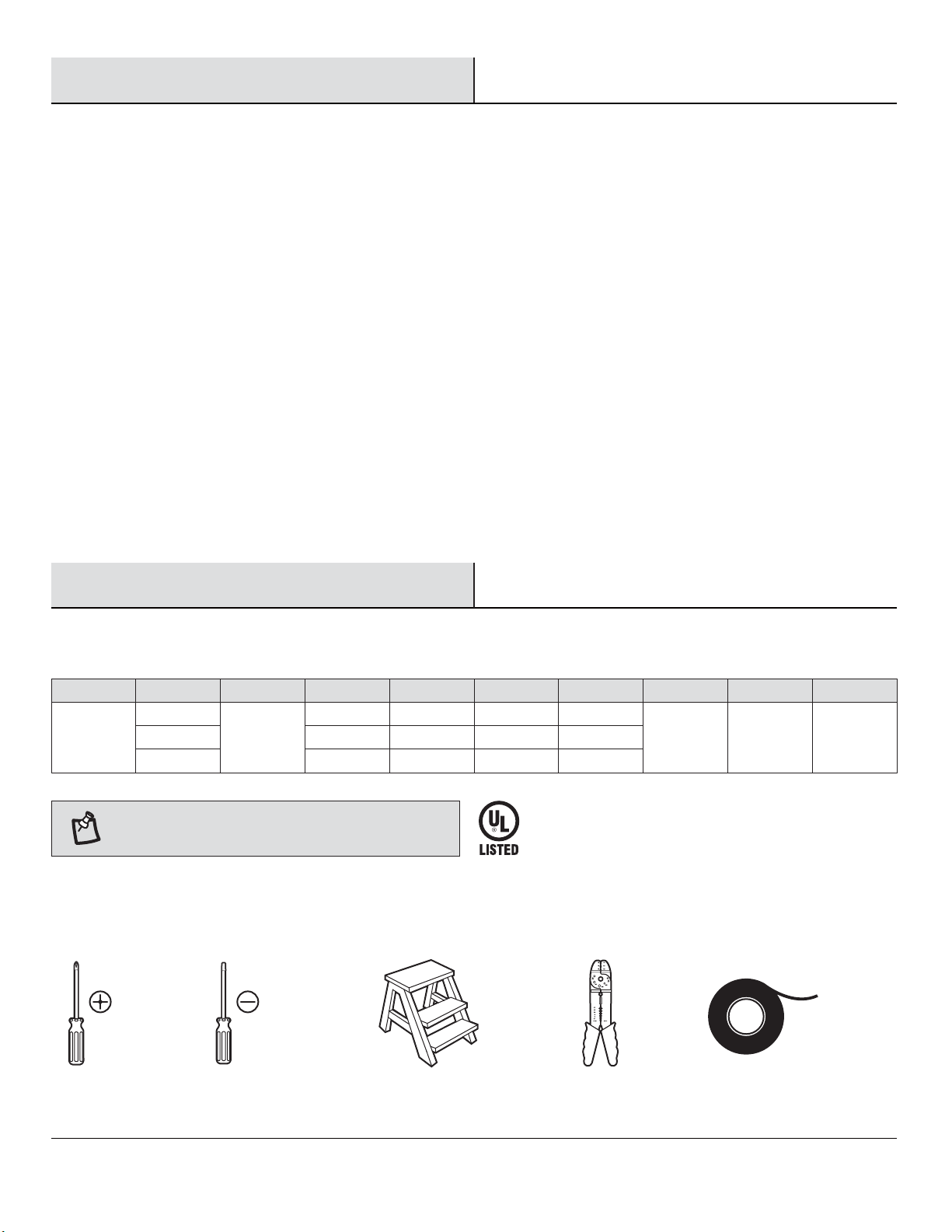

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

52 in.

Low

Medium

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

1.254 cu. ft.

N.W.

G.W.

C.F.

0.26

0.37

0.5

15.3

32.05

60.24

113

169

2223

3592

5297

7.01 kg

(15.43 lbs.)

7.96 kg

(17.52 lb)

Pre-Installation (continued)

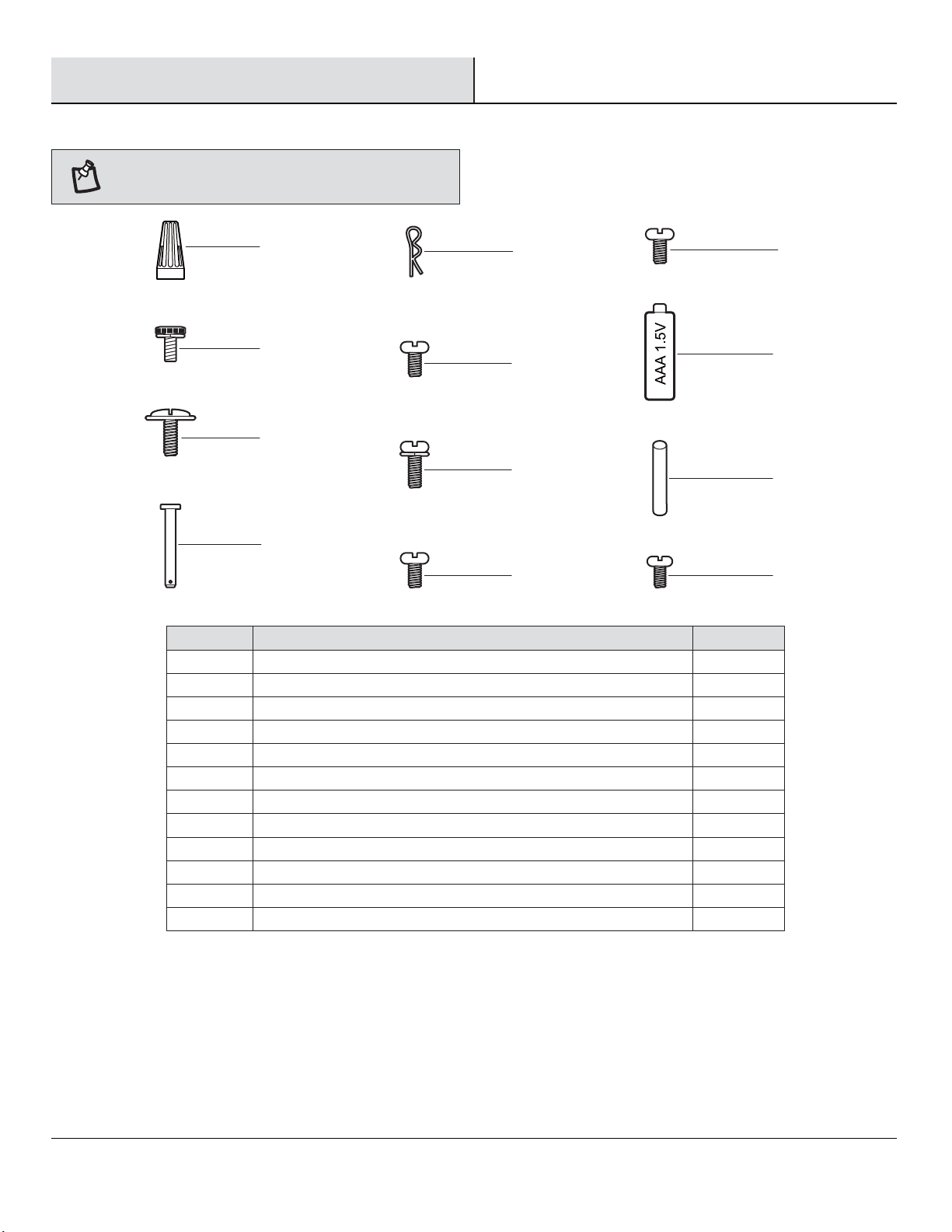

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

Plastic wire nut

Canopy mounting screw with lock washer (preassembled)

Blade attachment screw (not to scale)

Clevis pin (preassembled)

Cotter pin (preassembled)

Collar setscrew (preassembled)

Collar mounting screw with lock washer (preassembled)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

1.5V AAA battery (not to scale)

Cross pin (preassembled)

Setscrew (preassembled)

Part

Description

Quantity

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

PACKAGE CONTENTS

Pre-Installation (continued)

Part

Description

Blade

Blade support plate

Light kit mounting plate

17 watt LED Light kit

Glass shade

Receiver

Remote control

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy ring (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

Pre-Installation (continued)

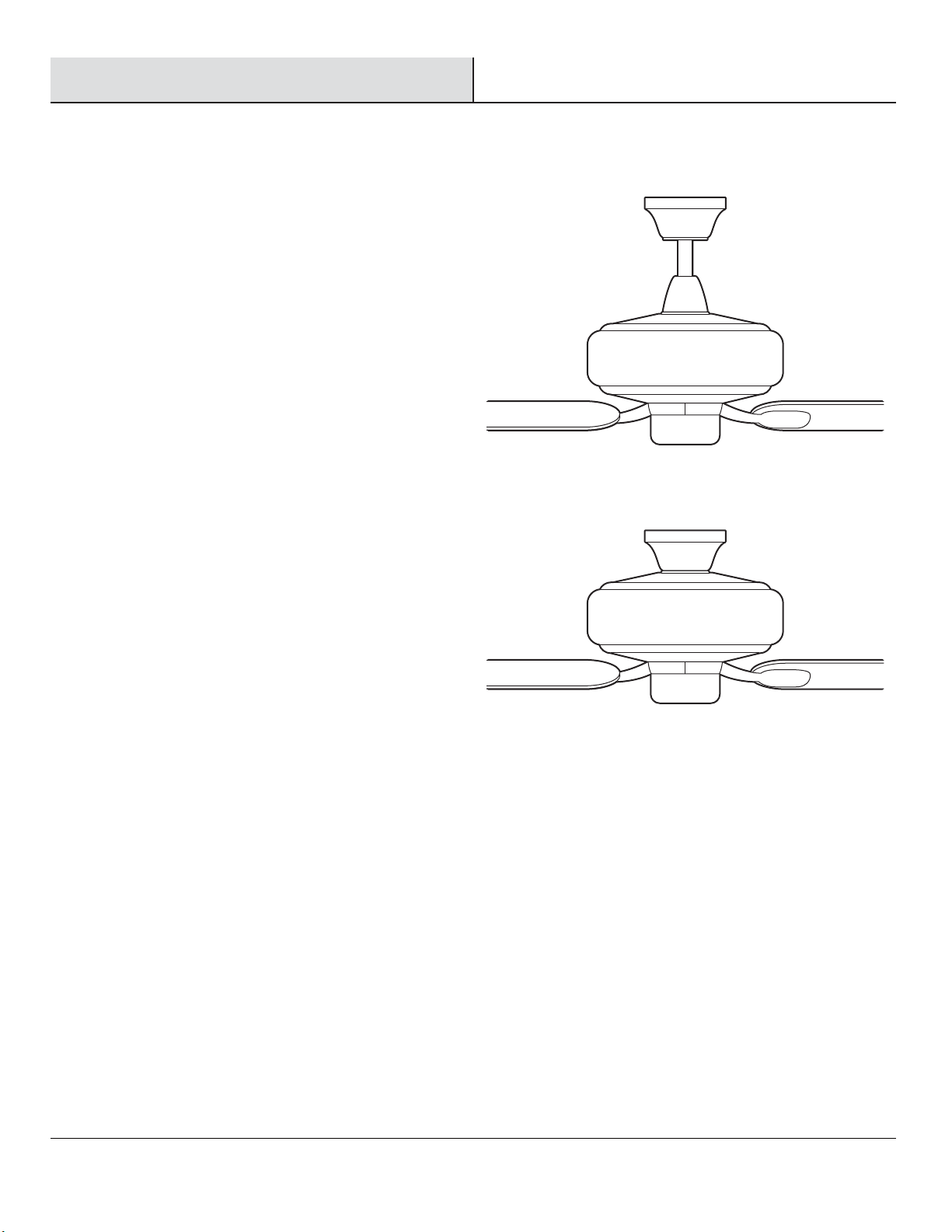

DUAL MOUNTING INSTRUCTIONS

This ceiling fan is supplied with two types of hanging assemblies: the

standard ceiling installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"

mounting is recommended in rooms with less than 8 ft. ceilings or in

areas where additional space is desired from the ﬂoor to the fan blades.

When using the standard downrod installation, the distance from the

ceiling to the bottom of the fan blades will be approximately 12 in. The

"close-to-ceiling" installation reduces the distance from the ceiling to the

bottom of the fan blades to approximately 9 in.

Once you have decided which ceiling installation you will use, refer to the

corresponding sections and procedures during the assembly period.

Where necessary, each section of the instructions will note the different

procedures to follow for the two types of installation.

Standard Ceiling Mounting

Close-to-Ceiling Mounting

7 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (NN) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (MM) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

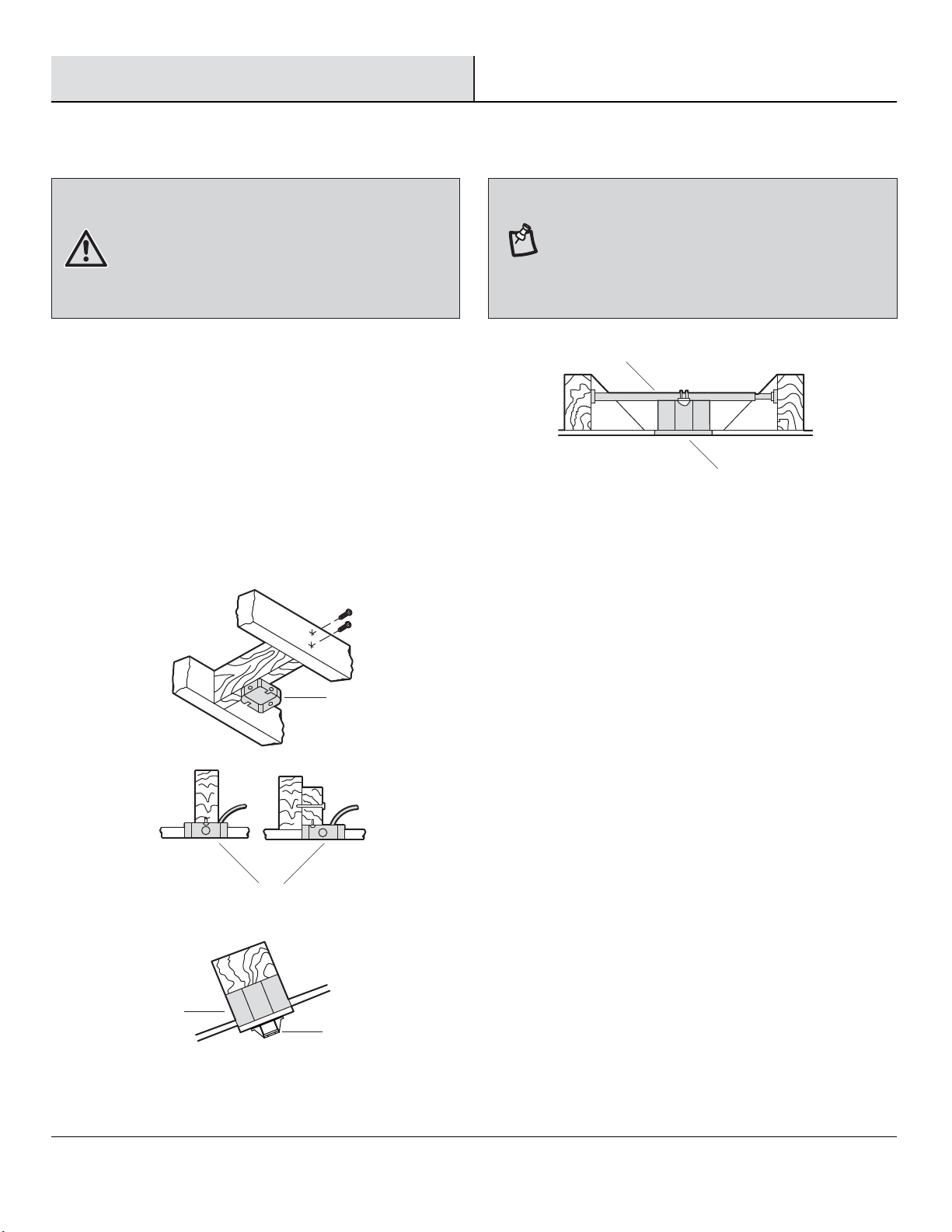

The illustrations below show three different ways to mount the

outlet box (MM) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (C) touches the hanger ball/downrod assembly (E),

then remove the decorative canopy bottom cover (D) and turn

the canopy (C) 180° before attaching the canopy (C) to the

mounting bracket (A).

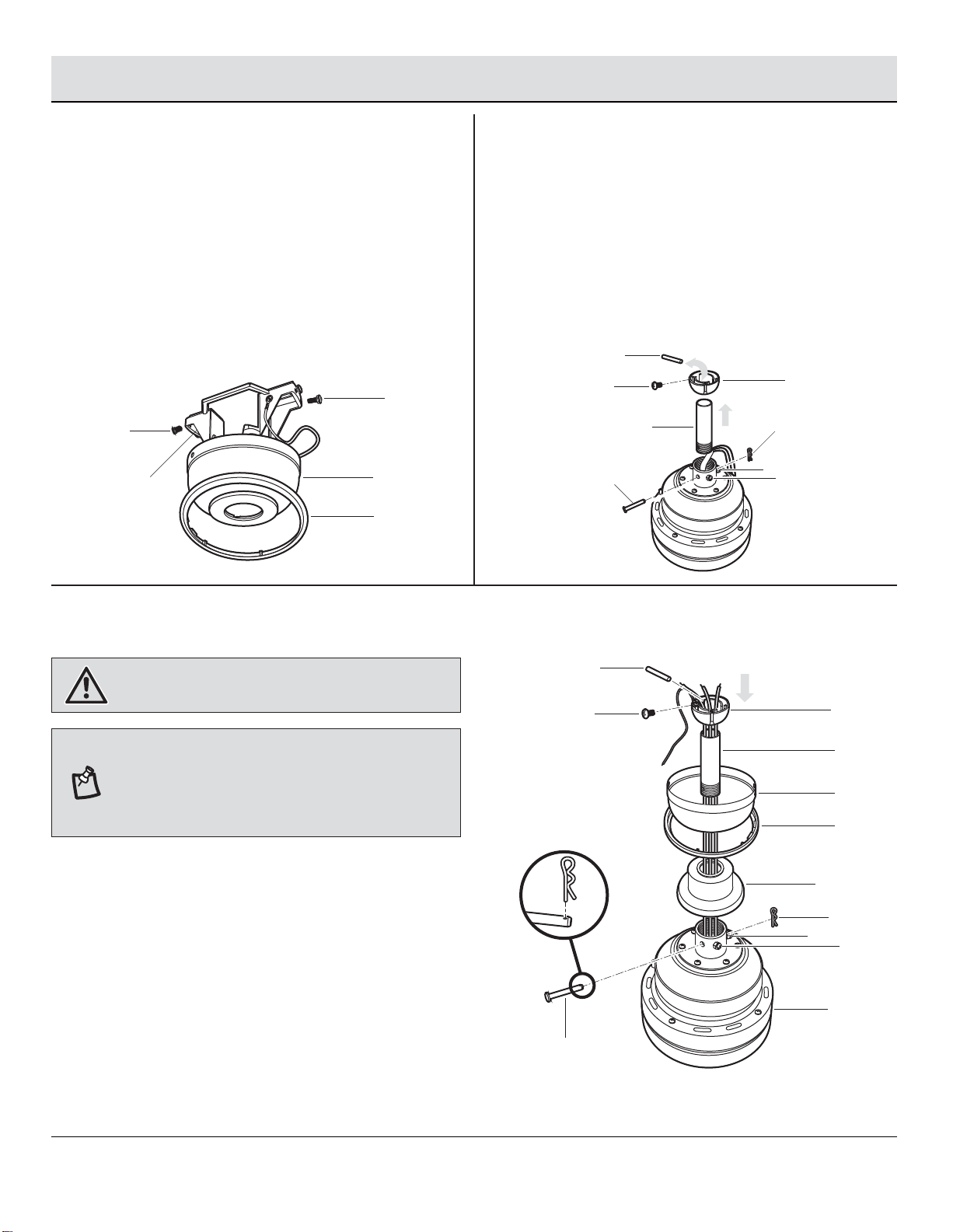

Assembly — Standard Ceiling Mounting

1Preparing the canopy 2Preparing the motor

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screws

(BB) from the canopy (C), and loosen the slotted

canopy mounting screws (BB) on the canopy (C).

□Remove the canopy (C) from the mounting bracket (A)

by turning the canopy (C) counterclockwise.

3Assembling the fan

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

□Remove the cotter pin (EE) and clevis pin (DD), and

loosen the two collar setscrews (FF) from the motor

collar.

□Take out the setscrew (LL) located in the hanger ball

(OO), lower the hanger ball (OO) and remove the

cross pin (KK). Remove the hanger ball (OO) from the

hanger ball/downrod assembly (E).

□Carefully feed the motor wires up through the

downrod (PP). Thread the downrod (PP) into the

collar.

□Align the holes and replace clevis pin (DD) and cotter

pin (EE). Tighten the two collar setscrews (FF).

□Slip coupling cover (F), canopy ring (B), and canopy

□Carefully reinstall the hanger ball (OO) onto the

downrod (PP). Ensure that the cross pin (KK) is in the

correct position, the setscrew (LL) is tightened and

the wires are not twisted.

WARNING: Failure to properly install the cotter pin (EE)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take

out the screw located in the hanger ball (OO), lower the

hanger ball (OO) and remove the pin (KK). Remove all three

pieces from the downrod and assemble them onto the new

longer downrod before proceeding to the downrod installa-

tion.

Assembly — Close-to-Ceiling Mounting

3Assembling the fan

Preparing the motorPreparing the canopy

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screws

(BB) from the canopy (C), and loosen the slotted

canopy mounting screws (BB) on the canopy (C).

□Remove the canopy bottom cover (D) from the

canopy (C).

□Remove three of the six collar mounting screws with

lock washers (GG) (every other one) from the collar

on top of the fan motor assembly (G).

□Route the wires exiting from the top of the fan motor

assembly (G) through the canopy ring (B).

□Make sure the slot openings of the canopy ring (B)

are on top, and then proceed to place the canopy ring

(B) and canopy (C) over the collar at the top of the fan

motor assembly (G).

□Align the mounting holes on the bottom of the canopy

assembly (G), and fasten using the three collar

mounting screws with lock washers (GG) previously

removed.

□Tighten the collar mounting screws (GG) securely.

WARNING: Failure to completely tighten the three collar

mounting screws (GG) could result in the fan becoming loose

and possibly falling.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Home Decorators Collection Fan

Home Decorators Collection

Home Decorators Collection SUDLER RIDGE 60-SUDE Manuale utente

Home Decorators Collection

Home Decorators Collection WALES 56-WALS Manuale utente

Home Decorators Collection

Home Decorators Collection CARRINGTON II Manuale utente

Home Decorators Collection

Home Decorators Collection YG683AP-PL Manuale utente

Home Decorators Collection

Home Decorators Collection BRECKENRIDGE YG543-BN Manuale utente

Home Decorators Collection

Home Decorators Collection DOWNEY 56043 Manuale utente

Home Decorators Collection

Home Decorators Collection FC132-BMRL Manuale utente

Home Decorators Collection

Home Decorators Collection MERWRY SW1422 Manuale utente

Home Decorators Collection

Home Decorators Collection MAKENNA 56235 Manuale utente

Home Decorators Collection

Home Decorators Collection AM183W-NI Manuale utente

Home Decorators Collection

Home Decorators Collection KELBRA YG439-BN Manuale utente

Home Decorators Collection

Home Decorators Collection VIRGINIA HIGHLAND YG588-BN Manuale utente

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Manuale utente

Home Decorators Collection

Home Decorators Collection PORTWOOD YG528-NI Manuale utente

Home Decorators Collection

Home Decorators Collection 91144 Manuale utente

Home Decorators Collection

Home Decorators Collection CARDEN AM852-BN Manuale utente

Home Decorators Collection

Home Decorators Collection BENSON YG654-MBK Manuale utente

Home Decorators Collection

Home Decorators Collection WILMINGTON AM696-BN Manuale utente

Home Decorators Collection

Home Decorators Collection CL11012 Manuale utente

Home Decorators Collection

Home Decorators Collection FENCEHAM YG491A-BN Manuale utente

Home Decorators Collection

Home Decorators Collection 44-CRD Manuale utente

Home Decorators Collection

Home Decorators Collection KITTERIDGE 35442-HBUM Manuale utente

Home Decorators Collection

Home Decorators Collection HEXTON 52-MOBY Manuale utente

Home Decorators Collection

Home Decorators Collection 51528 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
