Honeywell Gamewell GFANN-80 Manuale tecnico

Document 53386:B3 4/25/2022 ECN 00016385

GFANN-80 & GFANN-80-W

Remote Fire Annunciator

Product Installation Document

General

The GFANN-80 Series Remote Fire Annunciators (GFANN-80,

GFANN-80-W) are compact, backlit LCD displays designed for use

with compatible FACPs (Fire Alarm Control Panels). The displays

mimic the FACP display and are capable of displaying English-language

text of system point status including device type, independent point

alarm, trouble or supervisory zone and custom labels programmed into

the FACP. Refer to the FACP manual installation section for detailed

system information and wiring.

Specifications

TB1 Terminals 1 & 2

Operating Voltage Range: 18.8VDC to 38.2VDC

Maximum Current Consumption:

• Normal/Standby (no activity): 39 mA

• Trouble Condition: 46 mA

• Alarm: 48 mA

• AC Fail (not backlit): 15 mA

TB1 Terminals 3 & 4

ANN-BUS rated at 5.5 VDC and 60 mA max.

Dimensions

6-7/8”W x 5-3/8”H x 1-3/8”D

Mounting

The GFANN-80 Series plastic enclosures can be surface or semi-flush

mounted in a single, double or 4” square electrical box.

To mount the GFANN-80 Series enclosure:

1. Open the GFANN-80 Series cover by turning the key switch

counterclockwise to the ON (Unlocked) position.

2. Push in the snap latch tab located on the right side while pulling the

cover open.

3. Pull wire through 7/8” hole in backplate and feed through wire

channel to lower left corner of backplate before routing to terminal

block (refer to appropriate FACP manual).

4. The cover must remain attached to the backplate while mounting

the annunciator to the electrical box/wall. The cover cannot be

reattached or removed after the annunciator has been mounted.

5. If the cover should become detached from the backplate, reattach as

shown below.

6. Surface or Semi-flush mount the GFANN-80 to a single, double or

4” square electrical box. The ANN-SB80KIT(-R/-B/-W) is an

available kit that contains two plastic backboxes that can be used to

surface mount the GFANN-80 Series.

NOTE: Installation and wiring must be done in accordance with

NFPA 72 and local wiring codes.

Backplate

Press in latch

and then

Pull open cover

Key switch shown

in OFF position

Cover with

LCD Display

Figure 1 Opening the GFANN-80 Series

GFANN-80

Series

Cover

GFANN-80

Series

Cover

GFANN-80

Series

Backplate

GFANN-80

Series

Backplate

• Position cover behind

backplate.

• Align hinge posts and

holes

•Slide holes down

onto posts.

• Close cover to lock

hinges into place.

Figure 2 Cover Reattachment

2GFANN-80 Series Installation Document — P/N 53386:B3 4/25/2022

Wiring the GFANN-80 Series to the FACP

Refer to Table 1 and Figure 3 for wiring connections.

Notes:

1. All connections/sources must be power-limited and supervised.

2. 12 - 22 AWG (0.33 - 3.31 mm2) wire for 24 VDC circuit is

acceptable.

3. Power wire distance limitation is set by 1.2 volt maximum line drop

from source to end of circuit.

4. Maximum distance from FACP to last ANN-BUS device must not

exceed 6,000 feet (1,800 m). Refer to the Wiring Distance Table in

the appropriate FACP manual for wire gauge and distance

limitations.

Setting the DIP Switches

Address Setting

Each ANN-BUS device requires a unique address. DIP switches 1-4 on

S1 are used to set the address. This address will be displayed on the

LCD display as the Station ID number.

Amaximum of 8 devices can be connected to the FACP ANN-BUS

communication circuit. ANN-BUS device addresses do not need to be

sequential and can be set to any number between 01 and 08. Note that 00

is not a valid address. The following illustrates the DIP switch settings

for each address (ID Number).

Communication Protocol

DIP switch 5 is used to determine the communication protocol of the

GFANN-80 Series. Set DIP switch 5 to ON for ANN-BUS protocol.

This switch must stay in the ON position for proper functionality.

End-of-Line Resistor

The end-of-line termination resistor must be enabled at S1 on the last

device on the communication circuit. All other annunciators should have

these switches set to disable.

DIP switches 7 and 8 are unused.

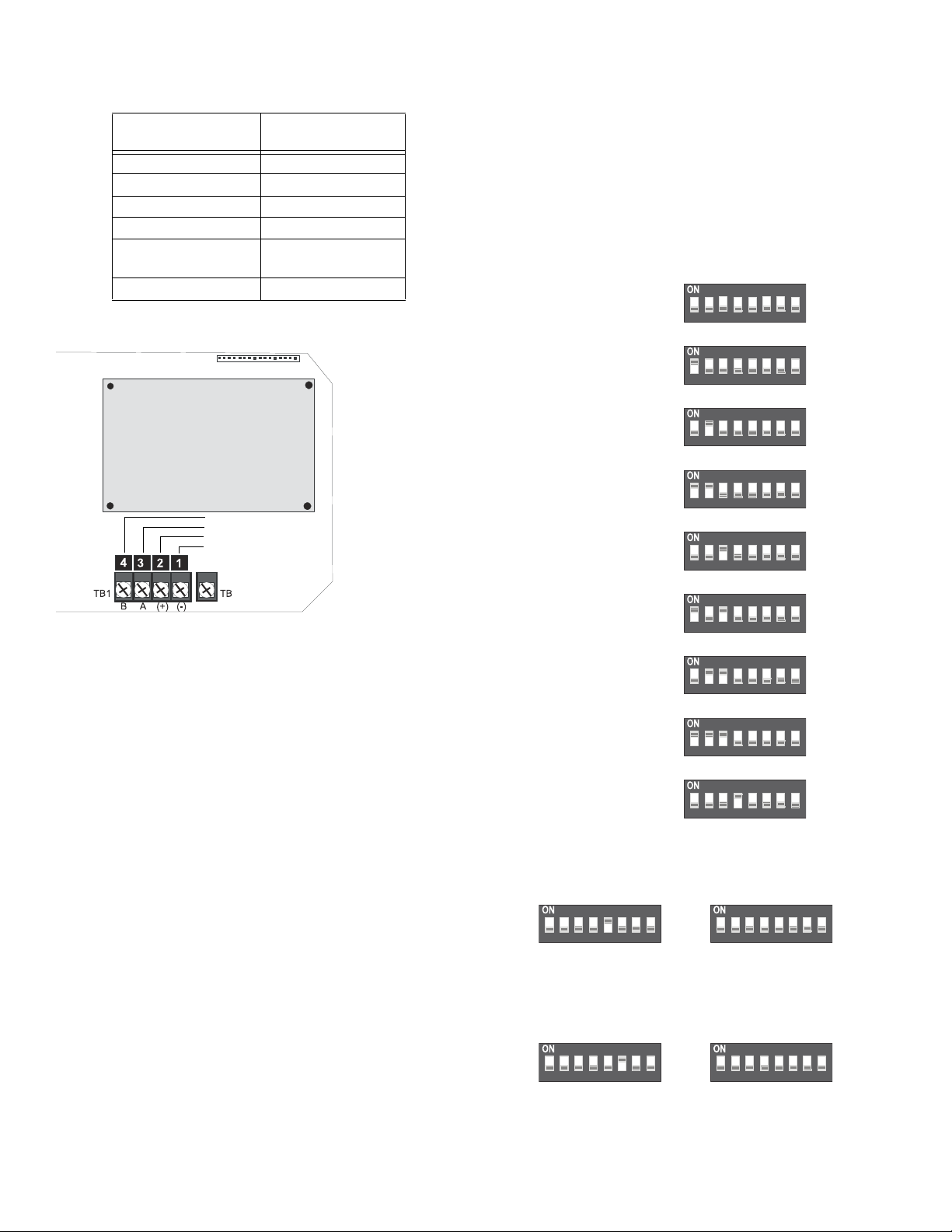

GFANN-80 Series

Terminals (TB1)

FACP ANN-BUS

Terminals

Terminal 1 (-) (-)

Terminal 2 (+) (+)

Terminal 3 (A) A (ANN-BUS)

Terminal 4 (B) B (ANN-BUS)

GFANN-80 Series

Terminals (TB2)

FACP ANN-BUS

Terminals

Terminal 1 Earth Ground

Table 1 GFANN-80 Series to FACP Connections

B (ANN-BUS)

A (ANN-BUS)

+ (24 VDC)

-(GND)

Connect to FACP ANN-BUS

and/or next device

Connect to FACP or UL Listed

Power Supply for Protective

Signaling and/or next device

GFANN-80 Series

Figure 3 Wiring the GFANN-80 Series to an FACP

}

1 2 3 4 5 6 7 8

ID Number

(Address)

(not valid) 00

DIP Switch S1

1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

Ensure switch 5 is ON

1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

termination enabled termination disabled
