Honeywell HCM 200 Manuale utente

Hometronic

Manager

HCM 200

HCM 200D

Mounting and

Configuration

Content

Information on these instructions 2

Scope of supply 2

Power supply 3

Cable types 3

Voltage supply 4

Connection diagram 4

Boiler control 5

Boiler demand 5

Frost protection 5

Boiler regression 6

Mounting 7

Dismantling the Hometronic Manager 7

Selecting the mounting site 8

Wiring the plug-in connection 9

Flush mounting 9

Surface mounting 10

Fastening the operating unit 12

Activating the power supply 12

Inserting batteries 13

Assigning modules and rooms 14

Changing to the "Installation" submenu 14

Assigning a module or room 16

De-installing the module or room 20

Saving and getting system settings 21

Restoring the works settings 21

Appendix 23

Information for the fitter 23

Technical data 24

Help with problems 26

Glossary 28

Overview

Information on these instructions

• Technical terms are identified by an * and are explained in

the glossary (from Page 28).

• Help for problems can be found from Page 26 on.

Symbols used

Warning

Important information

Hint

For your information

Scope of supply

The Hometronic Manager is supplied in four parts:

• 1 Mounting panel

• 1 Operating unit

• 1 Screw

• 1 Plug-in connection

3 Micro batteries each 1.5 V (type LR03) are additionally re-

quired.

Do not insert the batteries until the device is connected to the

voltage supply.

Caution!

Power supply

Cable types

POWER SUPPLY

Cable types

Only use the plug-in connection supplied.

All the cables to be connected must reach at least 15 cm out of

the wall.

The maximum length of the various cable types is specified in the

table below.

Cable type Maximum length

voltage supply Maximum length

boiler regression

JE-Y(St)Y 2×2×0.8 40 m 100 m

JE-LiYCY 2×2×0.8 40 m 100 m

NYM 1.5 mm2120 m 150 m

Power supply

Connection diagram

Voltage supply

• The Hometronic Manager can be supplied with voltage by

means of a plug-in power supply unit or a transformer.

• Use the Honeywell transformer HTU 10, HTS 10 or the plug-

in power supply unit HN 10.

• The device of an external supplier has to fulfill the following

requirements:

Input

voltage Open-circuit

voltage1Output

voltage Current

230 V AC 16 V AC or

17 V DC

12 V AC or DC 350 mA

1Transformer voltage at 300 mA

Connection diagram

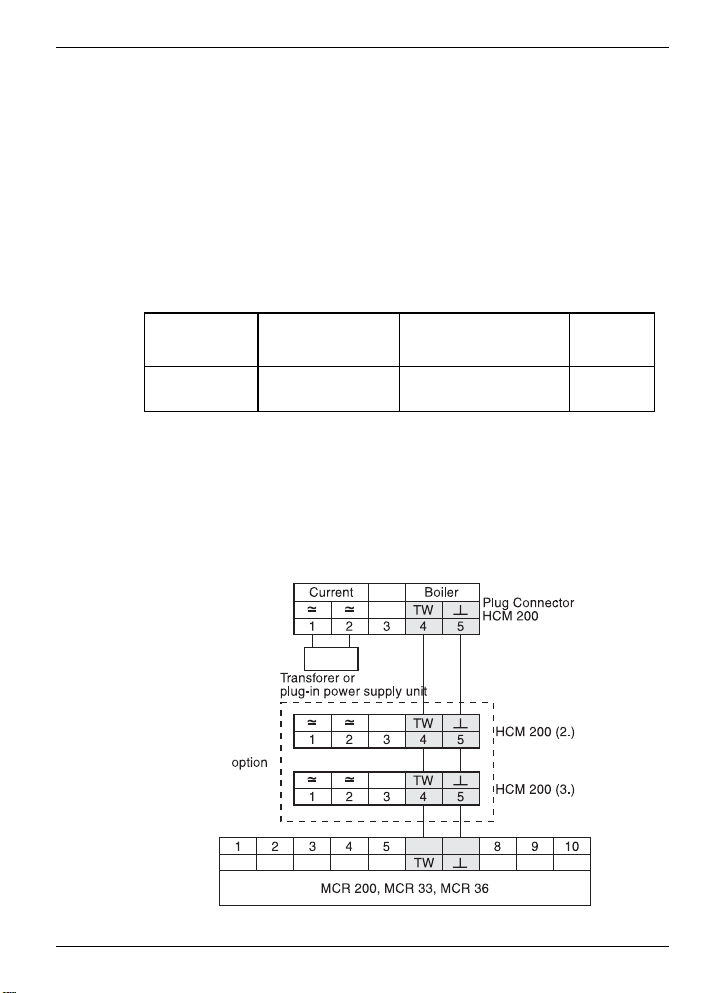

The following connection diagram shows the wiring of a Homet-

ronic Manager for the boiler regression* as well as the connec-

tion of a second or third Hometronic Manager (optional).

Boiler control

Technical Data

BOILER CONTROL

Boiler demand

If the boiler control is carried out with external controllers, the

boiler demand* function can be activated with the HS 30 device

switch.

For information on how to assign the HS 30 device switch for the

boiler demand function please refer to Page 17.

For information on how to adapt the threshold value for the boiler

demand function, please refer to the operating instructions of the

Hometronic Manager in the chapter "Adapting basic system set-

tings* (parameters*)".

Frost protection

The frost protection HK 10 consists of the device switch HS 30

and the room temperature sensor HCF 22.

A boiler demand function as described above has to be ensured

for the frost protection. Together with the room temperature sen-

sor HCF 22 the Hometronic Manager triggers a boiler demand

function as soon as the value drops below the lower threshold for

frost protection.

For information on how to assign the room temperature sensor

HCF 22 as a frost protection sensor please refer to Page 18.

Boiler control

Boiler regression

The Hometronic Manager can be connected to a Honeywell

heating controller (MCR 35, MCR 36, MCR 40 or MCR 200) and

thus control the boiler directly.

►Prepare the cables in accordance with the table on Page 3.

►Lay the cable between the heating control and the Hometronic

Manager.

►Wire the plug-in connection of the Hometronic Manager to the

heating controller in accordance with the following figure.

If you connect several Hometronic Managers to a heating control-

ler:

►Loop the connections through in accordance with the connec-

tion diagram on Page 4.

At the MCR 200 controller the temperature selection and ground

input lie at different terminals, depending on the respective de-

sign.

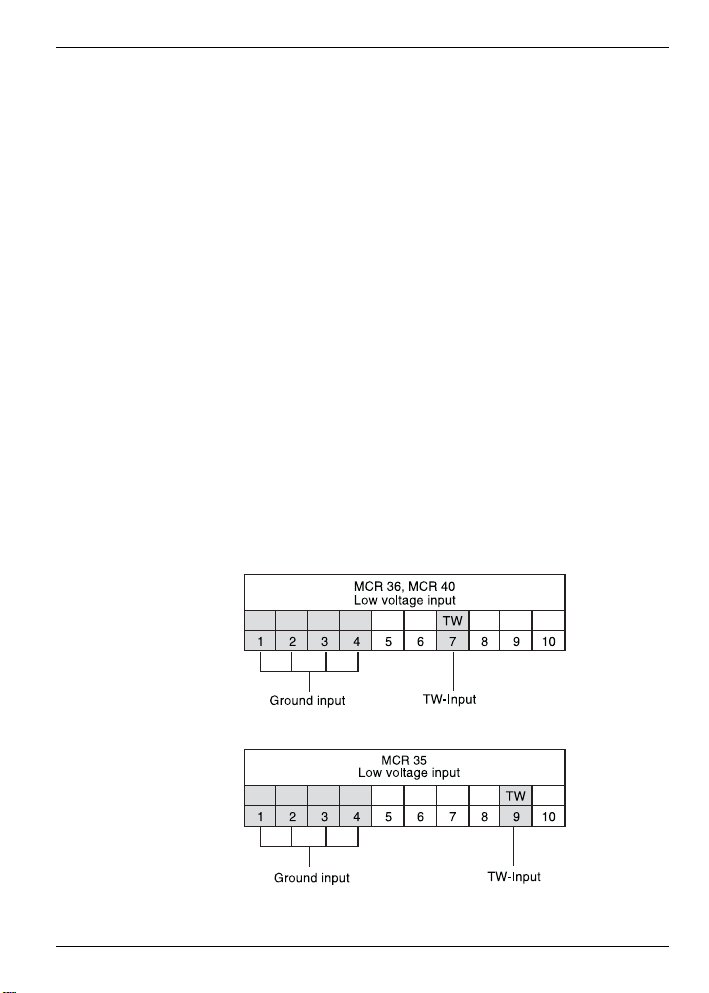

At the controllers MCR 35, MCR 36 and MCR 40 the temperature

selection and ground input lie at the following terminals:

Mounting

Technical Data

MOUNTING

Danger to life through electric shock!

When transformers are cabled live contacts may lie free. Touch-

ing a live contact causes critical injuries.

►All work may only be carried out by authorized specialized

personnel.

►De-energize power supply.

Dismantling the Hometronic Manager

►Lift the Plexiglas cover up at the edges with your fingers and

lift off the cover (1).

►Remove the inserted Lifestyle label (2).

►Unscrew the screw (3).

Dan

er!

Mounting

Selecting the mounting site

Separating the operating unit from the mounting panel

►Slide the unit upwards against the mounting panel (4).

►Lift the operating unit obliquely upwards (5).

Removing the plug-in connection

►Press the tongue of the retainer basket upwards (6).:

►Remove the plug-in connection from the retainer basket (7).

Selecting the mounting site

The Hometronic Manager communicates by radio with the

Hometronic components. When selecting the operation site en-

sure that there is sufficient distance to metallic objects such as

metal cabinets and doors, concrete ceilings with iron lattices and

radio devices such as radio headphones, etc. Select a central

site which is easily accessible.

Mounting

Technical Data

The Hometronic Manager can be mounted:

• Via a flush-mounted box with the transformer HTU 10 (flush

mounting) or

• At a suitable point on the wall with the transformer HTS 10 for

switching cabinet mounting or with the plug-in power supply

unit HN 10 (surface mounting).

For dimensions of the Honeywell transformers, please refer to

the appendix from Page 23 on.

Wiring the plug-in connection

►Lay the cable from the plug-in power supply unit or trans-

former to the mounting site.

►Wire the plug-in connection.

Flush mounting

►Lay the cable directly from the

flush-mounted box to the retainer

basket of the mounting panel.

►Hold the plug-in connection as

shown in the adjacent figure (the

numbers 1 to 5 stand on their

head).

►Latch the plug-in connection into

the retainer basket.
