Honeywell DC1000 SERIES Manuale utente

DC1000 Series Program Configuration Guide

Operation Mode Configuration 1

Configuration 2Program Mode

Set Up Mode

(1)

(3) (2) (2)

(3)

How to move from a MODE to another

(1) Press ‘SET’ key for 5 seconds, it grants access to ‘Configuration 1’ mode or return to

‘Operation’ mode from ‘Configuration 1’ mode.

(2) Press ‘SHIFT’ key for 5 seconds while pressing ‘SET’ key first, it grants access to

‘Configuration 2’ mode or return to ‘Operation’ mode.

(3) All parameters related to program configuration will be displayed next to parameters in

‘Operation’ mode. (* These parameters will be shown in program model only)

CAUTION

DO NOT access to ‘Set Up’ mode without instruction from techical assistant.

1. Program Function

The program function of DC1000 has 2 programs, and each program has Max. 8 segments.

Each segment can be defined as a period of “RAMP” or “SOAK” status.

2. Terminologies

Program : A pattern which consists of some segments

Segment : A RAMP status or a SOAK status

RAMP status : Status with changing SP

SOAK status : Status with fixed SP

3. Operation

3-1 Key functions

(START) : Start a program, ‘PRO’ LED to be flickered during the running operation

(WAIT) : Suspend the running program. ‘PRO’ LED will be turned on

+SET(JUMP) : Skip a current segment

+SET(RESET) : Stop the program running. ‘PRO’ LED will be turned off

3-2 Program Alarm Functions

Case 1) Segment Completion Alarm

ALD1 (Alarm Code for Alarm 1) = 07

AL1 (Alarm Condition) = 2 (‘2’ means Segment No.)

ALT1 (Alarm Time) = 00.10

Alarm Operation: Once Segment 2 is completed, Alarm 1 will become actuated

Case 2) Program Running Alarm

ALD1 = 17

Alarm Operation: During the program running, Alarm 1 will become actuated

* DC1000 does not have END, so the program will complete all the segments if segments are defined. If

the program should be finished earlier, set the ‘OUT’ of next segment to 0, then the program running will

be ended right after the previous segment is completed.

3-3 Link Function

PTN=1, Run Program 1 (Max. 8 segments)

PTN=2, Run Program 2 (Max. 8 segments)

PTN=0, Run Program 1 and Program 2 successively (Max. 16 segments)

* To have link function (PTN=0), PTN1 & PTN2 should be set first

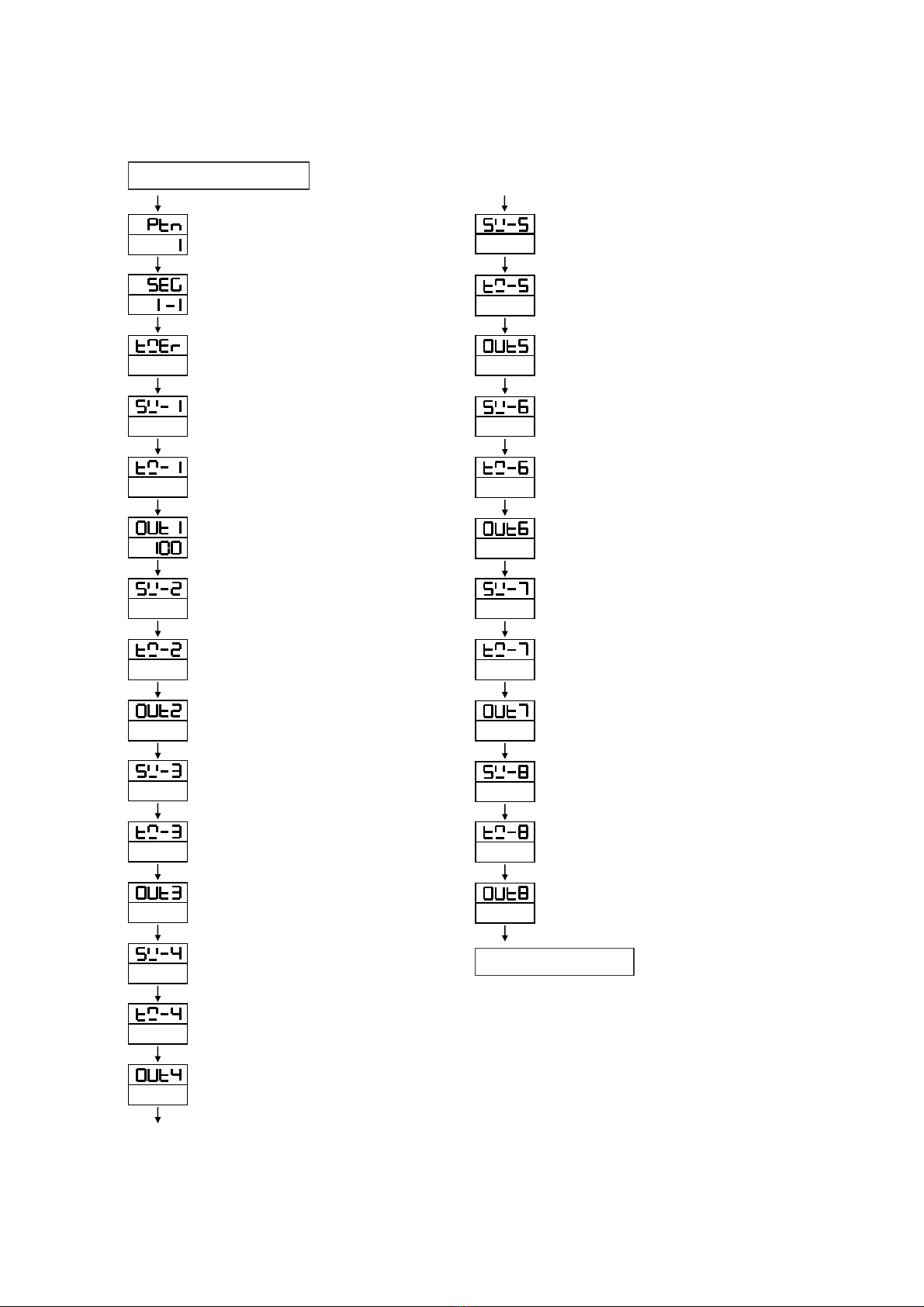

Set point for Seg.5

SET

Start from Operation Mode

Set program pattern

Range: 0~2

Program segment display

‘Pattern’ – ‘Segment’

Program timer display

Range: 99hour 59min

Set point for Seg.1

Range: LSPL~USPL

Set time for Seg.1

Range: 0~99H59M

Set output for Seg.1

Range: 0~100% (if out=0, no program)

Set point for Seg.2

Set time for Seg.2

Set output for Seg.2

Set point for Seg.3

Set time for Seg.3

Set output for Seg.3

Set point for Seg.4

Set time for Seg.4

Set time for Seg.5

Set output for Seg.5

Set point for Seg.6

Set time for Seg.6

Set output for Seg.6

Set point for Seg.7

Set time for Seg.7

Set output for Seg.7

Set point for Seg.8

Set time for Seg.8

Set output for Seg.8

Set output for Seg.4

Range: (1,2,0)-(1~8)

Back to Operation Mode
