Remote-adjustable

Radiator Controller

HR 10 F

Mounting and Operation

Content

Overview 3

Mounting 5

Selecting the mounting site 5

Mounting the drive unit 5

Mounting the operating unit 11

Connecting the operating unit and the drive unit 11

Inserting batteries into the operating unit 13

Setting the date and time 14

Operation 15

Display and operating elements at the operating unit 15

Changing the setpoint temperature at the adjusting ring 16

Changing the operating modes 17

Automatic functions 18

Emergency operation when the batteries are flat 19

Disabling the Roomtronic (child-proofing) 19

Adapting 20

Adapting the comfort and economy temperatures 21

Adapting the heating and economy periods 22

Adaptation at the radiator valve 25

Appendix 27

Technical data 27

Dimensions and drilling scheme operating unit 28

Content

Adapters for the drive unit 29

Help with problems 30

Glossary 32

Overview

For Your Information

Technical terms are explained in the glossary (Page 32). They are

identified in the text by an *.

Application

The Roomtronic HR10 F controls the setpoint temperature* of a room.

It consists of a drive unit and an operating unit and offers a number of

comfortable functions:

•A separate time program can be entered for each weekday.

•The manual adjusting ring at the operating unit allows simple

changing of the room temperature at any time – also in automatic

mode*.

The manual adjusting ring of the drive unit does not have any

function.

•Self-monitoring properties offer protection against calcification,

unintentional setpoint adjustment and frost.

•A flashing display draws the user's attention to the fact that

the batteries have to be changed.

•The Roomtronic changes automatically between summer and

winter times.

•Various valve adapters and a window contact are furthermore

available.

Overview

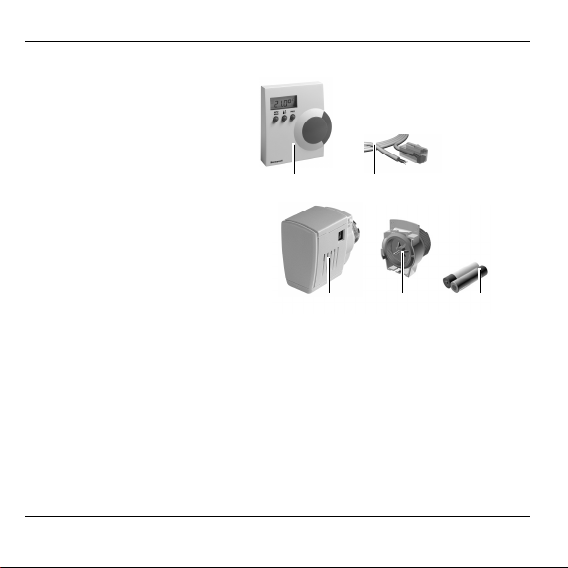

Scope of supply

1. Operating unit

2. Connecting cable

3. Drive unit

4. Valve lantern

5. Batteries

1 2

Mounting

Selecting the mounting site

►When selecting the mounting site take into consideration that the

temperature measurement is influenced if the operating unit is

mounted on an outer wall or near heat sources.

Mounting the drive unit

►Turn the radiator on before mounting. The radiator valve must be

open.

HINT: The correct setting of the valve is best checked with the central

heating switched on. If the valve is correctly mounted, the

radiator will become warm.

Separating the drive unit from the valve lantern

►Remove the old radiator

controller, if necessary.

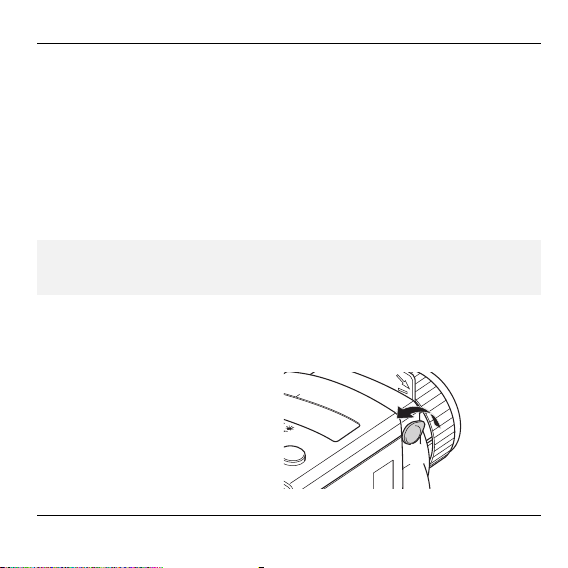

►To open the retainer brack-

et, turn the control knob (1)

so the tip points upwards.

Mounting

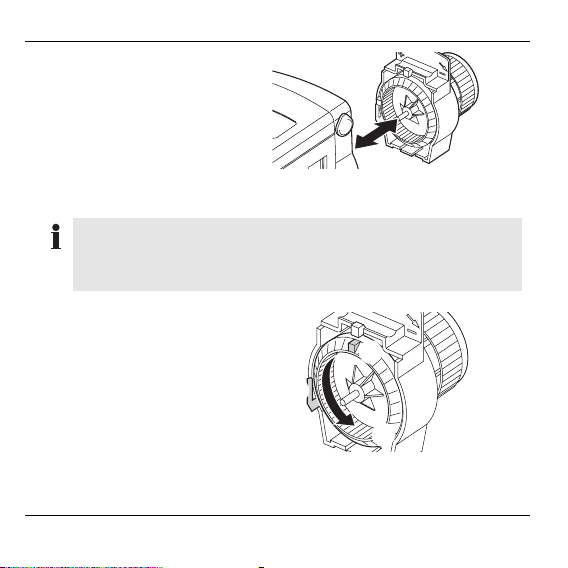

►Separate the drive unit and

valve lantern.

Mounting the valve lantern on the radiator valve

The Honeywell-Braukmann, MNG, Heimeier, Junkers,

Landis & Gyr 'Duogyr' valves do not require an adapter. For

adapters for Oventrop-, Danfoss-, Herz- and Vaillant valves

please refer to Page 29.

►Turn the adjusting ring (3) of

the valve lantern to the left,

until the nose (1) of the ad-

justing ring is positioned at

the stop (2) of the housing.

Mounting

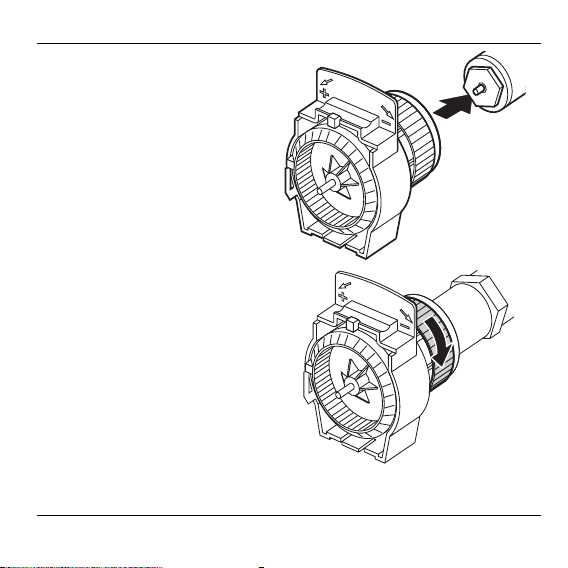

►Slide the valve lantern onto

the heating valve.

►Slide the metal knurled nut

onto the thread of the heat-

ing valve.

►Tighten the metal knurled

nut without using a tool.

Mounting

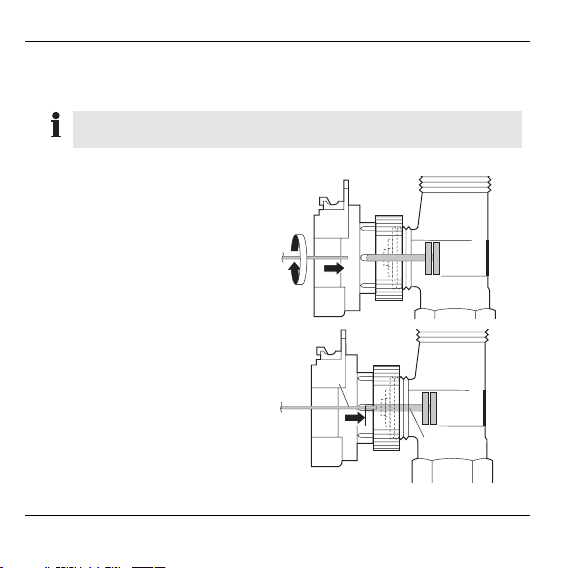

Checking the valve lift

The nose of the adjusting ring is positioned at the stop of the

housing (Page 6).

►Turn the adjusting ring of

the valve lantern (1) to the

right until some resistance is

felt.

The spindle (2) of the valve

lantern is now touching the

valve pin (3) of the radiator

valve (4).

ÂÃ
