Honeywell Dolphin 99 EX Manuale utente

Dolphin™99EX

with Windows

Embedded Handheld 6.5

Quick Start Guide

99EX_QS.book Page 1 Friday, March 4, 2011 2:42 PM

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to

make changes in specifications and other information

contained in this document without prior notice, and the

reader should in all cases consult Honeywell to determine

whether any such changes have been made. The

information in this publication does not represent a

commitment on the part of HII.

HII shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or

consequential damages resulting from the furnishing,

performance, or use of this material.

This document contains proprietary information that is

protected by copyright. All rights are reserved. No part of

this document may be photocopied, reproduced, or

translated into another language without the prior written

consent of HII.

Web Address: www.honeywellaidc.com

Trademarks

Dolphin and HomeBase are trademarks or registered

trademarks of Hand Held Products, Inc. or Honeywell

International Inc. Microsoft, Windows, Windows Mobile,

Windows Embedded Handheld, Windows 7, Windows Vista,

Windows XP, Windows Mobile Device Center, ActiveSync,

and the Windows logo are trademarks or registered

trademarks of Microsoft Corporation. Other product names

or marks mentioned in this document may be trademarks or

registered trademarks of other companies and are the

property of their respective owners.

99EX_QS.book Page 2 Friday, March 4, 2011 2:42 PM

Out of the Box

Verify that the carton contains the following items:

• Dolphin 99EX mobile computer (the terminal)

• Main battery pack (i.e., standard 3.7V Li-poly or

extended 3.7V Li-ion)

• Quick Start Guide

Note: If you ordered accessories for your terminals, verify that they

are also included with the order.

Be sure to keep the original packaging in the event that the

Dolphin terminal should need to be returned for service.

Front Panel

Power Key

Front Speaker

Navigation Keys

Microphone

I/O Connector

General

Notification

LED

Touch Panel Display

Volume

Button

Right Button

Scan Key

Charge Indicator LED

99EX_QS.book Page 1 Friday, March 4, 2011 2:42 PM

Back Panel

Left Button

IRDA Port

Battery Door

Stylus Fastener

Hand

Strap

Stylus

Slot

Protective

SIM/Memory

CardDoor

Rear Speaker

Flashlight/

Camera Flash

Color Camera

Image/Scan

Engine Window

Battery Well

Battery Door Release

T6Torque

Screw

Hand Strap

Hook

Note: Your Dolphin model may differ from the model illustrated

above; however, the features noted are standard for all

99EX models.

99EX_QS.book Page 2 Friday, March 4, 2011 2:42 PM

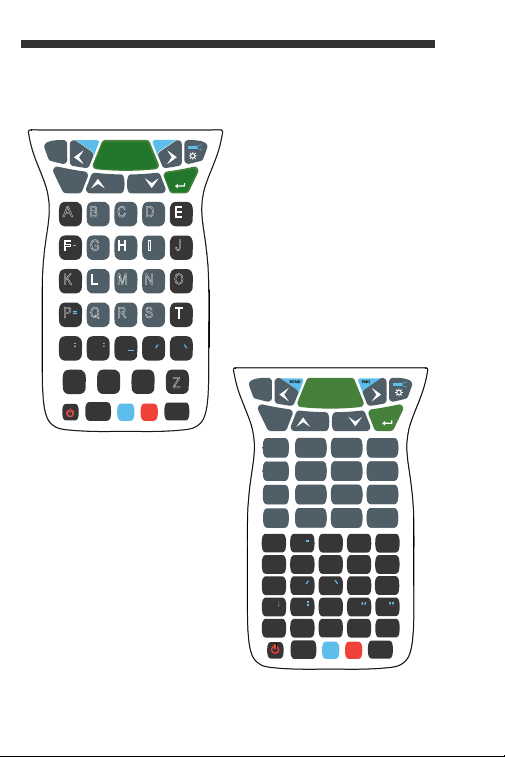

Available Keyboards

SCAN

VOL

TAB

ESC

SEND END

ENT

☼

456

+-/\

;—

0,#

DEF

GHI JKL MNO

PQRS TU V WXYZ

F5 F2

F6 F3

F7 F4

SFT SP BKSP DEL

ALT

CTRL ALPHA

2ABC

SCAN

VOL PG

TAB

ESC

SEND END

ENT

☼

456

+-/\

;:—

0,#

F5 F2

F6 F3

F7 F4

SFT SP BKSP DEL

ALT

CTRL ALPHA

8DEF

GHI JKL MNO

PQRS TU V WXYZ

ABC

34-Key Numeric

(Calculator) Keyboard

34-Key Alpha/Numeric

Keyboard

99EX_QS.book Page 3 Friday, March 4, 2011 2:42 PM

ALT

CTRL

NUM

AB C D E

F G H I J

K L M N O

P Q R S T

UVWX Y

F1 F2 F3 F4 F5

F6 F7 F8 F9 F10

F15F14F13F12F11

F17 F18 F19 F20F16

F21 F22 F23 F24 F25

456

789

SFT SP

BKSP

SCAN

VOL PG

TAB

ESC

SEND END

ENT

☼

ALT

CTRL

123

456

789

BCDE

FGH IJ

KL MNO

PQRST

UV WX Y

SFT

;

—

F6 F7 F8 F9 F10

F15F14F13F12F11

F17 F18 F19 F20F16

F21 F22 F23 F24 F25

BKSP

DEL

-()

‘

SCAN

VOL PG

TAB

ESC

ENT

☼

F1 F2 F3 F4 F5

55-Key Full Alpha/

Numeric Keyboard

43-Key Alpha/Numeric

Keyboard

99EX_QS.book Page 4 Friday, March 4, 2011 2:42 PM

Install the Main Battery Pack

The 99EX is shipped with the battery packaged separate

from the unit. Follow the steps below to install the main

battery. For information on how to remove the battery, see

page 6.

1. Release the hook securing the hand strap to the back

panel of the terminal.

2. Remove the battery door by lifting up the latches near

the base of the battery door.

3. Insert the battery into the battery well.

4. Replace the battery door. Apply pressure to engage

the door latch. The battery door must be installed

prior to powering the unit.

5. Reattach the hand strap.

6. Connect the terminal to one of the 99EX series

charging peripherals to charge the main battery pack.

We recommend use of Honeywell Li-poly or Li-ion

battery packs. Use of any non-Honeywell battery may

result in damage not covered by the warranty.

99EX_QS.book Page 5 Friday, March 4, 2011 2:42 PM

Removing the Main Battery Pack

When removing a battery from the terminal, put the device

in Suspend Mode (see page 7) before removing the

battery door. Once the battery door is removed, wait at

least 3 seconds before removing the main battery. This

process allows the device to shut down properly and

maintains memory during the battery swap.

Battery Error Notification

If your terminal displays the following indicators, replace

the battery with a Honeywell Li-poly or Li-ion battery pack.

• appears in the Title bar at the top of the touch panel

display.

• The General Notification LED flashes red.

• A Notification appears on the Tile bar at the bottom of

the touch panel display.

99EX_QS.book Page 6 Friday, March 4, 2011 2:42 PM

Suspend Mode

The terminal goes into Suspend Mode automatically when

the terminal is inactive for a programmed period of time.

You can program this time on the Advance tab of the

Power System Setting. For additional information, refer to

the

Dolphin 99EX User’s Guide

located on the Web at

www.honeywellaidc.com.

To put the terminal into Suspend Mode manually, press

the Power key and the screen goes blank.

To wake the terminal from Suspend Mode, press the

Power key or SCAN key .

Note: You should always put the terminal in suspend mode before

removing the battery door. For information on how to

remove the battery see page 6.

SCAN

99EX_QS.book Page 7 Friday, March 4, 2011 2:42 PM

Charging the Dolphin

Connect the terminal to one of the

99EX series charging peripherals

to charge the main battery.

The charging time for the main

battery pack is 4 hours for the

standard 3.7V battery or 6 hours

for the extended battery.

Honeywell recommends charging

the Dolphin terminal for at least

24 hours prior to initial use to

ensure the internal backup battery

is fully charged.

HomeBase

Front Panel

Back Panel

AUX

Battery

Well

HomeBase

Power/Dock

LED

AUX Battery LED

COMM

LED

USB Port

Serial Port DC Power

Jack

99EX_QS.book Page 8 Friday, March 4, 2011 2:42 PM
