Welcome to A-BUS

AUDZBX75

A-BUS Source Input Module

Installation Manual

We hope you enjoy your A-BUS system. This AUDZBX75 Source

Input Module is designed to connect to the MDADZHMS A-BUS

Multi-Source Audio Hub, which is the core of your A-BUS system.

The MDADZHMS Multi-Source Audio Hub will accept up to four

AUDZBX75 Source Input Modules to connect the Hub to a

maximum of four source components. It also repeats infrared (IR)

commands to the source components. The AUDZBX75 Source

Input Module is activated by commands sent from the AUDZ45

A-BUS Multi-Source Volume Control Module. See the Installation

Manual for the MDADZHMS Multi-Source Audio Hub and AUDZ45

Multi-Source Volume Control for full system instructions.

AUDZBX75 A-BUS Source Input Module

Installation – Instal the AUDZBX75 Source Input Module wherever it is desired to locate an audio

source component that will be used as an input to the A-BUS Multi-Source Audio System. Typically,

Source Input Modules are located in the entertainment center, family room, kitchen, master

bedroom, office or utility area or other areas where computers, cable boxes, satellite receivers,

media bridges and/or televisions are located. It is best to locate the actual module in a single-gang

box near, but not directly adjacent to, a power receptacle. The AUDZBX75 Source Input Module

may be located up to 100ft (30m) away from the MDADZHMS Hub. The A-BUS System uses Cat

5/5e wiring following the TIA 568A color code (see A-BUS Wiring Color Code).

Input Level Adjustments – On the back of the AUDZBX75 [7] Source Input Module are Left and Right

Input Level Adjustments. Normally these are set to the full clockwise position. Turn each control

counterclockwise to reduce the input level to match the volume level of the lowest source in the system.

Repeat this procedure for any other sources that are too loud, until all sources are balanced. Some

audio sources such as computer sound cards may have very low output. In these cases it is recom-

mended that the volume be turned up at the output of the source. Check for either a physical volume

control or an IR remote volume control on such devices.

Status Indicator [3] - The green status light indicates when the system is turned on. The system is

activated when the Hub receives a source-select command from any zone. Other zones may be

activated at any time. Individual Volume Control Modules may have to be turned on separately before

sound can be heard.

Infrared Talkback Indicator [3b] - The Red Talkback indicator flashes when an infrared data

command is passing through the Hub.

For use only with models:

MDADZHMS Multi-Source Audio Hub for Honeywell QuickNetwork Panel

HBADZHMS Multi-Source Audio Hub for Honeywell SuperPro Panel

(cont...)

Infrared (IR) Emitter Port [8] – This will accept a standard IR emitter with a 3.5mm 2-cond. mini plug.

This jack is provided for infrared control of the source component. It is a routed output that will only emit

commands from a Volume Control Module in a zone that has selected that source. Some components

have a 2-cond. IR input jack on the back. It is recommended that this direct connection be used.

CAUTION: Do not confuse a serial data port connection with an infrared port.

12v DC Trigger [12] - This is a 12v DC output that turns on when that source is selected. The output

can be used to trigger a relay for power control of the source component.

CAUTION: Do not hook up devices to the Trigger that will exceed 50mA of current draw.

Audio Input [13] - For connection to source component

Loop Out [14] - To loop the same audio component source into a home theater receiver or an amplifier

A-BUS® is a Registered Trademark of LeisureTech Electronics Pty Ltd Sydney, Australia.

International Patent Pending LeisureTech Electronics Pty Ltd Sydney, Australia

IMPORTANT NOTE - LTE reserves the right at any time and without prior notice to

update, amend, vary or alter the instructions and specifications in this manual.

LTEHWABX75IM Rev: 1.3 14/02/07

AUDZBX75 A-BUS Source Input Module

Specifications

Socket

Brown

Brown & White

Blue & White

Green & White

Green

Orange & White

Orange

Blue

87 5 3 1

6 4 2

Pin Signal

+24 Vdc

Ground

Right Ch. Ground

Left Ch. Ground

Status

Right Channel

Left Channel

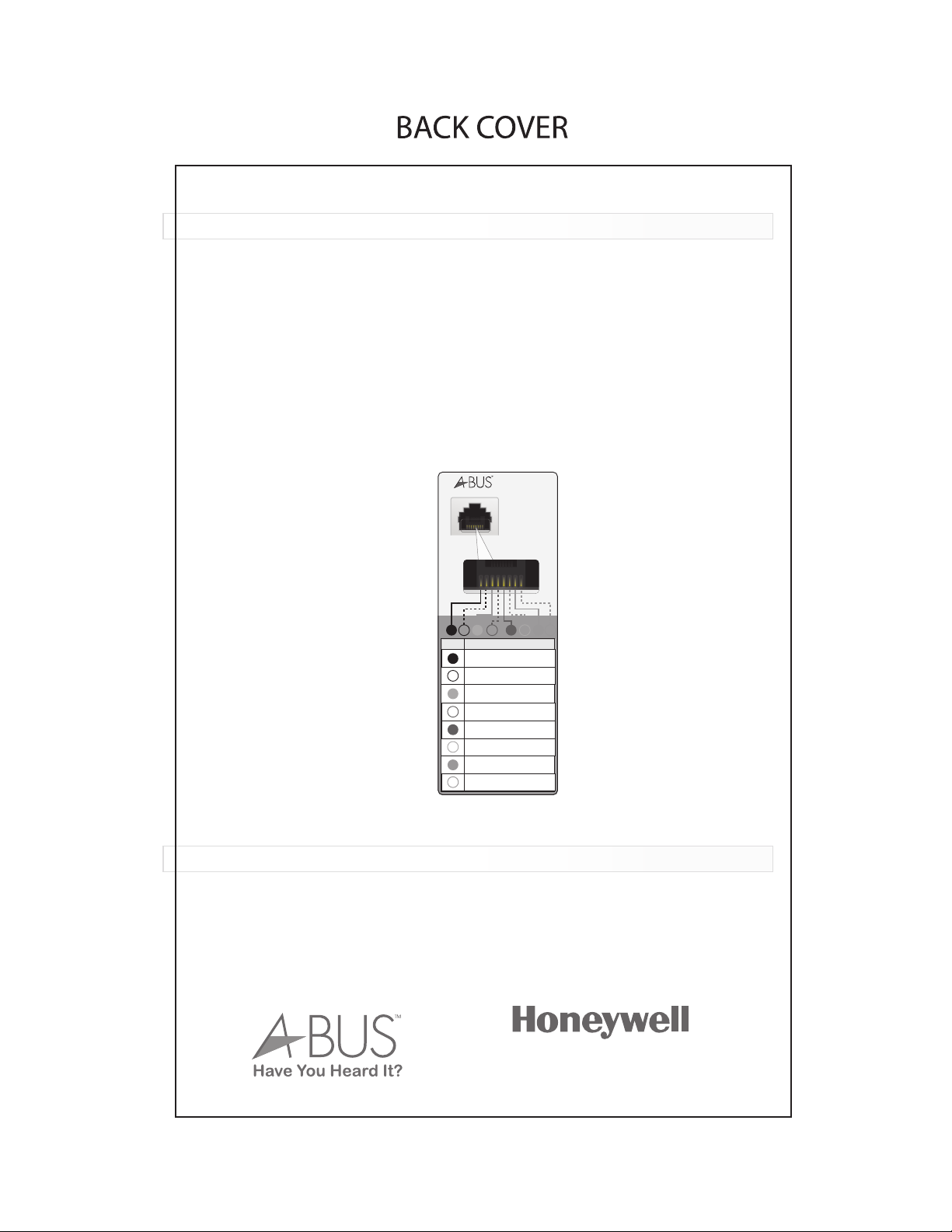

A-BUS Wiring Color Code (T568A)

Input Module

Inputs

Outputs

AUDZBX75

Audio

Trigger

A-BUS

A-BUS Source Input Module

1 x Stereo RCA Pair

1 x Stereo RCA Pair Loop Thru

1 x 3.5mm mini phono

1 x 3.5mm mini phono 12vdc +V Center 50mA

1 x Cat-5 110 Punchdown
