Honeywell ScanPal EDA52-0 Manuale utente
ColetordeDadosHoneywellScanPalEDA52
O Honeywell ScanPal EDA52 é um computador móvel de classe
empresarialquefornece conectividadeconfiávele seguraentre
funcionáriosdalinhadefrenteesistemasdenegóciosdeback‐
end.Eleéprojetadoparausoemaplicativosdevarejo,transporte
elogística,manufatura,saúdeeserviçospúblicos.
OScanPalEDA52éapróximageraçãodecomputadoresmóveis
da série ScanPal da Honeywell, equipado com o mais recente
processador Qualcomm Snapdragon octa‐core de 2,0 GHz e
conectividadesemfiorobustapormeiodecomunicaçãoNFC,Wi‐
Fi5eBluetooth.
www.bztech.com.br
ScanPal™ EDA52 Series
powered by Android™
Quick Start Guide
EDA52-A-EN-QS-01 Rev B
11/22
1
Agency Models
EDA52 series: EDA52-0, EDA52-1
Note: EDA52 mobile computers come with either a six-pin I/O
connector or a two-pin connector with a USB-C port depending on
the model. Due to variations in model configurations, your
computer may appear different than illustrated.
Out of the Box
Make sure that your shipping box contains these items:
• EDA52 mobile computer
• Rechargeable li-ion battery
• USB charging cable (Two-pin model only)
• Hand strap (optional)
If you ordered accessories for your mobile computer, verify that
they are also included with the order. Be sure to keep the original
packaging in case you need to return the mobile computer for
service.
Memory Card Specifications
Honeywell recommends the use of Single Level Cell (SLC)
industrial grade microSD™ or microSDHC™ memory cards with
mobile computers for maximum performance and durability.
Contact a Honeywell sales representative for additional
information on qualified memory card options.
2
Computer Features
Microphone
Power Button
Battery Status/
Notification LED
Touch Panel
Scan Button
Scan Status LED
Imager Window
(LED/Laser Aperture)
Front Camera
3
Note: Hand strap not shown.
Nano SIM and/
or MicroSD Card
Slot
4
* Six-pin connector or Two-pin with a USB port, depending on model.
Battery Cover
Microphone
Battery Cover
Latch
Speaker
Laser Safety
Label Location
Camera Lens
and Flash
Scan Button
Volume Button
Six-pin
I/O Connector *
USB port with Two-pin
I/O Connector *
5
Install a Nano SIM Card (WWAN Models)
Either a nano-SIM card or embedded SIM (eSIM) is used to
activate the phone and connect to a mobile network. eSIM is
available on select models only. Refer to the user guide for
additional information.
Install a microSD Card (Optional)
Note: Format the microSD card before initial use.
Note: Always power off the computer before attempting to install or
remove a card.
12
1
2
6
About the Battery
The mobile computer ships with a 3.8 VDC, 17.1 watt-hour
Li-ion battery manufactured for Honeywell International Inc.
We recommend use of Honeywell Li-ion battery
packs. Use of any non-Honeywell battery may result
in damage not covered by the warranty.
Nous recommandons l’utilisation de batteries Li-ion
de la marque Honeywell. L’utilisation d’une batterie
d’un autre fabricant est susceptible de provoquer des
dommages non couverts par la garantie.
Ensure all components are dry prior to placing the
battery in the computer. Mating wet components
may cause damage not covered by the warranty.
Assurez-vous que tous les composants sont secs avant
d’insérer la batterie dans l’ordinateur. L’insertion de
composants humides risque de provoquer des
dommages non couverts par la garantie.
Before you attempt to use, charge or replace the
battery in the device, carefully read all labels,
markings and product documentation provided in the
box or online at sps.honeywell.com. To learn more
about Battery Maintenance for Portable Devices, go
to honeywell.com/PSS-BatteryMaintenance.
Avant d’essayer d’utiliser, de charger ou de remplacer
la batterie de l’appareil, lisez attentivement toutes les
étiquettes, marquages et documentation du produit
fournis dans la boîte ou en ligne à sps.honeywell.com.
Pour en savoir plus sur l’Entretien de Batteries pour
Appareils Portables, consultez-le honeywell.com/
PSS-BatteryMaintenance.
7
Install Battery
1
2
3
4
8

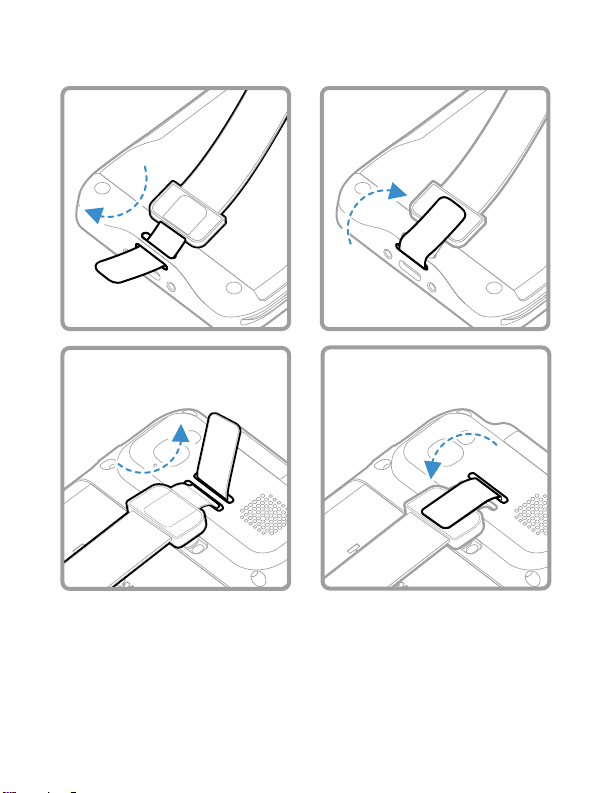

Install the Hand Strap
3 4
1 2
