Honeywell HCC334L Manuale utente

Document G-113077-001 – 02/07 – Rev 3

L-Series

Color Camera

HCC334L HCC334LX

HCC484L HCC484LX

HCC335LX

HCC485LX

User Guide

NTSC PAL

Revisions

Issue Date Revisions

1.00 06/06 New document

1.01 08/06 Added 230V (HCC335LX, HCC485LX).

3 02/07 Updated document part no.; added

warning to p. iii.

Rev 3 ii G-113077-001

02/07

Rev 3 iii G-113077-001

02/07

Warnings

Installation and servicing should be performed only by

qualified and experienced personnel to conform to all local

codes and to maintain your warranty.

WARNING! 12 VDC/24 VAC models require the use

of CSA Certified/UL Listed Class 2

power adapters to ensure compliance

with electrical safety standards.

Where the MAINS plug or an appliance coupler is used as

the disconnect device, the disconnect device shall remain

readily operable.

WEEE (Waste Electrical and Electronic Equipment).

Correct disposal of this product (applicable in the

European Union and other European countries with

separate collection systems). This product should be

disposed of, at the end of its useful life, as per applicable

local laws, regulations, and procedures.

Explanation of Graphical

Symbols

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER.

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE

CONSTITUTING A RISK OF

ELECTRIC SHOCK IS PRESENT

WITHIN THE UNIT.

THIS SYMBOL INDICATES THAT

IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS

ACCOMPANY THIS UNIT.

CAUTION

Rev 3 iv G-113077-001

02/07

FCC Compliance Statement

Information to the User: This equipment has been tested

and found to comply with the limits for a Class A digital

device. Pursuant to Part 15 of the FCC Rules, these limits

are designed to provide reasonable protection against

harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may

cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Caution Changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

Manufacturer’s Declaration of

Conformance

The manufacturer declares that the equipment supplied

with this guide is compliant with the essential protection

requirements of the EMC directive 89/336/EEC and the Low

Voltage Directive LVD 73/23 EEC, conforming to the

requirements of standards EN 55013 for emissions.

Rev 3 G-113077-001

02/07

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpack Everything. . . . . . . . . . . . . . . . . . . . . . . . 2

Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Camera Functions . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting Up Your Camera . . . . . . . . . . . . . . . . . . . 4

Selecting the Lens . . . . . . . . . . . . . . . . . . . . . . 4

Manual Lens . . . . . . . . . . . . . . . . . . . . . . . 4

Vari-focal Auto Iris Lens . . . . . . . . . . . . . . . 4

Direct Drive (DC) Lens . . . . . . . . . . . . . . . . 4

Video Drive (VSD) Lens. . . . . . . . . . . . . . . 5

Exposure Mode . . . . . . . . . . . . . . . . . . . . . . . . 5

Automatic Exposure Mode . . . . . . . . . . . . .5

Manual Exposure Mode . . . . . . . . . . . . . . 5

Backlight Compensation (BLC). . . . . . . . . . . . 6

Flickerless Mode (FL) . . . . . . . . . . . . . . . . . . . . 6

Automatic Gain Control (AGC) . . . . . . . . . . . . 6

Auto White Balance (AWB) . . . . . . . . . . . . . . . 6

Auto Trace White Balance (ATW) . . . . . . . 6

Auto White Balance Control (AWC). . . . . . 7

One Push Lock . . . . . . . . . . . . . . . . . . . . . . 7

Synchronization Selection (LL/INT) . . . . . . . . . 7

Line Lock Phase Adjustment Potentiometer. . 8

Lens Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Adjusting the Back Focus . . . . . . . . . . . . . . . . . . . 9

Completing the Installation . . . . . . . . . . . . . . . . . . 11

Mounting the Camera . . . . . . . . . . . . . . . . . . . . . 11

Connecting the Camera . . . . . . . . . . . . . . . . . . . 12

Warranty and Service . . . . . . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Rev 3 1 G-113077-001

02/07

Introduction

The Honeywell L-Series Color cameras are ideally suited

for use in day-to-day surveillance applications. The L-

Series cameras are designed for exceptional value and

performance for everyday use. Their off-the-shelf feature

set is designed for high picture quality in standard

applications and they require little to no adjustment after

installation.

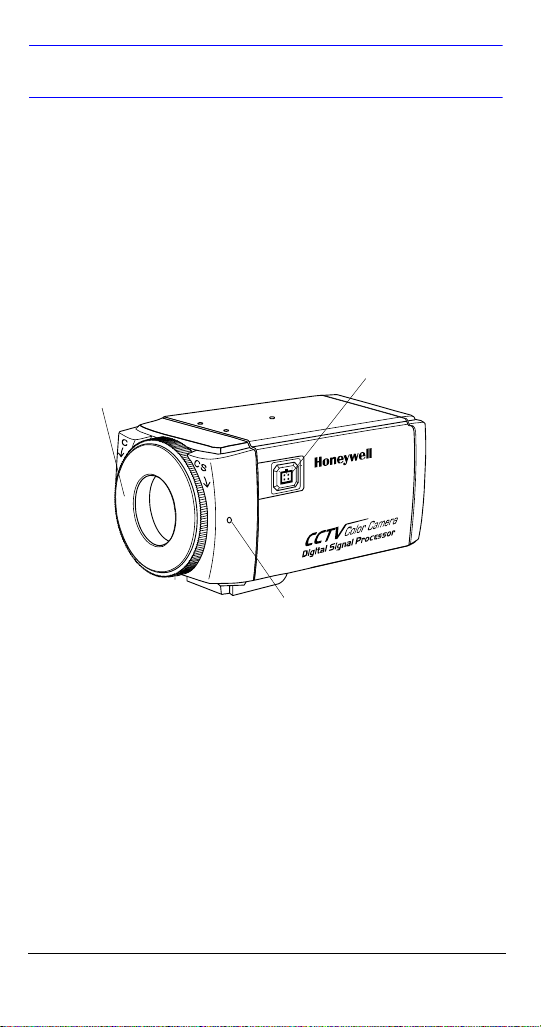

Figure 1 Camera Overview

Features

• 1/3” CCD

• C/CS adjustable lens mount adapter

• Excellent signal-to-noise ratio of more than 50 dB

• Minimum illumination:

• High Res — 0.4 lux (F1.2, 50 IRE, AGC ON)

• Standard Res — 0.2 lux (F1.2, 50 IRE, AGC ON)

• 2-way Auto Iris: Video Iris (VSD) or Direct Drive (DC)

Iris lens

Lens connector for

Auto Iris lens plug

Setscrew: loosen locking ring

with a Phillips screwdriver to

adjust mounting ring.

C/CS mount adapter:

C mount: turn

counterclockwise

CS mount: turn clockwise

Rev 3 2 G-113077-001

02/07

Before You Begin

Unpack Everything

Check that the items received match those listed on the

order form and packing slip. The L-Series packing box

should include, in addition to this User Guide:

• One L-Series Color camera

• One Auto Iris lens plug

If any parts are missing or damaged, contact the dealer you

purchased the camera from or call Honeywell Customer

Service (see Contact Information on the back of this

manual).

Note You will also require a Phillips screwdriver to

complete the installation.

Please read this guide carefully

before you install the L-Series Color

camera.

Keep this guide for future reference.

Rev 3 3 G-113077-001

02/07

Camera Settings

Camera Functions

Figure 2 Camera Rear View

Legend

#Description

1DIP switches for mode settings (see Figure 3)

2Auto Iris Lens select switch, VSD for Video or DC for Direct

Drive

3Sync select switch

4Video output connector

5Power input connector (24 VAC: 3 terminals)—Low Voltage

model only

6Power LED indicator

7DC Iris level adjustment, for use with DC Iris lens

8V-Phase adjustment, for use with Line lock

9Push Lock in White Balance (WB) mode

10 EEPROM data setting for factory use only

PUSH

LOCK

IR IS

LEVEL

PWR

L/L

IN T

VSD

BLC

AGC

WB3

WB2

WB1

AES

OFF

VIDEO

~207-253VAC 50HZ

V-P H

PUSH

LOCK

IR IS

LEVEL V-PH

PWR

VIDEO

L/L

IN T

VSD

BLC

AGC

WB3

WB2

WB1

AES

OFF

GND

DC 12V

AC 24V

1087

Low Voltage

(HCC334L/X, HCC484L/X)

Mains 230V —Line Voltage

(HCC335LX, HCC485LX)

10 874

Rev 3 4 G-113077-001

02/07

Setting Up Your Camera

Figure 3 shows the factory set DIP switch settings.

Automatic Gain Control (AGC) and Auto White Balance

Control (AWC) are set ON.

Figure 3 Factory Set DIP Switch Settings

Selecting the Lens

Manual Lens

Set the EE/ME DIP switch on the rear of the camera (see

Figure 3) to EE. Set the AES/AI switch to AES. EE and AES

are the typical settings.

Vari-focal Auto Iris Lens

Vari-focal Auto Iris lenses (Direct Drive [DC] or Video Drive

[VSD]) are connected to the camera via a 4-pin square

socket located at the side of the camera. Set the AES/AI

DIP switch to AI. EE and AI are the typical settings.

To set a different exposure, see Exposure Mode on page 5.

Direct Drive (DC) Lens

1. Set the VSD/DC switch on the rear of the camera to

DC. Set the AES/AI DIP switch to AI.

AES

OFF

BLC

AGC

WB3

WB2

WB1

VSD

IRIS

LEVEL

PUSH

LOCK IR IS

LEVEL V- P H

PWR

VIDEO

L/L

INT

VSD

BLC

AGC

WB3

WB2

WB1

AES

OFF

GND

DC12V

AC 24V

= ON

= OFF

Rev 3 5 G-113077-001

02/07

2. Slowly turn the LEVEL potentiometer until the picture

on the monitor is as clear as possible and is not too

bright.

Video Drive (VSD) Lens

Set the VSD/DC switch on the rear of the camera (see

Figure 3) to VSD.

Exposure Mode

Automatic Exposure Mode

The Electronic Exposure feature compensates for

excessive light levels by automatically adjusting the shutter

speed of the camera. Set the EE/ME switch to EE

(recommended setting).

Manual Exposure Mode

Set the EE/ME switch to ME. This setting is typically used

only in machine vision applications. The table below gives

the shutter speeds for the switch settings.

Caution Before you adjust the shutter speed, it is

important that you understand how the settings

can affect the scene detail.

Switch Label

Shutter

speed(s)

FL BLC AES/AI

1/50 (PAL)

1/60 (NTSC)

OFF ON OFF

1/100 (PAL)

1/120 (NTSC)

ON ON OFF

1/250 OFF OFF OFF

1/500 ON OFF OFF

1/1000 OFF ON ON

1/2000 ON ON ON

1/4000 OFF OFF ON

1/10000 ON OFF ON

AES

OFF

BLC

AGC

WB3

WB2

WB1

= ON

= OFF

LEGEND

Altri manuali per HCC334L

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Telecamera di sicurezza

Honeywell

Honeywell HD4D Series Manuale utente

Honeywell

Honeywell ACUIX ES Manuale utente

Honeywell

Honeywell NEXPTZ-PD Istruzioni operative

Honeywell

Honeywell HDZ SERIES Manuale utente

Honeywell

Honeywell HD3UX Manuale utente

Honeywell

Honeywell HD273H Manuale utente

Honeywell

Honeywell HD3UX Manuale utente

Honeywell

Honeywell HISD-1181W Manuale utente

Honeywell

Honeywell HD61 Series Manuale utente

Honeywell

Honeywell HDZ402LIWV Manuale utente

Honeywell

Honeywell Performance HBD3PR2 Manuale utente

Honeywell

Honeywell NEXPTZ4520HD-NET Manuale utente

Honeywell

Honeywell HD4D3 Manuale utente

Honeywell

Honeywell HD6 Series Manuale utente

Honeywell

Honeywell HD4 EQUIP Series Manuale utente

Honeywell

Honeywell H4W2PER2 Manuale utente

Honeywell

Honeywell EQUIP HD4DIP Manuale utente

Honeywell

Honeywell HBD95SX Manuale utente

Honeywell

Honeywell H34S-IC Manuale utente

Honeywell

Honeywell HCC484TP Manuale utente

Honeywell

Honeywell HD4MDIP Manuale utente

Honeywell

Honeywell HCC334E Manuale utente

Honeywell

Honeywell Lyric C1 Manuale utente

Honeywell

Honeywell VISTA VBC-800PI Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
