HCU484/X

Ultra Wide Dynamic

Day/Night Body Camera

User Guide

Document 900.0418 – 10/06 – Rev 1.01

HCU484 HCU484X

NTSC PAL

Rev 1.01 ii Document 900.0418

10/06

Revisions

Issue Date Revisions

1.00 08/06 New document

1.01 10/06 Reordered WDR Presets, page 8.

Rev 1.01 iii Document 900.0418

10/06

Warnings

Installation and servicing should be performed only by

qualified technicians to conform to all local codes and to

maintain your warranty.

WARNING! The use of a CSA Certified/UL

Listed Class 2 power supply is

required to ensure compliance

with electrical safety standards.

WEEE (Waste Electrical and Electronic Equipment). Correct

disposal of this product (applicable in the European Union and

other European countries with separate collection systems).

This product should be disposed of, at the end of its useful life,

as per applicable local laws, regulations, and procedures.

Explanation of Graphical

Symbols

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER.

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE

CONSTITUTING A RISK OF

ELECTRIC SHOCK IS PRESENT

WITHIN THE UNIT.

THIS SYMBOL INDICATES THAT

IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS

ACCOMPANY THIS UNIT.

CAUTION

Regulatory Notice

INTENDED PURPOSE:

SECURITY AND SURVEILLANCE CCTV APPLICATIONS.

The product must be installed and maintained in accordance

with good installation practice to enable the product to function

as intended and to prevent problems. Refer to Honeywell

Video Systems for installation guidance.

Manufacturer’s Declaration of

Conformance

FCC Statement (U.S.A.)

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may

cause undesired operation.

Industry Canada Notice

This digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique toutes les exigences du Règlement sur

la matériel brouilleur du Canada.

The CE mark on the product indicates that the system has

been tested to, and conforms with, the provisions noted within

the 89/336/EEC Electromagnetic Compatibility Directive.

Rev 1.01 iv Document 900.0418

10/06

Rev 1.01 Document 900.0418

10/06

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Adjusting the Flange Back Focus . . . . . . . . . . . . . . . . . . 2

Setting the Signal Format . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting Monitor and Power. . . . . . . . . . . . . . . . . . . . 3

Remote Control Connections . . . . . . . . . . . . . . . . . . 4

Single Camera Connection . . . . . . . . . . . . . . . . . . . . 5

Multiple Camera Connections . . . . . . . . . . . . . . . . . . 5

Mounting the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Making Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . 5

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

OSD menu controls . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Navigating Through the Menus . . . . . . . . . . . . . . . . . 6

OSD Menu Structure . . . . . . . . . . . . . . . . . . . . . . . . . 7

Configuring the WDR Presets . . . . . . . . . . . . . . . . . . . . . 8

Optimizing the Camera Setup . . . . . . . . . . . . . . . . . . . . . 9

Setting the Camera Image Properties . . . . . . . . . . . . . . 12

Setting the Day/Night Control . . . . . . . . . . . . . . . . . . . . 13

Restoring Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Rev 1.01 1Document 900.0418

10/06

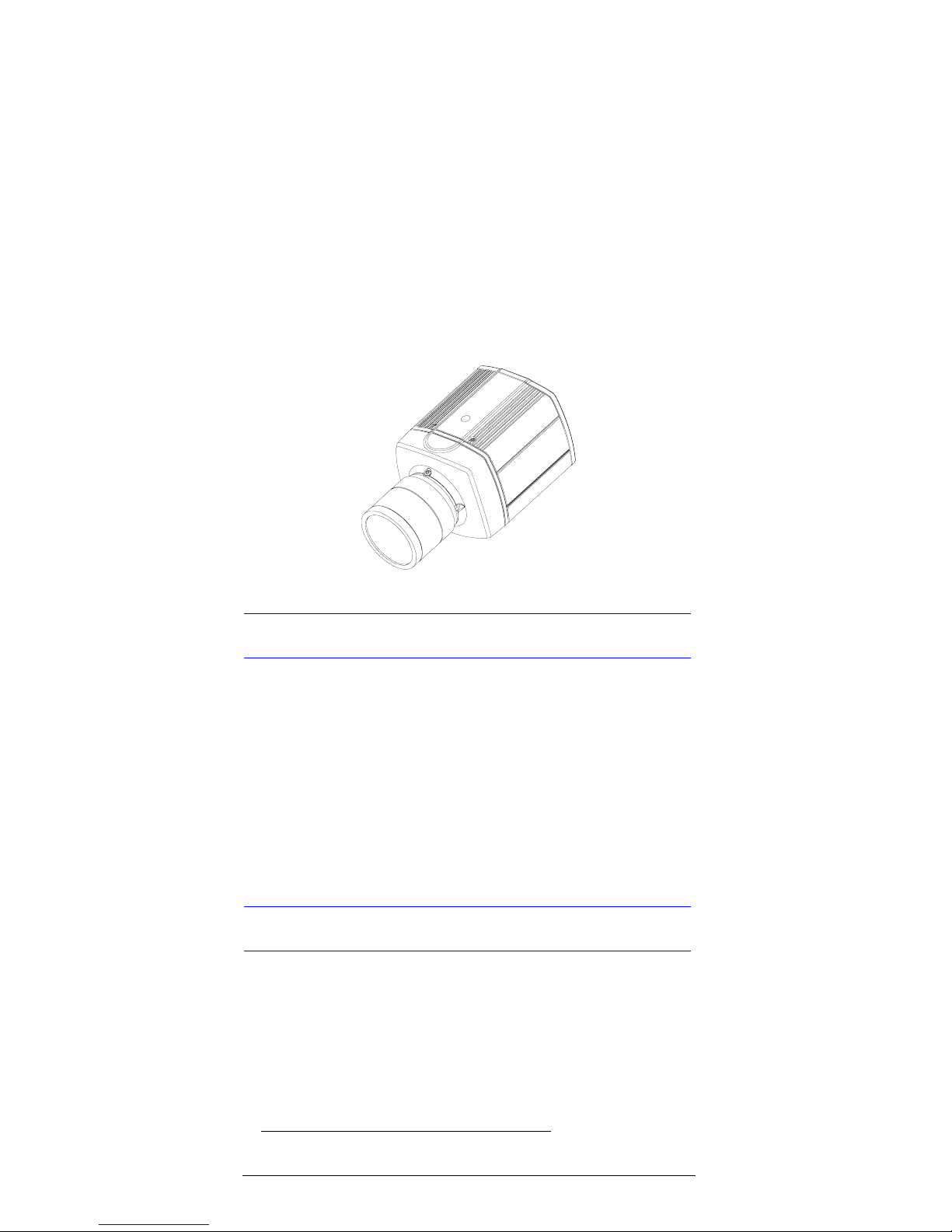

Introduction

Honeywell’s HCU484 Ultra Wide Dynamic Day/Night Series

camera uses Digital Pixel System®1Image Capture

technology to convert images into a digital format within each

individual pixel immediately after the image has been

captured. This camera is ideal for complex light environments;

for example, lobbies, entrances, and outdoor areas.

An intuitive menu and Graphical User Interface (GUI) helps you

quickly set up the camera to ensure the best picture quality for

your unique environment. The HCU484 requires little or no

adjustment after initial installation.

Features

• 1/3” Wide Dynamic Digital Imager

• 32-bit digital processing

• Independent per-pixel exposure

• Dynamic range: 102 dB typical, 120 dB maximum

• 50/60 FPS progressive video capture

• 0.4 lux @ F1.2

• 480 TV lines of resolution

• 12 VDC or 24 VAC with line lock

• Supports DC (Direct Drive) and Manual Iris lenses

Package Contents

Check that the items received match those listed on the order

form and packing slip. The HCU484 camera packing box

should include, in addition to this User Guide, one HCU484

(NTSC) or HCU484X (PAL) camera.

If any parts are missing or damaged, contact the dealer you

purchased the camera from or call Honeywell Customer

Service.

1.Digital Pixel System® is a registered trademark of Pixim Inc.

Rev 1.01 2Document 900.0418

10/06

Installation

Installing the Lens

Note You must use an Auto Iris lens to take full

advantage of this camera’s wide dynamic

performance.

Note The camera auto senses whether an Auto Iris

lens or a Manual Iris lens is attached.

The HCU484 Series camera is factory configured for a CS-

mount lens.

Follow Figure 1 to attach a customer supplied lens, screw the

lens !into the front of the camera body ".

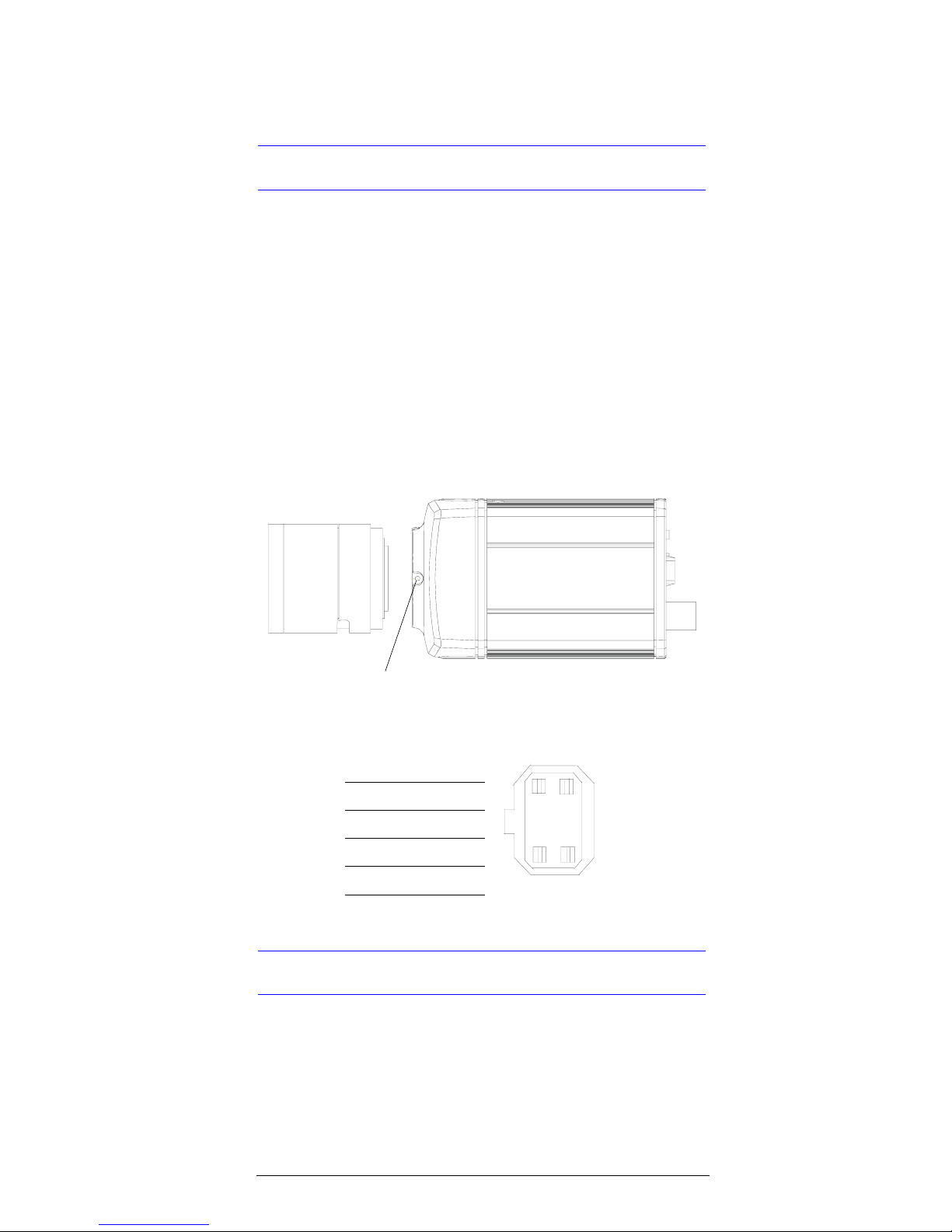

Figure 1 CS Mount

Figure 2 Pin Definitions

Adjusting the Flange Back Focus

The back focus adjustment is accessible at the front end of the

camera housing to adjust the back focal length or picture

focus.

1. Loosen the setscrews with a Phillips screwdriver.

2. Adjust the focus ring to focus the picture.

3. Retighten the setscrew.

Setscrew

Pin DC Lens

1CTRL-

2CTRL+

3DRV+

4DRV-

Rev 1.01 3Document 900.0418

10/06

Setting the Signal Format

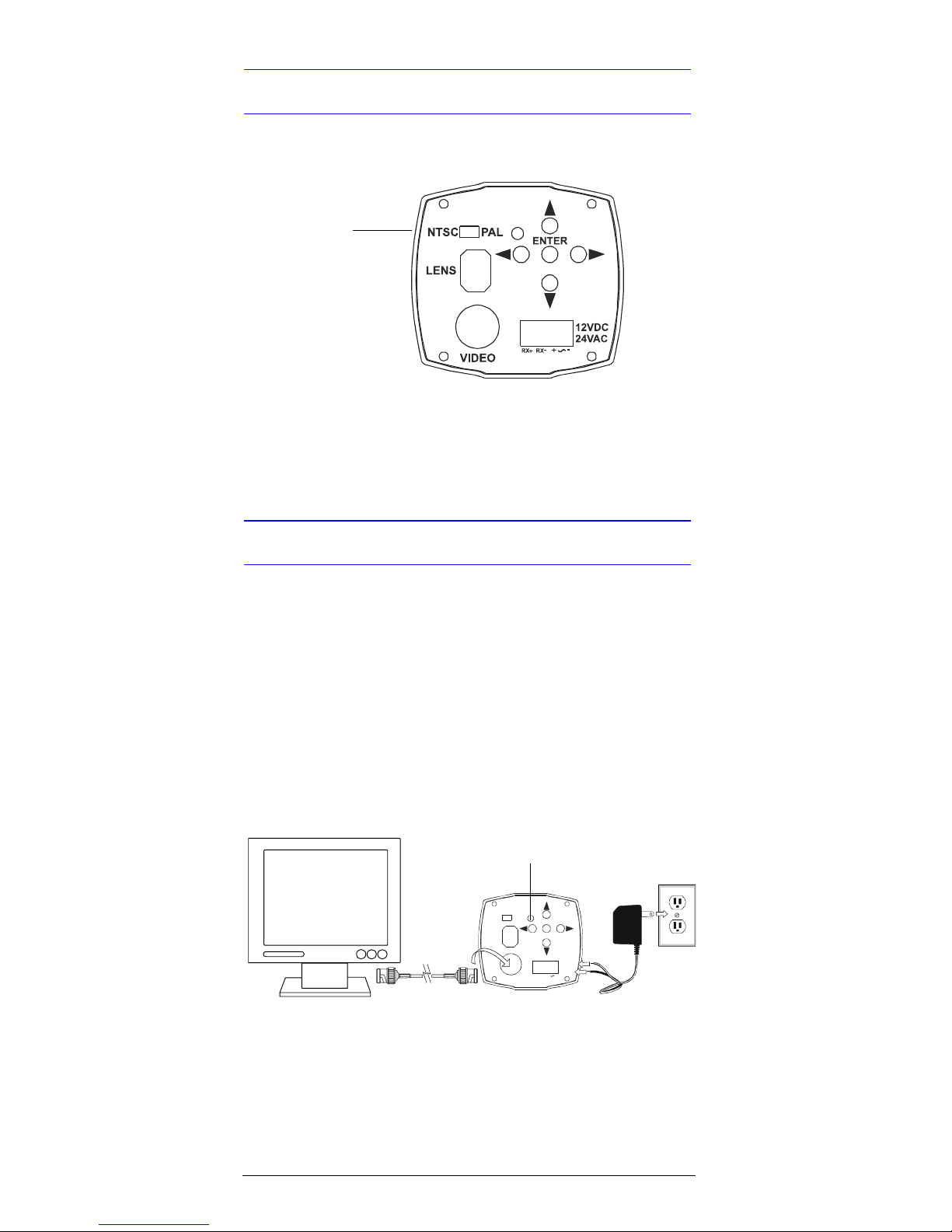

Figure 3 Camera Rear View

Set the signal format switch (see Figure 3) to:

NTSC for North America

PAL for International

Connecting Monitor and Power

Note Check the power source from the external

power supply before applying power to the

camera.

1. Connect the VIDEO connector on the rear of the camera

to the video-in connector on your monitor.

2. Connect the camera to a 12 VDC or 24 VAC power supply

(appropriate to your installation). Use a screwdriver to first

loosen the ~AC24V/DC12V terminal screws on the

terminal block.

Figure 4 Video Connections

Note To ease installation, the terminal block can be

removed. The power connections of the

removable terminal block are not polarity-

sensitive. Connect either power lead to either

connector terminal.

3. Secure the power leads by retightening the terminal

screws until snug.

Set signal format

LENS

ENTER

VIDEO

NTSC PAL

12VDC

24VAC

Power LED

Rev 1.01 4Document 900.0418

10/06

4. Plug the power supply into an appropriate power source.

The power LED illuminates to show that the camera is

receiving power. If it does not illuminate, check the

removable terminal block connections and the power

source.

Remote Control Connections

The HCU484 Series camera can be controlled remotely using

an RS485 connection. Figure 5 shows a remote control

connection using a Honeywell HJZTP keyboard controller.

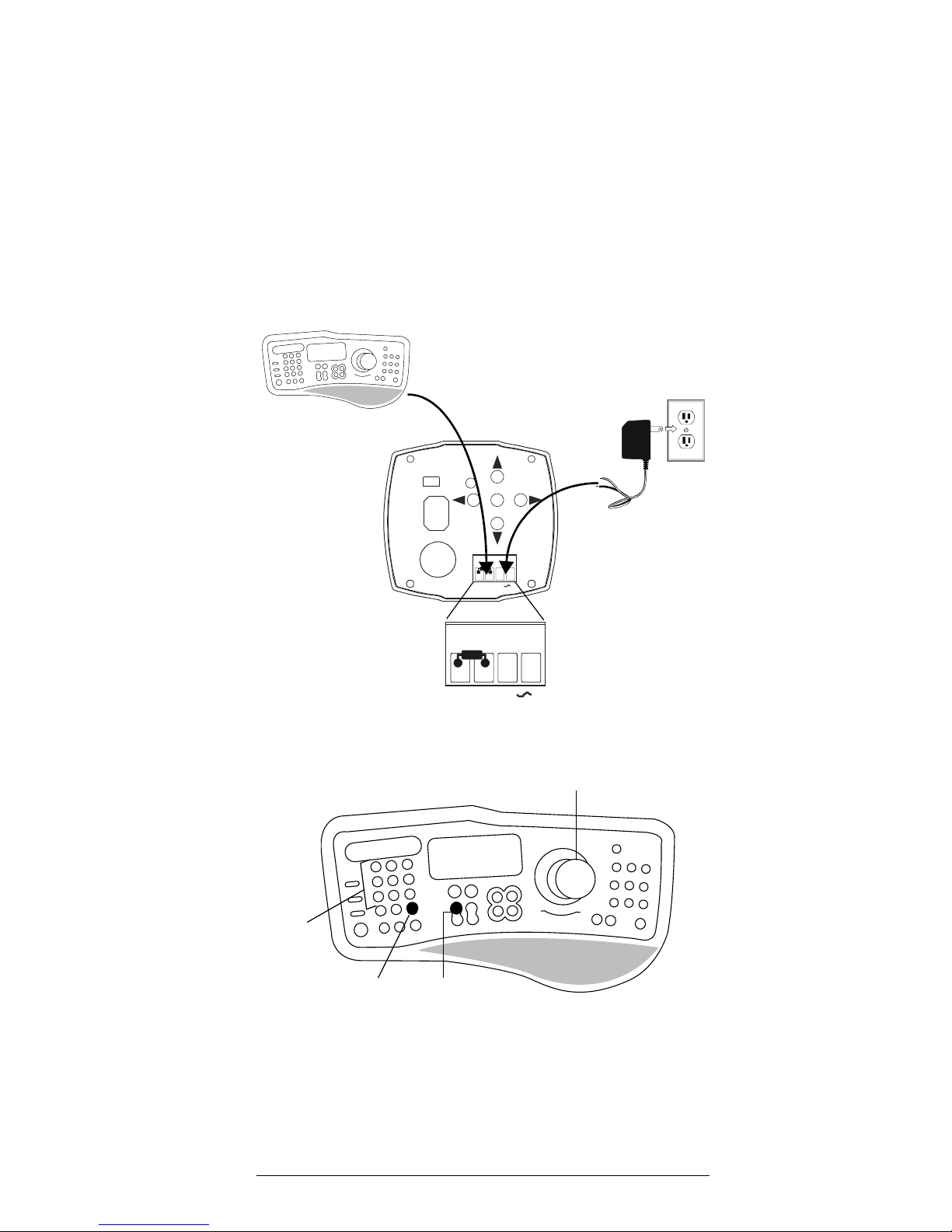

Figure 5 Camera Connection Via RS485

HJZTP Keyboard Control (Optional)

To program the HCU484 menu using the HJZTP keyboard

controller, first select the Camera ID on the HJZTP, then:

• Press 90 + Preset to access the menu.

• Rotate the Joystick Up, Down, Left, and Right to navigate

through the menu and submenus.

• Press Iris Open to enter a screen or select a menu option

(similar to ENTER on the camera OSD).

LENS

ENTER

VIDEO

NTSC PAL

12VDC

24VAC

1234

Cable Legend

White/orange TRx+

Orange TRx-

Connector Legend

1RX+

2RX-

3Power1

4 Power 2

Joystick

Numerical

keypad

Preset Iris Open
