Honeywell 6272CV Manuale utente

User Guide

800-04705V1 2/10 Rev. A

Table of Contents (Cont'd)

ABOUT THE TOUCHCENTER.........................................................................5

Introduction...............................................................................................5

The TouchCenter Interface........................................................................6

Navigating through the TouchCenter

................................................... 6

About Your Home Screen

................................................................... 6

Customizable Home Screen

................................................................ 6

Memory Card Insertion

........................................................................ 7

Slide Show Application

........................................................................ 7

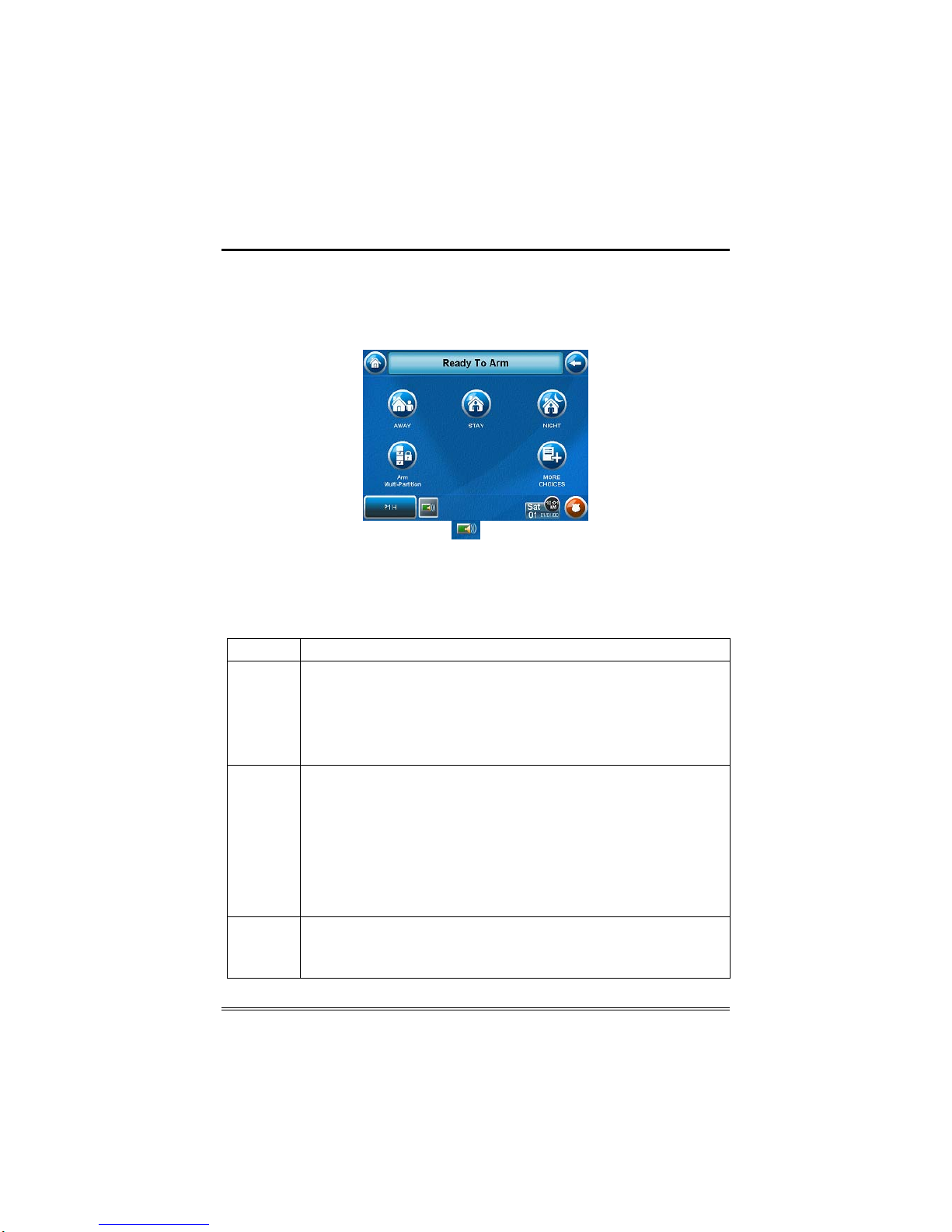

TouchCenter "Arming" Screen

............................................................. 9

System Troubles

............................................................................... 10

SYSTEM OVERVIEW .................................................................................... 11

Introduction to Your System.....................................................................11

Burglary Protection

........................................................................... 11

Partitions

.......................................................................................... 11

Zones

............................................................................................... 11

Entry/Exit Delays

.............................................................................. 11

Alarms

.............................................................................................. 12

Memory of Alarm

.............................................................................. 12

Fire Protection

.................................................................................. 12

Carbon Monoxide Protection

............................................................. 12

User Codes

...................................................................................... 13

Extended Functionality

...................................................................... 13

LED Operation

.................................................................................. 13

Safe Mode

........................................................................................ 13

SECURITY.....................................................................................................14

Introduction to Security System Operation................................................14

Table of Contents (Cont'd)

How to Arm the System

.................................................................... 14

How to Arm Multiple Partitions

........................................................... 15

How to Display Faults

....................................................................... 17

How to Bypass Zones

....................................................................... 18

How to Remove Bypassed Zones

...................................................... 20

How to Hide a Control Panel Message

.............................................. 22

How to Disarm the System

................................................................ 22

How to Check the Status of Other Partitions

...................................... 24

Fire Alarm Operation

......................................................................... 26

In Case of Fire Alarm

........................................................................ 26

Silencing and Clearing a Fire Alarm

................................................... 26

In Case of Carbon Monoxide Alarm

................................................... 27

Silencing and Clearing a Carbon Monoxide Alarm

.............................. 27

Advanced System Features

.............................................................. 28

More Choices..........................................................................................28

How to Clear a Control Panel Message

............................................. 28

Console Emulation Mode

.................................................................. 29

How to Enter Console Emulation Mode

............................................. 29

How to View the Event Log

............................................................... 30

How to Send Emergency Messages.........................................................32

VOICE MESSAGES....................................................................................... 33

Introduction to Recording and Retrieving Messages..................................33

Recording a Voice Message

.............................................................. 33

Retrieving and Deleting a Voice Message

.......................................... 34

SETUP ..........................................................................................................35

Setup......................................................................................................35

How to Access Setup

........................................................................ 35

Adjust the Brightness

........................................................................ 36

Adjust the Volume

............................................................................. 36

Disp & Audio Setup .................................................................................37

Table of Contents (Cont'd)

Operating Modes

.............................................................................. 37

Language Selection

.......................................................................... 38

Backlight Off Activation Time

............................................................. 39

Homepage After Time

....................................................................... 40

Auto Slide Show After Time

............................................................... 41

Clean Screen

.................................................................................... 42

Home Setup Button Layout

............................................................... 43

Routine Care

.................................................................................... 44

Reset Home Setup Button Layout

..................................................... 44

Slide Show Setup....................................................................................45

User Setup..............................................................................................47

Authority Levels

................................................................................ 47

How to Add a User

............................................................................ 48

How to Delete a User

........................................................................ 51

How to Edit a User

............................................................................ 52

Safe Mode

........................................................................................ 53

Time/Date Setup

............................................................................... 54

Setting Daylight Savings Time

........................................................... 55

Setting Current Time and Date

.......................................................... 57

GLOSSARY...................................................................................................61

About the TouchCenter

Introduction

Congratulations on your ownership of a Honeywell Security System.

You've made a wise decision in choosing it, for it represents the latest

in security protection technology today.

This security system offers you burglary protection and may provide

fire, carbon monoxide and emergency protection. To realize the full

potential of the system, it is important that you feel comfortable

operating it.

Your system may consist of one or more of the following TouchCenter

Keypads:

•6272CSV (Color display and Voice feature with silver / black

housing)

•6272CBV (Color display and Voice feature with black housing)

•6272CV (Color display and Voice feature with white housing)

•One or more other keypads for system control

•Various sensors for perimeter and interior burglary protection,

plus a selected number of strategically placed smoke, carbon

monoxide or combustion detectors

•Lighting/switching devices.

Note: The 6272 Series devices are certified SIA-compliant devices that

meet SIA specifications for False Alarm Reduction.

The system uses microcomputer technology to monitor all zones, and

provides appropriate information for display on the TouchCenter

and/or other keypads used with the system. Your system may also

have been programmed to automatically transmit alarm or status

messages over the phone lines to a central alarm monitoring station.

ULThe home lighting feature has not been evaluated by UL.

About the TouchCenter (cont'd)

The TouchCenter Interface

The TouchCenter is an intuitive, graphical interface that combines

security and optionally, home lighting control. With clear, simple

controls on a touch-screen interface, the entire family will find the

TouchCenter both easy to learn and easy to use.

As a security and home-automation interface, the TouchCenter may

be used for:

•Quick and easy security system operation

•Message storage and retrieval

•Home lighting control

Navigating through the TouchCenter

Navigation through the TouchCenter typically begins from the

"Home" screen. This is the TouchCenter’s main default screen

(starting screen) and is the first screen you will see when the

TouchCenter is powered up and initialized. It is from this screen that

you will select from the main menu. Once you have made your

selection, you will navigate through various sub-menus by touching

graphical buttons or icons to perform the function you desire.

About Your Home Screen

Your "Home" screen is the gateway to your TouchCenter Keypad.

From this screen you can:

•control your security system, and optionally,

•control your message center, and

•control the premises lighting.

Your "Home" screen is displayed most of the time and is

customizable. There is also an additional Slide Show feature which

the user can utilize.

Customizable Home Screen

The 6272 offers a Customizable Home Screen that allows the user to

display personal photos via the external MMC/SD card.

It is recommended that you use the MMC/SD card supplied with the

keypad.

NOTE: In everyday handling, memory cards can become susceptible

to malfunction and/or failure due to electrostatic discharges and the

information on the card may be lost. In some extreme cases, the

keypad may need to be reset. Honeywell is not responsible for any

loss of personal information (files, messages, photos, etc.)

About the TouchCenter (Cont'd)

Tips for proper memory card handling:

•Avoid touching the contacts on the card

•Quit the slide show application before removing the memory card

•When removing the memory card from external devices

(PC/Camera) make sure the card is removed properly.

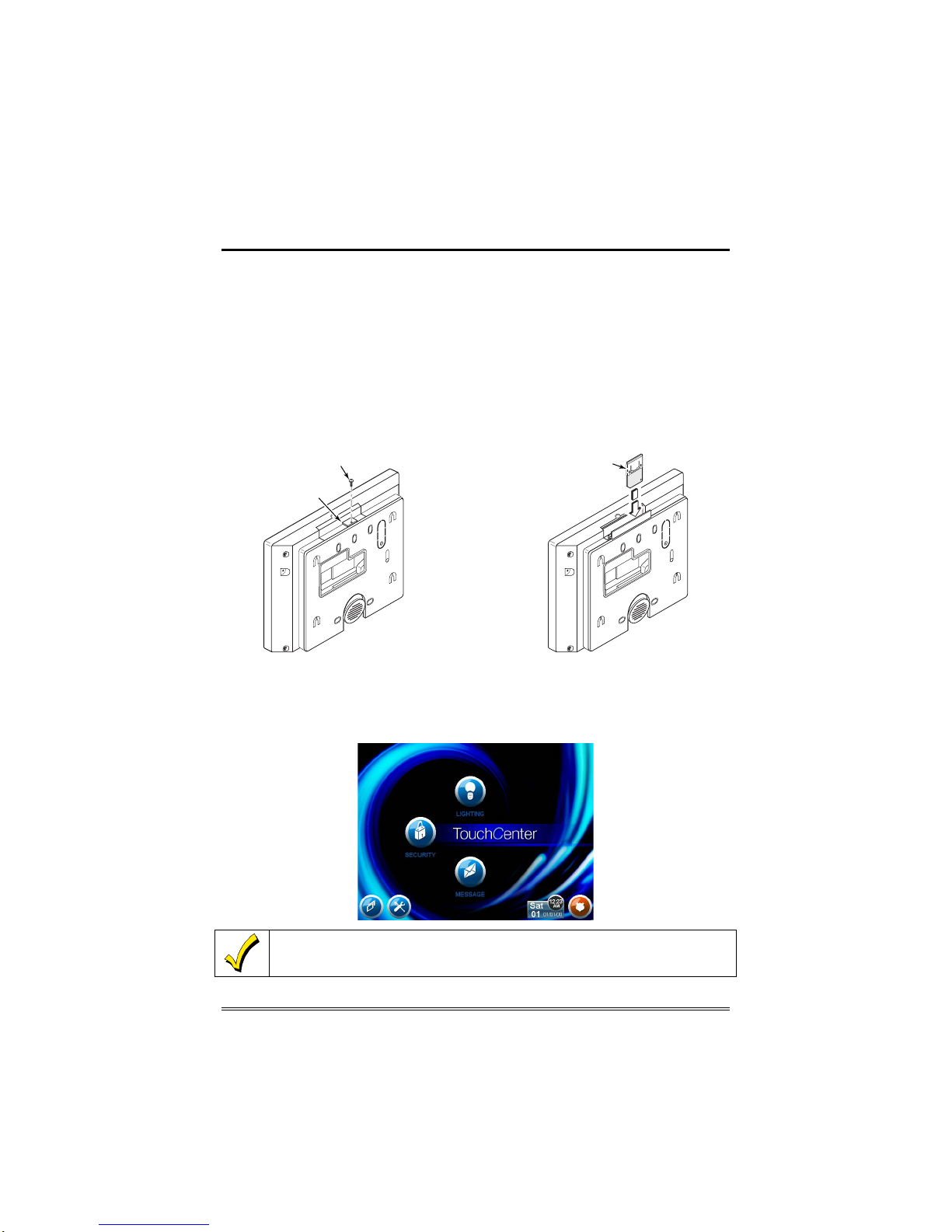

Memory Card Insertion

1. If locking tab is installed and preventing access to the memory

card, remove the screw and the locking tab.

2. Lift up and insert memory card, as shown.

6272-007-V0

INSERT CARD

LOCKING TAB

1. REMOVE SCREW AND LOCKING TAB.

2. INSERT MEMORY CARD

SCREW

Slide Show Application

The 6272 offers a Slide Show Application that can be set-up via the

external MMC/SD card. This allows the user to take their personal

photos and display them in a slide show format.

The back

round and buttons shown on the “Home” screen in this manual are for

example only. Your system installer may have changed the actual background

and buttons shown on your “Home” screen.

About the TouchCenter (cont'd)

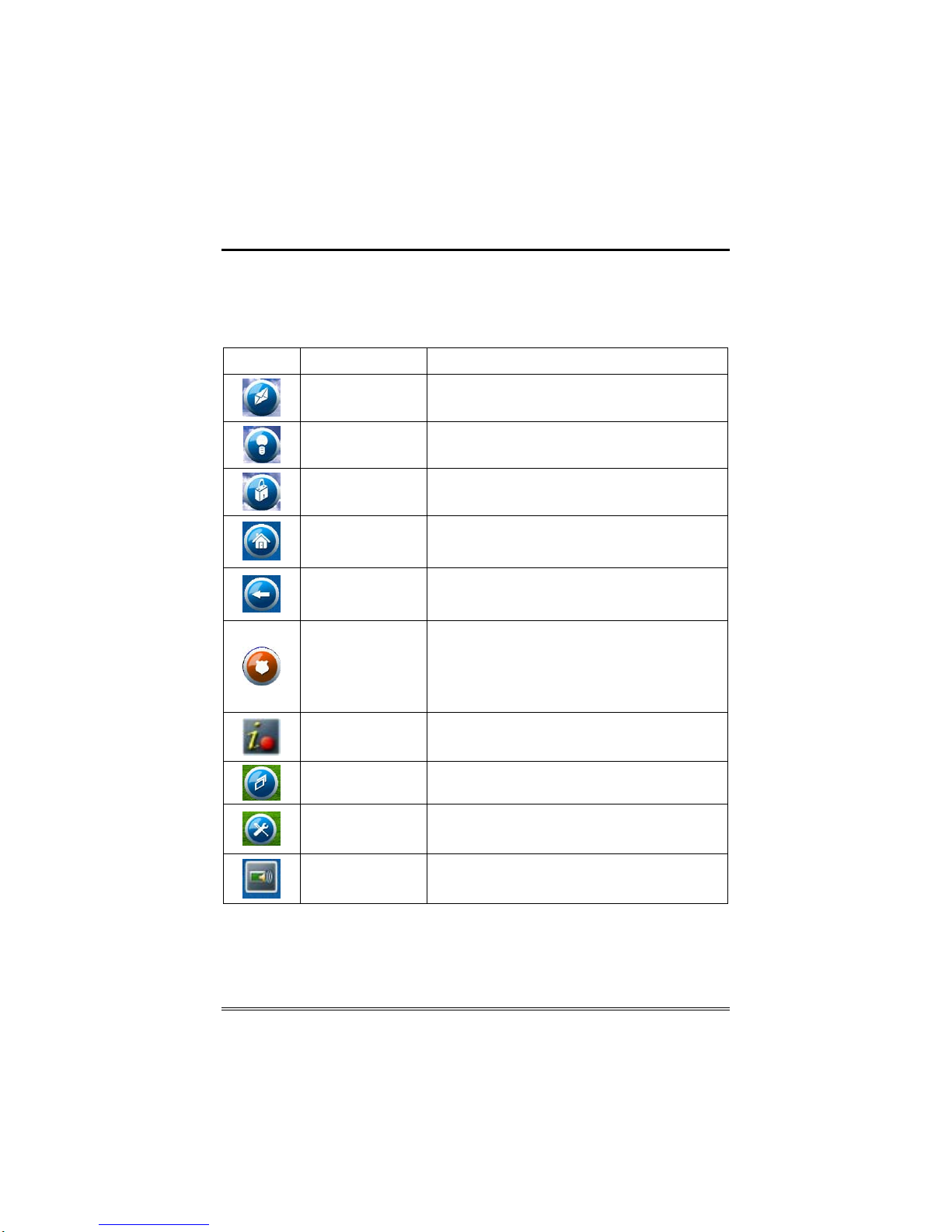

Navigation Icon Descriptions

To aid in the navigation of the TouchCenter, a set of user-friendly

icons has been provided. The appearance, function, and location of

these icons are described below:

ICON LOCATION FUNCTION

"Home" screen Allows you to record and retrieve voice

messages.

"Home" screen Allows you to turn certain devices on and off (if

installed and programmed by your installer.)

"Home" screen Accesses "Security" screen.

Upper left corner

of most screens

Returns you to the TouchCenter "Home" screen.

This icon is called the Home button within the

text of this document.

Upper right corner

of most screens

Reverts to the last screen viewed. This icon is

called the Back button within the text of this

document.

Lower right corner

of screen

Displays Emergency functions (as programmed by

the installer). This icon is called the Panic button

within the text of this document.

Note: This icon is displayed and active on all

screens except while in the Clean Screen mode

and during an LCD Display test in Diagnostics.

Lower right corner

of screen (left of

Date and Time)

This icon alerts the user to a Control Panel

Message.

Lower left corner of

"Home" screen "Slideshow" icon. Allows manual start to the slide

show.

Lower left corner of

"Home" screen

(right of Slideshow) "Setup" icon. Allows access to Setup menus.

Lower left corner of

"Security" screen

(right of Partition)

"Voice Status" icon. Allows user to hear system

status.

About the TouchCenter (Cont'd)

TouchCenter "Arming" Screen

From the "Home" screen, press SECURITY to access the TouchCenter

"Arming" screen. Use this picture and the table that follows to

become familiar with the TouchCenter security functions.

Note: The Voice Status Icon ( ) shown in the above illustration

indicates the TouchCenter Voice feature. This button causes the

TouchCenter to announce system status if pressed at least 10 seconds

following its last press. Note that Voice must be enabled (by the

installer) for this button to function correctly during an alarm

condition.

ITEM FUNCTION

AWAY

Press this button to arm when no one will be staying on the premises.

When armed in AWAY, the system will sound an alarm if a protected door

or window is opened, or if any movement is detected inside the premises.

You may leave through the entrance door during the exit delay period

without causing an alarm. You may also re-enter through the entrance door,

but must disarm the system with your User Code within the entry delay

period or an alarm will occur.

STAY

Press this button to arm when you are staying home, but might expect

someone to use the entrance door later.

When armed in STAY, the system will sound an alarm if a protected door or

window is opened, but you may otherwise move freely throughout the

premises. Late arrivals can enter through the entrance door without causing

an alarm, but they must disarm the system within the entry delay period or

an alarm will occur.

NOTE: On some residential systems, if you press the Voice Status Icon

while armed in the Stay Mode, the exit delay time will restart (if the feature

was enabled by your installer).

NIGHT Press this button to arm when you are staying home and do not expect

anyone to use the entrance door.

Your installer may have configured

NIGHT Mode differently; have him/her describe the actual settings of this

mode.

About the TouchCenter (cont'd)

ITEM FUNCTION

Arm Multi-

Partitions Press this button when you want to arm more than one partition. All

partitions within the system can be armed at one time (if the user is so

authorized). Note: This option may not be shown for some single partition

systems.

CHOICES Press this button for more Security, Lighting, and TouchCenter setup

features.

System Troubles

The “Arming” screen also displays an Icon(s) if a system trouble(s)

occurs. The system trouble Icon is displayed to the left of the Panic

button. If a trouble Icon is shown, contact your alarm company. The

following Icons may be shown as applicable to your system:

ICON MEANING

AC Loss – The system is not receiving AC power.

Bell Failure – The system bell or siren has a problem. Note: This Icon will be

displayed when interfacing with residential panels only.

Expander Failure – The system has a failure in an expansion module.

Low Battery – The system battery, that powers the system during an AC

power loss, is low.

LRR Supervision Failure – The Long Range Radio used to communicate with

the central station has a supervision failure

Max Attempts Exceeded – The system has exceeded the maximum attempts

to communicate with the Central Station.

Pager Failure – The system cannot communicate with an assigned pager.

Telco-1 Cut – The system is not able to communicate with the central

monitoring station over the primary phone line.

Telco-2 Cut – The system is not able to communicate with the central

monitoring station over the secondary phone line.

Note: Fault Icon(s) will scroll between all faults present on the system, if multiple faults

exist.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Sistema di sicurezza

Honeywell

Honeywell VISTA-250FBPT Istruzioni per il montaggio

Honeywell

Honeywell ADEMCO CE3 Code Encryptor 3 Istruzioni per il montaggio

Honeywell

Honeywell Gamewell-FCI E3 Series Manuale utente

Honeywell

Honeywell ESSER Manuale utente

Honeywell

Honeywell MA-2000 Manuale utente

Honeywell

Honeywell VISTA 21iPLTE Manuale utente

Honeywell

Honeywell Domonial Manuale utente

Honeywell

Honeywell Lynx Touch L5100 Manuale utente

Honeywell

Honeywell 3-144 Manuale utente

Honeywell

Honeywell NetAXS NX4S1 Manuale utente

Honeywell

Honeywell Ademco VISTA-32FB Istruzioni operative

Honeywell

Honeywell 5800WAVE - Ademco Wireless Siren Istruzioni per il montaggio

Honeywell

Honeywell Fire-Lite Alarms ANN-80 Series Manuale tecnico

Honeywell

Honeywell Le Sucre Manuale utente

Honeywell

Honeywell Lynx Plus Series Istruzioni operative

Honeywell

Honeywell ADEMCO VISTA-40 Istruzioni operative

Honeywell

Honeywell VISTA-21iP Manuale utente

Honeywell

Honeywell ADEMCO VISTA-120 Istruzioni per il montaggio

Honeywell

Honeywell ADEMCO VISTA-40 Manuale utente

Honeywell

Honeywell Galaxy 2-44 Manuale utente

Honeywell

Honeywell Le Sucre Manuale utente

Honeywell

Honeywell Ademco VISTA-20P Istruzioni operative

Honeywell

Honeywell ADEMCO Vista-12C Istruzioni per il montaggio

Honeywell

Honeywell ADEMCO 5809 Istruzioni per il montaggio

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
