IMPORTANT!

PROPER INTRUSION PROTECTION

For proper intrusion coverage, sensors should be located at every possible point of entry to a home or

commercial premises. This would include any skylights that may be present, and the upper windows in a

multi-level building.

In addition, we recommend that radio backup be used in a security system so that alarm signals can still

be sent to the Central onitoring Station in the event that the telephone lines are out of order (alarm

signals are normally sent over the phone lines).

EARLY WARNING FIRE DETECTION

Early warning fire detection is important in a home. Smoke and heat detectors have played a key role in

reducing fire deaths in the United States. With regard to the number and placement of smoke/heat

detectors, we subscribe to the recommendations contained in the National Fire Protection Association's

National Fire Alarm Code (NFPA 72). These recommendations can be found in the “National Fire

Protection Association Recommendations” section of this manual.

SYSTEM COMPATIBILITY NOTICE

Your Honeywell security system is designed for use with devices manufactured or approved by Honeywell

for use with your security system. Your Honeywell security system is not designed for use with any device

that may be attached to your security system's keypad or other communicating bus if Honeywell has not

approved such device for use with your security system. Use of any such unauthorized device may cause

damage or compromise the performance of your security system and affect the validity of your Honeywell

limited warranty. When you purchase devices that have been manufactured or approved by Honeywell,

you acquire the assurance that these devices have been thoroughly tested to ensure optimum

performance when used with your Honeywell security system.

A out This Manual

This manual is a step-by-step guide that will acquaint you with the system's features and benefits. It defines

the components and their functions, describes their operation, and provides clear step-by-step instructions

for normal and emergency procedures. Keep this manual in a convenient place so that you can refer to it

as necessary.

Congratulations on your ownership of a Honeywell Security System. You have made a wise decision in

choosing it, for it represents the latest in security protection technology today, including microcomputer

technology to monitor all system status. Honeywell is the world's largest manufacturer of security

systems and millions of premises are protected by Honeywell systems.

– 3 –

TABLE OF CONTENTS

System Overview ......................................................................................................................................... 5

General ...................................................................................................................................................... 5

Keypads ..................................................................................................................................................... 5

Zones .......................................................................................................................................................... 5

Alarms........................................................................................................................................................ 5

Fire Protection ........................................................................................................................................... 6

Burglary Protection ................................................................................................................................... 6

Memory of Alarm....................................................................................................................................... 6

Pager Notification ..................................................................................................................................... 6

About the Keypad ...................................................................................................................................... 7

Keypad tyles ........................................................................................................................................... 7

Keypad Functions ....................................................................................................................................... 8

ummary of ystem tatus Displays ....................................................................................................... 8

ummary of Keypad Functions ................................................................................................................ 9

Security Codes ........................................................................................................................................... 11

General .................................................................................................................................................... 11

Duress Code ............................................................................................................................................. 11

Quick Arming .......................................................................................................................................... 11

Assigning, Changing or Deleting User Codes ........................................................................................ 12

Entry/Exit Delays ...................................................................................................................................... 13

General Information ............................................................................................................................... 13

Checkin for Open Zones ........................................................................................................................ 14

Using the

READY Key ..................................................................................................................... 14

Armin The System ................................................................................................................................. 15

Using The

TAY Key ....................................................................................................................... 15

Using The

IN TANT Key ................................................................................................................ 16

Using The

AWAY Key ....................................................................................................................... 17

Using The

MAXIMUM Key............................................................................................................... 18

Disarmin and Silencin Alarms ......................................................................................................... 19

–

(continued)

TABLE OF CONTENTS

Using the

OFF Key ............................................................................................................................ 19

To Disarm the ystem .................................................................................................................................. 19

To ilence a Burglary Alarm .................................................................................................................. 19

Bypassin Protection Zones ................................................................................................................... 20

Using The

BYPA Key ......................................................................................................................... 20

Quick Bypass ........................................................................................................................................... 21

Usin the Keyswitch ................................................................................................................................. 22

General .................................................................................................................................................... 22

Arming ..................................................................................................................................................... 22

Disarming ................................................................................................................................................ 22

Chime Mode ................................................................................................................................................ 23

Using the

CHIME Key ...................................................................................................................... 23

Panic Keys .................................................................................................................................................. 24

Using Panic Keys .................................................................................................................................... 24

Testin the System ................................................................................................................................... 26

Using the

TE T Key .......................................................................................................................... 26

Trouble Conditions ................................................................................................................................... 27

"Check" and "Battery" Displays .............................................................................................................. 27

Power Failure .......................................................................................................................................... 27

Other Displays ......................................................................................................................................... 28

Fire Alarm System .................................................................................................................................... 29

General .................................................................................................................................................... 29

In Case of Fire Alarm .............................................................................................................................. 29

ilencing Fire Alarms ............................................................................................................................. 30

National Fire Protection Association Recommendations on moke Detectors .................................... 31

Emergency Evacuation ........................................................................................................................... 32

Quick Guide to Alarm System Functions ............................................................................................ 33

Summary of Audible/Visual Notification ............................................................................................ 34

Protection Zones List ............................................................................................................................... 35

Owner's Insurance Premium Credit Request .................................................................................... 36

Re ulatory Statements and Warnin s ................................................................................................. 38

In The Event of Telephone Operational Problems ............................................................................ 40

Limitations of this Alarm System ......................................................................................................... 41

Servicin Information ............................................................................................................................. 42

Two Year Limited Warranty ................................................................................................................... 43

System Overview

– 5 –

General

This system offers you three forms of protection: burglary, fire and emergency. Your

system may consist of at least one keypad which provides full control of system

operation, various sensors such as motion detectors and door and window sensing

devices, plus a selected number of strategically placed smoke or combustion detectors

designed to provide early warning in case of fire. Your system may also have been

programmed to automatically transmit alarm or status messages over the phone

lines to a central alarm monitoring station.

Keypads

All system functions are controlled by your keypad(s). The keypads feature a

telephone style (digital) keypad and a Liquid Crystal Display (LCD) which shows the

nature and location of all occurrences. Their built-in sounder will sound during alarm

and trouble conditions.

For additional information, see the following section: ABOUT THE KEYPAD.

Zones

Your system's sensing devices have been assigned to various zones. For example, the

sensing device on your Entry/Exit door may have been assigned to zone 01, sensing

devices on windows in the master bedroom to zone 02, and so on. These zone numbers

will appear on the display when an alarm or trouble condition occurs.

Alarms

When an alarm occurs, both the keypad and external sounders will sound, and a mes-

sage at the keypad will identify the zone(s) causing the alarm. In addition, if your

system is connected to a central monitoring station, an alarm message will be sent.

To stop the alarm sounding, you simply disarm the system.

System Overview

(cont’d)

–

Fire Protection

The fire protection portion of your security system (if used) is always on and will

sound an alarm if a fire condition is detected. Refer to the FIRE ALARM SYSTEM

section for important information concerning fire protection, smoke detectors and

planning emergency exit routes from your premises.

Burglary Protection

The burglary protection portion of your system must be turned on or "armed" before

it will sense burglary alarm conditions and sound an alarm. Your system can be

armed in one of four modes: TAY, AWAY, IN TANT and MAXIMUM. Refer to the

ARMING THE SYSTEM sections for instructions in using these modes of operation.

Your system also provides a CHIME mode for alerting you to the opening and closing

of doors and windows while the system is disarmed.

Memory of Alarm

When an alarm or trouble condition occurs, the keypad displays the number(s) of the

zone(s) that caused the problem, and displays the type of alarm or trouble (ex. FIRE,

ALARM, CHECK). The display remains until it is cleared by entering the OFF

sequence (security code + OFF key) twice.

Pager Notification

If you have chosen to be notified of alarms or other system conditions by pager, the

following codes will be sent to your pager by the control:

1811=Trouble 1911=Alarm

1001=Open 1002=Close

About the Keypad

– 7 –

Keypad Styles

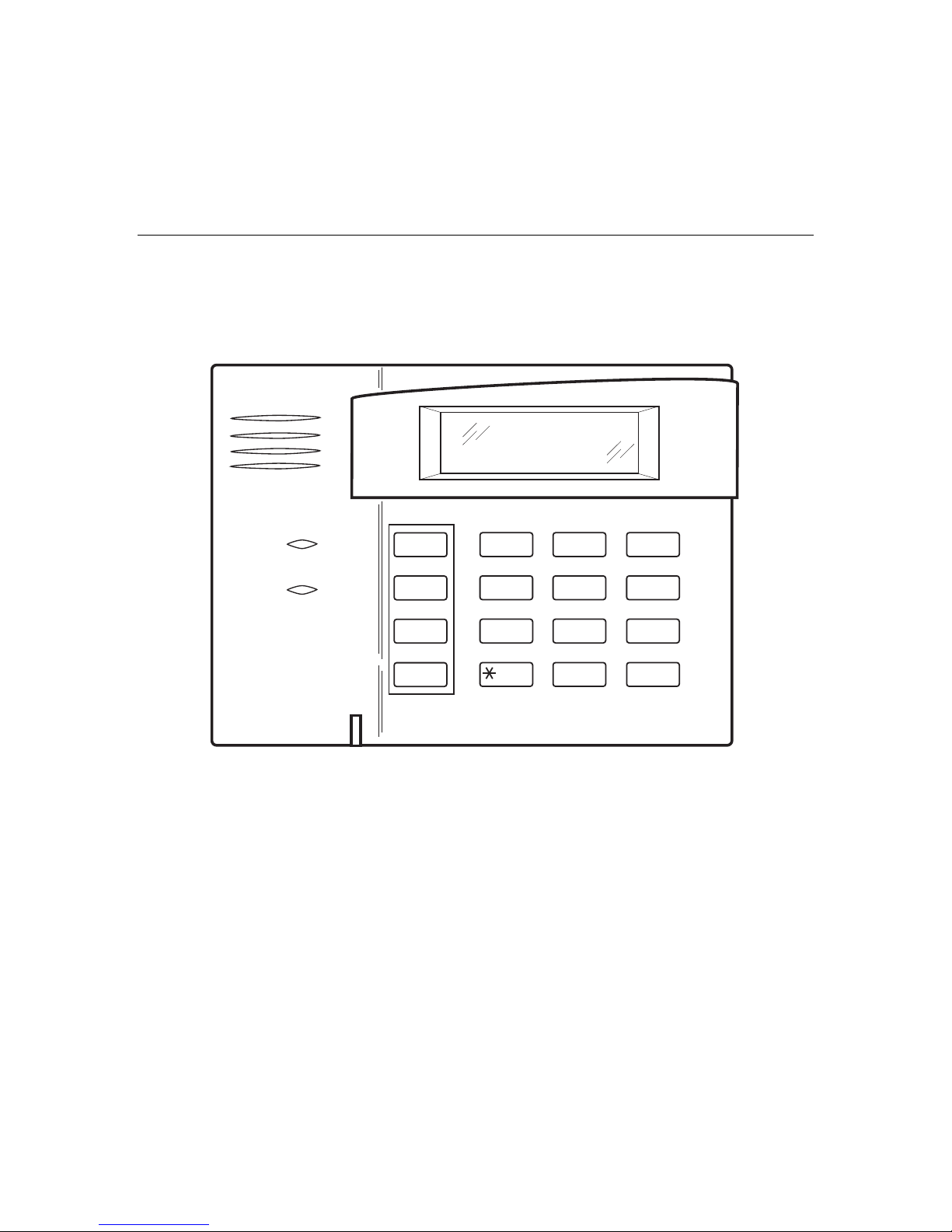

The 6150 is a Fixed-Word keypad. The keys on the keypads are located behind a flip-down

door which can be removed, if desired.

1OFF

4MAX

INSTANT

READY

2AWAY

5TEST

8CODE

3STAY

BYPASS

9CHIME

ARMED

READY

6150-00-001-V0

SHOWN WITH DOOR RE OVED

About the Keypad

(cont’d)

–

SUMMARY OF SYSTEM STATUS DISPLAYS

AWAY All burglary zones, interior & perimeter, are

armed.

STAY Perimeter burglary zones, such as windows

and doors are armed.

INSTANT Perimeter burglary zones armed and entry

delay is turned off.

BYPASS One or more burglary protection zones have

been bypassed.

NOT READY Appears when burglary portion of the system

is not ready for arming (due to one or more

open protection zones).

READY The burglary portion of the system is ready to

be armed.

NO AC Appears when AC power has been cut off.

ystem is operating on backup battery power.

AC Appears when AC power is present.

CHIME Appears when the CHIME feature is ON.

BAT Low system battery.

ALARM Appears when an intrusion has been detected

and the system is armed (also appears during

a fire alarm). Accompanied by the ID # of the

protection zone in alarm.

CHECK Appears when a malfunction is discovered in

the system at any time or if a fault is detected

in a FIRE zone at any time or in a DAY

(Trouble)/NIGHT (Alarm) burglary zone

during a disarmed period. Accompanied by a

display of zone number in trouble.

FIRE Appears when a fire alarm is present.

Accompanied by a display of the zone in

alarm.

ALARM

FIRE

AWAY

BYPASS

STAY

CHECK INSTANT

NO AC

NOT READY

CHIME BAT

style B_disp.

FIXED-WORD

KEYPAD

DISPLAY

Keypad Functions

– 9 –

SUMMARY OF KEYPAD FUNCTIONS

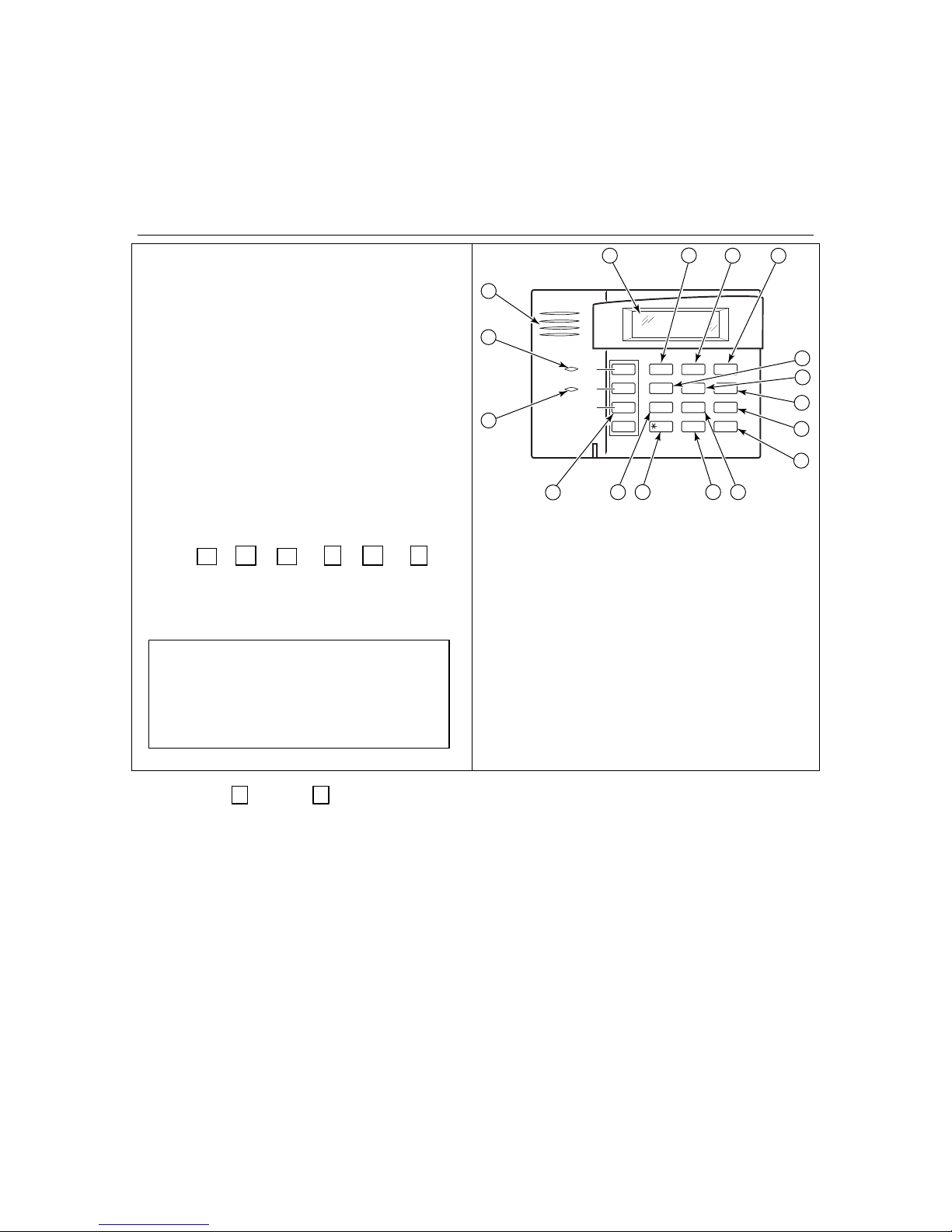

1. DISPLAY WINDOW: Displays protection

zone ID and system status messages.

2. 1 OFF KEY: Disarms burglary portion

of the system, silences alarms and

audible trouble indicators, and

clears visual display after problem's

correction.

3. 2 AWAY KEY: Arms the entire

burglary system, perimeter and

interior.

4. 3 STAY KEY: Arms perimeter portion

of burglary system only. Interior

protection is not armed, which

allows movement within premises

without causing alarm.

5. 4 MAXIMUM KEY: Arms in manner

similar to AWAY mode, but without

the entry delay feature, thus provid-

ing maximum protection. An alarm

will occur immediately upon

opening any protection point,

including the entry/exit door.

6. 5 TEST KEY: Tests the system and

alarm sounder if disarmed. Refer to

TESTING THE SYSTEM section

for test procedures.

7. 6 BYPASS KEY: Removes individual

protection zones from being

monitored by the system.

8. 7 INSTANT KEY: Arms in manner

similar to TAY mode, but without

the entry delay feature. Entering via

the entry/exit door will cause an

instant alarm.

9. 8 CODE KEY: Used to assign

additional user codes for other users

of the system.

10. 9 CHIME KEY: Turns CHIME mode on

and off. When on, the opening of

windows or doors while the system is

disarmed will sound 3 beeps at the

keypad(s).

11. 6 READY KEY: Displays all open

protection zones.

12. # KEY: "Quick Arm" key permits

ARMING of the sys

tem without use of

a security code (if so programmed).

13. KEYS 0–9

†

: Used to enter your security

code(s).

14. READY INDICATOR: (GREEN) Lit when

the system is ready to be armed (no faults

present). While the system is disarmed,

this indicator will go on and off as

protection zones are closed and opened.

Note: On some keypads a POWER INDICATOR

(GREEN) is lit when AC power is present. If

the indicator is off, the system may still be

operating, but on its backup battery power.

See Power Failure in TROUBLE CONDITIONS

section.

Keypad Functions

(cont’d)

–

15. ARMED INDICATOR: (RED) Lit when

the system has been armed ( TAY,

AWAY, IN TANT or MAXIMUM).

16. INTERNAL SOUNDER: The built-in

keypad sounder mimics the alarm

sounder during alarms, and will also

"beep" during certain system functions.

(see SUMMARY OF AUDIBLE/

VISUAL NOTIFICATION).

17. EMERGENCY KEYS:

Individual keys A, B, and C (key D not

used). On some keypads, these keys are

not present, and the following key pairs

may be available, instead, for

emergency functions:

6 & # , 6 & 1 , # & 3

ome or all of these keys/pairs may be

programmed for panic functions by your

installer (see PANIC KEYS section).

IMPORTANT! When entering codes and

commands, sequential key depressions must

be made within 2 seconds of one another. If 2

seconds elapses without a key depression,

the entry is aborted and must be repeated

from its beginning.

6150-007-V0

A1OFF 2AWAY 3STAY

456

MAX TEST

BYPASS

9CHIME

8CODE

INSTANT

READY

ARMED

READY

†

Note: Keys 1 through 9 each perform their associated companion functions (OFF, AWAY, STAY,

etc.) when preceded by an entry of the security code (as described later).

Altri manuali per ADEMCO 4110XM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Sistema di sicurezza

Honeywell

Honeywell Ademco VISTA-20P Istruzioni operative

Honeywell

Honeywell Ademco VISTA-32FB Manuale utente

Honeywell

Honeywell X-618 Guida rapida

Honeywell

Honeywell VISTA-21iP Manuale utente

Honeywell

Honeywell LYNX Touch L5210 Series Istruzioni operative

Honeywell

Honeywell LYNX Touch L7000 Series Manuale utente

Honeywell

Honeywell Domonial Manuale utente

Honeywell

Honeywell INTELLIGUARD 9000 Manuale utente

Honeywell

Honeywell ADEMCO VISTA-10P Istruzioni per il montaggio

Honeywell

Honeywell FIRE-LITE ALARMS BG-12LR Manuale utente

Honeywell

Honeywell MK V Manuale utente

Honeywell

Honeywell Fire-Lite Alarms ES-200X Manuale del proprietario

Honeywell

Honeywell LYNX Touch L7000 Series Manuale utente

Honeywell

Honeywell Optiflex Interactive Manuale utente

Honeywell

Honeywell GENT Nano panel-based Manuale di formazione

Honeywell

Honeywell VISTA-128BPEN Istruzioni per il montaggio

Honeywell

Honeywell Ademco Vista-48LA Istruzioni operative

Honeywell

Honeywell HS-6270 Manuale utente

Honeywell

Honeywell LYNX Touch L5210 Series Manuale utente

Honeywell

Honeywell ADEMCO VISTA-20PSIA Manuale utente

Honeywell

Honeywell 5816 WMWH Manuale utente

Honeywell

Honeywell LXL-1000 Manuale utente

Honeywell

Honeywell LYNX Touch Security System Manuale utente

Honeywell

Honeywell Domonial Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
