Honeywell Lynx Plus Series Istruzioni per il montaggio

Lynx Plus Series

Security Systems

Installation and Setup Guide

Installation and Setup GuideInstallation and Setup Guide

Installation and Setup Guide

BYPASS

NO DELAY

RECORD

TEST

FUNCTION

STATUS

VOLUME PLAY

CODE

LIGHTS ON

LIGHTS OFF CHIME

ESCAPE

ADD

DELETE

SELECT

OFF STAY

132

AWAY AUX

4 65

ARMED READY

800-03857V1 12/09 Rev. A

- 2 -

RECOMMENDATIONS FOR PROPER PROTECTION

The Following Recommendations for the Location of Fire and Burglary Detection Devices Help

Provide Proper Coverage for the Protected Premises.

Recommendations for Smoke and Heat Detectors

With regard to the number and placement of smoke/heat detectors, we subscribe to the

recommendations contained in the National Fire Protection Association's (NFPA) Standard #72

noted below.

•Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and

areas of the household as follows: For minimum protection a smoke detector should be installed outside of each

separate sleeping area, and on each additional floor of a multi-floor family living unit, including basements. The

installation of smoke detectors in kitchens, attics (finished or unfinished), or in garages is not normally

recommended.

•For additional protection the NFPA recommends that you install heat or smoke detectors in the living room,

dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and storage rooms, basements and

attached garages.

In addition, we recommend the following:

•Install a smoke detector inside every bedroom where a smoker sleeps.

•Install a smoke detector inside every bedroom where someone sleeps with the door partly or completely

closed. Smoke could be blocked by the closed door. Also, an alarm in the hallway outside may not wake up the

sleeper if the door is closed.

•Install a smoke detector inside bedrooms where electrical appliances (such as portable heaters, air

conditioners or humidifiers) are used.

•Install a smoke detector at both ends of a hallway if the hallway is more than 40 feet (12 meters) long.

•Install smoke detectors in any room where an alarm control is located, or in any room where alarm control

connections to an AC source or phone lines are made. If detectors are not so located, a fire within the room could

prevent the control from reporting a fire or an intrusion.

THIS CONTROL COMPLIES WITH NFPA REQUIREMENTS FOR TEMPORAL PULSE

SOUNDING OF FIRE NOTIFICATION APPLIANCES.

DINING

KITCHEN

BEDROOM

LIVING ROOM

BEDROOM

BDRM

DINING

LIVING ROOM

TV ROOM KITCHEN

BEDROOM BEDROOM

LVNG RM

BASEMENT

KTCHN

CLOSED

DOOR

GARAGE

Smoke Detectors for Minimum Protection

Smoke Detectors for Additional Protection

Heat-Activated Detectors

BDRM

floor_plan-001-V1

Recommendations For Proper Intrusion Protection

•For proper intrusion coverage, sensors should be located at every possible point of entry to a home or

premises. This would include any skylights that may be present, and the upper windows in a multi-level

building.

•In addition, we recommend that radio backup be used in a security system. This will ensure that alarm

signals can be sent to the alarm monitoring station in the event that the telephone lines are out of order (alarm

signals are normally sent over the phone lines, if connected to an alarm monitoring station).

-3-

Table of Contents

SYSTEM FEATURES ..................................................................................................................................5

MOUNTING THE CONTROL.....................................................................................................................6

WIRING CONNECTIONS...........................................................................................................................7

CONNECTING/CONFIGURING COMMUNICATIONS DEVICES ........................................................9

AC POWER AND BACKUP BATTERY....................................................................................................11

INSTALLING WIRELESS ZONES...........................................................................................................13

MECHANICS OF PROGRAMMING ........................................................................................................16

ZONE RESPONSE TYPE DEFINITIONS ...............................................................................................18

DATA FIELD DESCRIPTIONS ................................................................................................................20

✻56 ENHANCED ZONE PROGRAMMING MODE ................................................................................38

✻80 DEVICE PROGRAMMING MENU MODE ......................................................................................43

✻81 ZONE LIST MENU MODE................................................................................................................47

✻83 ENHANCED SEQUENTIAL MODE ................................................................................................49

✻84 ASSIGN ZONE VOICE DESCRIPTORS ..........................................................................................52

✻85 RECORD CUSTOM VOICE DESCRIPTORS...................................................................................54

REMOTE PROGRAMMING/CONTROL (DOWNLOADING) ................................................................55

SYSTEM OPERATION..............................................................................................................................56

TESTING THE SYSTEM ..........................................................................................................................62

SYSTEM COMMUNICATION ..................................................................................................................63

TROUBLESHOOTING GUIDE ................................................................................................................65

PROGRAMMING DEFAULT TABLES....................................................................................................67

LYNX PLUS CONTROL DEFAULTS................................................................................................67

LYNXSIA PLUS CONTROL DEFAULTS .........................................................................................69

REGULATORY AGENCY STATEMENTS ..............................................................................................73

LIMITATIONS OF THIS SYSTEM STATEMENT..................................................................................75

UL NOTICES..............................................................................................................................................75

SIA QUICK REFERENCE GUDE ............................................................................................................75

SPECIFICATIONS.....................................................................................................................................76

CONTACTING TECHNICAL SUPPORT.................................................................................................76

WARRANTY INFORMATION .................................................................................................................76

INDEX.........................................................................................................................................................77

SUMMARY OF CONNECTIONS DIAGRAM ...........................................................................Rear Cover

- 4 -

Lynx Plus Series Installation and Setup Guide

- 5 -

System Features

The Lynx Plus Series control is a self-contained, rechargeable wireless control/communicator that features

easy installation and usage. A built-in speaker provides voice annunciation of system status along with voice

descriptors of each zone. An internal module (if provided) allows the Lynx Plus Series to communicate with

the Central Station via the Internet.

ULUL

Lynx Plus Series is not intended for UL985 Household Fire applications unless a 24-hour backup battery

(P/N LYNXRCHKIT-HC or LYNXRCHKIT-SHA) is installed.

Powerline Carrier Devices have not been evaluated by UL.

Features

System Features

•Real-time clock display and 2 line by 16

character alpha display

•Message center (for user recorded messages)

•Voice announcement of system and zone status

•Voice chime

•Alarm clock

•Reminder

•X10 scheduling

•Latch key reports

•Automatic stay arming

•Remote phone control

•Speaker phone operation

•“Follow me” reminder and system announcements

•8 User Codes (Installer, Master, 5 Secondary,

Duress)

•3 Panic Functions

Zones and Devices

•1 Hardwire zone

•Up to 24 Wireless zones (5800 Series

transmitters)

•Up to 16 Wireless button zones

•Up to 8 Powerline carrier devices

•Supports wireless keypads

Communication

•Ademco Low Speed

•Sescoa/Radionics

•Ademco Express

•Ademco Contact ID

•Internet central station communication

•GSM cellular central station communication

•Two-way voice communication Supports

AlarmNet remote services

Alarm Output

•Built-in sounder

•Bell output (120mA max.)

•Steady output for burglary/panic

•Temporal pulse output for fire and carbon

monoxide alarms

•Long range radio/audio alarm verification

Programming

•Options stored in EEROM

•Can be downloaded or controlled via IBM-

compatible computer using Compass

downloader software and specified HAYES-

compatible modem or via capable GSM or IP

communications module

•Voice prompt programming mode

Other Features

•Exit error feature (detects difference between an

actual alarm and exit alarm caused by leaving a

door open after the exit delay expires)

•Event log stores up to 84 events

•Macro/ 1-button paging

•RF jam detection

•Compatible with encrypted (high-security)

devices

System Power

•Primary Power: K10145WH or K10145X10 plug-

in transformer, 110VAC to 9VAC, 25VA output

(K10145CN in Canada)

•Backup battery: Rechargeable nickel-metal

hydride battery pack rated at 7.7Vdc.

Lynx Plus Series Installation and Setup Guide

- 6 -

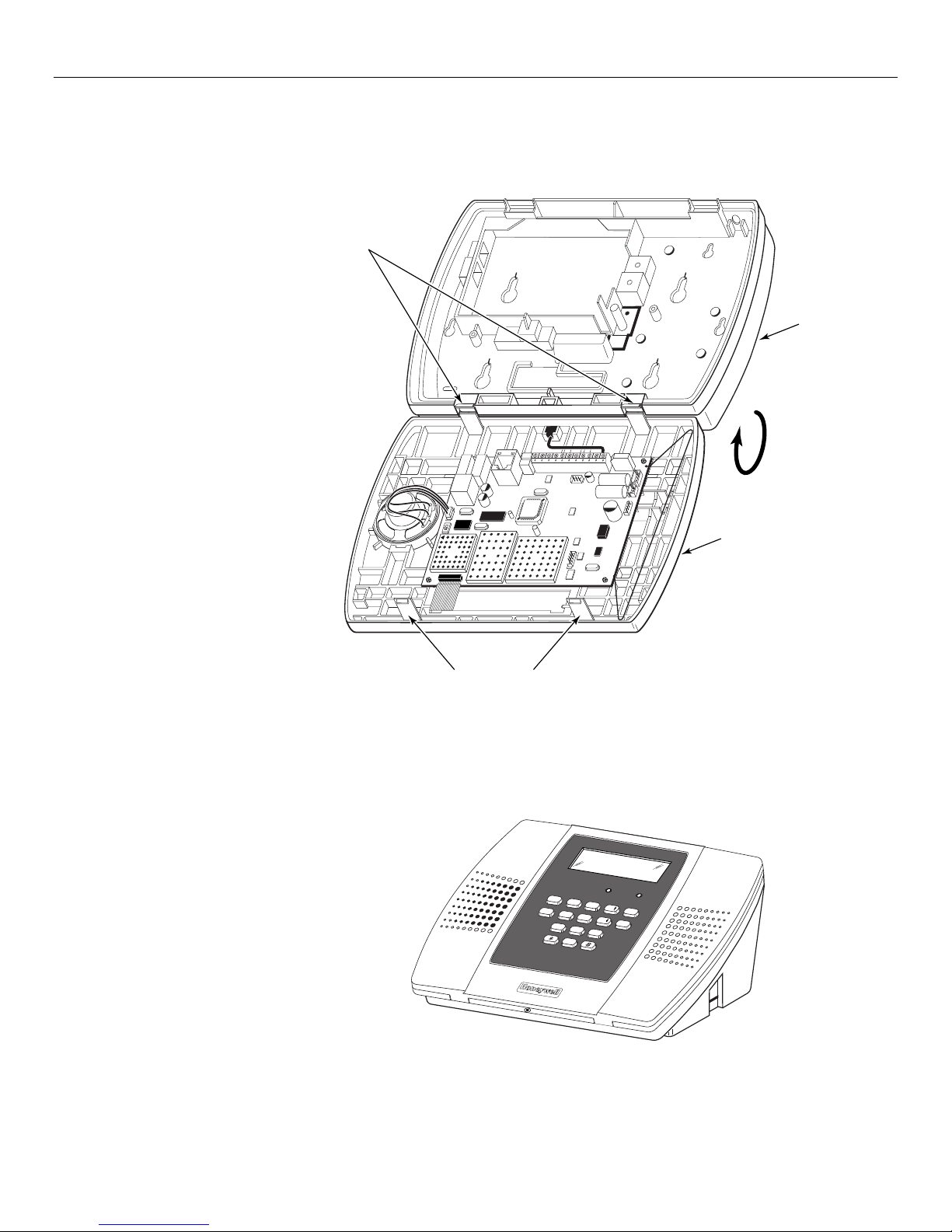

Mounting the Control

Wall Mounting

1. Release the front assembly from the

back case by depressing the two

locking tabs at the top of the unit

with the blade of a medium size

screwdriver.

2. Separate the front and back case

assemblies by rotating the front case

so that it is perpendicular to the

back case and unsnapping

(releasing) the two hooks from the

back case.

3. Feed the field wiring through the

appropriate openings in the back

case. Use tie-wraps to secure the

wiring to the built-in wire loops as

needed.

4. Mount the back case to a sturdy

wall.

5. Attach the front and back cases by

connecting the hooks on the front

case to the attachments on the rear

case. Once attached, the hooks will

support the front case and allow you

to make the wiring connections.

6. After all wiring connections have

been made, snap the front case and

back case closed and ensure that

the control is secured by the locking

tabs.

BACK

CASE

FRONT

CASE

1000-300-009-V1

ROTATE

FRONT CASE

UPWARD

TO RELEASE

HOOKS

MOUNTING

HOOKS

LOCKING TABS

Desktop Mounting

For desktop mounting, the optional

mounting base (model LYNXPLUS-

DM, purchased separately) must be

used.

1. Slide the control panel onto the

mounting base locking tabs.

2. Bring all wiring through the bottom

of the mounting base, using one of

the wire entry locations, before

making connections to the control

panel.

3. Use tie-wraps to secure the wiring to

the built-in wire loops as needed.

4. Use the supplied screws to secure

the control panel to the mounting

base.

BYPASS

NO DELAY

RECORD

TEST

FUNCTION

STATUS

VOLUME PLAY

CODE

LIGHTS ON

LIGHTS OFF CHIME

ESCAPE

ADD

DELETE

SELECT

OFF STAY

132

AWAY AUX

ARMED READY

1000-300-016-V0

Lynx Plus Series Installation and Setup Guide

- 7 -

Wiring Connections

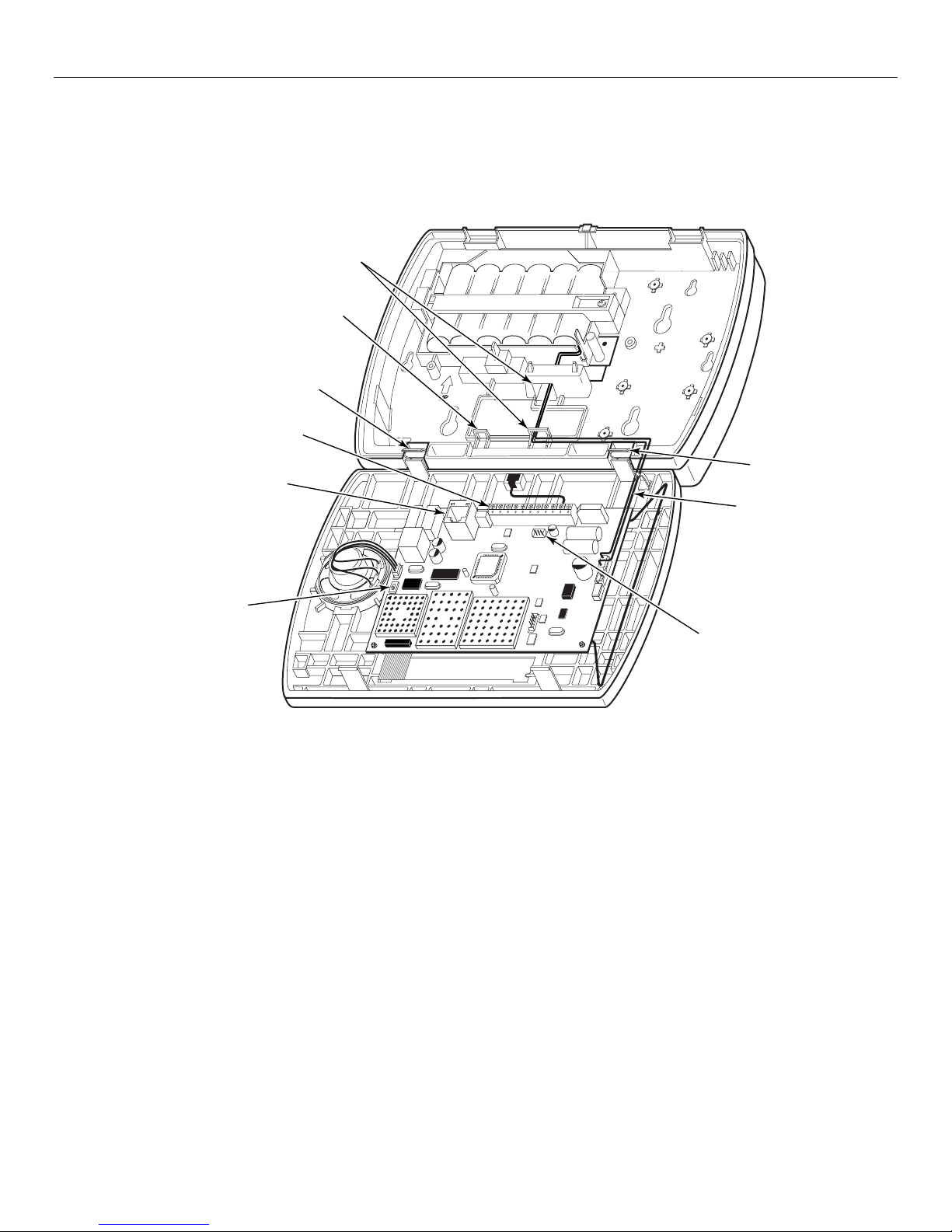

Wiring Overview

The following summarizes the connections required. Refer to the Wiring Connections paragraph and the

Summary of Connections diagram on the inside back cover when making connections. Ensure that the

battery cable is routed as shown in the figure below.

1000-300-006-V2

LOCAL

SOUNDER

DISABLE

SWITCH

MOUNTING

HOOK

TIE-WRAP

POINT

TELEPHONE

CONNECTION

TERMINAL

STRIP

BATTERY

CABLE

MOUNTING

HOOK

WIRE

ROUTING

TUNNELS

POWERLINE CARRIER

DEVICE CONNECTOR

Wiring Connections

1. Make Earth Ground Connection - The designated earth ground terminal (1) must be terminated in a good earth ground

for the lightning transient protective devices in this product to be effective. The following are examples of good earth

grounds available at most installations:

Metal Cold Water Pipe - Secure a non-corrosive metal strap (copper is recommended) to the pipe that is electrically

connected and secured to which the ground lead is electrically connected and secured.

AC Power Outlet Ground - Available from 3-prong, 120VAC power outlets only. To test the integrity of the ground

terminal, use a three-wire circuit tester with neon lamp indicators, such as the UL Listed Ideal Model 61–035, or

equivalent, available at most electrical supply stores.

a. Connect terminal 1 to a good earth ground.

2. Make Phone Line Connections - For local or full line seizure follow the appropriate steps below.

Local Seizure

a. Connect the incoming phone line to either the 8-position jack or terminals 2 (TIP) and 3 (RING) on the Lynx Plus.

b. Connect the handset phone lines to terminals 4 (TIP) and 5 (RING).

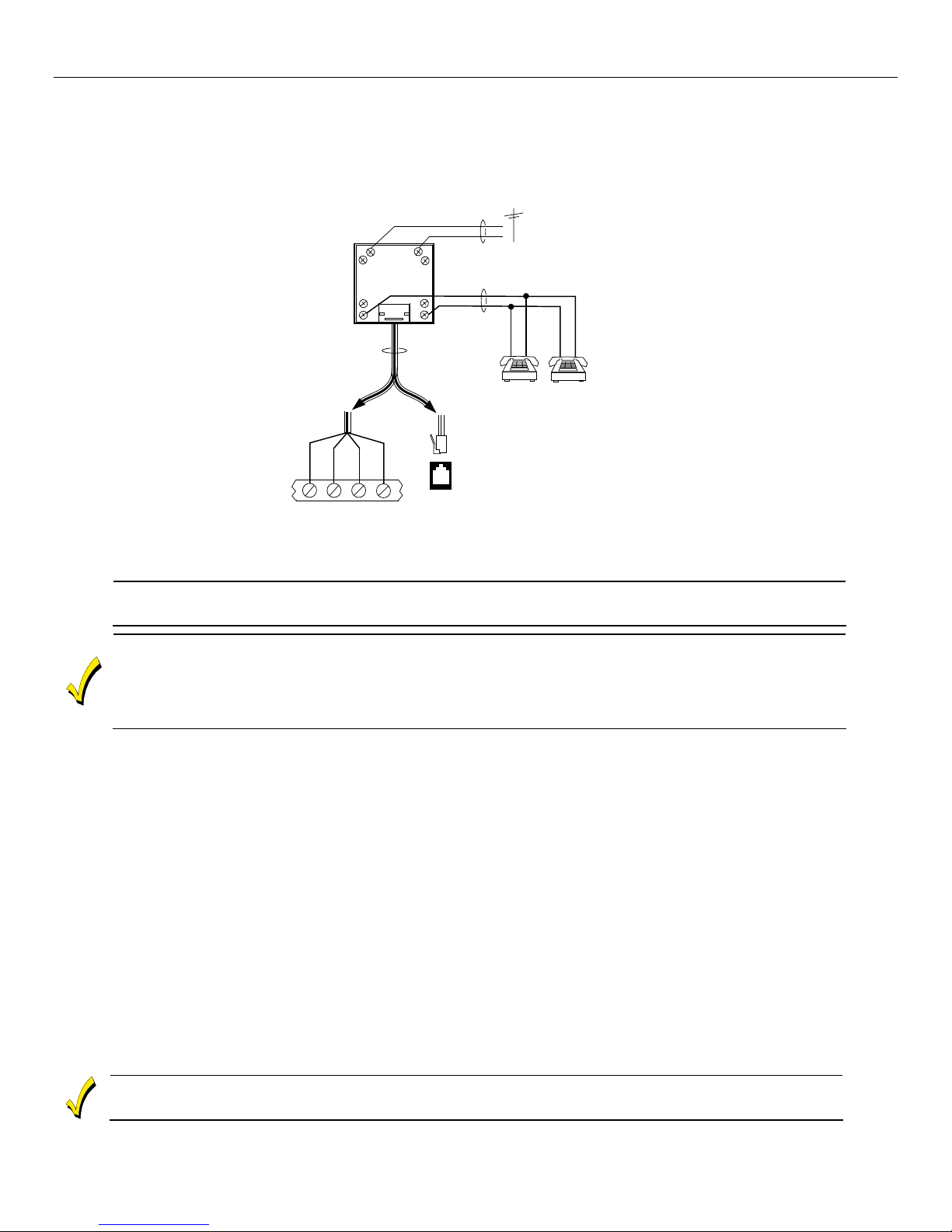

Full Line Seizure: The control must be placed in series with the incoming phone line. Plugging the Direct Connect Cord

directly into the RJ31X jack, allows the control to seize the phone line when an alarm occurs and normal phone line

usage by the premises phones if the plug needs to be removed.

a. Cut the incoming RING and TIP phone lines (typically red and green, respectively) and connect them to RJ31X

terminals 4 (red) and 5 (green).

b. Connect the premises end of the cut RING and TIP wires to RJ31X terminals 1 (grey) and 8 (brown) respectively.

Lynx Plus Series Installation and Setup Guide

- 8 -

Wiring Connections

c. Wire the flying leads of a Direct Connect Cord to the control’s phone terminals as shown in the diagram or plug into

the 8-position jack.

d. Plug the Direct Connect Cord into the RJ31X jack.

RJ31X

RING

TIP

INCOMING

PHONE LINE

PREMISES PHONES

TIP RING TIP RING

BROWN

GREY

RED

GREEN

INCOMING

PHONE LINE

PREMISES

PHONES

}

GREENRED

GREY BROWN

RING

TIP

DIRECT

CONNECT

CORD

8-POSITION

JACK

01000-008-V0

Full Line Seizure Connections

ULUL

The local sounder disable switch must be set to “ON” position.

External sounders and powerline carrier devices have not been evaluated by UL

LOCAL SOUNDER DISABLE: The Master Keypad’s built-in piezo sounder can be disabled by setting the

sounder disable switch to OFF. If disabled, however, no sounding will occur upon AC loss, since the

external sounder does not operate when AC power is lost.

HARDWIRED ZONE: If the EOLR is not at the end of the loop, the zone will not be properly supervised, and the

system may not respond to an open circuit on the zone.

3. Hardwired Zone Connections

Zone 1 is an EOLR supervised zone that supports both open circuit and closed circuit devices and has a response

time of 350msec. Maximum zone resistance: 300 ohms, plus EOLR

Note: The hardwire zone cannot be used as a fire or CO zone.

a. Connect sensors/contacts to the hardwired zone terminals 6 (-) and 7 (+). Refer to the Summary of Connections

diagram.

b. Connect closed circuit devices in series in the high (+) side of the loop. The EOL resistor must be connected in

series with the devices, following the last device.

c. Connect open circuit devices in parallel across the loop. The 2000-ohm EOLR must be connected across the loop

at the last device.

4. Make External Sounder Connections -The control panel a 6-14VDC bell (120mA max.; e.g. ADEMCO WAVE2EX).

a. Connect a bell to terminals 8 (-) and 9 (+).

5. Disable Local Sounder Option - If required, the Master Keypad’s built-in piezo sounder can be disabled.

a. Set the Local Sounder Disable Switch to OFF.

6. Make Powerline Carrier Device Connections -The control panel supports up to 8 Powerline Carrier Devices. If using

these devices, they must be connected to the control via a K10145X10 transformer.

a. Connect the com/data/sync/ lines from the K10145X10 transformer to the Powerline Carrier Device Connector using

the provided cable.

Refer to the ✻

✻✻

✻80 Device Programming Menu Mode section to program the Powerline Carrier Devices.

Lynx Plus Series Installation and Setup Guide

- 9 -

Connecting/Configuring Communication Modules

General

This Lynx Plus Series control supports central station reporting via the internet using wireless (GSM) and

hardwire (IP) communications modules. It also supports upload/download programming capability via the

Internet or a Private local area network (Intranet). This allows site maintenance independent of central

station monitoring, and modification to sites globally via the Internet or through a private LAN. Refer to the

instructions provided with the LRR/IP Communications Device being installed for additional information

regarding its installation, programming, and registration. The control is compatible with the following

AlarmNet Communications Modules:

•7847i-L Internet Communications Module

•GSMVLP GSM Communications Module with 2-Way Voice

Connecting Long Range Radio and Internet Communication Devices

Connect and configure the communications device (refer to the Installation Instructions for device that you

are installing for additional information).

LRR/IP Communications Device 24-Hour Standby Power

If you are installing the AlarmNet 7847i-L, and require 24-hour standby, you must install the Super High

Capacity battery P/N WALYNX-RCHB-SHA in the control.

Configuring Long Range Radio and Internet Communication Devices

1. Enable the communications device in programming field ✼55 and configure alarm reporting and module

supervision in programming field ✼77.

2. Program the device as required using the 7720P programmer (refer to the Installation Instruction for the

device that you are installing). Note that the device address must be set to 3.

The device must be registered before downloading or alarm reporting can take place.

LRR Communications Device Diagnostic Mode

This mode provides a method to verify the LRR signal strength.

1. Enter the Installer Code (4112) + 899. The system will initially display “Entering programming mode”.

2. The LRR Communications Module’s Signal Level (Primary Site Received Signal Strength Indication

[PriRSSI]) will be displayed in dBm. The system will also display GPRS connection and registration

indications (refer to the example that follows).

3. If “FAIL” or “POOR” signal levels are displayed during the test, the control should be relocated to find a

location that provides better signal strength.

If a ‘searching for coverage’ message is displayed or the radio is not connected and no signal indication

is displayed, the installer should check radio programming, panel programming, etc., before entering this

mode again.

Signal strength may vary

4. The Lynx Plus will automatically exit this mode after approximately 1-minute or if any key is pressed.

The system will display “Exiting programming mode” when the test is complete.

Lynx Plus Series Installation and Setup Guide

- 10 -

Connecting/Configuring Communication Modules

Example:

SIGNAL GPRS REG

-86 GOOD Y H

Diagnostic Mode Definitions

SIGNAL = Communications Module’s Signal Level (RSSI) will be displayed in dBm, where:

-01 to -93 GOOD = Good signal level

-94 to -95 POOR = Poor signal level, move unit for better signal level

-96 (and lower) FAIL = Fail signal level, do not install, move unit for better signal level. If “FAIL” condition persists, do

not install

0 or “Searching for Coverage” = Waiting for signal. Try again in a few minutes. If no signal persists, move unit for better

signal level, check all connections and SIM activation.

GPRS = GPRS Service availability where:

Y = GPRS is available

N = GPRS is Not available

REG = Registration status from radio module where

N = Not Registered (contact AlarmNet)

H = Registered Home (functioning normally)

S = Searching (wait or move unit to another location)*

D = Registration Denied (contact AlarmNet)

R = Registered Roaming (no problem)

? = Unknown Registration State (wait or move unit to another location)*

* If the unit is in an area of known cellular coverage for 3 – 5 min and these conditions do not clear contact AlarmNet for

assistance.

Altri manuali per Lynx Plus Series

Indice

Altri manuali Honeywell Sistema di sicurezza

Honeywell

Honeywell Comtronics Smart Homes Manuale utente

Honeywell

Honeywell ADEMCO 745VSD3 Istruzioni per il montaggio

Honeywell

Honeywell VISTA 15P - Ademco 6 Zone Control Panel Manuale utente

Honeywell

Honeywell 4219 Manuale utente

Honeywell

Honeywell ADEMCO 4110XM Manuale utente

Honeywell

Honeywell FIRE-LITE ALARMS BG-12LR Manuale utente

Honeywell

Honeywell ADEMCO VISTA-15PSIA Istruzioni per il montaggio

Honeywell

Honeywell ADEMCO VISTA SERIES Istruzioni operative

Honeywell

Honeywell Ademco VISTA-50PUL Manuale utente

Honeywell

Honeywell Lynx Touch L5100 Manuale utente

Honeywell

Honeywell ADEMCO CE3 Code Encryptor 3 Istruzioni per il montaggio

Honeywell

Honeywell VISTA-128FBP Manuale utente

Honeywell

Honeywell Galaxy 8 Manuale utente

Honeywell

Honeywell 5816 WMWH Manuale utente

Honeywell

Honeywell Ademco Lynx Touch Manuale utente

Honeywell

Honeywell LYNX Touch Security System Manuale utente

Honeywell

Honeywell ADEMCO Vista-12 Series Manuale utente

Honeywell

Honeywell LYNX Touch Series Istruzioni per il montaggio

Honeywell

Honeywell Galaxy 3-48C Manuale del proprietario

Honeywell

Honeywell LYNXR-2 Series Security System Manuale utente

Honeywell

Honeywell HS3SSXX Manuale utente

Honeywell

Honeywell ADEMCO VISTA-120 Manuale utente

Honeywell

Honeywell 6272CV Manuale utente

Honeywell

Honeywell ADEMCO Vista-12C Istruzioni per il montaggio

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
