Honeywell XL4600SM Manuale utente

XL”2T

Security System

Owner’s Manual

FIRE BURGWRY INSTRUMENTS, INC. N9819 7/97

—

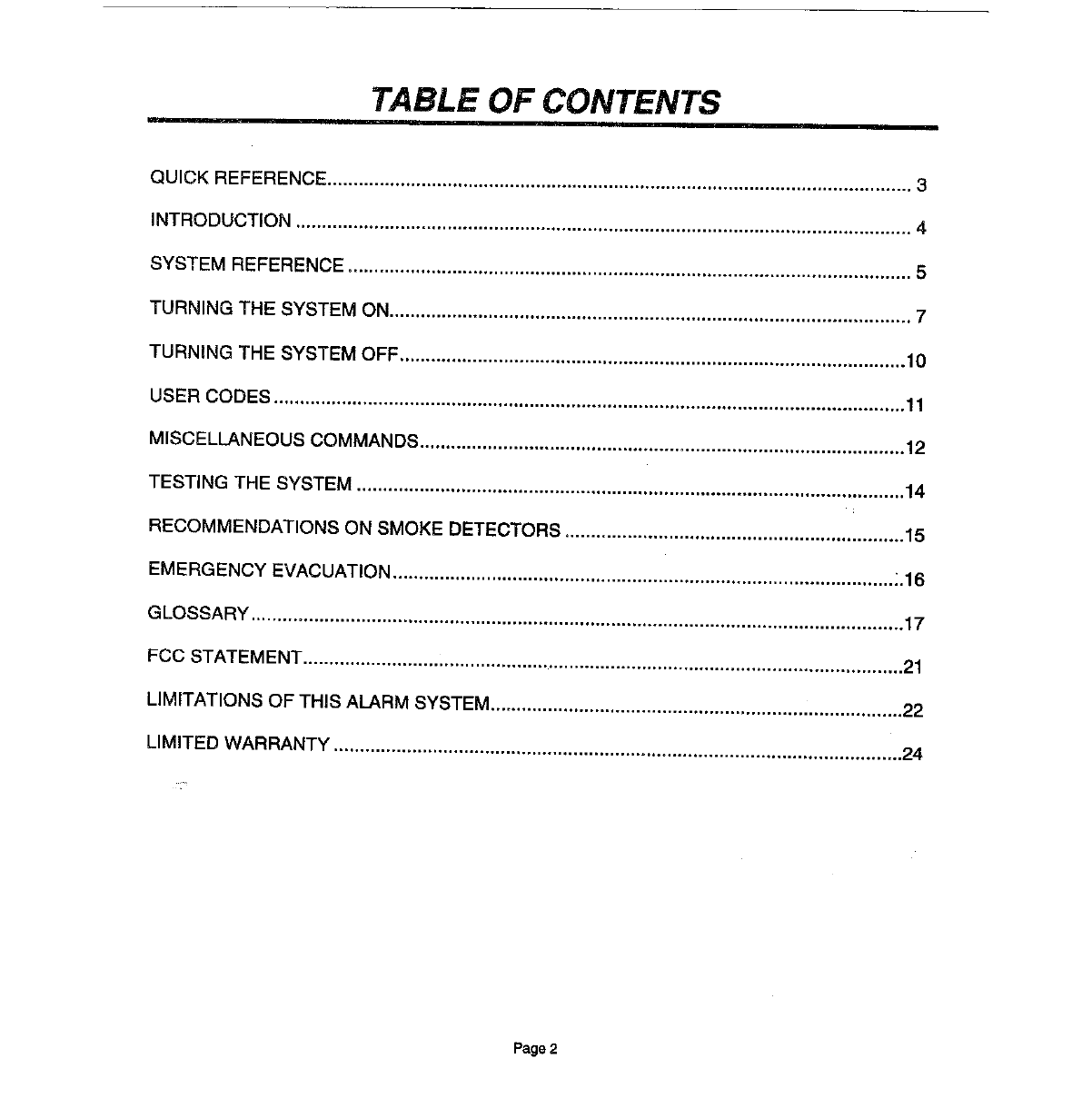

QUICK REFERENCE ................................................................................................................ 3

SYSTEM REFERENCE .......................................................................... .............................,,,, 5

TURNING THE SYSTEM ON .................................................................................................... 7

TURNING THE SYSTEM OFF .................................................................................................10

USER CODES ........................................................................................................................ll

MISCELMNEOUS COMMANDS .............................................................................................l2

TESTING THE SYSTEM .....................................................................................................l4

RECOMMENDATIONS ON SMOKE DETECTORS .................................................................l5

EMERGENCY EVACUATION ............................................................................................l6

GLOSSARY, .........................................................................................................................l7

FCC STATEMENT ............................... ...............................................................................21

LIMITATIONS OF THIS AURM SYSTEM ...............................................................................22

LIMITED WARRANTY .............................................................................................................24

Page 2

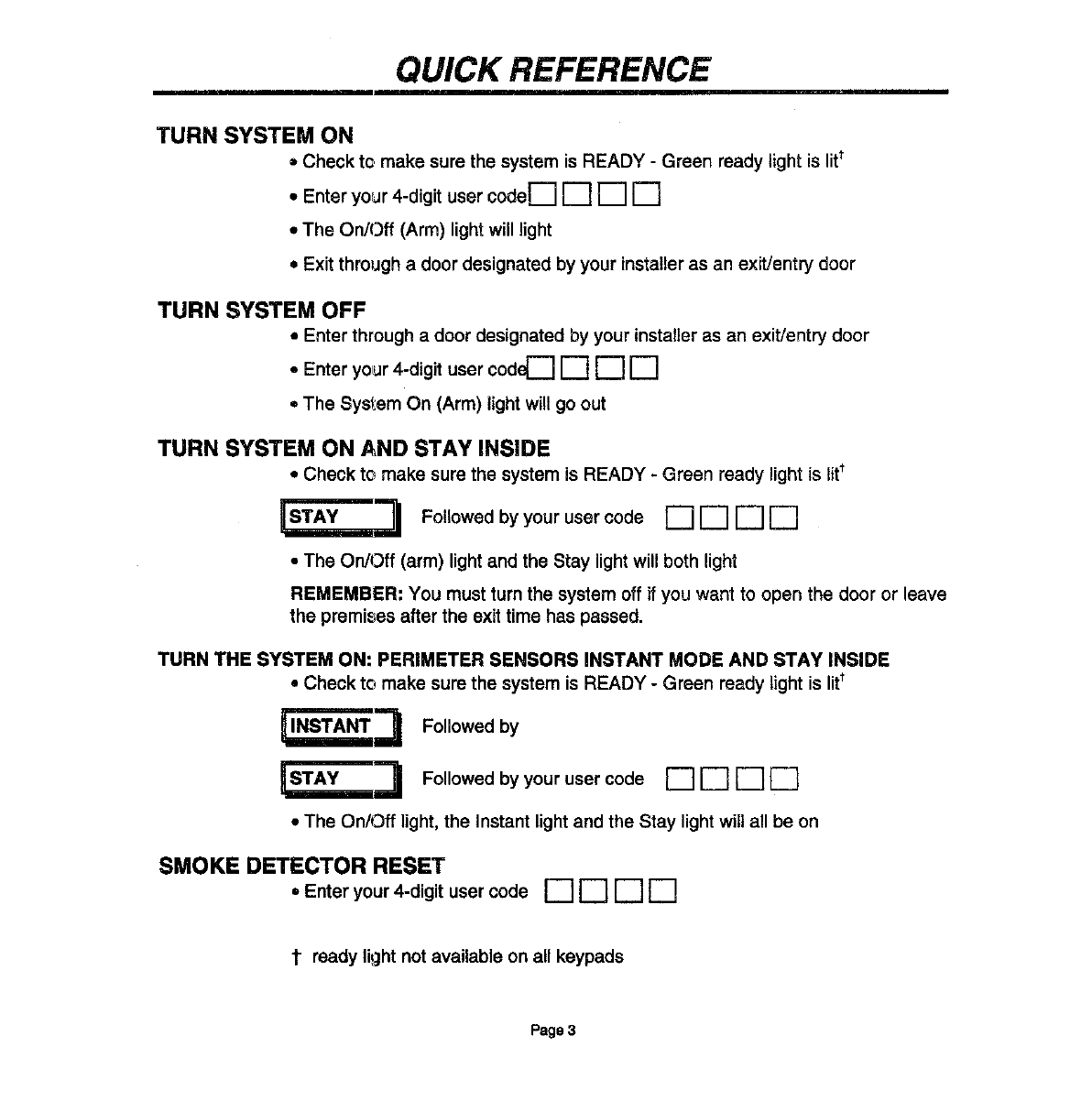

QUICK REFERENCE

TURN SYSTEM ON

.Check to make sure the system is READY -Green ready hght is lit+

.Enter your 4-digit user codem rlrln

. The On/Off (Arm) light will tight

*Exit through adoor designated by your installer as an exiffentry door

TURN SYSTEM OFF

.Enter through adoor designated by your installer as an exitientry door

.Enter your 4-digit user cod~l m m ~

. The System On (Arm) hght will go out

TURN SYSTEM ON AND STAY INSIDE

.Check to make sure the system is READY -Green ready light is lit+

-Followed by your user code m m m m

. The OtiOff (arm) light and the Stay light will both light

REMEMBER: You must turn the syetem off if you want to open the door or leave

the premises after the exit tima has passed.

TURNTHESYSTEM ON: PERIMETERSENSORS INSTANTMODEAND STAY INSIDE

.Check to make sure the system is READY -Green ready tight is lit+

-‘“’lowedby

-Followed by your user code ~rl m❑

. The On/Off Hght, the Instant tight and the Stay light will all be on

SMOKE DETECTOR RESET

.Enter your 4-digit user code [1 rl n~

tready tight not available on all keypads

Page 3

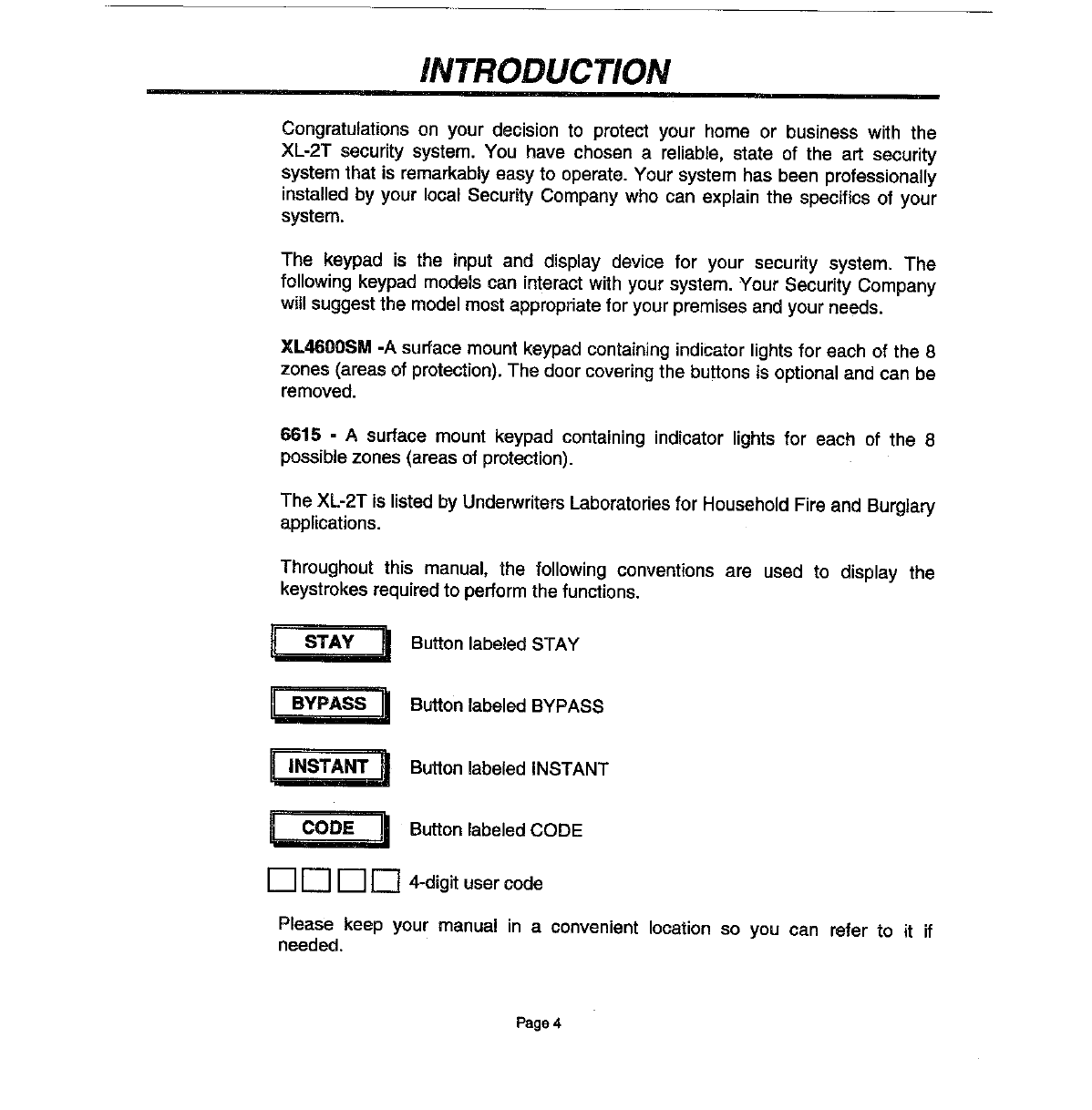

INTRODUCTION

Congratulations on your decision to protect your home or business with the

XL-2T security system. You have chosen areliable, state of the art security

system that is remarkably easy to operate. Your eystem has been professionally

installed by your local Security Company who can explain the specifice of your

system.

The keypad is the input and dsplay device for your security system. The

following keypad models can interact with your system. Your Security Company

will suggest the model most appropriate for your premises and your needs.

XL4600SM -A sutiace mount keypad containing indicator lights for each of the 8

zones (areas of protection). The door covering the buttons is optional and can be

removed.

6615- Asurface mount keypad containing indcator lights for each of the 8

possible zones (areas of protection).

The XL-2T is listed by Underwriters Laboratories for Household Hre and Burglary

appkcations.

Throughout this manual, the following conventions are used to display the

keystrokes required to perform the functions.

mButton labeled STAY

mButton labeled BYPASS

mButton labeled INSTANT

mButton labeled CODE

❑O•04-~git user coda

Please keep your manual in aconvenient location so you can refer to it if

needed.

Page 4

SYSTEM REFERENCE

ZONE DESCRIPTION

Entry time Door Exit time

EntW time Door

Exit time is the same for all designated Entry/Exit doors.

The following SEND HELP ALERTS are programmed into my system. Both

Buttons must be pressed st the same time to sctivate the aleti. The buttons

you press depend on which type of keypad you have. Your installer will show you

how to activate these emergency keys. The keys for LED style keypads are

shown below

BUTTONS DESCRIPTION

[#]&~] (Right+) _

[~&[9](Lefi+) _

[l]&[3](Cente+) _

tButtons on XL-4600SM keypad only

Page 5

—

SYSTEM REFERENCE

USER ID ASSIGNED TO

(MASTER USER ‘)

Door Sttike-Yes No If No

of user 13 is not assigned for door strike, then any user can ativate the door stdke)

Only Turns System On -Yes If No

Ambush/Duress Code -Yes If No

‘Master Users mn Add, Change, or Erase other user codes.

Monitoring Station Information

Awount #

Telephone #

Page 6

TURNING THE SYSTEM ON

SYSTEM READY

You can turn the Burglar portion of your security system on and off. Before you

can turn the system on, it must be “reedy; If you hsve aprotected door open, or

someone is moving in view of amotion detector, the system will not dsplay

“ready.”

The system is ready If the ready light Is on or if the display ahowe:

TURN THE SYSTEM ON AND LEAVE

Enter your 4-@git user code ❑oon

The System On (Arm) tight will go on or the display will show

Exit through adoor designated by your installer as an exitientry door. You must

leave within the exit time programmed by your installer. Refer to the reference

sheet for the time that has been set for your system.

NOT READY If the system is not ready to be armed, the READY light will be off and the Zone

lights will show which zone or zones are not ready. The zone fights indicate the

following conditions, or the display will show as follows:

Faat Blink Alarm

Slow BlinWLow Intensity Bypass

Slow Pulse Trouble

Solid On Not Ready

Example If the Ready fight is not tit and the zone one light ia solid on. An

alarm sensor on zone one ia faulted. This might mean that awindow is open or

someone is walking in view of amotion sensor. Check all sensors on zone one

and resolve the problem. When all sensors are restored, the Ready light will

come on and the zone tight will go out. In this example, the display shows:

SYSTEM NOT READY

Page 7

—

TURNING THE SYSTEM ON

TO TURN THE SYSTEM ON -NOT READY

Determine which zone or zones is not ready, resolve the problem, and turn the

system on normally. If the problem cannot be resolved, you may bypaaa the

zone that is not ready. Bypassing should only be done if the problem on the zone

cannot be resolved, OR if you intentionally wish to leave the zone off, Example

you wish to keep the window open for ventilation, Zones that are bypassed are

not protacted when the systam ia on. See Bypass for the procedure.

TURN SYSTEM ON AND STAY fNSIDE

To turn the perimeter potion of your burglar alarm on and move around freely

inside the premises, use the STAY mode.

Check to make sure the system is ready when raady press:

mFollowed by your user code ❑unn

If successful, the OtiOff (arm) light and the Stay tight will be lit, or the” display

shows

REMEMBER: You must turn the system off if you want to open the door or leave

the premises after the exit time haa passed.

TURN THE SYSTEM ON: PERIMETER SENSORS INSTANT MODE AND STAY fNSIDE

In fNSTANT STAY mode, the parimeter potiion of your burglar alarm system is

on and the time delays are eliminated from your normal ent~/exit door(s), All

interior protection is off so you are free to move around inside.

Check to make sure the system is READY, when ready press

m‘“’’owed by

mFollowed by your user code mmmrl

If successful, the OtiOff fight, the Instant light and the Stay light will all be on, or

the dsplay ahowa:

ON: STAY INSTANT [

Psgs s

T(VRNING THE SYSTEM ON

TURN THE SYSTEM ON WITH ALL SENSORS IN INSTANT RESPONSE MODE

In INSTANT mode, all alarm sensors will repoti an alarm immediately if

activated, including the doors that normally have adelayto allow youto turn the

system oti. Chackto make eurethe system is ready when ready press

ED Followed byyour usercode mmmrl

If successful, the On/Off light and the Inetant light will be on, or the display

shows.

BYPASS Bypass excludes azone of protection from the security system until it is

unbypsssed (either by using the unbypaes procedure or when you turn the

eystem off). Bypassing can only be done while the system is turned off.

Press the Bypass Button followed by your user code and then the zone number

(l-7) to be bypassed.

mFollowed byyour usercode+ rlmmr{ +ZONE#

+If the “Quick Bypass” feature has been enabled by the installer, the user code is

not required when bypassing zones.

NOTE: Bypassed zones are not protected when the system is turned on. After

the bypass command has been accepted, the keypad will sound one long beep,

and the zonetight of the zone(s) bypassed will slowly blink, or the display shows:

IMPORTANT: Temporary users ~.e, baby sifters, housekeepers, etc.) should not

be shown the Bypass procedure.

UNBYPASS Unbypass returns abypassed zone to normal operation. To unbypass azone(s),

repeat the bypass function.

mFollowed byyourusercode rlnrlrl+ZONES

After unbypassing the zone display will show the state of the zones.

Pages

—

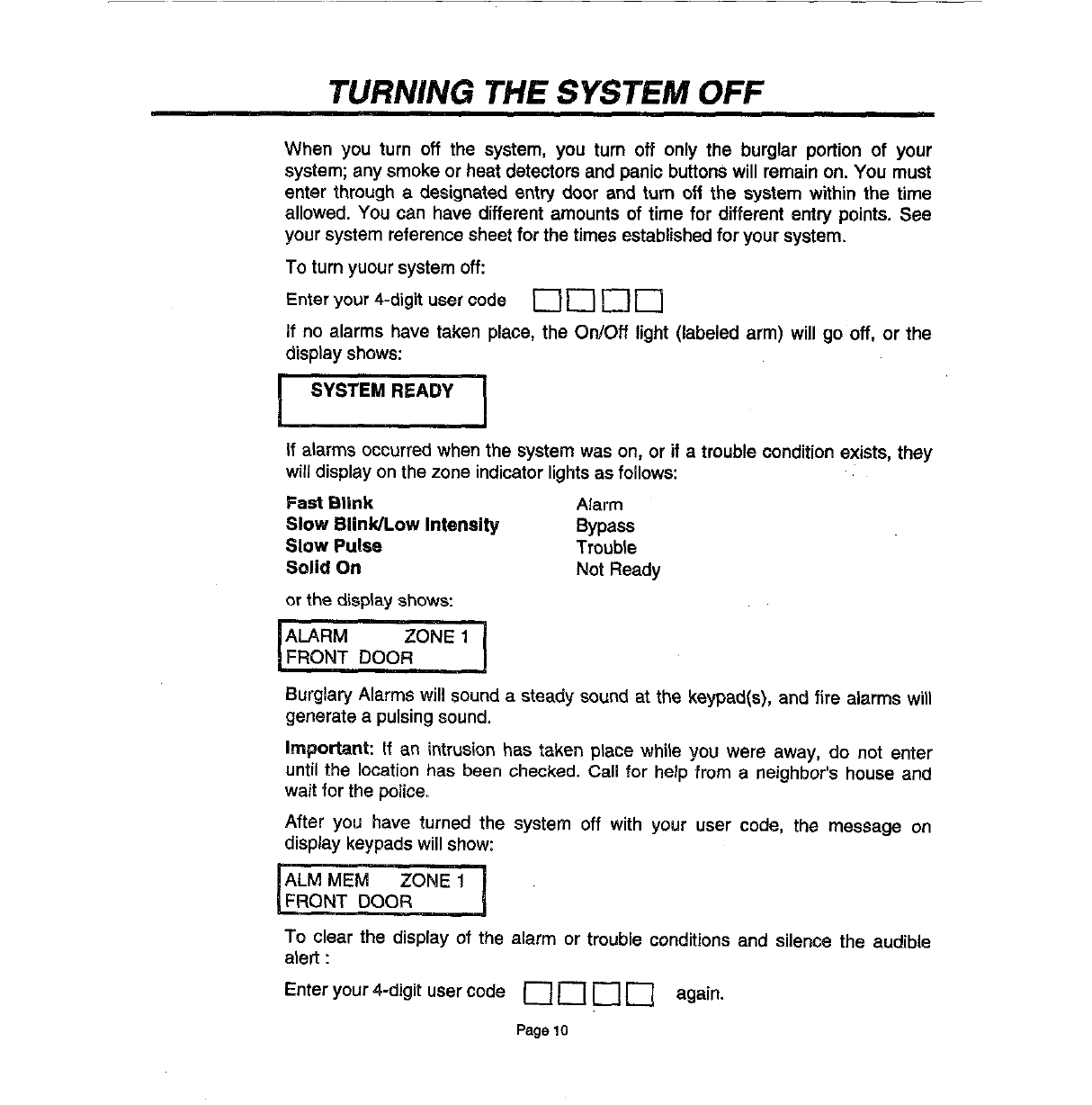

TURNING THE SYSTEM OFF

When you turn off the system, you turn off only the burglar portion of your

system; any smoke or heat detators and panic buttons will remain on. You must

enter through adesignated entry door and turn off the system within the time

allowed. You can have different amounts of time for dfferent entry points. See

your system reference sheet for the times established for your system.

To turn yuour system off

Enter your 4-digit user code L—lr] rl rj

If no alarms have teken place, the On/Off tight (labeled arm) will go off, or the

display shows

If alarms occurred when the system was on, or if atrouble condition exists, they

will display on the zone indcator lights as follows

Faat Btink Alarm

Slow BlinWLow Intensity Bypass

slow Pulse Trouble

Solid On Not Ready

or the display shows

Burgla~ Alarms will sound asteady sound at tha keypad(s), and fire alarms will

generate apulsing sound.

Important If an intrusion has taken place while you were away, do not enter

until the location has been checked. Call for help from aneighbor’s house and

wait for the potice,

After you have turned the system off with your user code, the message on

display keypads will show

To clear the display of the alarm or trouble conditions and silence the audible

alert :

Enter your 4-digit user code n~r! rj again.

Page 10
