MIDAS-M MULTI GAS TRANSMITTER
Fixed Single Point Extractive
Multi Gas Transmitter
QUICK
REFERENCE
GUIDE
Introduction
The Midas-M® is a Fixed Extractive Single Point with 4-in1 Multi Gas
Detector that draws a sample locally or from a remote point to a sensor
cartridge that is located inside the detector’s chassis. A wide range of toxic,
flammable and oxygen gas sensor cartridges are available that enable
detection of gases used or generated in the Semiconductor and other
manufacturing industries.
NOTE: MidasM is shipped from the factory with the security function
disabled. We strongly recommend enabling this function for safe use of
the detector. To enable it, select Set up > Security and type an 8 character
password.
Safety
CAUTION
Failure to observe the following precautions can cause injury to persons or
damage to property:
• To minimize the risk of electrostatic charging, provide a suitable
ground connection, and install the equipment in such a way that no
accidental discharges occur.
• When MidasM reaches the end of its life, it should be disposed of by
local regulations.
• Do not use cleaning solvents or abrasives to clean the gas detector.
• Do not attempt to modify the product in any way from the manufactur-
er’s design or specification. Warranty will be void and malfunction of
the gas detector may result.
• Use only genuine spare parts and accessories with MidasM. Malfunc-
tion may result if non-standard parts are used.
• MidasM is suitable for ordinary locations only and must not be in-
stalled in hazardous locations.
• Installation must be by the recognized standards of the appropriate
authority in the country concerned. For Europe, see EN6007914,
EN60079292, and EN6124114. For installations in North America,
the National Electrical Code (NFPA 70) should be strictly observed. All
the appropriate local and national regulations should be observed.
Sécurité
MISE EN GARDE
Le non-respect des précautions suivantes peut causer des blessures cor-
porelles ou des dégâts matériels:
• Pour minimiser les risques de charge électrostatique, veillez à ce que
la mise à la terre soit adéquate et installez l’équipement de manière à
éviter toute décharge accidentelle.
• Lorsque le MidasM arrive en fin de vie, il doit être éliminé conformé-
ment à la réglementation locale.
• N’utilisez pas de solvants de nettoyage ou d’abrasifs pour nettoyer le
détecteur de gaz.
• Ne tentez en aucun cas de modifier le produit à partir de la conception
ou des spécifications du fabricant. La garantie sera annulée et un
dysfonctionnement du détecteur de gaz pourrait en résulter.
• Utilisez uniquement des pièces de rechange et des accessoires d’orig-
ine avec MidasM. Un dysfonctionnement peut survenir si des pièces
non standard sont utilisées.
• MidasM ne convient qu’aux emplacements ordinaires et ne doit pas
être installé dans des endroits dangereux.
• L’installation doit être conforme aux normes reconnues par l’autorité
compétente du pays concerné. Pour l’Europe, voir EN6007914,
EN60079292 et EN6124114. Pour les installations en Amérique du
Nord, le code national de l’électricité (NFPA 70) doit être strictement
observé. Toutes les réglementations locales et nationales appropriées
doivent être observées.
Approvals
• Electrical UL/CSA/IEC/EN 610101
• EMC EN 50270
• ROHS
What’s in the Box
• 1 Transmitter device
• 2 Tubes (Large box only)
• 1 Quick Reference Guide

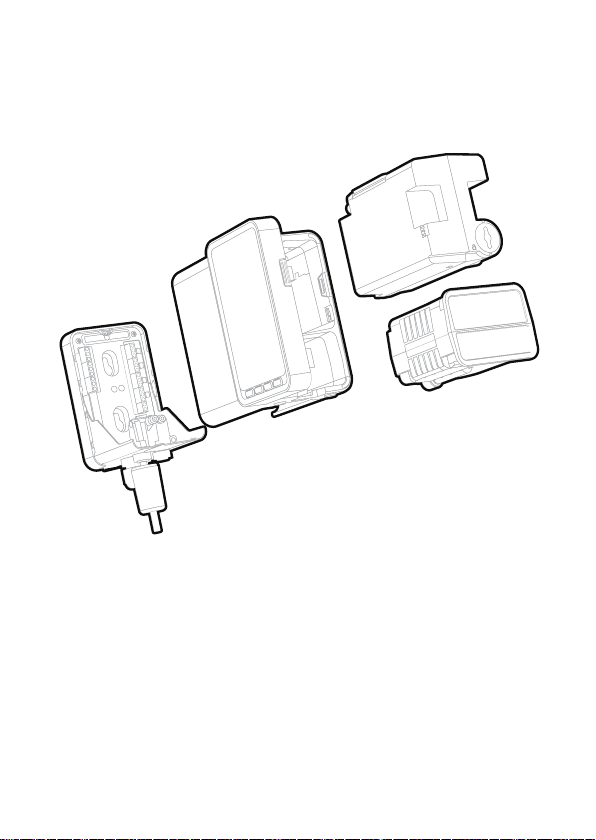

Overview
Mounting bracket assembly
Pump Module
Sensor cartridge
Main Module
1
2
3
4
5
6
7
8
9
10
11
12

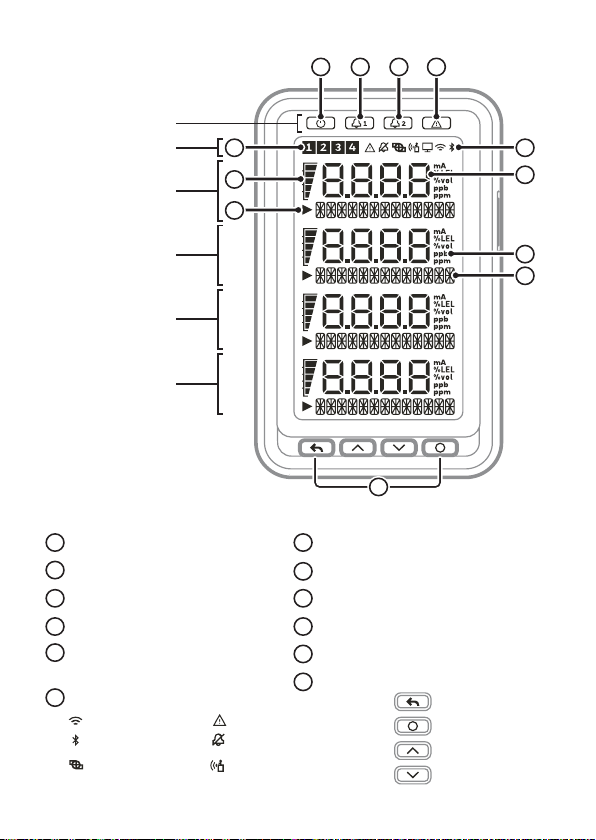

Power LED
Alarm 1 LED
Alarm 2 LED
Fault LED
Selected channel number
indicator for menu operation
Device status icons
Bar graph for gas concentration display
Entry indicator for menu operation
Gas concentration
Unit
Gas name, menu, fault message
Buttons
Fault
Inhibit
Wireless Connected
Bluetooth Connected
Internal pump runningGas Calibration
in progress
Cancel
Device Status LED’s
Device Status Icons
Channel #1 Status
Channel #2 Status
Channel #3 Status
Channel #4 Status
Accept
Up
Down
12
1
5
7
8
6
9
10
11
2 3 4
Mounting the Transmitter Device
Open the door
Remove two screws
1
2
Carefully pull main chassis forward
3
4
5
Drill two holes 2.2 in
• Partially screw the fixings into the mounting surface.
• Place the mounting bracket assembly over the screws, so they pass
through the mounting holes and then slide down to locate in the slots.
• Tighten the screws to secure the mounting bracket assembly.
1
2
3
4
5
2 X

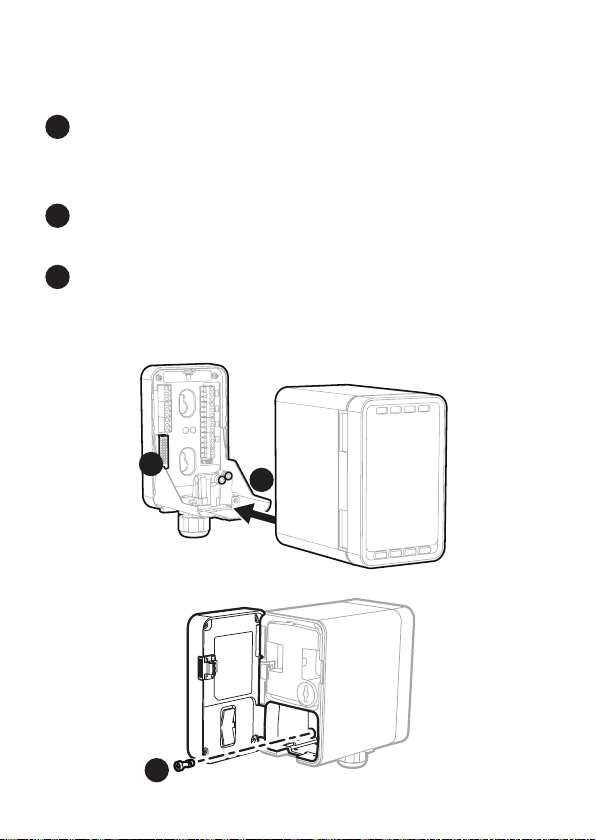

• Align the rounded corner at the lower of the main module with the sim-
ilar rounded corner at the bottom of the mounting bracket assembly
• Slide the main module backward while pushing the main module up
after connecting with a mounting bracket so that the PCB and con-
nector and tubes engage simultaneously.
Ensure the PCB, connector, and tubes are fully engaged by firmly push-
ing the main chassis horizontally backward on the mounting bracket
assembly. DO NOT PUSH ON THE LCD AS THIS MAY DAMAGE IT.
• Align the two fixing screws located at the bottom of the chassis with
the screw threads on the mounting bracket assembly.
• Tighten the screws to secure the chassis to the mounting bracket
assembly.
6
7
8
7
6
8
2 X
Mounting the Transmitter Device
Remove the internal packing card securing the pump. Failure to
remove this packing will result in damage to the MidasM detector.
9
9
Mounting the Transmitter Device
Electrical Installation
Access for the electrical wires to the terminal module is made via the PG16
cable gland located at the bottom of the mounting bracket assembly. The
cable gland can be removed and replaced with a suitable conduit fitting if

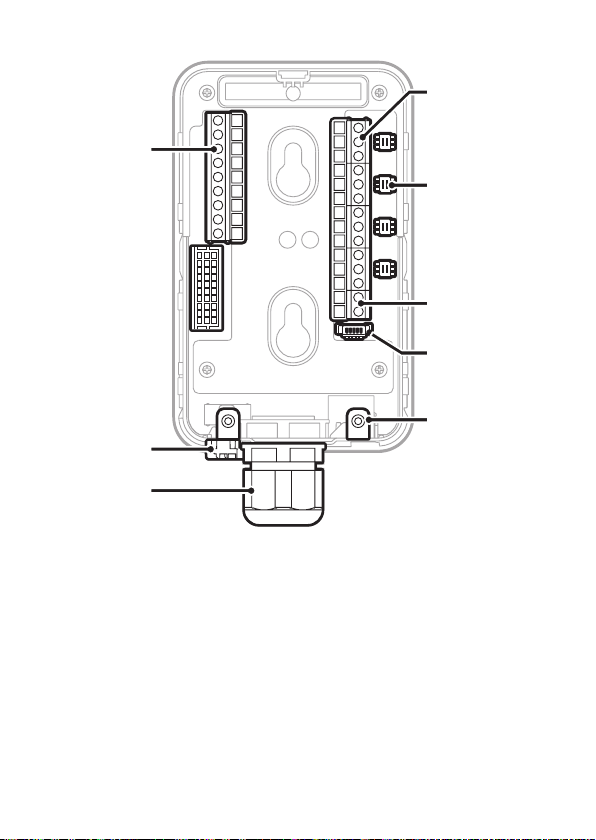

required. The wire routing of a typical installation is shown in the following
diagram.
4-20mA
Controlled
Current Source
SWITCH
EXT
EXT
INT
INT
SWITCH
+
Internal
Power
Loads
-
Relay
Contact
Terminals
4-20mA Analog Output
Switches (4 Channels)
24Vdc Power Terminals
4-20mA Analog Output
Switches (4 Channels)
RJ45 Connector
Optimal
Relays
Connector
Power Switch
Cable Gland
The terminals used are suitable for conductors of 24 to 14 AWG (0.5 to
1.8mm Dia.). We recommend using the 16 AWG (1.5 mm Dia.) conductors.
If Power over Ethernet (PoE) is used to power the device, then 24 VDC
power must not also be connected to the device, (or conversely if 24 VDC
is used to power the MidasM, then electrical power via the Ethernet port
must not be applied). Failure to observe this requirement may cause dam-
age to the gas detection system and will not be covered by the standard
warranty.
When connecting the wires, ensure that the power switch is in the off
position.
