Models

AM-50BAE

AM-50BAE-DS

AM-50BAE-AD

AM-50BAE-ADDS

Self-Contained Cubelet

Hoshizaki America, Inc.

Number: 71211

Issued: 9-23-2002

Revised: 2-7-2013

PARTS LIST

CONTENTS

Auxiliary Codes...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

A. Main Assembly .................................................................................................................. 4

B. Refrigeration Circuit........................................................................................................... 6

C. Water Circuit...................................................................................................................... 8

D. Control Box Assembly...................................................................................................... 10

E. Door Assembly .................................................................................................................11

AM-50BAE, AM-50BAE-AD..............................................................................................11

AM-50BAE-DS, AM-50BAE-ADDS.................................................................................. 12

F. Accessories & Labels....................................................................................................... 13

Auxiliary Codes

AM-50BAE

M-0 August 2002

N-1 December 2002

N-2 September 2003

P-0 December 2003

P-1 June 2004

Q-0 December 2004

R-0 December 2005

R-1 April 2006

R-2 May 2006

S-0 January 2007

T-0 January 2008

U-0 January 2009

U-1 October 2009

V-0 January 2010

A-0 January 2011

B-0 January 2012

C-0 January 2013

C-1 March 2013

Auxiliary Code Breakdown

The auxiliary code is the rst two characters in the serial number. The rst character

indicates the year. Years progress or regress in alphabetical order. The series runs from

"A" through "V" and the letters "I" and "O" are skipped. The second character indicates

signicant part changes within a year. Base is "0" and this number advances for each

change. In cases where there is a letter in parentheses, this designates the month. This is

the last character in the serial number. The series runs from "(A)" through "(M)" and the

letter "(I)" is skipped. This designation is only included when identifying a parts change

within an auxiliary code.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

AM-50BAE-DS

R-0 March 2006

S-0 May 2007

T-0 January 2008

U-0 January 2009

U-1 October 2009

U-2 November 2009

V-0 February 2010

A-0 January 2011

B-0 February 2012

C-0 January 2013

C-1 March 2013

AM-50BAE-AD

N-1 March 2003

P-0 March 2004

P-1 May 2004

Q-0 February 2005

R-0 December 2005

R-1 April 2006

R-2 May 2006

S-0 January 2007

T-0 January 2008

U-0 January 2009

U-1 October 2009

V-0 January 2010

A-0 January 2011

B-0 January 2012

C-0 January 2013

C-1 March 2013

AM-50BAE-ADDS

R-0 June 2006

S-0 January 2007

T-0 March 2008

U-0 January 2009

U-1 October 2009

U-2 November 2009

V-0 June 2010

A-0 January 2011

B-0 January 2012

C-0 February 2013

C-1 March 2013

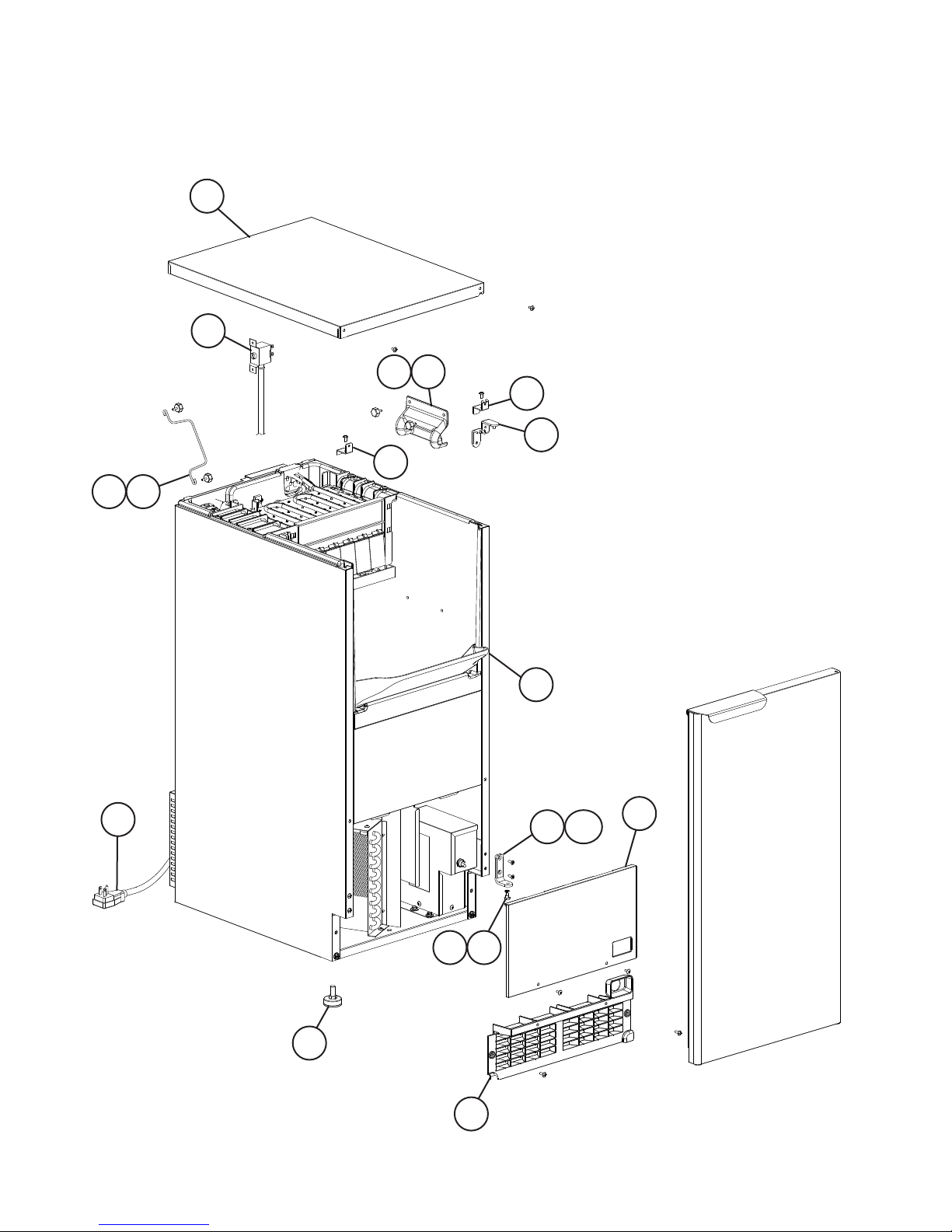

A. Main Assembly

AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

M-0 to C-1

For Doors, see Section "E"

4 4a

7 7a

13 13a

14 15

Title: A. Main Assembly Model: AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

Index

No. Description

Material or

Model Number Part Number

Required Number

M-0

N-1

R-0

R-1

U-0

U-1

C-1

1 Front Panel AM-50BAE

AM-50BAE-DS

3X6433-01 1 1 1 1

AM-50BAE-AD

AM-50BAE-ADDS

3X6433-02 1 1 1

2 Top Panel 2H5584G01 1 -

2A2849G01 1 - 1

2A3776G01 1 -

3 Louver 2H5560-01 1 1 1 1

4Bin Control Thermostat

Bulb Holder

3X6381-01 1 1 1 1

4a Thumbscrew 415949G10 2 2 2 2

5Bin Control Thermostat

Assembly

3A2561A01 1 1 1 1

6 Slope 3X6383-01 1 1 1 1

7 Scoop Holder 4Y0213-01 1 1 1 1

7a Thumbscrew 415949G10 2 2 2 2

8 Leg 4A2966-01 4 4 4 4

9 Power Supply Cord 4A2860-01 1 1 1 1

10 Hinge A AM-50BAE

AM-50BAE-AD

4Y0194G01 1 1 - 1

4A3997G01 1 -

Right Hinge A AM-50BAE-DS

AM-50BAE-ADDS

4A4885G01 1 1 - 1

4A3997G02 1 -

Left Hinge A (option) AM-50BAE-DS

AM-50BAE-ADDS

4A4895G01 1 1 - 1

4A3997G02 1 -

11 Hinge A Bracket 4A2996-01 1 1 1 1

12 Top Brace 4Y0193-01 1 1 1 1

13 Hinge B AM-50BAE

AM-50BAE-AD

4Y0192-01 1 1 1 1

AM-50BAE-DS

AM-50BAE-ADDS

4A3980-01 1 1 1

13a Flat Head Screw 4×12, SS 7C22-0412 2 2 2 2

14 Hinge Stop Pin 4A2180-01 1 1 1 1

15 Tooth Washer M6, SS 7R22-0600 1 1 1 1

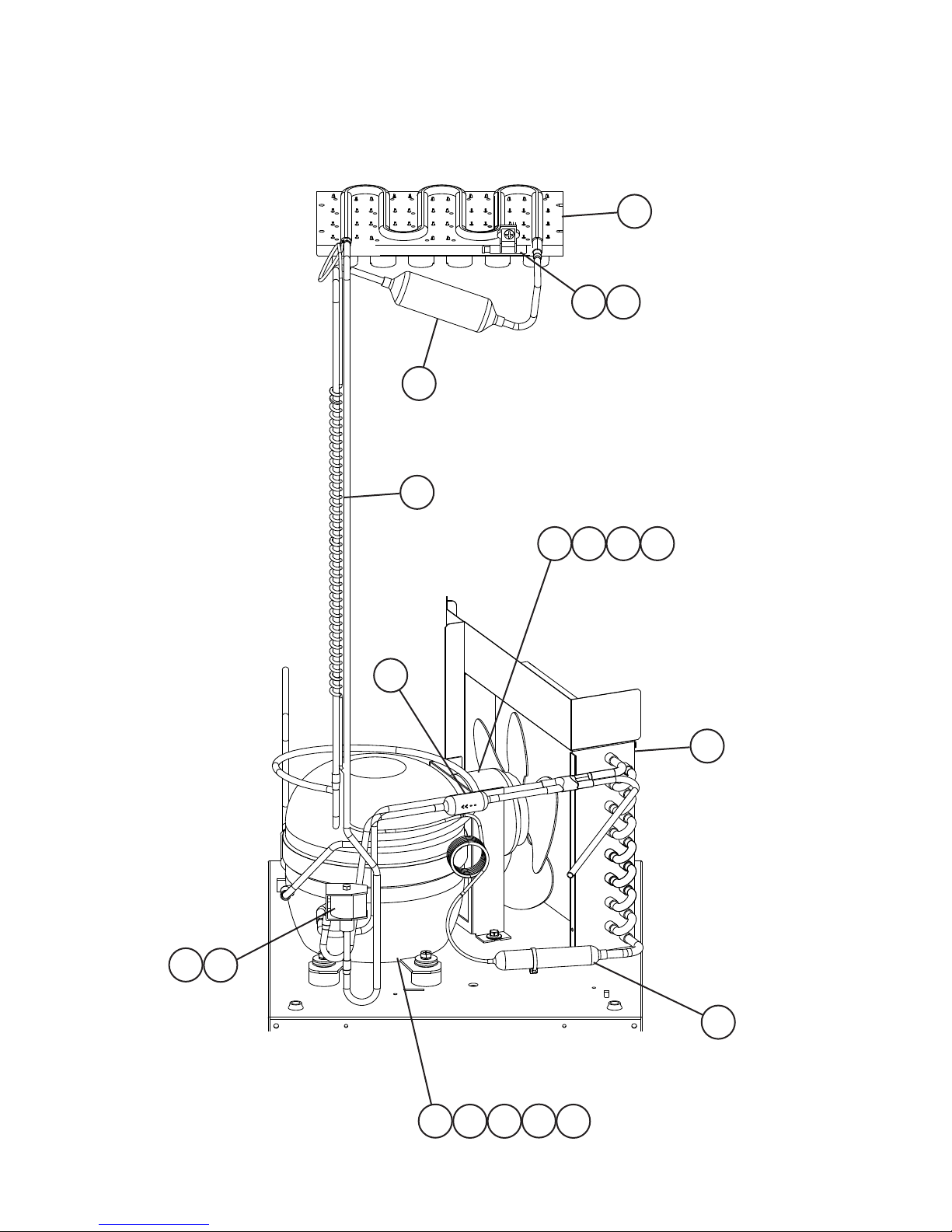

B. Refrigeration Circuit

AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

M-0 to C-1

11b 23

566a 6b

10 11

Title: B. Refrigeration Circuit Model: AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

Index

No. Description

Material or

Model Number Part Number

Required Number

M-0

C-1

1 Compressor 455942-01 1

1a Rubber Grommet 438844-01 4

1b Bolt 448834-01 4

2 PTC Relay 456252-01 1

3 Motor Protector 456254-01 1

4 Condenser 2H5586-01 1

5 Fan Motor 440916-01 1

6 Fan Blade 3A4467-01 1

6a Washer 435983-01 1

6b Hex Nut 4A1345-01 1

7 Valve Body 4A3275-01 1

8 Valve Coil 4A3277-01 1

9 Evaporator 3X3948G01 1

10 Thermistor 425373-05 1

11 Thermistor Holder 3H9642-01 1

12 Strainer 441569-01 1

13 Drier 445655-04 1

14 Heat Exchanger (includes

item 15)

AM-50BAE

AM-50BAE-DS

3X6438G01 1

AM-50BAE-AD

AM-50BAE-ADDS

3X6438G02 1

15 Accumulator 460537-02 1

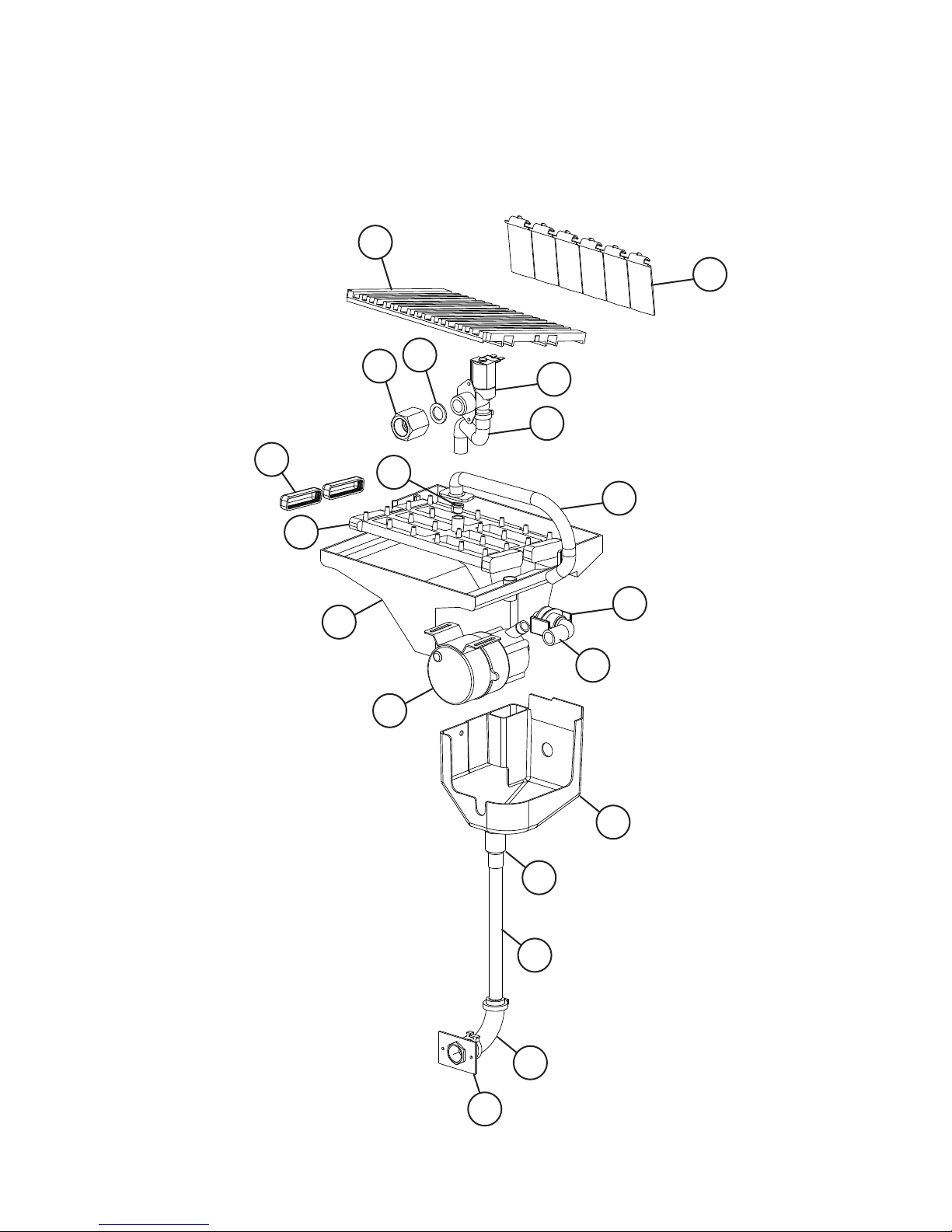

C. Water Circuit

AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

M-0 to C-1

910

Title: C. Water Circuit Model: AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

Index

No. Description

Material or

Model Number Part Number

Required Number

M-0

N-2 P-0

P-1

C-1

1 Pump Motor 463045-01 1 1 1

2Water Valve 458548-01 1 1 1

3 Rubber Gasket 413854-03 1 1

4 Fitting C 4A3240-01 1 1

5Water Valve Tube 4X7938-01 1 1 1

6 Separator 4X7933-01 6 6 6

7 Ice Chute 3X3863-01 1 1 1

8 Nozzle 2H4536-01 1 1 1

9Cap 4X7936-01 2 2 2

10 Reducing Pipe 4A2903-01 1 1 1

11 Water Tank 2H4535-01 1 1 1

12 Suction Tube 4X7937-01 1 1 1

13 Joint 4X7934-01 1 1 1

14 Discharge Tube 3X3864-01 1 1 1

15 Drain Pan 2H4534-01 1 1 1

16 Drain Tube 4H2585-01 1 1 1

17 Drain Pipe 4Y0211-01 1 1 1

18 Elbow Hose 4A1165-07 1 1 -

4A1165-08 1

19 Drain Fitting 4A3488G01 1

Hose Clamps

Hose Clamp 22-25mm 4A2017-09 1 2

Hose Clamp 15mm 435934-03 1 -

Hose Clamp 15-17mm 4A2017-07 1 1

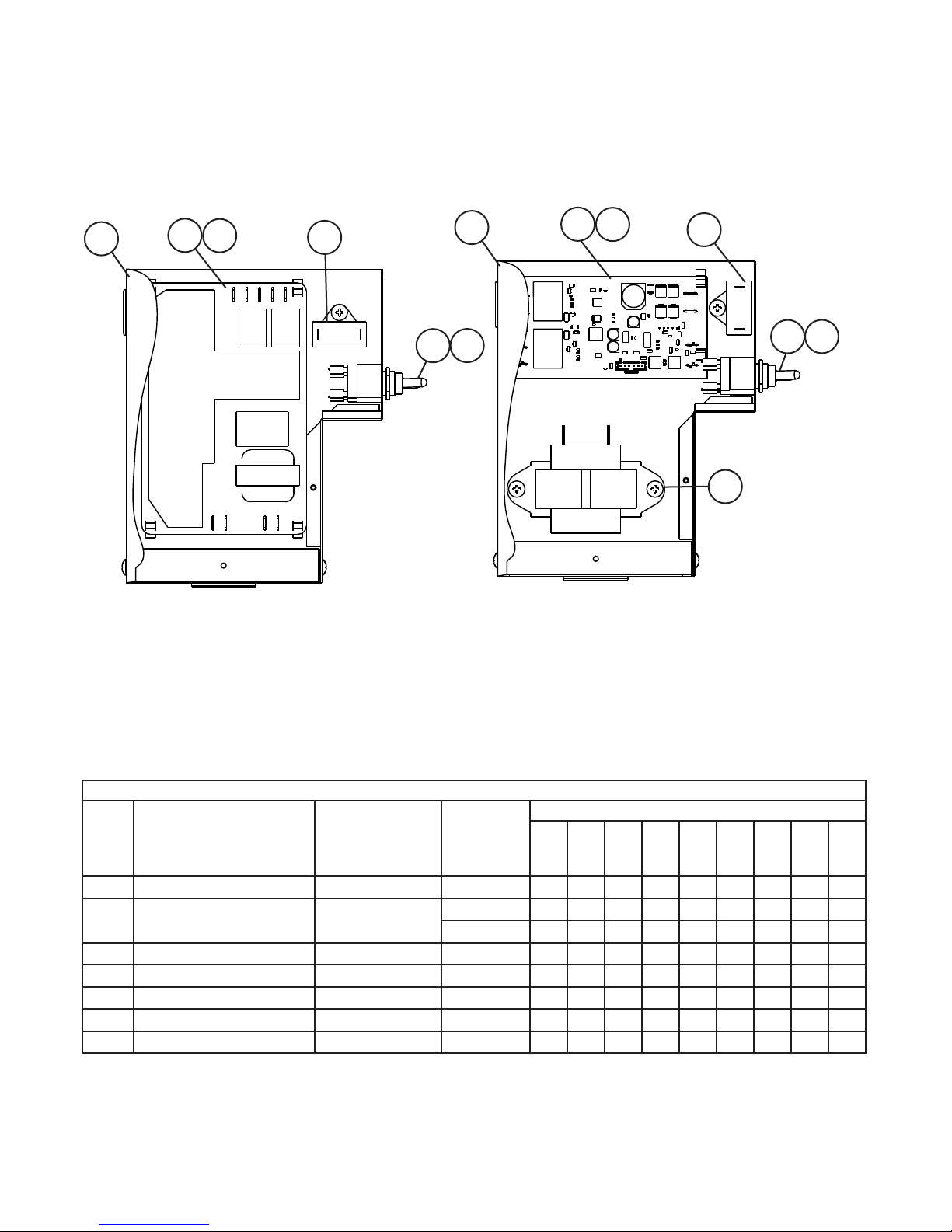

D. Control Box Assembly

AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

M-0 to C-1

Title: D. Control Box Assembly Model: AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS

Index

No. Description

Material or

Model Number Part Number

Required Number

M-0

C-0 C-1

1 Control Box Cover 3X6448G01 1 1

2 Control Board 463046-01 1 -

4A5520-01 1

2a Board Support 4A0336-03 4 4

3 Pump Motor Capacitor 1MFD, 200VAC 463047-01 1 1

4 Control Switch 443119-01 1 1

5Cap 4A1937-01 1 1

6Control Transformer 4A0557-01 1

4545

M-0 to C-0 C-1 and Later

2a 22a
