NO.

ISSUED:

71084

MODEL

HOSHIZAKI

CUBELET ICE DISPENSER

PARTS LIST

DCM-450BAE (HA)

DCM-450BWE (HA)

NOV. 19, 1998

REVISED: OCT. 13, 1999

DCM-450BAE G-0 Dec., 1996

G-1 June, 1997

H-0 Dec., 1997

DCM-450BWE G-0 Dec., 1996

G-1 June, 1997

H-0 Jan., 1998

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed

in a year, this number advances.

FASTENER ABBREVIATION LIST

S Phillips russ Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

1 Phillips russ Head apping Screw (Correspond to ype A)

2 Phillips russ Head apping Screw (Correspond to ype B)

3 Phillips russ Head apping Screw (Correspond to ype C)

F Phillips russ Head apping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

W External ooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. S 0308S (Phillips russ Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

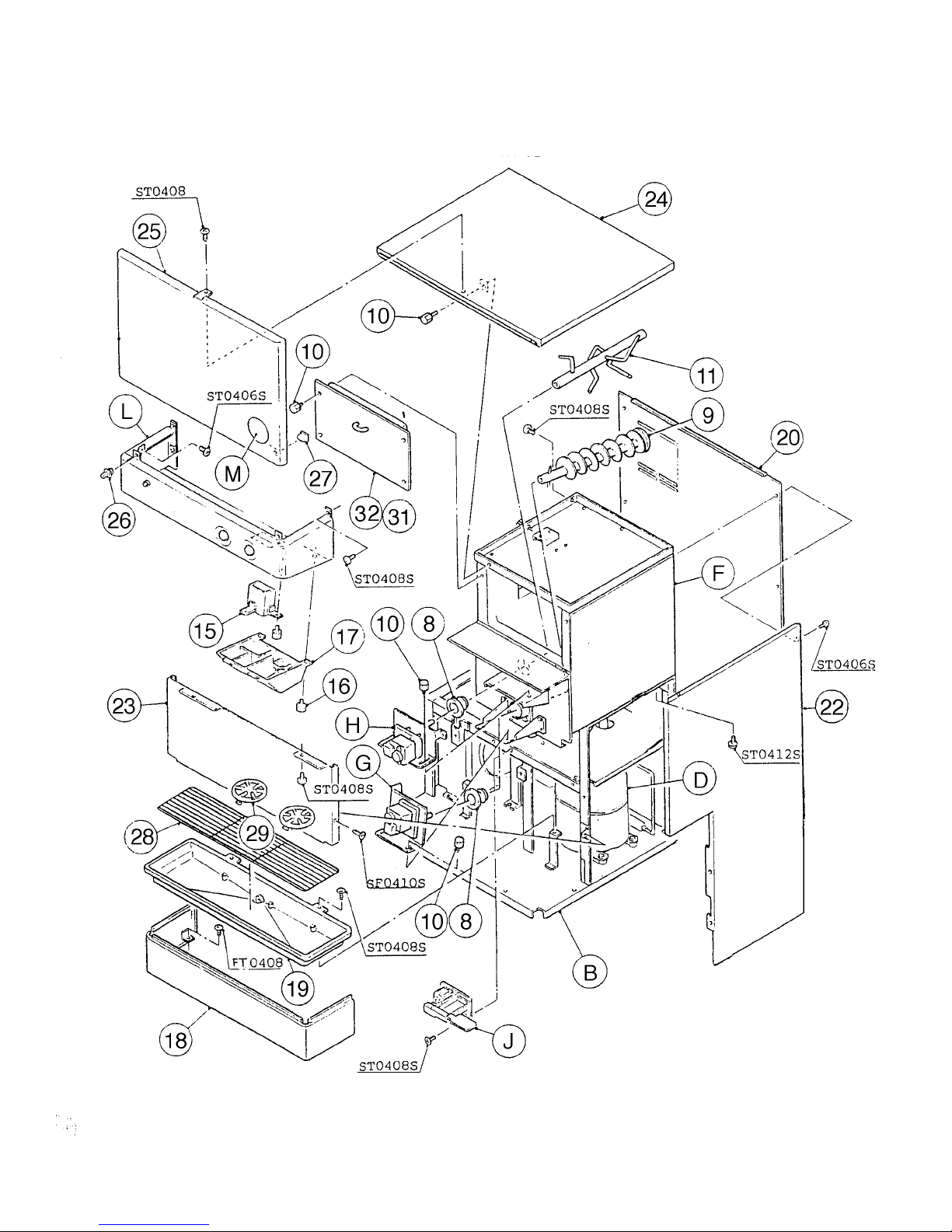

DCM-450BAE A. ICE DISPENSER ASSEMBLY (1/2) G-0, G-1, H-0

DCM-450BAE A. ICE DISPENSER ASSEMBLY (2/2) G-0, G-1, H-0

MODEL: DCM-450BAE TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

G-0 G-1 H-0

B FRAME ASSEMBLY - 2A0388A01 1 1 1

C EVAPORATOR ASSEMBLY - 213831A02 1 1 1

SOCKET HEAD HEX BOLT SS, 8 X 90 7S12-0890 3 3 3

SPLIT LOCK WASHER SS, 8 7L22-0800 3 3 3

D REFRIGERATION CIRCUIT - 2A0393A01 1 1 1

E WATER CIRCUIT - 2A0395A01 1 1 1

F BIN ASSEMBLY - 2A0413A01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 3 3 3

TRUSS HEAD SCREW 4 X 12 7C31-0412 2 2 2

G GEAR MOTOR ASSEMBLY - 4A0622A01 1 1 1

H GEAR MOTOR ASSEMBLY - 4A0620A01 1 1 1

J SHUTTER ASSEMBLY - 2A0410A01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2

K CONTROL BOX ASSEMBLY - 2A0390A01

TRUSS HEAD SCREW 4 X 8 7C31-0408 3 3 3

L MIDDLE FRONT PANEL

ASSEMBLY

- 2A0409A01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2

M LABEL LOCATION - 2A0407A01 1 1 1

1 BRACKET - EVAPORATOR 3A0360-01 1 1 1

HEX HEAD BOLT W/WASHER

(LF)

SS, 5 X 10 7B0230510 2 2 2

2 PACKING 427151-02 1 1 1

3 SPOUT 103329G01 1 1 1

4 PACKING (A) - SPOUT 427195-01 1 1 1

5 THUMBSCREW 415949G03 7 7 7

6 SPOUT (B) 208807-01 1 1 1

7 PACKING(B) - SPOUT 427196-01 1 1 1

MODEL: DCM-450BAE TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

G-0 G-1 H-0

8 GASKET 429758-01 2 2 2

9 AUGER 319014G01 1 1 x1

339192G01 o1

10 THUMBSCREW 415949G05 11 11 11

11 AGITATOR 319018G01 1 x1

3A0895G01 o1 1

12 SCREW - GROUNDING 433304-02 1 1 1

13 WASHER 433537-02 1 1 1

14 COLLAR 4H0171-01 2 2 2

FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2

15 ICE CHUTE 439788G01 1 1 1

16 THUMBSCREW 415949G08 4 4 4

17 SPOUT COVER 215773-01 1 1 1

18 PANEL (LO) 2A0699G01 1 1 1

FT SCREW SS, 4 X 8 7F32-0408 6 6 6

19 TRAY - DRIP 105219G01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4

20 REAR PANEL 2A0405-01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4

21 SIDE PANEL (L) 2A0696-01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6

22 SIDE PANEL (R) 2A0695-01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6

23 APRON PANEL 2A0720-01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2

FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2

24 TOP PANEL 3A0640G01 1 1 1

25 FRONT PANEL 3A0638G01 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 1 1 1

MODEL: DCM-450BAE TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

G-0 G-1 H-0

26 STRIKE 4A0515-01 2 2 2

27 LATCH 4A0508-03 2 2 2

28 GRILLE 2A0827G01 1 1 1

29 GUIDE - CUP 326702-01 2 2 2

30 LOUVER (B) 103121-03 2 2 2

31 AIR FILTER (B) 208283G03 1 1 1

32 TAPPING SCREW - BLACK 433954-01 2 2 2

33 SPACER 419945-01 2 2 2

34 BUSHING 420472-03 1 1 1

35 COVER – BIN 2A0880A01 1 1 1

DCM-450BWE A. ICE DISPENSER ASSEMBLY (1/2) G-0, G-1, H-0
