Hoshizaki F-1001MAF Manuale utente

NO. NOV.7, 2000

ISSUED: 71181

(FINAL) PARTS LIST

HOSHIZAKI

MODULAR FLAKER

MODEL

F-1001MAF(-C)

F-1001MWF(-C)

F-1001MRF(-C)

F-1001MLF(-C)

SEPT. 11, 2002

REVISED:

F-1001MAF K-0 OCT., 2000

L-1 DEC., 2000

F-1001MAF-C K-0 OCT., 2000

L-1 DEC., 2000

F-1001MWF K-0 OCT., 2000

L-1 DEC., 2000

F-1001MWF-C K-0 OCT., 2000

L-1 DEC., 2000

F-1001MRF K-0 OCT., 2000

L-1 DEC., 2000

F-1001MRF-C K-0 OCT., 2000

L-1 DEC., 2000

F-1001MLF K-0 OCT., 2000

L-1 DEC., 2000

F-1001MLF-C K-0 OCT., 2000

L-1 DEC., 2000

HA MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide=Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = VinylNitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanizedsteel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" (interchangeably) by "o" part.

skipped. So, "K" indicates "2000". o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed (non-interchangeably)

in a year, this number advances.

F-1001MAF(-C) A.ICE FLAKER ASSEMBLY K-0, L-1

MODEL: F-1001MAF TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-1

B ICE MAKING UNIT - 3A1600A01 1 1

B1 SOCKET HEAD HEX BOLT 8X110, SS 7S12-0811 3 3

B2 SPLIT LOCK WASHER 8, SS 7L22-0800 3 3

C REFRIGERATION UNIT - 2A0969A03 1 1

D WATER CIRCUIT HS-2025 2A1966A01 1 1

E CONTROL BOX ASSEMBLY - 2A1045A01 1 -

- 2A1879A01 1

E1 TRUSS HEAD SCREW 7C31-0408 3 3

F CHUTE ASSEMBLY HS-2024 2A1705A04 1 1

G LABEL LOCATION - 2A1849A01 1 1

MODEL: F-1001MAF-C TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-1

B ICE MAKING UNIT - 3A1600A02 1 1

B1 SOCKET HEAD HEX BOLT 8X110, SS 7S12-0811 3 3

B2 SPLIT LOCK WASHER 8, SS 7L22-0800 3 3

C REFRIGERATION UNIT - 2A0969A03 1 1

D WATER CIRCUIT HS-2025 2A1966A01 1 1

E CONTROL BOX ASSEMBLY - 2A1045A01 1 -

- 2A1879A01 1

E1 TRUSS HEAD SCREW 7C31-0408 3 3

F CHUTE ASSEMBLY HS-2024 2A1705A04 1 1

G LABEL LOCATION - 2A1849A05 1 1

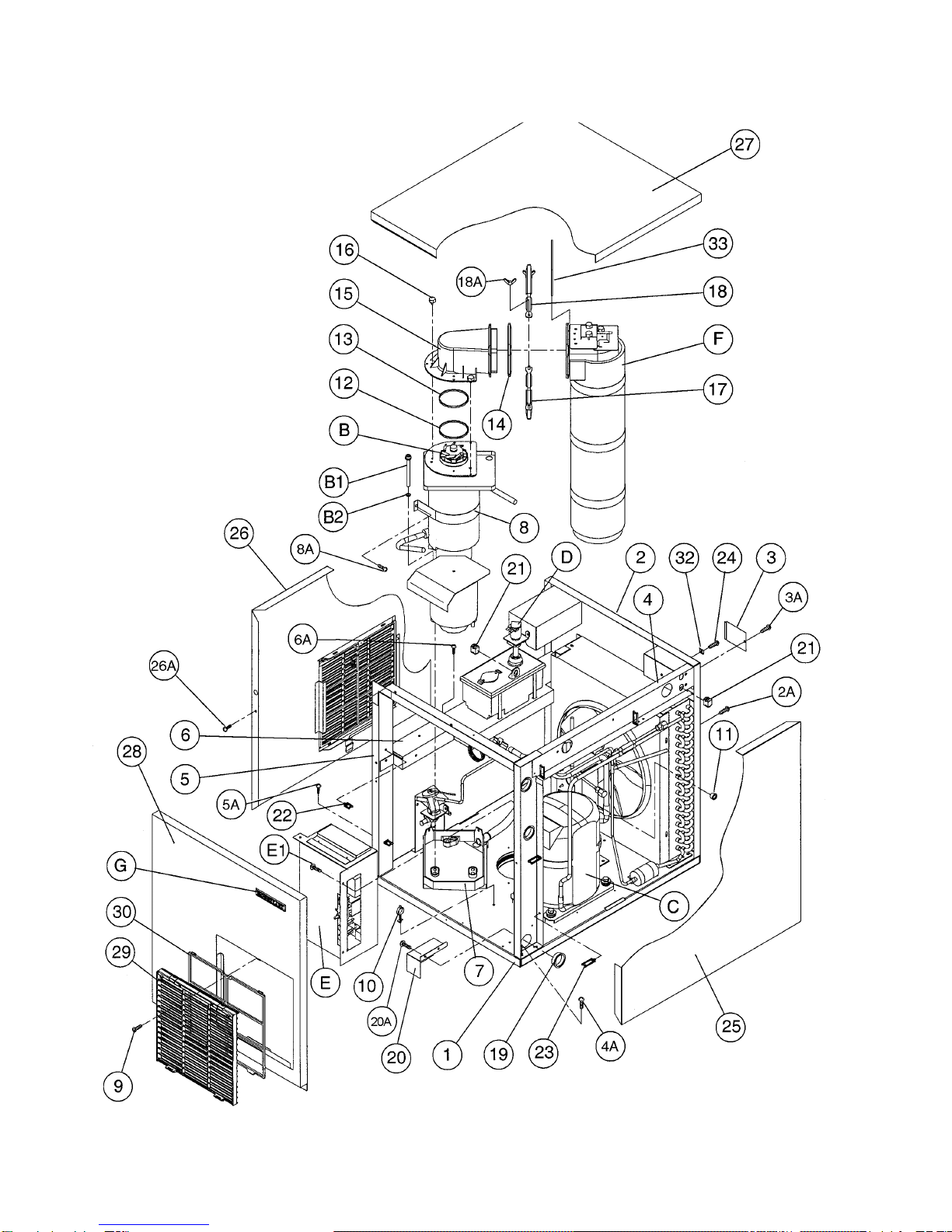

MODEL: F-1001MAF(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

L-1

1 CHASSIS GS 2A1176G04 1

2 REAR PANEL GS 2A1008G01 1

2A T2 SCREW 4X8 7P31-0408 4

3 JUNCTION BOX COVER GS 433410-01 1

3A T2 SCREW 4X8 7P31-0408 1

4 SIDE FRAME (R) GS 2A1545G01 1

4A TRUSS HEAD SCREW 4X8 7C31-0408 2

5 FRONT FRAME GS 3A1635G01 1

6 RESERVOIR BRACKET GS 2A1060-01 1

6A T2 SCREW 4X8 7P31-0408 4

7 DRAIN PAN ABS 323765G02 1

8 STRAP GS 4A1474-01 1

8A T3 SCREW 5X12 7G31-0512 2

9 TAPPING SCREW - BLACK STEEL,4X8 433954-01 2

10 CLAMP WS75-75-C 4A0337-12 3

11 BUSHING SB-562-7 420470-09 1

12 RING PA 432661-02 1

13 “O” RING G70 7616-G070 1

14 PACKING-SPOUT EPDM 321037-01 1

15 SPOUT PC 104797-01 1

16 THUMBSCREW SS,ABS 415949G04 5

17 STRAP SS 321038G02 1

18 STRAP SS 328703-02 1

18A WING NUT 6, SS 7E12-0600 2

19 BUSHING SB-1500-21 420470-06 3

20 BARRIER GS 4A0688-01 1

20A TRUSS HEAD SCREW 4X8 7C31-0408 2

21 BUSHING SR-30-1 420472-03 2

22 WIRE SADDLE LWS-2NS 4A0338-02 5

23 WIRE SADDLE LWS-4NS 4A0338-04 4

MODEL: F-1001MAF(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

L-1

24 SCREW-GROUNDING BRASS 433304-02 1

25 SIDE PANEL (RIGHT) SS 2A1845G01 1

25A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

26 SIDE PANEL (LEFT) SS 2A1846G02 1

26A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

27 TOP PANEL SS 2A1051-02 1

28 FRONT PANEL SS 2A1848-01 1

29 LOUVER (B) PP 103121-03 2

30 AIR FILTER (B) - 208283G03 2

31 CABLE TIE CV-150 7920-0003 1

32 SQUARE WASHER BRASS 433537-02 1

33 BRACKET-CHUTE SS 4A1712-01 1

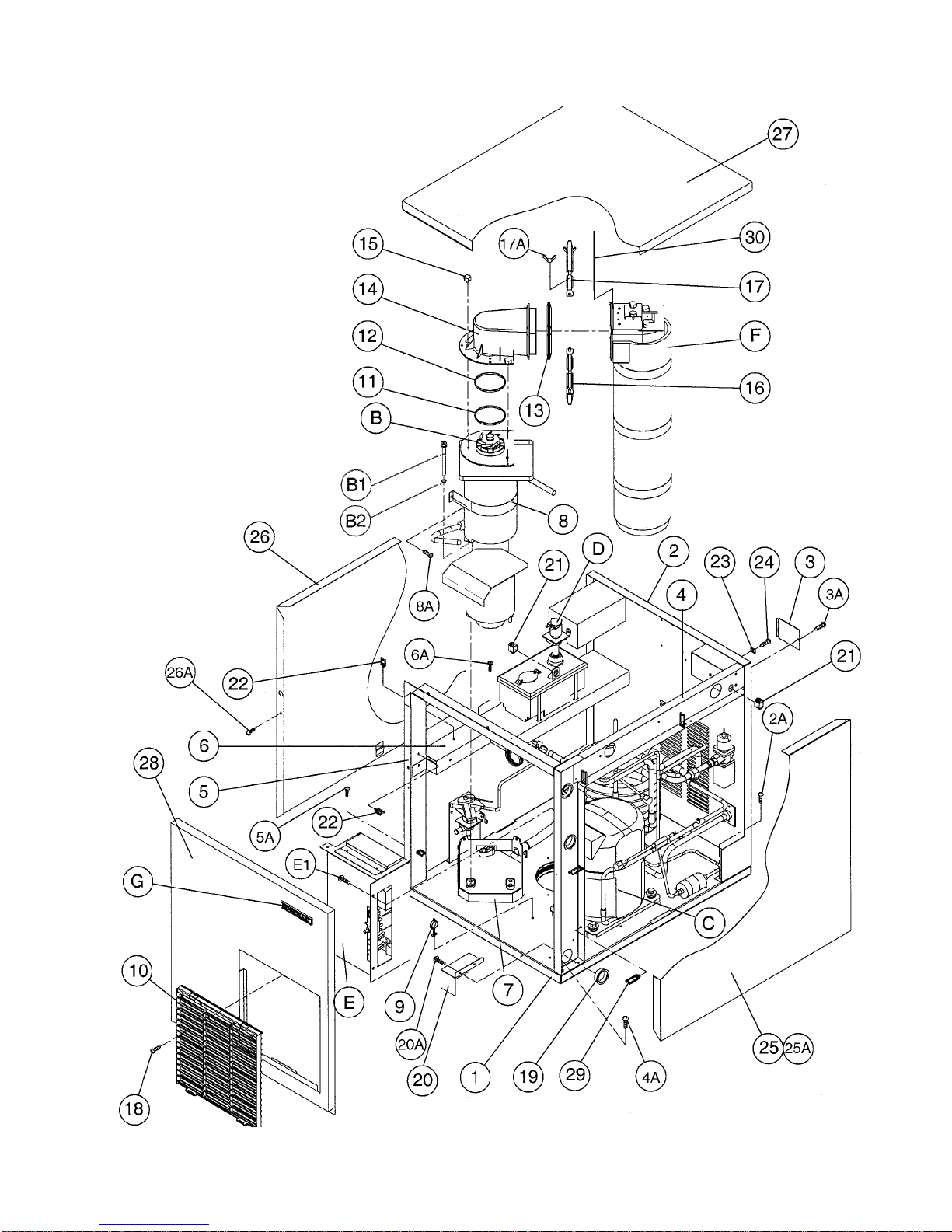

F-1001MWF(-C) A.ICE FLAKER ASSEMBLY K-0, L-1

MODEL: F-1001MWF TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-1

B ICE MAKING UNIT - 3A1600A01 1 1

B1 SOCKET HEAD HEX BOLT 8X110, SS 7S12-0811 3 3

B2 SPLIT LOCK WASHER 8, SS 7L22-0800 3 3

C REFRIGERATION UNIT - 2A1021A03 1 1

D WATER CIRCUIT HS-2025 2A1966A01 1 1

E CONTROL BOX ASSEMBLY - 2A1045A02 1 -

- 2A1878A01 1

E1 TRUSS HEAD SCREW 4X8 7C31-0408 3 3

F CHUTE ASSEMBLY HS-2024 2A1705A04 1 1

G LABEL LOCATION - 2A1849A02 1 1
