Hoshizaki HS-5245 Manuale utente

12A8478-013

Hoshizaki Prison Kit

HS-5245, HS-5246, HS-5252, HS-5253,

HS-5254, HS-5255, HS-5426, HS-5427

For use with Hoshizaki Ice Machines: KM-350M_J, KM-520M_J, KM-660M_J,

KM-901M_J, KM-1301S_J/3, and KM-1900S_J/3

Check to ensure that all parts are included:

Index

No. Description

Kit

Number Model

Part

Number Qty

1 Front Panel HS-5426 KM-350MAJ, KM-520MAJ, KM-660MAJ 3B0020G01 1

HS-5427 KM-350MWJ, KM-520MWJ, KM-520MRJ, KM-660MWJ, KM-660MRJ 1A5320G01 1

HS-5245 KM-901MAJ 2A8612G01 1

HS-5246 KM-901MWJ 2A8612G02 1

HS-5252 KM-1301SAJ/3 2A7289G01 1

HS-5253 KM-1301SWJ/3 2A7251-01 1

HS-5254 KM-1900SAJ/3 2A7292G01 1

HS-5255 KM-1900SWJ/3 2A7252-01 1

2 Torx Screw (4 mm-small) All All 7PP2I0812 20

3 Torx Screw (4 mm-large) All All 7PP2-0410 6

4 Torx Screw (5 mm) All All 7PP2-0512 3

5 Torx Pin Bit (small) All All 7PP2-0001 1

6 Torx Pin Bit (large) All All 7PP2-0002 1

WARNING

• Only qualied service technicians should install this kit to reduce the risk of death, electric shock, serious injury, or re.

• Move the icemaker control switch to the "OFF" position and turn off the power supply before servicing. Lockout/Tagout to

prevent the power supply from being turned back on inadvertently.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is

done to the appliance. Make sure that none have fallen into the ice storage bin.

• No installation or service should be undertaken until the technician has thoroughly read these instructions.

Installation Instructions

1) Turn off the power supply. Lockout/Tagout to prevent the power supply from being turned on inadvertently.

2) Remove and discard the front panel and screw(s). See Fig. 1 and Fig. 2.

3) Place the new front panel in its correct position and secure with Torx screw(s) (4 mm-large) provided in this kit.

4) Remove all screws from the sides of the appliance (KM-1301 and KM-1900S_J/3) and replace with Torx screws (4 mm-large)

provided in this kit. See Fig. 2.

Fig. 2

Model Shown:

KM-520MAJ

Fig. 1

4 mm-large

Model Shown:

KM-1900SAJ3

4 mm-large

Side

22A8478-013

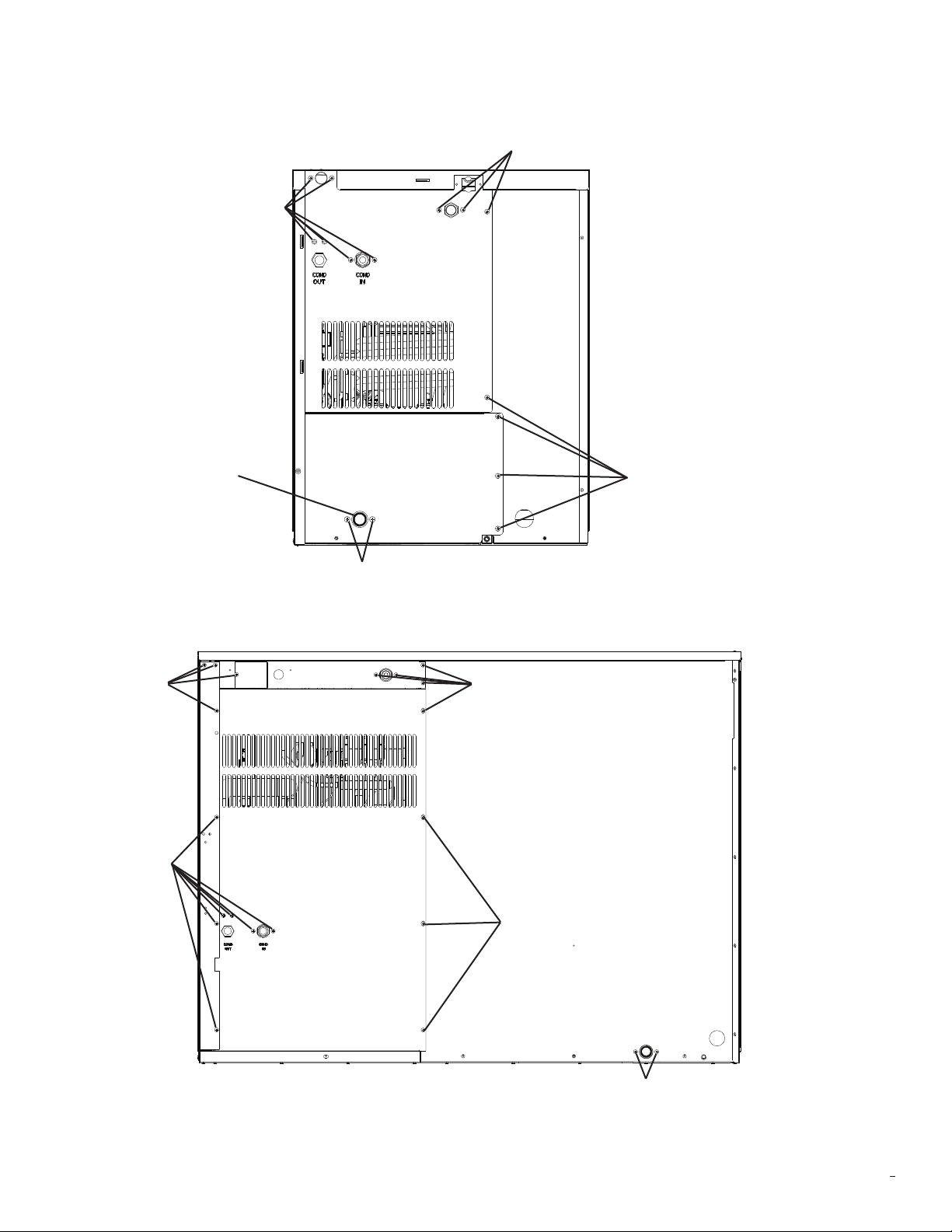

5) Remove all but the drain valve tting screws from the rear of the appliance and replace with Torx screws (4 mm-small) provided in

this kit. See Fig. 3 and Fig. 4.

6) Remove the drain valve tting screws and replace them with Torx screws (5 mm) provided in this kit.

7) Dispose of any remaining screws.

4 mm-small

5 mm

4 mm-small4 mm-small

4 mm-small

5 mm

Model Shown:

KM-520MWJ

Model Shown:

KM-1900SWJ3

Fig. 3

Fig. 4

Drain Valve

Fitting

Drain Valve

Fitting

4 mm-small
