NO.

JAN. 8, 1999ISSUED:

71131

PARTS LIST

HOSHIZAKI

STACKABLE CRESCENT CUBER

MODELS

KM-2000SWF3

KM-2000SRF3

KM-2000SWH3

KM-2000SRH3

OCT. 14, 2002REVISED:

KM-2000SWF3 H-0 MARCH 1998

H-1 JULY 1998

J-0 DEC., 1998

K-0 DEC., 1999

KM-2000SRF3 H-0 MARCH 1998

H-1 JULY 1998

J-1 FEB., 1999

K-0 DEC., 1999

KM-2000SWH3 L-0 JAN., 2001

M-0 DEC., 2001

M-1 MARCH, 2002

M-3 MAY, 2002

KM-2000SRH3 L-0 DEC., 2000

M-0 JAN., 2002

M-1 MARCH, 2002

M-2 MAY, 2002

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODES

Ex.1 K-0

(Note) - = Part deleted.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part (interchangeable).

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L- 0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L- 1

Each time a part is changed (non-interchangeably)

in a year, this number advances.

KM-2000SWF3, KM-2000SWH3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, K-0,

L-0, M-0, M-1, M-3

MODEL:KM-2000SWF3, SWH3 TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-2000SWF3 KM-2000SWH3

NUMBER H-0 H-1 J-0

K-0

L-0 M-0 M-1 M-3

B REFRIGERATION CIRCUIT - 1A0228A01 1 1 1 1 1 -

- 1A0707A01 1 1

C WATER CIRCUIT - 105122A05 1 1 1 1 1 1 1

D CONTROL BOX ASSEMBLY HS-1105 2A1122A03 1 1 1 1 1 1 -

- 2A2527A01 1

D1 T2 SCREW 4X8 7P31-0408 3 3 3 3

E LABEL LOCATION - 2A1124A01 1 1 1

- 2A2098A01 1 1 1 -

- 2A2560A01 1

F TRANSFORMER BOX ASSEMBLY HS-0126 3A1102A01 1 1 1 1 1 1 1

F1 HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 4 4 4 4 4 4 4

1 EVAPORATOR CASE - 2A1102G06 1 1 1

- 2A2100G03 1 1 -

- 2A2100G04 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1 -

GS 3A2386-01 1

2A T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1 1 1

5 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1 1 1

6A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2

7 BULB HOLDER PE 328919-01 1 1 1 1 1 1 1

8 SPACER PE 443545-01 1 1 1 1 1 1 2

8A T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2 2

9 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1

9A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

10 BUSHING EPDM 425307-01 1 1 1 1 1 1 1

11 SPACER ABS 439727-01 1 1 1 1 1 1 1

MODEL:KM-2000SWF3, SWH3 TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERI AL

OR MODEL

PART

NUMBER KM-2000SWF3 KM-2000SWH3

NUMBER H-0 H-1

J-0

K-0 L-0 M-0 M-1 M-3

12 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1

13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1 1 1

13A T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3

14 SPACER ABS 324321-01 1 1 1 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1

16 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1

18 SIDE PANEL (R) SS 215381G01 1 1 1

SS 215381G02 1 1 1 1

18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3

19 TOP PANEL SS 213669-02 1 1 1

SS 2A2096-01 1 1 1 1

19A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3

20 FRONT PANEL SS 325848G01 1 1 1

SS 3A1838G01 1 1 1 1

20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2

21 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1

21A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

22 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1

23 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1

23A TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2

24 GASKET L=1219 4A0808L02 1 1 1 1 1

KM-2000SRF3, KM-2000SRH3 A. ICE CUBER ASSEMBLY H-1, H-1, J-1, K-0,

L-0, M-0, M-1, M-2

MODEL:KM-2000SRF3, SRH3 TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-2000SRF3 KM-2000SRH3

NUMBER H-0 H-1 J-1

K-0

L-0 M-0 M-1 M-2

B REFRIGERATION CIRCUIT - 1A0237A01 1 1 1 1 1 x1

- 1A0237A02 o1 1

C WATER CIRCUIT - 105122A05 1 1 1 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1 1 -

- 2A2527A01 1

D1 T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3

E LABEL LOCATION - 2A1125A01 1 1 1

- 2A2097A01 1 1 1 -

- 2A2561A01 1

F TRANSFORMER BOX ASSEMBLY HS-0126 3A1102A01 1 1 1 1 1 1 1

F1 HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 4 4 4 4 4 4 4

1 EVAPORATOR CASE - 2A1102G07 1 1 1

- 2A2100G02 1 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1 -

GS 3A2386-01 1

2A T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2 2 2

4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2 2 2

5 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2 2

6A T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2

7 BULB HOLDER PE 328919-01 1 1 1 1 1 1 1

8 SPACER PE 443545-01 1 1 1 1 1 1 2

8A T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2 2

9 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1

9A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

10 BUSHING EPDM 425307-01 1 1 1 1 1 1 1

11 SPACER ABS 439727-01 1 1 1 1 1 1 1

MODEL:KM-2000SRF3, SRH3 TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-2000SRF3 KM-2000SRH3

NUMBER H-0 H-1 J-1

K-0

L-0 M-0 M-1 M-2

12 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1

13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1 1 1

13A T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3

14 SPACER ABS 324321-01 1 1 1 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1

16 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1

18 SIDE PANEL (R) SS 215381G01 1 1 1

SS 215381G02 1 1 1 1

18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3

19 TOP PANEL SS 213669-02 1 1 1

SS 2A2096-01 1 1 1 1

19A TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3

20 FRONT PANEL SS 325848G01 1 1 1

SS 3A1838G01 1 1 1 1

20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2

21 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1

21A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

22 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1

23 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1

23A TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2

24 BUSHING SR-30-1 420472-03 1 1 1 1 1 1 1

25 GASKET L=1219 4A0808L02 1 1 1 1 1

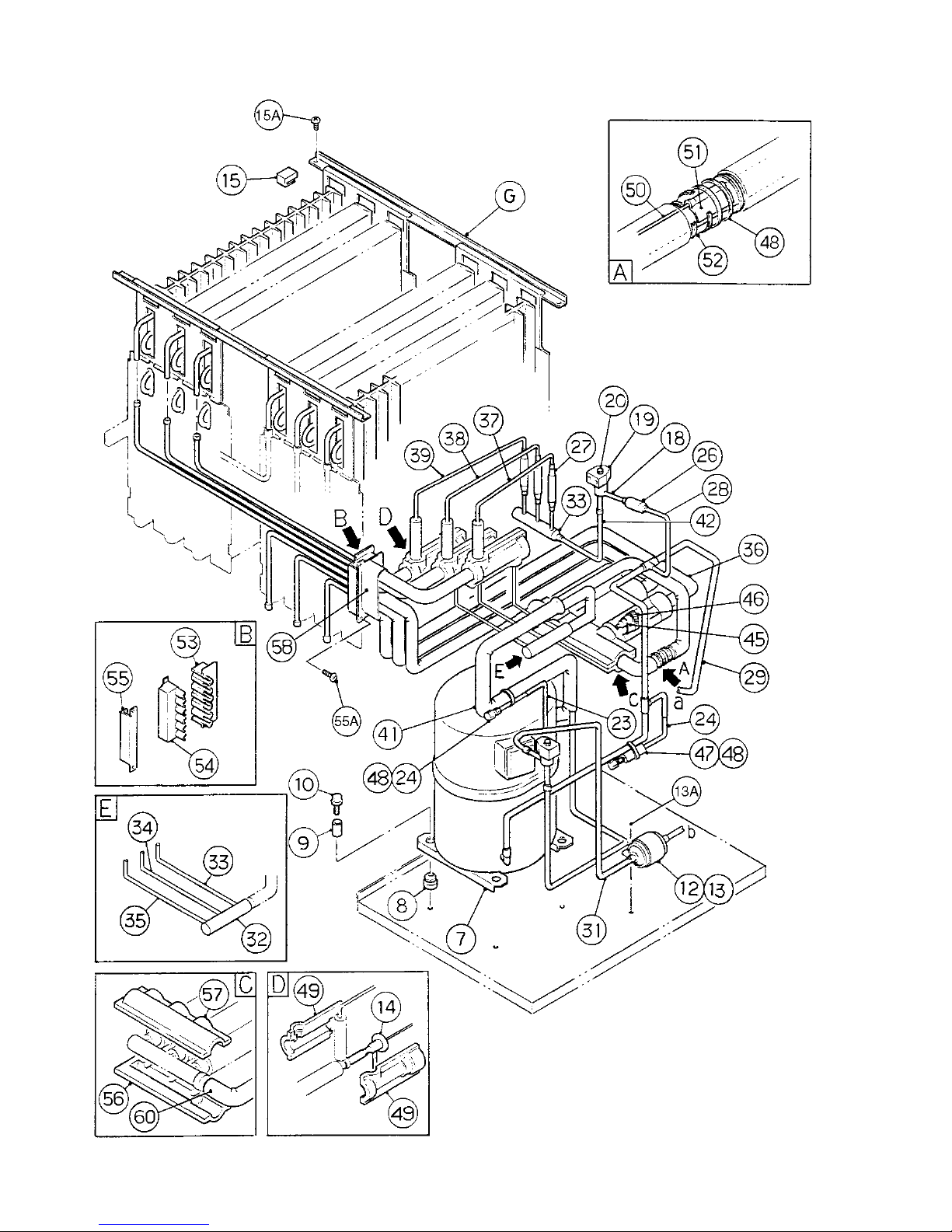

KM-2000SWF3, KM-2000SWH3 B. REFRIGERATION CIRCUIT 1/2 H-0, H-1, J-0, K-0, L-0, M-0
