PARTS LIST

HOSHIZAKI

MODULAR CRESCENT CUBER

MODEL

KM-1601MRH

KM-1601MRH3

July xx, 2005

REVISED:

CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Cuber Assembly .......................................................................................................... 5

KM-1601MRH, MRH3 ....................................................................................................... 5

B. Refrigeration Circuit ......................................................................................................... 7

KM-1601MRH, MRH3 ....................................................................................................... 7

C. Water Circuit .................................................................................................................... 11

KM-1601MRH, MRH3 ..................................................................................................... 11

D. Control Box Assembly ..................................................................................................... 14

KM-1601MRH, MRH3 ..................................................................................................... 14

E. Label Location ................................................................................................................. 16

KM-1601MRH, MRH3 ..................................................................................................... 16

F. Capacitor Box Assembly .................................................................................................. 18

KM-1601MRH ................................................................................................................. 18

F. Transformer Box Assembly ............................................................................................... 19

KM-1601MRH3 ............................................................................................................... 19

G. Evaporator ...................................................................................................................... 20

KM-1601MRH, MRH3 ..................................................................................................... 20

H. Pump Motor Assembly .................................................................................................... 21

KM-1601MRH, MRH3 ..................................................................................................... 21

J. Accessories ...................................................................................................................... 22

KM-1601MRH, MRH3 ..................................................................................................... 22

Auxiliary Codes

KM-1601MRH Q-0 May 2005

KM-1601MRH3 Q-0 May 2005

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally must

be ordered separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetraﬂuoroethylene = Teﬂon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates signiﬁcant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 2004.

"1" indicates the ﬁrst signiﬁcant part change for 2004.

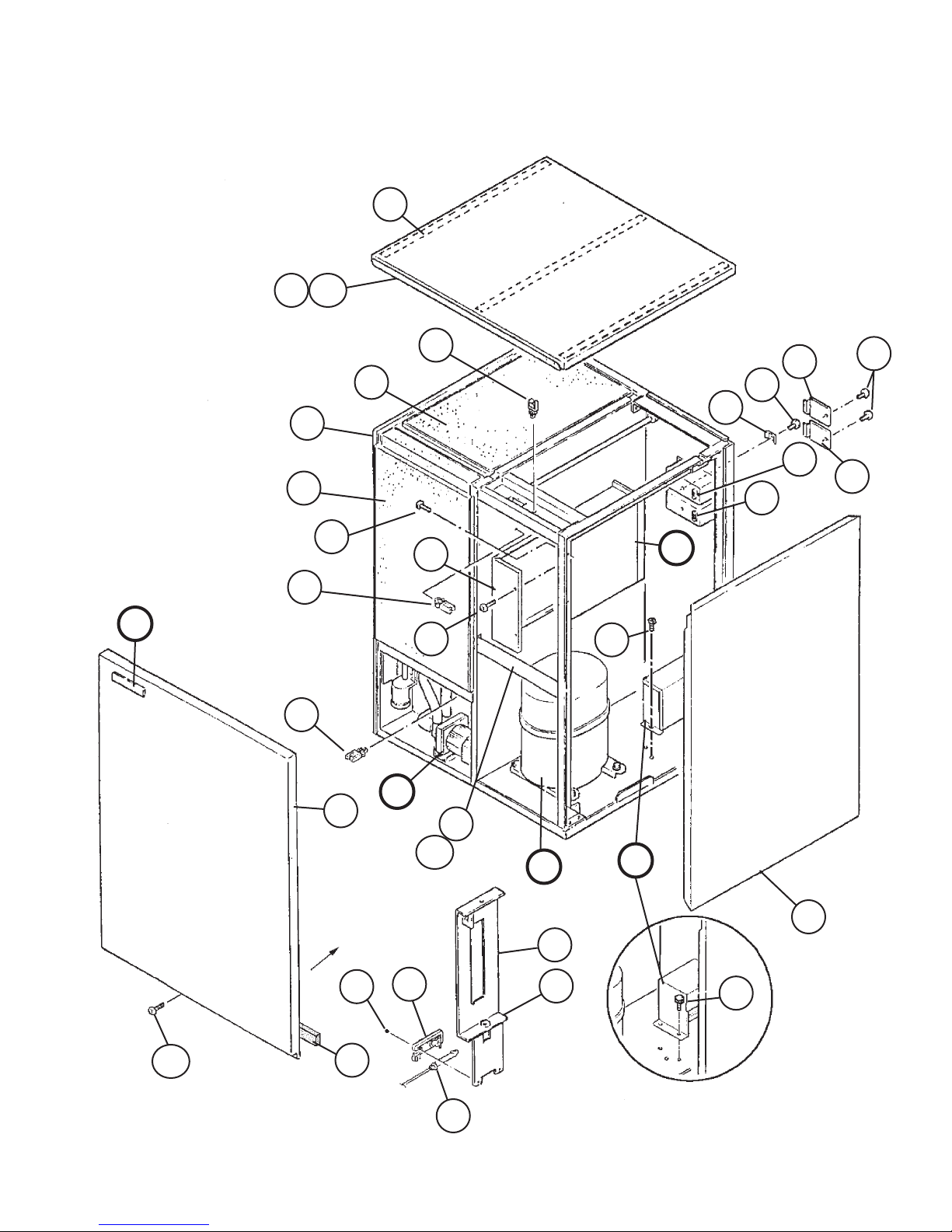

A. Ice Cuber Assembly

KM-1601MRH, MRH3

Q-0

15 15a

17a

21a

MRH

MRH3

Title: A. Ice Cuber Assembly Model: KM-1601MRH, MRH3

Index

No.

Description

Material or

Model Number Part Number

Required Number

Q-0

B Refrigeration Circuit KM-1601MRH 1A0242A07 1

KM-1601MRH3 1A0242A08 1

C Water Circuit - 1A0094A06 1

D Cont. Box Assembly - 2A2527A01 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location KM-1601MRH 2A2528A03 1

KM-1601MRH3 2A2528A04 1

F Capacitor Box Assembly KM-1601MRH 3A2054A02 1

Transformer Box Assembly KM-1601MRH3 3A1102A01 1

F1 T2 Screw KM-1601MRH

4×8

7P31-0408 2

Hex Head Bolt w/Washer (LF) KM-1601MRH3

5×10

7B0130510 4

1 Evaporator Case - 1A0602G01 1

2 Cont. Box Cover GS 3A2386-01 1

2a T2 Screw 4×8 7P31-0408 2

3 Square Washer COPPER 433537-02 2

4 Screw – Grounding BRASS 433304-02 2

5 Bushing SR-30-1 420472-03 1

6 Bushing SR-34-2 420472-05 1

7 Junction Box Cover GS 433410-01 2

7a T2 Screw 4×8 7P31-0408 2

8 Bulb Holder - 322815G02 1

8a FT Screw 4×10, SS 7F32-0410 2

9 Bulb Holder ABS 328919-01 1

10 Spacer PE 443545-01 2

11 Bushing EPDM 425307-01 1

12 Top Insulation ABS, PE 322714G01 1

13 Front Insulation ABS, PE 322711G01 1

14 Side Panel (R) SS 2A2165G01 1

15 Top Panel (3A1941A01) 2A2163-01 1

15a Truss Head Screw 4×8, SS 7C32-0408 1

16 Gasket (3A1941A01) 427014-04 3

17 Front Panel (A) SS 2A2164-02 1

17a Truss Head Screw 4×8, SS 7C32-0408 1

18 Wire Saddle - 4A0338-03 5

19 Wire Saddle - 4A0338-02 2

20 Wire Saddle - 4A0338-01 1

21 Frame (F) - 324093-01 1

21a T2 Screw 4×8 7P31-0408 4

22 Gasket L=762 4A0808L02 1

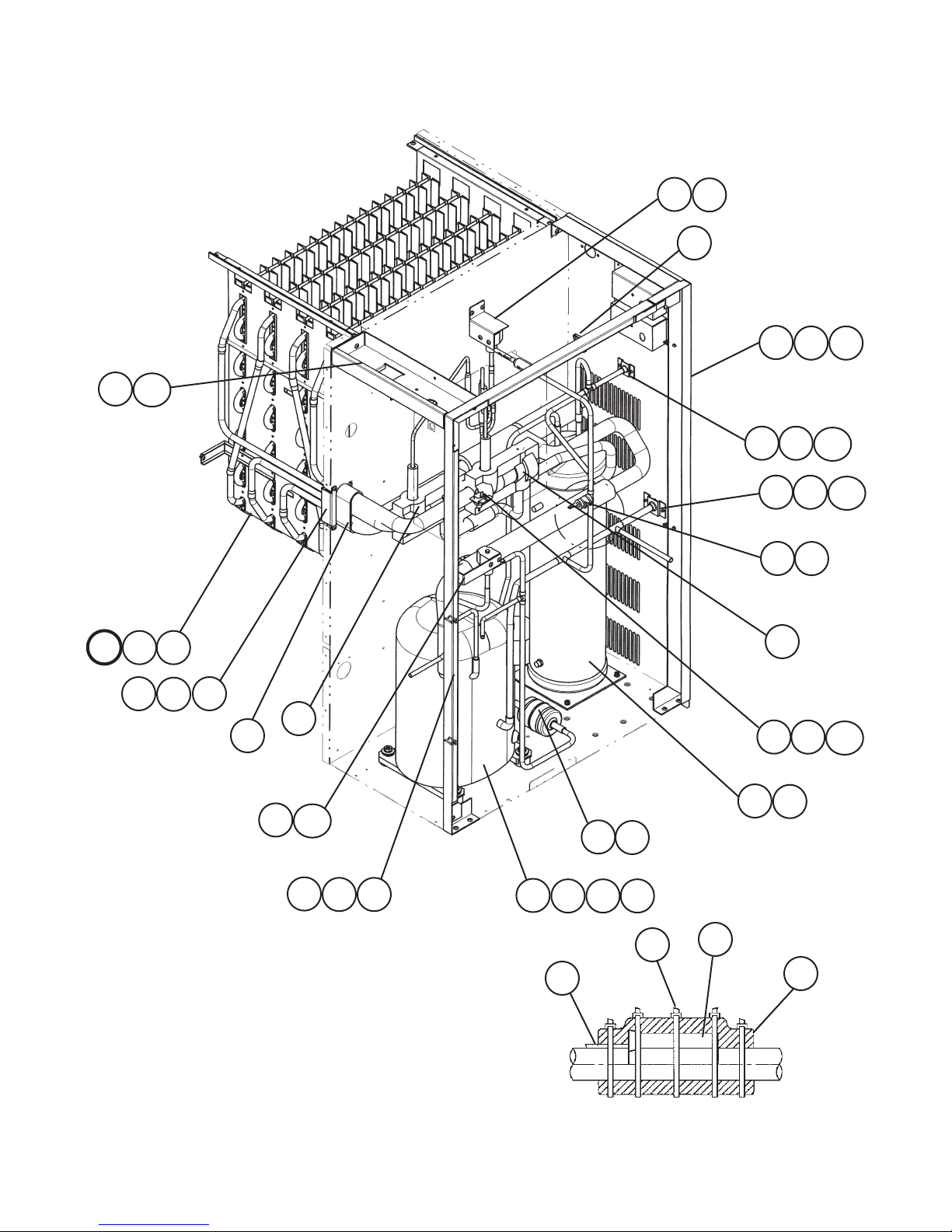

B. Refrigeration Circuit

1/2

KM-1601MRH, MRH3

Q-0

GG1 G2

11b

22b

33b 3c

12 12a

16 16a

22 22a

24 24a

37 40

44 44a

Thermistor Attachment Detail

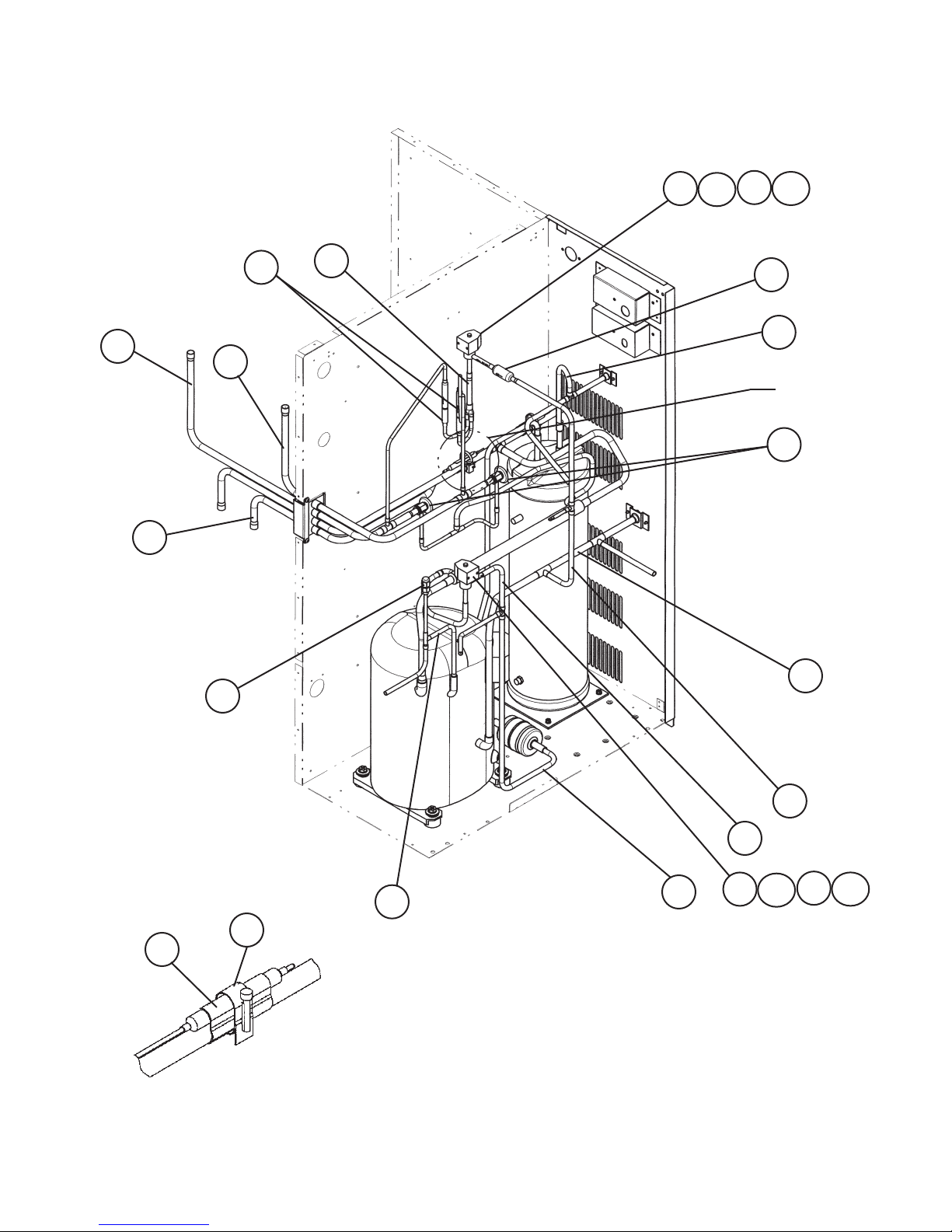

B. Refrigeration Circuit

2/2

KM-1601MRH, MRH3

Q-0

11 11a

10 10a

14 14a

13 13a

Detail "A"

Title: B. Refrigeration Circuit Model: KM-1601MRH, MRH3

Index

No. Description

Material or

Model Number Part Number

Required Number

Q-0

G Evaporator - 104442G03 1

G1 Truss Head Screw 4×8, SS 7C31-0408 4

G2 T2 Screw 4×8, SS 7P32-0408 4

1 Frame GS 222024G02 1

1a FT Screw 4×8, SS 7F32-0408 4

1b T2 Screw 4×8 7P31-0408 4

2 Rear Panel GS 222025G04 1

2a FT Screw 4×8, SS 7F32-0408 5

2b T2 Screw 4×8 7P31-0408 5

3 Compressor KM-1601MRH

CS18K6E-PFV-

279

4A2334-02 1

KM-1601MRH3

CS18K6E-TF5-

279

4A2330-02 1

3a Grommet - 434922-01 4

3b Spacer - 434921-01 4

3c Bolt 8×45 437889-01 4

4 Receiver Tank RR MN WP500 440366-01 1

4a Hex Head Bolt w/Washer (LF) 5×10 7B0130510 3

5 Drier C-05E84 4A2663-01 1

5a Nylon Tie PLWP3H-TL 8911-0301 1

6 Insulation Holder - 3A0979-01 1

6a T2 Screw 4×8, SS 7P32-0408 2

7 Expansion Valve HFE-15NHD-2 4A1482-01 2

8 Clamp - 4A2338-01 1

9 Hot Gas Valve Bracket GS 444816-01 1

9a T2 Screw 4×8 7P31-0408 2

10 Valve Body 70 440352-01 1

10a Bolt 4×6 440353F01 1

11 Coil – Valve ABS-25-1-

HD-2

440353-01 1

11a Truss Head Screw 4×8 7C31-0408 2

12 Line Valve Bracket GS 4A1544-01 1

12a T2 Screw 4×8 7P31-0408 2

13 Valve Body 70 440352-01 1

13a Bolt 4×6 440353F01 1

14 Coil – Valve ABS-25-1-

HD-2

440353-01 1

14a Truss Head Screw 4×8 7C31-0408 2

15 Pressure Switch ACB-1UB09 433441-07 1

16 Press. Switch Bracket GS 434938-01 1

16a T2 Screw 4×8 7P32-0408 1

17 Copper Tube – Access Valve COPPER 4A1497G01 1

Title: B. Refrigeration Circuit Model: KM-1601MRH, MRH3

Index

No. Description

Material or

Model Number Part Number

Required Number

Q-0

18 Access Valve TCJ-

2F20NHDU-1

457729-01 1

19 Strainer - 441569-02 1

20 Check Valve SKC30564 4A1373-01 2

21 Coupling - 434136G01 1

22 Tube Holder – L GS 438245-01 1

22a T2 Screw 4×8 7P31-0408 2

23 Coupling - 433751G01 1

24 Tube Holder – S GS 438246-01 1

24a T2 Screw 4×8 7P31-0408 2

25 Copper Tube (A) – High Side COPPER 2A3136G01 1

26 Copper Tube (B) – High Side COPPER 447737G01 1

27 Copper Tube (D) – High Side COPPER 3A1603G01 1

28 Copper Tube (E) – High Side COPPER 3A3466-01 1

29 Copper Tube (F) – High Side COPPER 2A3457G01 1

30 Heat Exchanger COPPER 1A1047G01 1

31 Copper Tube (R) – Low Side COPPER 222029G02 1

32 Copper Tube (L) – Low Side COPPER 222030G02 1

33 Copper Tube – Hot Gas COPPER 3A3491G01 1

34 Holder / Expansion Valve – 3/8 SS 3A0107-01 2

35 Clamp SS 443461-01 2

36 Insulation Tube L=40 7762-1020 1

37 Cable Tie - 7920-0010 12

38 Expansion Valve Cover PE FOAM 3A0944-01 2

39 Thermistor - 429006-03 1

40 Holder – Thermistor COPPER 438247-01 1

41 Insulation – Thermistor PE FOAM 427441-01 1

42 Insulated Rubber Tube EPDM 323975G01 1

43 Insulation PE FOAM 436671-01 1

44 Frame (C) - 3A0347-01 1

44a T2 Screw 4×8 7P31-0408 2
