Hoshizaki KM-250BAF Manuale utente

NO.

MAY 5, 2000

ISSUED:

71169

CRESCENT CUBER

WITH STORAGE BIN

MODEL

KM-250BAF

KM-250BWF

PARTS LIST

NOV. 4, 2002

REVISED:

HOSHIZAKI

Auxiliary Codes

KM-250BAF K-0 APRIL 2000

L-0 DEC. 2000

M-0 DEC. 2001

KM-250BWF K-0 MAY 2000

L-0 JAN. 2001

M-0 DEC. 2001

M-1 APRIL 2002

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L - 0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L -1

Each time a part is changed (non-interchangeably)

in a year, this number advances.

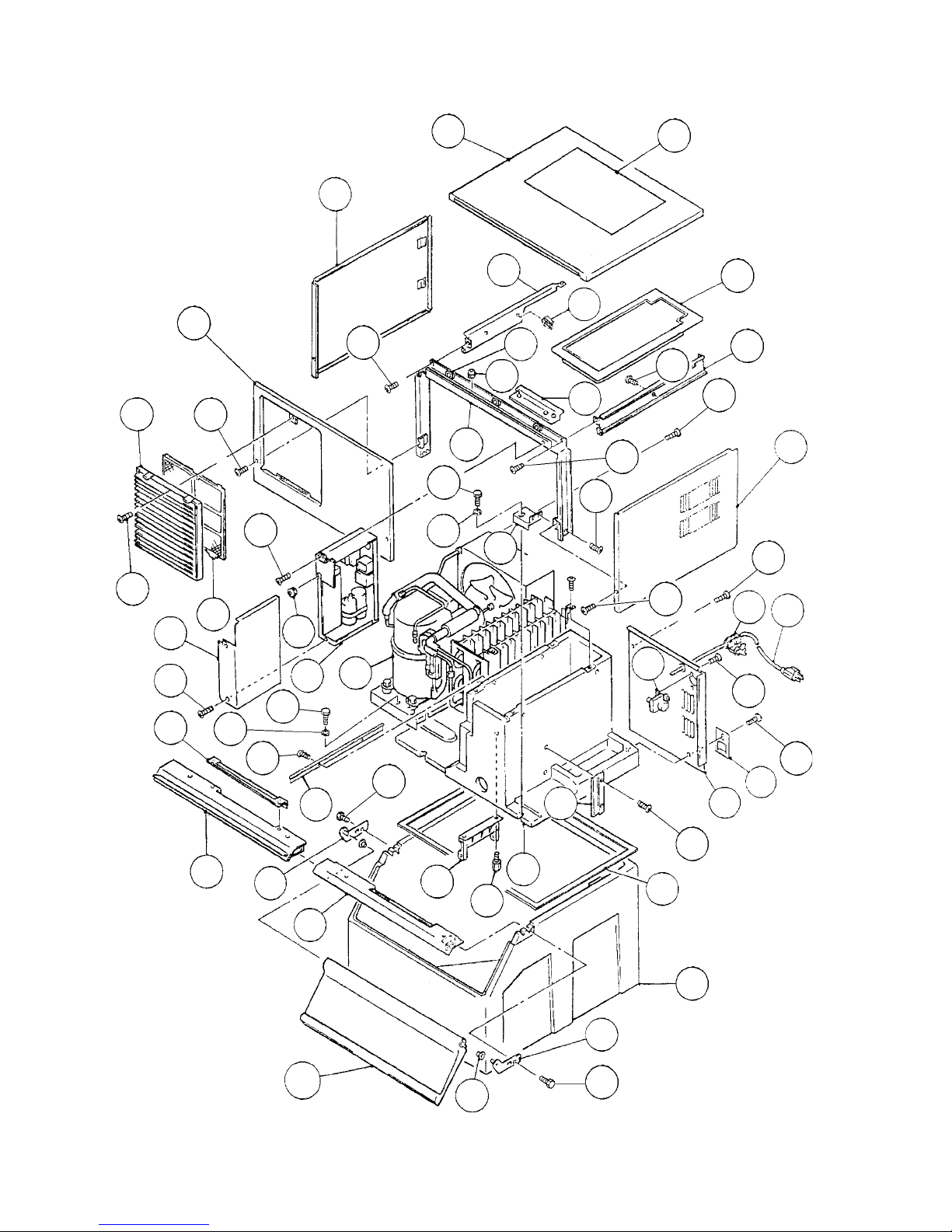

KM-250BAF A. ICE CUBER ASSEMBLY K-0, L-0, M-0

24a

25a

23a

24a 12

16a

17 18

21a

30a

34a

33 22

18a

MODEL: KM-250BAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-0 M-0

B REFRIGERATION CIRCUIT - 1A0501A01 1 1 1

C WATER CIRCUIT - 105672A02 1 1 1

D CONT. BOX ASSEMBLY - 2A1801A01 1 1 1

D1 TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1

E LABEL LOCATION - 3A1636A01 1 1 1

F TOP PANEL - 331619A01 1 1 1

1 FRONT PANEL - 216843-01 1 1 1

1a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2

2 BIN - 218178G01 1 1 1

3 BODY - 217214G01 1 1 1

4 CONT. BOX GUIDE GS 441714-01 1 1 1

4a TRUSS HEAD SCREW 4X10 7C31-0410 2 2 2

5 CONT. BOX COVER GS 216867-02 1 1 1

5a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2

5b HEX HEAD BOLT 8X60 7B01-0860 1 1 1

6 BUSHING OCB-500 428394-02 1 1 1

7 GASKET L=1885 4A0753L01 1 1 1

8 BULB HOLDER ABS 2A0190-01 1 1 1

9 THUMB SCREW SS, ABS 441847G01 2 2 2

10 DOOR - 105927G01 1 1 1

11 SIDE PANEL (L) GS 216810G01 1 1 1

12 SIDE PANEL (R) GS 216811G01 1 1 1

13 LOUVER (B) ABS 103121-03 1 1 1

14 AIR FILTER (B) ABS 208283G03 1 1 1

15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 1 1 1

16 REAR PANEL GS 216808-01 1 1 1

16a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2

17 BUSHING SR-7K-2 420472-02 1 1 1

18 POWER SUPPLY CORD - 4A1773-01 1 1 1

18a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2

19 BUSHING EPDM 327768-01 1 1 1

MODEL: KM-250BAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-0 M-0

20 TOP INSULATION PS 327756G01 1 1 1

21 BRACE GS 441739-01 2 2 2

21a TRUSS HEAD SCREW 4X16 7C31-0416 3 3 3

22 BRACKET GS 443596-01 1 1 1

23 FRAME GS 218105G01 1 1 1

23a TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4

24 FRAME (L1) GS 329439-01 1 1 1

24a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2

25 FRAME (R) GS 329437-01 1 1 1

25a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3

26 COVER ABS 327764-01 1 1 1

27 FRONT FRAME SS 329427G01 1 1 1

28 SHEET EPDM 329828-01 1 1 1

29 HINGE (L) SS 441722G01 1 1 1

30 HINGE (R) SS 441723G01 1 1 1

30a HEX HEAD BOLT W/W ASHER (LF) 6X30, SS 7B0230630 4 4 4

31 COLLAR AC 431496-01 2 2 2

32 BOLT 8X30 7B01-0830 1 1 1

33 WASHER PS 4A0655-02 2 2 2

34 HOOK SS 330442-01 1 1 1

34a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2

35 BUSHING OCB-625 428394-03 3 3 3

36 WIRE SADDLE VWSV238-C 4A0338-02 2 2 2

37 BUSHING SB-625-8 420470-01 1 1 1

38 T2 SCREW 4X8 7P31-0408 1 1 1

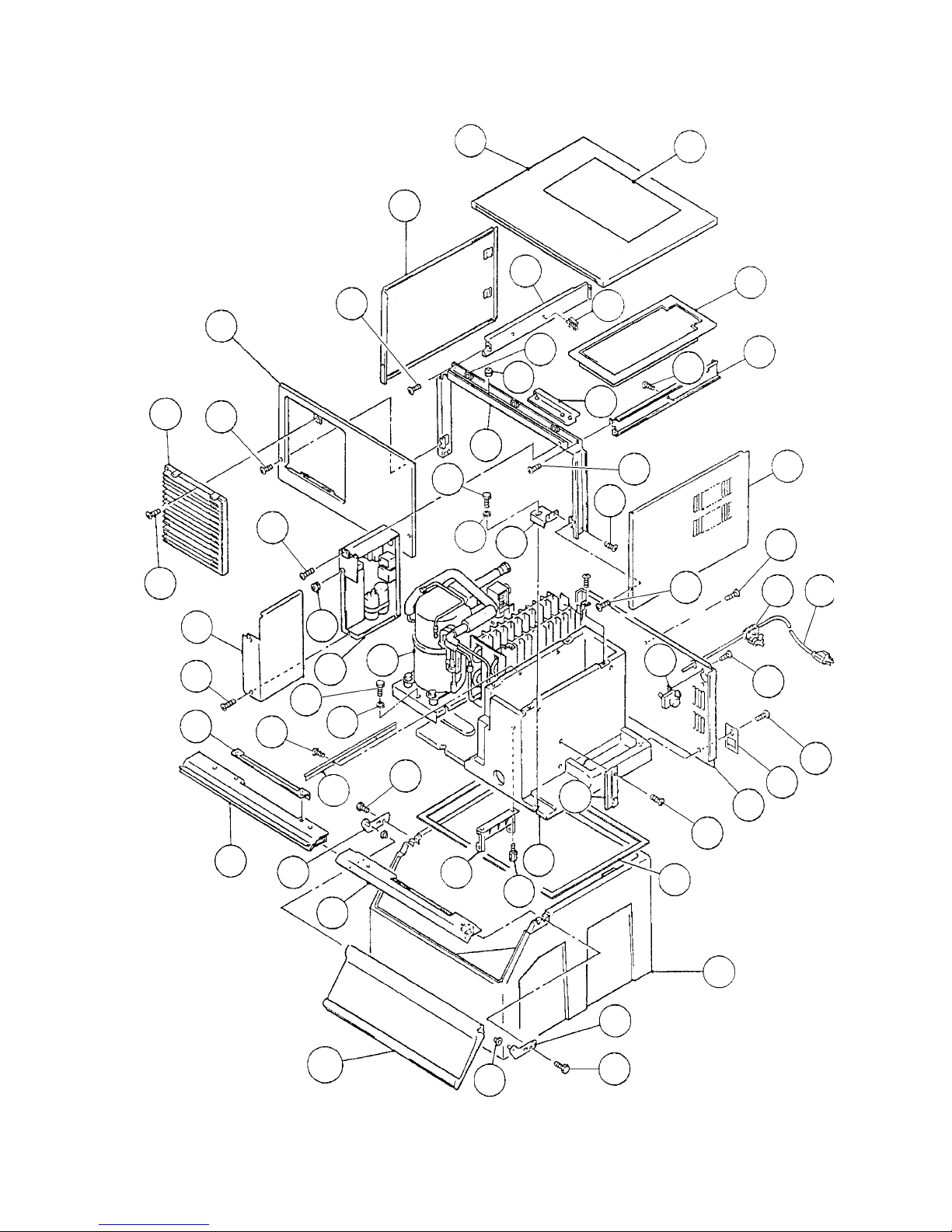

KM-250BWF A. ICE CUBER ASSEMBLY K-0, L-0, M-0, M-1

24a

25a

24a

23a

16a

21a

30a

11 31

30a

14 2a

36 22

34a

37 13

18a

MODEL: KM-250BWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-0 M-0 M-1

B REFRIGERATION CIRCUIT - 1A0500A01 1 1 1 -

- 1A0672A01 1

C WATER CIRCUIT - 105672A02 1 1 1 1

D CONT. BOX ASSEMBLY - 2A1801A01 1 1 1 1

D1 TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1 1

E LABEL LOCATION - 3A1634A01 1 1 1 1

1 TOP PANEL - 216841-01 1 1 1 1

2 FRONT PANEL - 216843-01 1 1 1 1

2a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 1

3 BIN - 218178G01 1 1 1 2

4 BODY - 217214G01 1 1 1 1

5 CONT. BOX GUIDE GS 441714-01 1 1 1 1

5a TRUSS HEAD SCREW 4X10 7C31-0410 2 2 2 1

6 CONT. BOX COVER GS 216867-02 1 1 1 2

6a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 1

7 BUSHING OCB-500 428394-02 1 1 1 2

8 BUSHING SB-625-8 420470-01 1 1 1 1

9 GASKET L=1885 4A0753L01 1 1 1 1

10 THUMBSCREW SS, ABS 441847G01 2 2 2 1

11 DOOR - 105927G01 1 1 1 2

12 SIDE PANEL (L) GS 216810G01 1 1 1 1

13 SIDE PANEL (R) GS 216811G01 1 1 1 1

14 LOUVER ABS 103121-03 1 1 1 1

15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 1 1 1 1

16 REAR PANEL GS 2A1802-01 1 1 1 1

16a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2 2

17 BUSHING SR-7K-2 420472-02 1 1 1 1

18 POWER SUPPLY CORD - 4A1773-01 1 1 1 1

18a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2

19 BUSHING EPDM 327768-01 1 1 1 1

MODEL: KM-250BWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0 L-0 M-0 M-1

20 TOP INSULATION PS 327756G01 1 1 1 1

21 BRACE GS 441739-01 2 2 2 2

21a TRUSS HEAD SCREW 4X16 7C31-0416 2 2 2 2

22 BRACKET GS 443596-01 1 1 1 1

23 FRAME GS 218105G01 1 1 1 1

23a TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4

24 FRAME (L1) GS 329438-01 1 1 1 1

24a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3

25 FRAME (R) GS 329437-01 1 1 1 1

25a TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3

26 COVER ABS 327764-01 1 1 1 1

27 FRONT FRAME SS 329427G01 1 1 1 1

28 SHEET EPDM 329828-01 1 1 1 1

29 HINGE (L) SS 441722G01 1 1 1 1

30 HINGE (R) SS 441723G01 1 1 1 1

30a HEX HEAD BOLT W/ WASHER (LF) 6X30, SS 7B0230630 4 4 4 4

31 COLLAR AC 431496-01 2 2 2 2

32 WIRE SADDLE VWSV238-C 4A0338-02 2 2 2 2

33 BUSHING OCB-625 428394-03 3 3 3 3

34 HOOK SS 330442-01 1 1 1 1

34a TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2

35 BULB HOLDER ABS 2A0190-01 1 1 1 1

36 WASHER PS 4A0655-02 2 2 2 2

37 BOLT 8X30 7B01-0830 1 1 1 1

38 HEX HEAD BOLT 8X60 7B01-0860 1 1 1 1

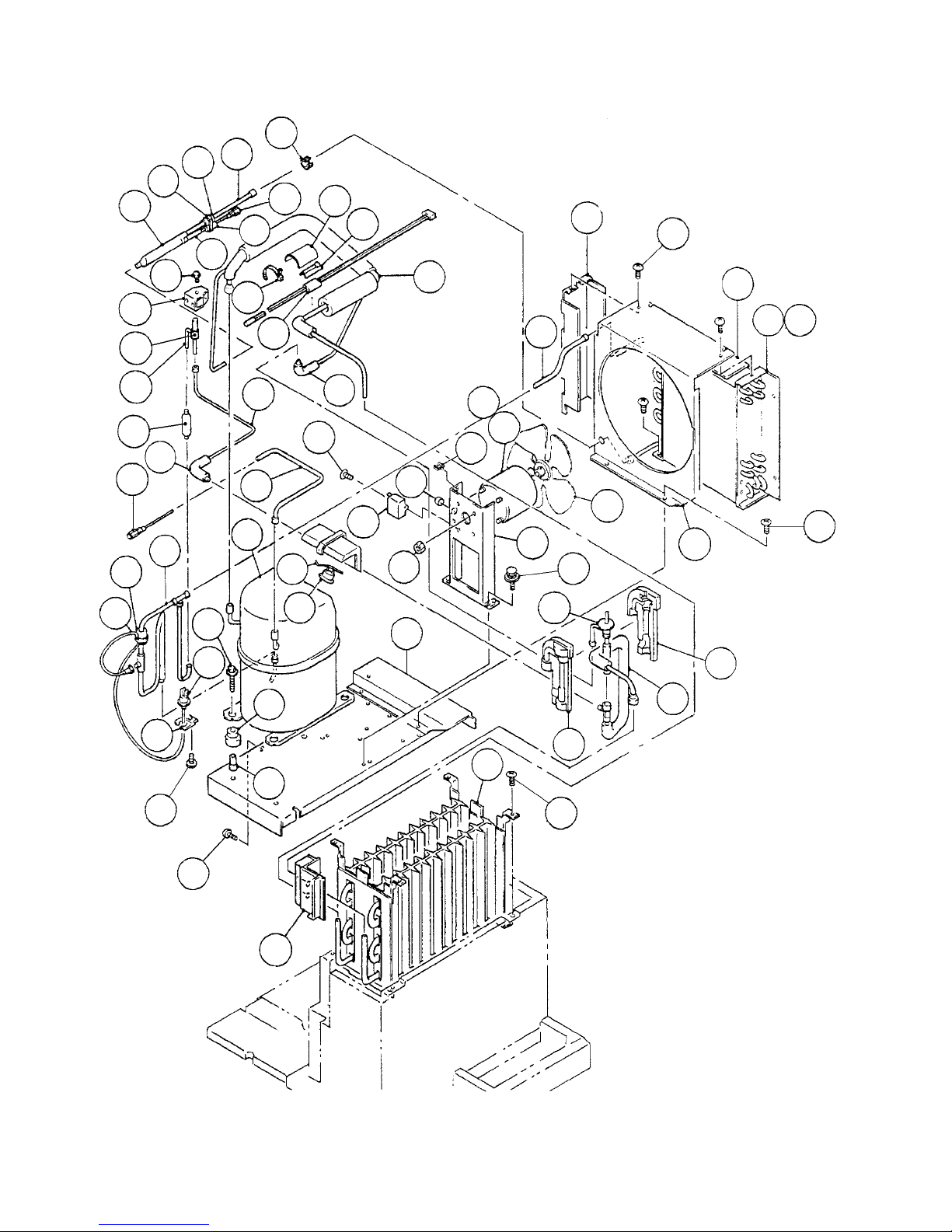

KM-250BAF B. REFRIGERATION CIRCUIT K-0, L-0, M-0

12a

48 50

22 28

25a

12a

11a

15a

10a

40a
