Hoshizaki KM-500MAF-E Manuale utente

(FINAL) PARTS LIST

MODULAR CRESCENT CUBER

89/336

73/23

HOSHIZAKI

NUMBER: 71156

ISSUED: NOV. 16, 1999

KM-500MAF-E

KM-500MWF-E

REVISED: JULY 2, 2002

Auxiliary Codes

KM-500MAF-E J-0 APRIL 1999

J-1 JUNE 1999

K-0 DEC., 1999

L-0 JAN., 2001

L-1 APRIL 2001

KM-500MWF-E J-1 SEPT. 1999

K-0 DEC., 1999

L-0 JAN., 2001

IMPORTANT

IEC standards require that the clamping means of earthing terminals be

adequately secured against accidental loosening and that accessible metal parts

of the icemaker which may become live in the event of an insulation fault be

permanently and reliably connected to an earthing terminal within the icemaker or

to the earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x =

Part deleted and replaced

"K" is the tenth in alphabetical order with "I"

by "o" (interchangeable)

skipped. So, "K" indicates "2000".

part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

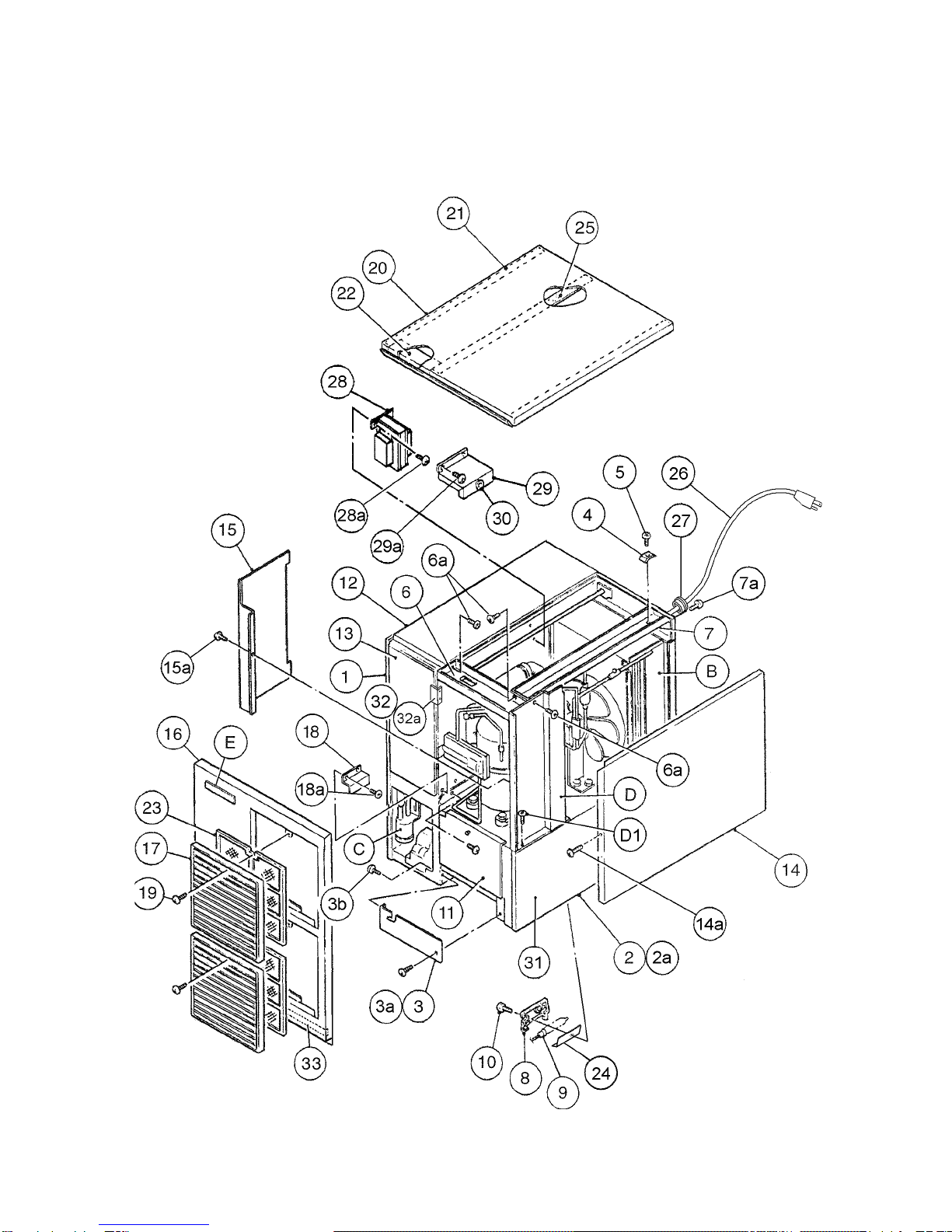

KM-500MAF-E A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0, L-1

MODEL: KM-500MAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0 L-1

B REFRIGERATION CIRCUIT - 1A0420A02 1 1 1 1

C WATER CIRCUIT - 2A0971A02 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1538A02 1 1 x1

- 2A1964A02 o1 1

D1 T2 SCREW 4X8 7P31-0408 4 4 4 4

E LABEL LOCATION - 3A1368A01 1 1 1 x1

- 3A1368A02 o1

1 EVAP. CASE HS-1012 1A0277G03 1 1 x1

HS-1012 1A0532G03 o1 1

2 BASE - 2A1321G06 1 1 1 1

2a FT SCREW 4X8 7F31-0408 7 7 7 7

3 FRAME ABS 3A0217G01 1 1 1 1

3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1

3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1 1

6 TOP FRAME GS 3A1366-01 1 1 1 1

6a T2 SCREW 4X8 7P31-0408 4 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1 1

7a T2 SCREW 4X8 7P31-0408 1 1 1 1

8 BULB HOLDER PE 328919-01 1 1 1 1

9 SPACER PE 443545-01 1 1 1 1

10 THUMBSCREW SS, ABS 415949G03 2 2 2 2

11 BASE COVER SS 321525G01 1 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1 1

14 SIDE PANEL (R) SS 211811G06 1 1 1 1

14a T2 SCREW 4X8, SS 7P32-0408 1 1 1 1

15 CONTROL BOX COVER GS 332466-01 1 1 1 1

15a T2 SCREW 4X8 7P31-0408 1 1 1 1

MODEL: KM-500MAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0 L-1

16 FRONT PANEL SS 3A1175G01 1 1 1 1

17 LOUVER (B) ABS 103121-03 2 2 2 2

18 BARRIER GS 4A0362-01 1 1 1 1

18a T2 SCREW 4X8 7P31-0408 2 2 2 2

19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 2 2 2 2

20 TOP PANEL SS

(324859A03)

220465-01 1 1 1 1

21 GASKET PVC

(324859A03)

427014-04 2 2 2 2

22 INSULATION PE FOAM

(324859A03)

438012-01 1 1 1 1

23 AIR FILTER (B) ABS 208283G03 2 2 2 2

24 DEFLECTOR SS 4A1951-01 1 1 1 1

25 GASKET (A) (324859A03) 324859-03 1 1 1 1

26 POWER SUPPLY CORD - 452359-02 1 1 1 1

27 BUSHING CEE SR-6P30 450414-01 1 1 1 1

28 TRANSFORMER PY12-19204 446202-01 1 1 1 1

28a PAN HEAD SCREW W/

WASHER (LF)

4x8 7C1230408 4 4 4 4

29 TRANS COVER GS 446359-01 1 1 1 1

29a T2 SCREW 4x8 7P31-0408 2 2 2 2

30 BUSHING OCB-500 428394-02 1 1 1 1

31 SIDE PANEL (R) – BASE SS 212620-01 1 1 1 1

32 BARRIER – INSULATION - 4A1167-01 1 1 1

32a T2 SCREW 4X8 7P31-0408 2 2 2

33 GASKET L=554 4A0808L02 1 1

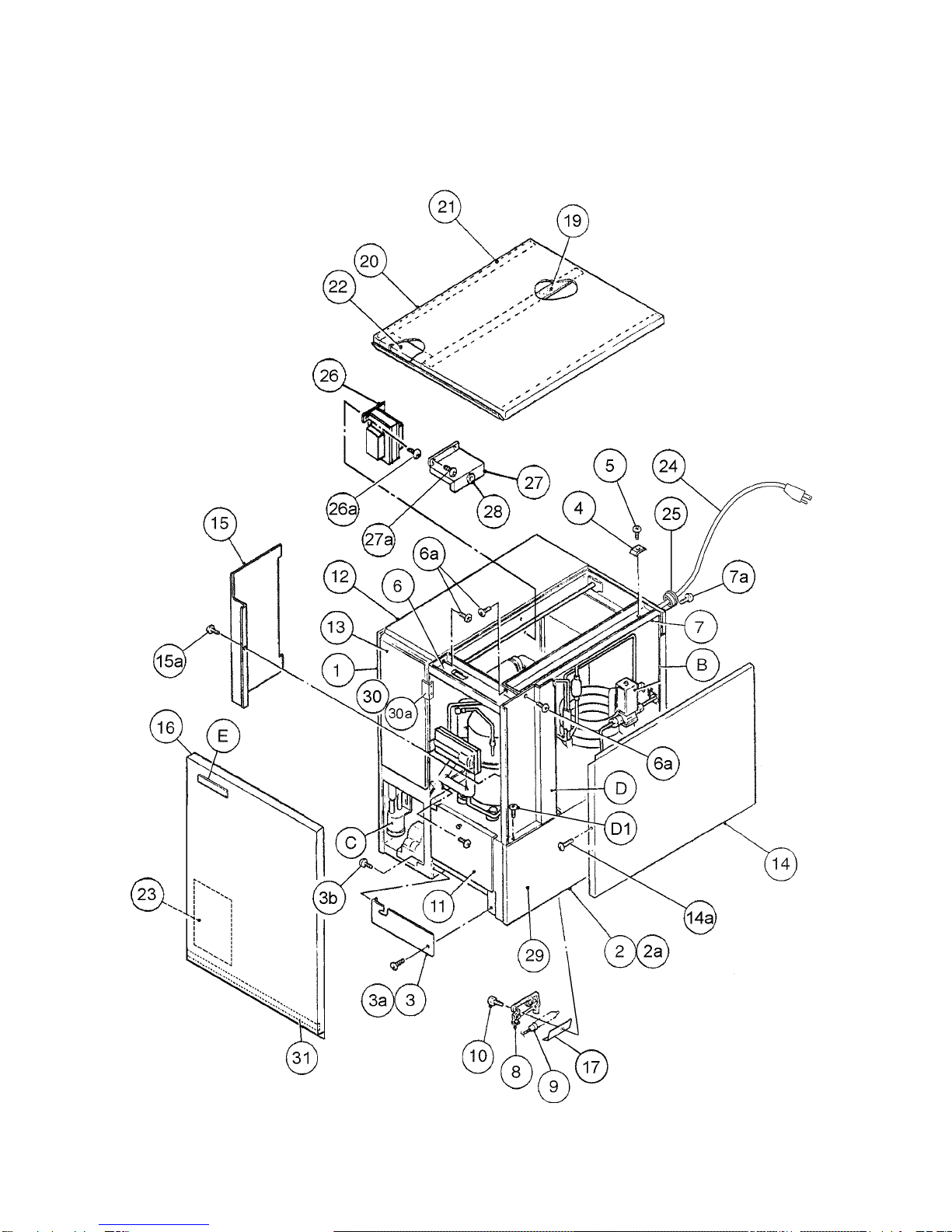

KM-500MWF-E A. ICE CUBER ASSEMBLY J-1, K-0, L-0

MODEL: KM-500MWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-1 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0421A02 1 1 1

C WATER CIRCUIT - 2A0971A02 1 1 1

D CONT. BOX ASSEMBLY - 2A1538A01 1 1 1

D1 T2 SCREW 4X8 7P31-0408 4 4 4

E LABEL LOCATION - 3A1369A01 1 1 1

1 EVAP. CASE HS-1012 1A0277G03 1 x1

HS-1012 1A0532G03 o1 1

2 BASE - 2A1321G05 1 1 1

2a FT SCREW 4X8 7F31-0408 7 7 7

3 FRAME - 3A0217G01 1 1 1

3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1

3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1

6 TOP FRAME GS 3A1366-01 1 1 1

6a T2 SCREW 4X8 7P31-0408 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1

7a T2 SCREW 4X8 7P31-0408 2 2 2

8 BULB HOLDER PE 328919-01 1 1 1

9 SPACER PE 443545-01 1 1 1

10 THUMBSCREW SS, ABS 415949G03 2 2 2

11 BASE COVER SS 321525G01 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1

14 SIDE PANEL (R) SS 211811G06 1 1 1

14a T2 SCREW 4X8, SS 7P32-0408 1 1 1

15 CONTROL BOX COVER GS 332466-01 1 1 1

15a T2 SCREW 4X8 7P31-0408 1 1 1

MODEL: KM-500MWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-1 K-0 L-0

16 FRONT PANEL SS 3A1175G02 1 1 1

17 DEFLECTOR SS 4A1951-01 1 1 1

18 - - -

19 GASKET (A) (324859A03) 324859-03 1 1 1

20 TOP PANEL SS ,

(324859A03)

220465-01 1 1 1

21 GASKET PVC,

(324859A03)

427014-04 2 2 2

22 INSULATION PE FOAM,

(324859A03)

438012-01 1 1 1

23 FRONT COVER P.S 2A0182-01 1 1 1

24 POWER SUPPLY CORD - 452359-02 1 1 1

25 BUSHING CEE SR-6P30 450414-01 1 1 1

26 TRANSFORMER PY12-19204 446202-01 1 1 1

26a PAN HEAD SCREW W/

WASHER (LF)

4x8 7C1230408 4 4 4

27 TRANS COVER GS 446359-01 1 1 1

27a T2 SCREW 4x8 7P31-0408 2 2 2

28 BUSHING OCB-500 428394-02 1 1 1

29 SIDE PANEL (R) – BASE SS 212620-01 1 1 1

30 BARRIER –INSULATION - 4A1167-01 1 1

30a T2 SCREW 4X8 7P31-0408 2 2

31 GASKET L=554 4A0808L02 1 1

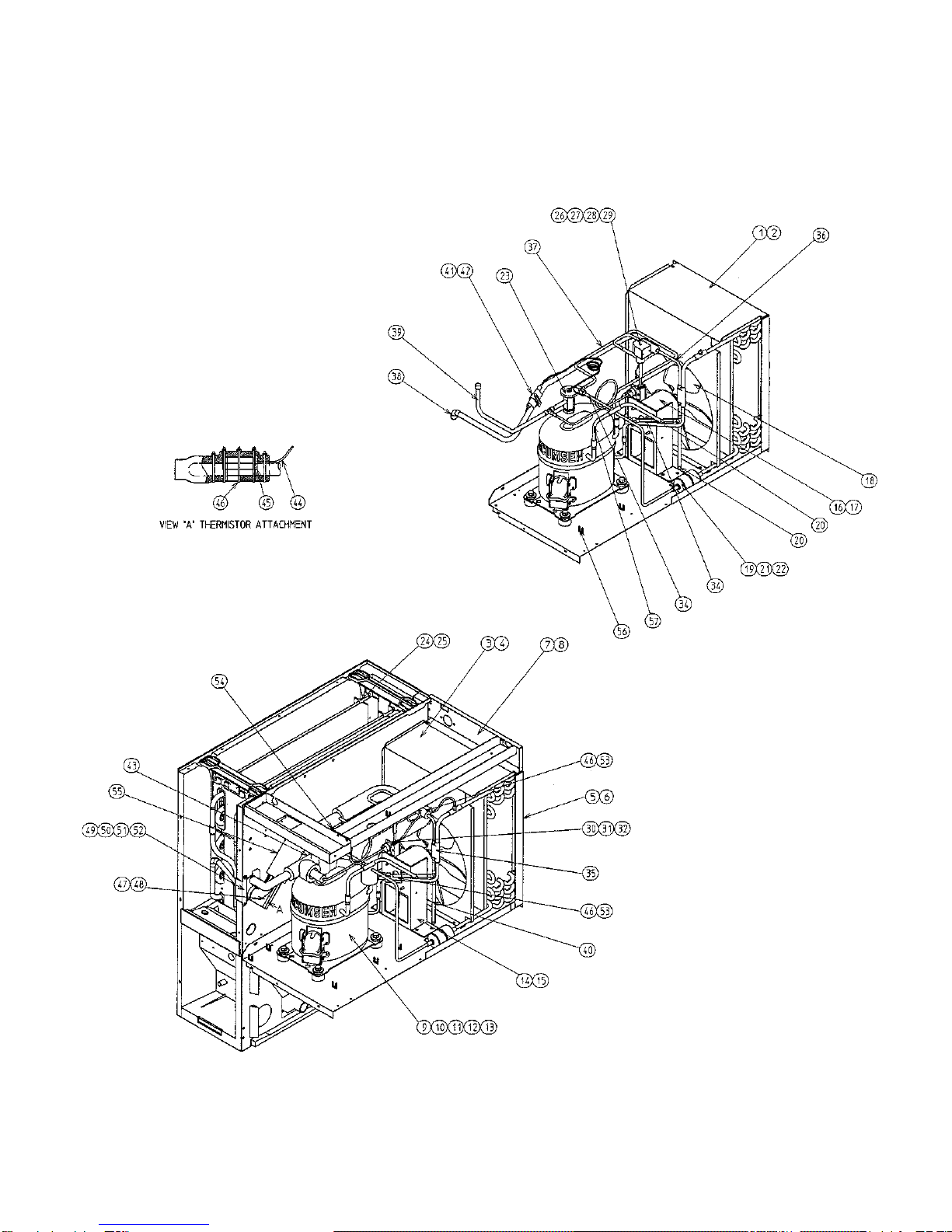

KM-500MAF-E B. REFRIGERATION CIRCUIT J-0, J-1, K-0, L-0, L-1
