Hoshizaki KM-280MAF Manuale utente

NO.

ISSUED:

MODELS

HOSHIZAKI

MODULAR CRESCENT CUBER

PARTS LIST

KM-280MAF

KM-280MWF

KM-280MAH

KM-280MWH

SEPT. 8, 1999

SEPT. 25, 2001

71151

REVISED:

J-0 Dec., 1998

J-1 June 1999

J-2 Sept., 1999

K-0 Dec., 1999

L-0 Jan., 2001

KM-280MAF

J-0 Dec., 1998

J-1 June 1999

J-2 Sept., 1999

K-0 Dec., 1999

L-0 Jan., 2001

KM-280MWF

L-0 April 2001KM-280MAH

L-0 May 2001KM-280MWH

MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

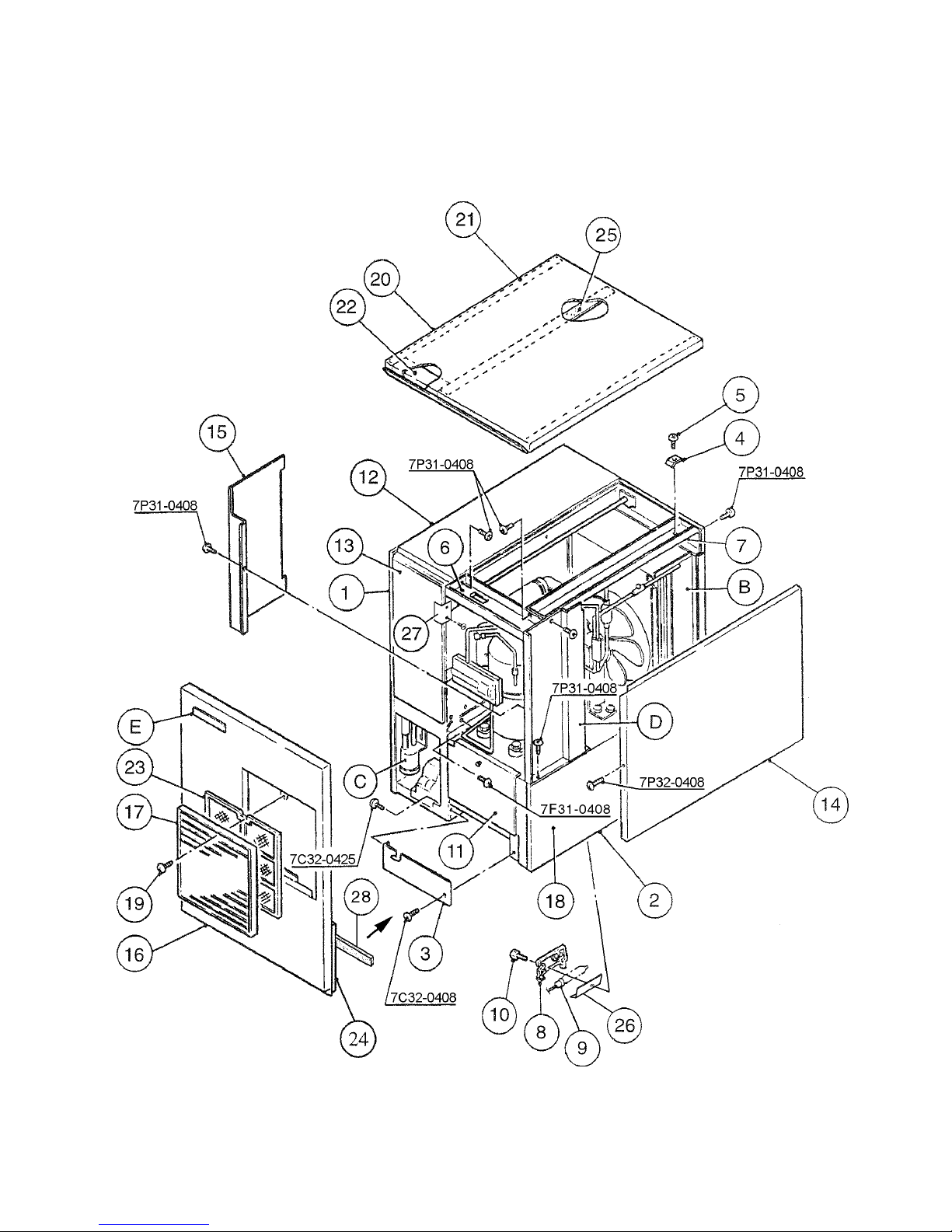

KM-280MAF A. ICE CUBER ASSEMBLY J-0, J-1, J-2

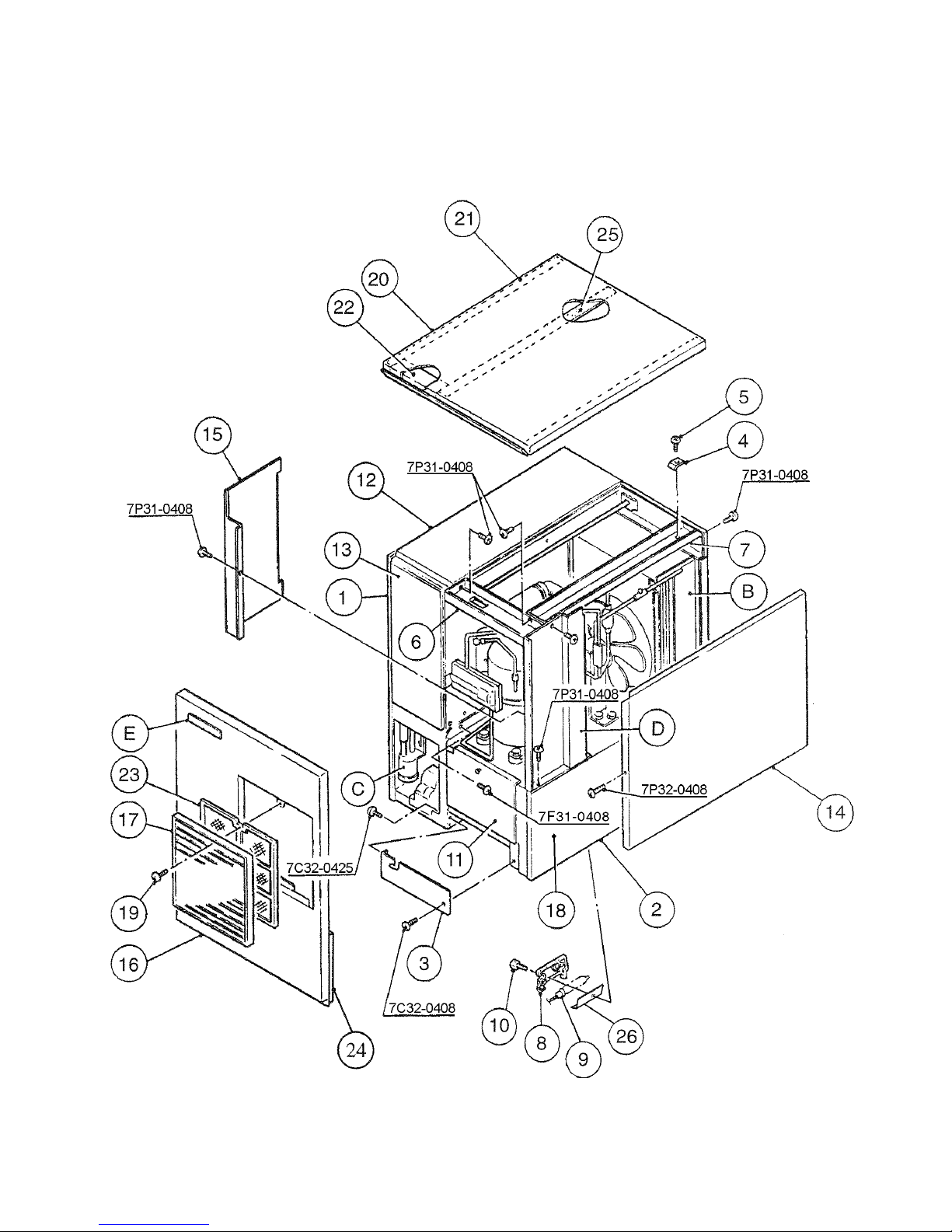

KM-280MAF A. ICE CUBER ASSEMBLY K-0, L-0

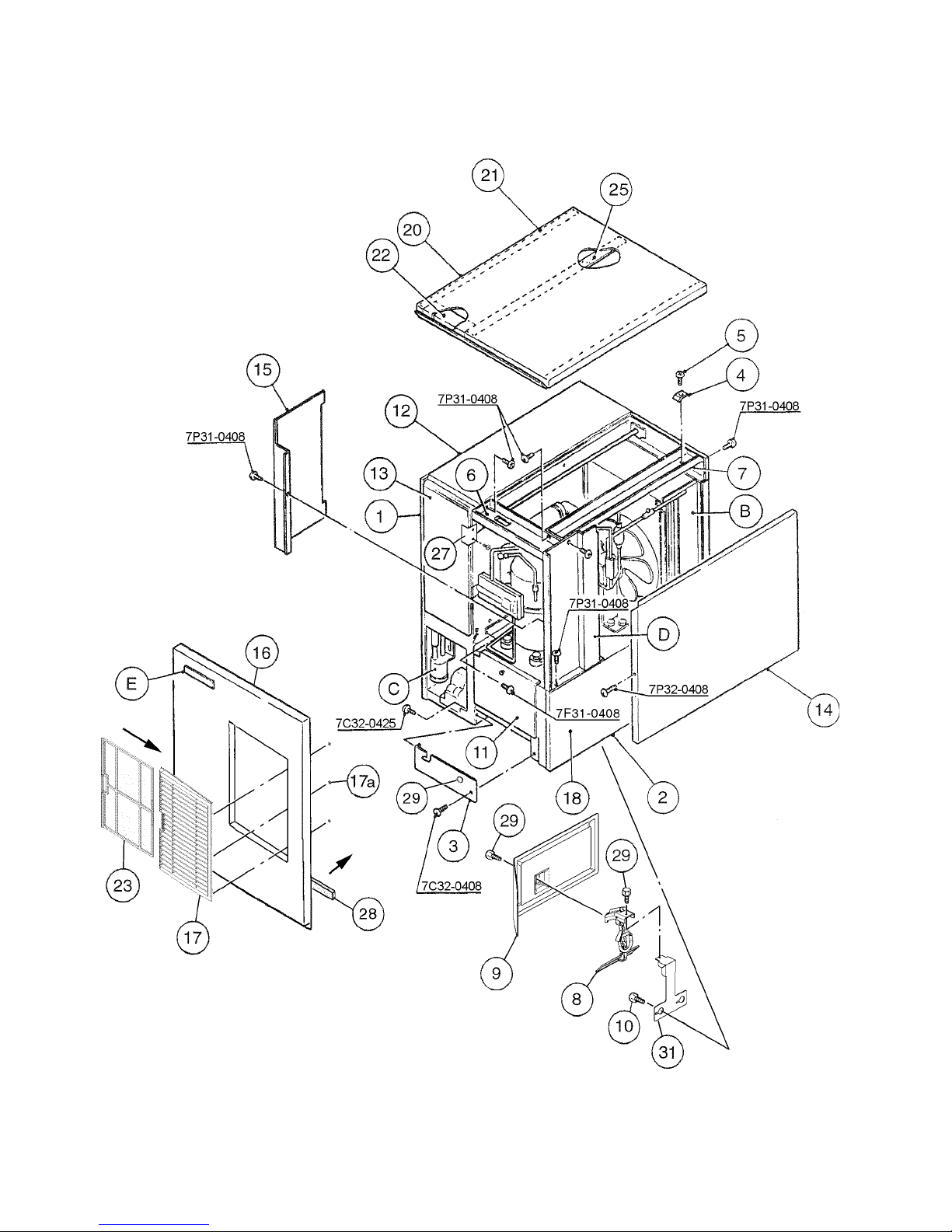

KM-280MAH A. ICE CUBER ASSEMBLY L-0

MODEL:KM-280MAF, MAH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-280MAF KM-280MAH

NUMBER J-0

J-1

J-2 K-0 L-0 L-0

B REFRIGERATION CIRCUIT - 1A0392A01 1 1 1 1 1

C WATER CIRCUIT HS-1207 1A0283A04 1 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1423A01 1 1 x1

- 2A1960A01 o1 1 -

- 2a2247A01 1

T2 SCREW 4X8 7P31-0408 4 4 4 4 4

E LABEL LOCATION - 3A1223A01 1 1 1 1 -

- 3A1903A01 1

1 EVAP. CASE HS-1010 1A0277G01 1 1 1 x1

- 1A0532G01 o1 -

- 1A0579G01 1

2 BASE - 2A1321G04 1 1 1 1 -

- 2A2146G04 1

FT SCREW 4X8 7F31-0408 7 7 7 7 7

3 FRAME ABS 3A0217G01 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1 1

TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1

6 TOP FRAME GS 332443-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 4 4 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2 2 2

8 BULB HOLDER PE 328919-01 1 1 1 1 -

BIN SWITCH - 4A2430-01 1

9 SPACER PE 443545-01 1 1 1 1 -

SHIELD - 3A1438-01 1

MODEL:KM-280MAF, MAH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-280MAF KM-280MAH

NUMBER J-0

J-1

J-2 K-0 L-0 L-0

10 THUMBSCREW SS, ABS 415949G03 2 2 2 2 -

SS, ABS 415949G09 2

11 BASE COVER SS 321525G01 1 1 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1 1 1

14 SIDE PANEL (R) SS 211811G06 1 1 1 1 -

SS 2A2117G01 1

T2 SCREW 4X8, SS 7P32-0408 1 1 1 1 1

15 CONTROL BOX COVER GS 332466-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1 1

16 FRONT PANEL SS 323004G07 1 1 1 1 -

SS 2A2141G01 1

17 LOUVER (B) ABS 103121-03 1 1 1 1 -

LOUVER (A) - 1A0547-01 1

17a PUSH RETAINER - 4A2414-01 3

18 SIDE PANEL (R) BASE SS 212620-01 1 1 1 1 -

SS 2A2147-01 1

19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 1 1 1 1 -

20 TOP PANEL SS

(324859A03)

220465-01 1 1 1 1 -

(3A1890A01) 2A2133-01 1

21 GASKET PVC

(324859A03)

427014-04 2 2 2 2 -

(3A1890A01) 427014-04 2

22 INSULATION PE FOAM

(324859A03)

438012-01 1 1 1 1 -

(3A1890A01) 438012-01 1

MODEL:KM-280MAF, MAH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER KM-280MAF KM-280MAH

NUMBER J-0

J-1

J-2 K-0 L-0 L-0

23 AIR FILTER (B) ABS 208283G03 1 1 1 1 -

AIR FILTER (A) - 2A2062G01 1

24 FRONT COVER P.S 2A0182-01 1 1 1 1 -

25 GASKET (A) (324859A03) 324859-03 1 1 1 1 -

(3A1890A01) 324859-03 1

26 DEFLECTOR SS 4A1951-01 1 1 1 1 -

27 BARRIER – INSULATION - 4A1167-01 1 1 1

T2 SCREW 4X8 7P1-0408 2 2 2

28 GASKET L=554 4A0808L02 1 1 1

29 THUMBSCREW - 415949G04 2

30 BUSHING - 4A2536-01 1

31 BRACKET (M) - 3A1434-01 1

KM-280MWF A. ICE CUBER ASSEMBLY J-0, J-1, J-2
