Hoshizaki KM-630MAH-E Manuale utente

PARTS LIST

MODULAR CRESCENT CUBER

89/336

73/23

HOSHIZAKI

NUMBER: 71216

ISSUED:March 31, 2003

KM-630MAH-E

REVISED: December 6, 2004

CONTENTS

Auxiliary Codes .................................................................................................................... 3

Material Abbreviations..........................................................................................................4

A. Ice Cuber Assembly ......................................................................................................... 5

B. Refrigeration Circuit ......................................................................................................... 9

C. Water Circuit ................................................................................................................... 13

D. Control Box Assembly .................................................................................................... 16

E. Label Location................................................................................................................ 19

F. Pump Motor Assembly .................................................................................................... 22

G. Accessories ................................................................................................................... 24

Auxiliary Codes

KM-630MAH-E L-0 July 2001

M-1 February 2002

M-2 June 2002

N-0 February 2003

N-1 April 2003

P-0 December 2003

P-1 June 2004

IMPORTANT

IEC standards require that the clamping means of earthing terminals be

adequately secured against accidental loosening and that accessible metal parts

of the icemaker which may become live in the event of an insulation fault be

permanently and reliably connected to an earthing terminal within the icemaker or

to the earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

Material Abbreviations

Aluminum

AL = Aluminum

Copper

CU = Copper

Plastic

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

Rubber

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

Steel

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

Auxiliary Code

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates significant part changes within the same year. Base is 0 and this number advances for

each change.

Example: P-1

"P" indicates 2004.

"1" indicates the first significant part change for 2004.

Marks Located Under the Auxiliary Code

- = Part deleted.

= Part deleted and replaced by "o"

part.

= New part in place of "x" part.

A. Ice Cuber Assembly

KM-630MAH-E

L-0, M-1

14a

18a

29a

28a

15a

16a

333

A. Ice Cuber Assembly

KM-630MAH-E

M-2, N-0, N-1, P-0, P-1

14a

18a

29a

28a

15a

16a

Index

No.

Description Part Number

L-0 M-1 M-2

N-0

N-1

P-0

P-1

B REFRIGERATION CIRCUIT - 1A0580A02 1 x1

- 1A0580A04 o1 1

C WATER CIRCUIT 2A0971A01 1 1 1

D CONTROL BOX ASSEMBLY - 2A2334A01 1 1 -

- 2A2548A01 1

D1 T2 SCREW / WASHER ASSY 4X8 7P3120408 3 3 3

E LABEL LOCATION - 3A2104A01 1 1 -

- 3A2434A01 1

1 EVAP. CASE - 1A0579G04 1 1 1

2 BASE - 2A2146G01 1 1 1

2a FT SCREW 4X8 7F31-0408 7 7 7

3 FRAME ABS 3A0217G01 1 1 -

- 3A2503G01 1

3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1

3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1

6 FRONT COVER P.S 2A0182-01 1 1 1

7 BARRIER-INSULATION GS 4A1167-01 1 1 1

7a T2 SCREW / WASHER ASSY 4X8 7P3120408 2 2 2

8 BULB HOLDER PE 328919-01 1

9 SPACER PE 443545-01 2

10 THUMBSCREW SS, ABS 415949G09 2 2 -

11 BASE COVER SS 321525G01 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1

13 FRONT INSULATION PP 215731G02 1 1 1

14 SIDE PANEL (R) SS 2A2117G02 1 1 1

14a T2 SCREW 4X8, SS 7P32-0408 1 1 1

TOOTH WASHER M4, SS 7R22-0400 1 1 1

15 CONTROL BOX COVER GS 3A1828-01 1 1 -

GS 3A2371-01 1

15a T2 SCREW / WASHER ASSY 4X8 7P3120408 3 3 3

16 FRONT PANEL SS 2A2243G01 1 1 1

16a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1

TOOTH WASHER M4, SS 7R22-0400 1 1 1

17 LOUVER (A) ABS 1A0547-01 2 2 2

18 BARRIER GS 4A0352-01 1 1 1

18a T2 SCREW / WASHER ASSY 4X8 7P3120408 2 2 2

19 PUSH RETAINER - 4A2414-01 6 6 6

20 TOP PANEL SS

(

3A1890A01

)

2A2133-01 1 1 1

21 GASKET PVC

(

3A1890A01

)

427014-04 2 2 2

22 INSULATION PE FOAM

(

3A1890A01

)

438012-01 1 1 1

23 AIR FILTER (A) ABS 2A2062G01 2 2 2

24 DEFLECTOR SS 4A1951-01 1

25 GASKET (A) 324859-03 1 1 1

Title: A. Ice Cuber Assembly Model: KM-630MAH-E

Material or

Model

Number

Required Number

Index

No.

Description Part Number

L-0 M-1 M-2

N-0

N-1

P-0

P-1

26 POWER SUPPLY CORD - 452359-02 1 1 1

27 BUSHING CEE SR-6P30 450414-01 1 1 1

28 TRANSFORMER PY12-19204 446202-01 1 1 1

28a PAN HEAD SCREW W/

WASHER (LF)

4X8 7C1230408 4 4 4

29 TRANS COVER GS 446359-01 1 1 1

29a T2 SCREW / WASHER ASSY 4X8 7P3120408 2 2 2

30 BUSHING OCB-500 428394-02 1 1 1

31 GASKET L=554 4A0808L02 1 1 1

32 SIDE PANEL (R) BASE SS 2A2147-01111

33 THUMBSCREW - 415949G04 2 2 -

415949G09 2

34 BIN SWITCH - 4A2430-01 1 1 -

35 SHIELD - 3A1438-01 1 1 -

36 BRACKET (M) - 3A1434-01 1 1 -

37 CABLE TIE MOUNT - 437618-01 1

Title: A. Ice Cuber Assembly Model: KM-630MAH-E

Material or

Model

Number

Required Number

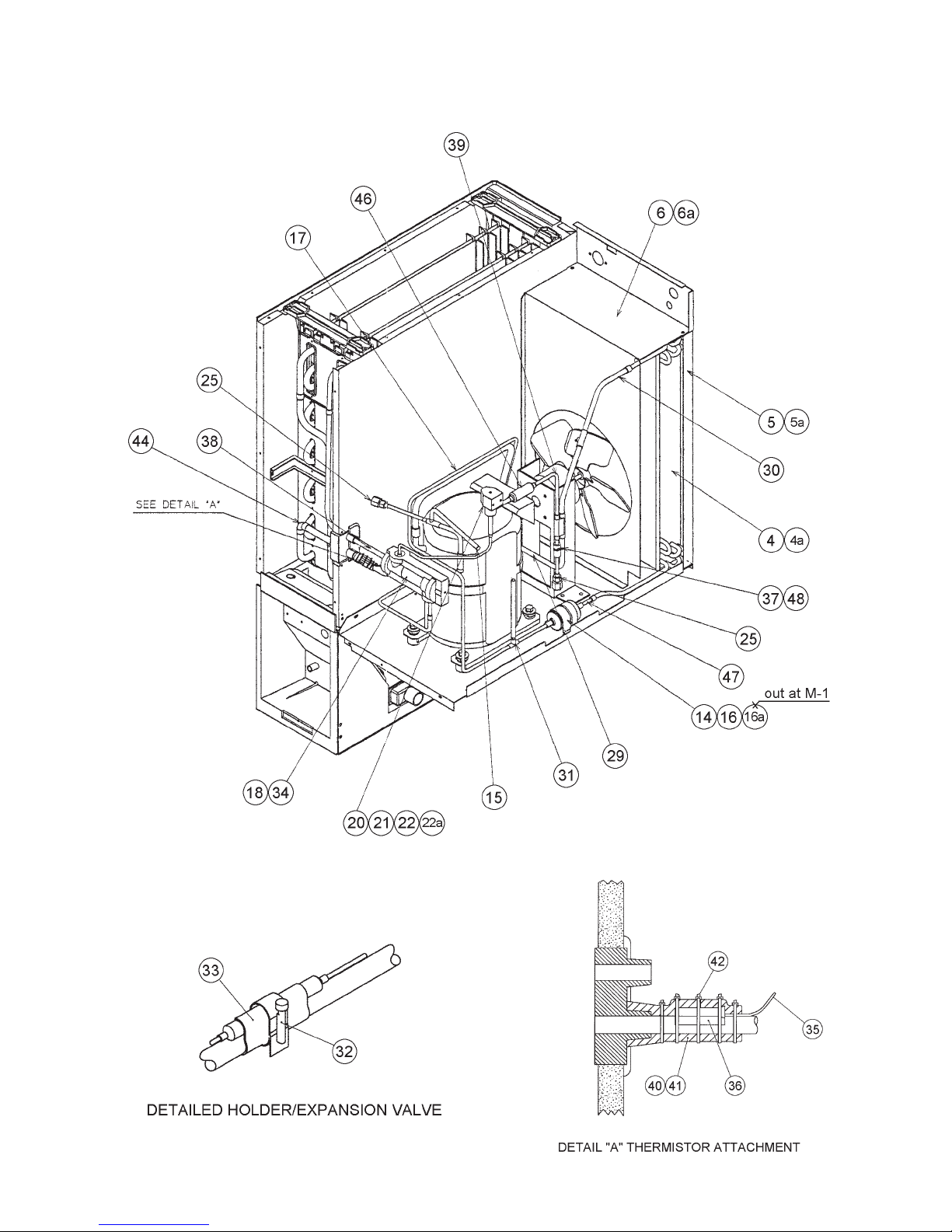

B. Refrigeration Circuit

KM-630MAH-E (1/2)

L-0, M-1, M-2, N-0, N-1, P-0, P-1

B. Refrigeration Circuit

KM-630MAH-E (2/2)

L-0, M-1, M-2, N-0, N-1, P-0, P-1
