HOSHIZAKI

MODULAR CRESCENT CUBER

MODEL

NO.

PARTS LIST

ISSUED: AUG. 3, 2001

KM-900MAH

KM-900MWH

KM-900MRH

KM-900MRH3

71189

REVISED: Aug.21, 2001

KM-900MAH L-0 April 2001

L-1 May 2001

KM-900MWH L-0 April 2001

KM-900MRH L-0 April 2001

KM-900MRH3 L-0

HA MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I"

by "o" (interchangeable)

skipped. So, "K" indicates "2000".

part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably

in a year, this number advances.

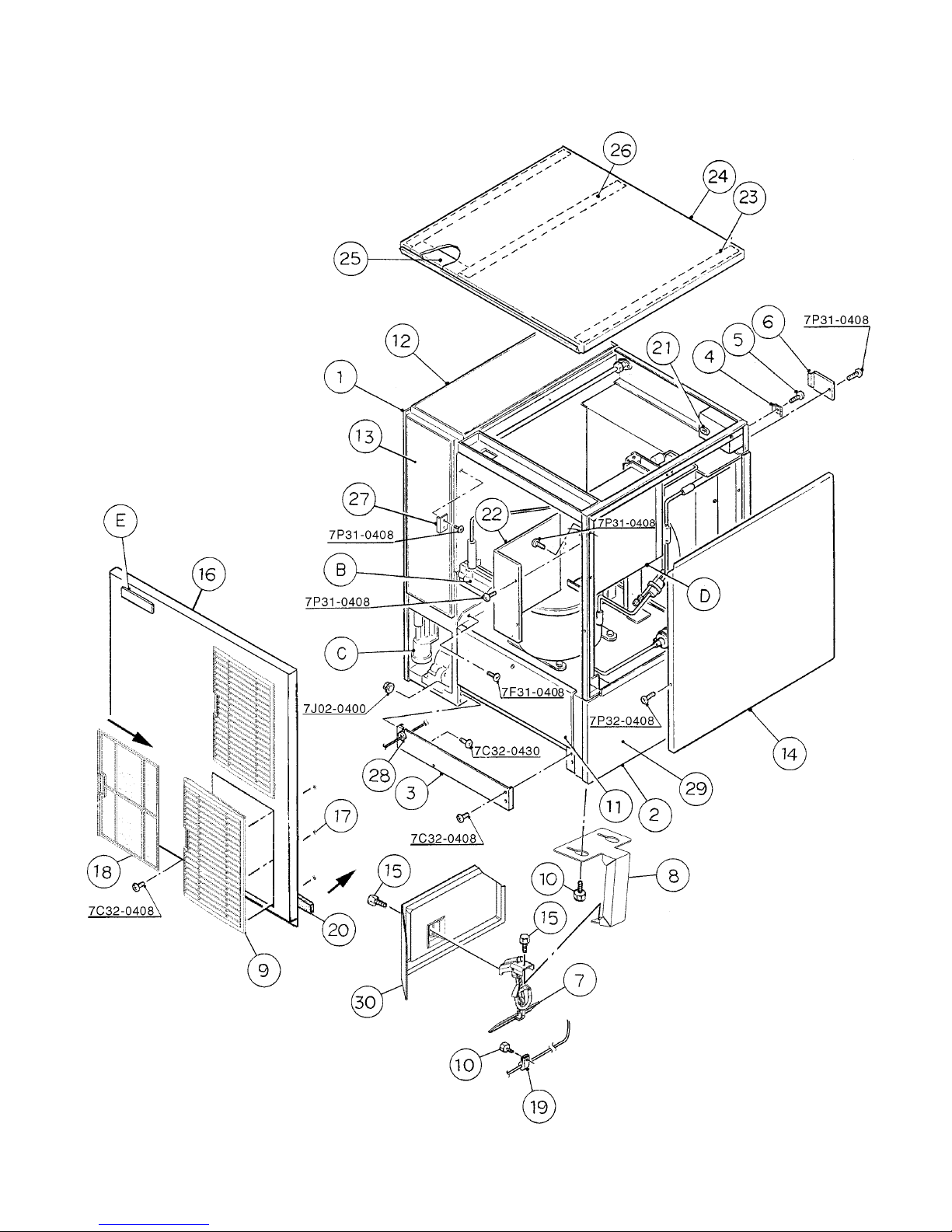

KM-900MAH A. ICE CUBERASSEMBLY L-0, L-1

MODEL: KM-900MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED

NUMBER

NUMBER L-0

L-1

B REFRIGERATION CIRCUIT - 1A0346A01 1

C WATER CIRCUIT - 1A0283A03 1

D CONTROL BOX ASSEMBLY - 2A2249A01 1

T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1925A01 1

1 EVAP. CASE - 1A0579G02 1

2 BASE - 1A0651G01 1

FT SCREW 4X8 7F31-0408 8

3 FRONT FRAME SS 322617-01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

TRUSS HEAD SCREW 4X30, SS 7C32-0430 2

FLANGE NUT 4, SS 7J02-0400 2

4 SQUARE WASHER BRASS 433537-02 1

5 SCREW - GROUNDING BRASS 433304-02 1

6 JUNCTION BOX COVER GS 433410-01 1

T2 SCREW 4X8 7P31-0408 1

7 BIN SWITCH - 4A2430-01 1

8 BRACKET (M) - 3A1675-01 1

9 LOUVER (A) - 1A0547-01 2

10 THUMBSCREW ABS, SS 415949G01 3

11 BASE COVER SS 322618G01 1

12 TOP INSULATION PP, PUR 215730G01 1

13 FRONT INSULATION PP, PUR 215731G02 1

MODEL: KM-900MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED

NUMBER

NUMBER L-0

L-1

14 SIDE PANEL (R) SS 2A2117G02 1

T2 SCREW 4X8, SS 7P32-0408 1

15 THUMBSCREW ABS, SS 415949G04 2

16 FRONT PANEL SS 2A2142G01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

17 PUSH RETAINER - 4A2414-01 6

18 AIR FILTER (A) - 2A2062G01 2

19 STRAP NBR, NW372 435487-01 1

20 GASKET L=762 4A0808L02 1

21 BUSHING SR-34-2 420472-05 1

22 CONTROL BOX COVER GS 3A0174-01 1

T2 SCREW 4X8 7P31-0408 2

23 GASKET (3A1862A01) 427014-04 2

24 TOP PANEL SS 2A2110-01 1

25 INSULATION PE FOAM 438012-01 1

26 GASKET (A) - 324859-03 1

27 BARRIER - INSULATION GS 4A1167-01 1

T2 SCREW 4X8 7P31-0408 2

28 BUSHING - 4A2356-01 1

29 SIDE PANEL (R) BASE SS 2A2336-01 1

30 SHIELD - 3A2167-01 1

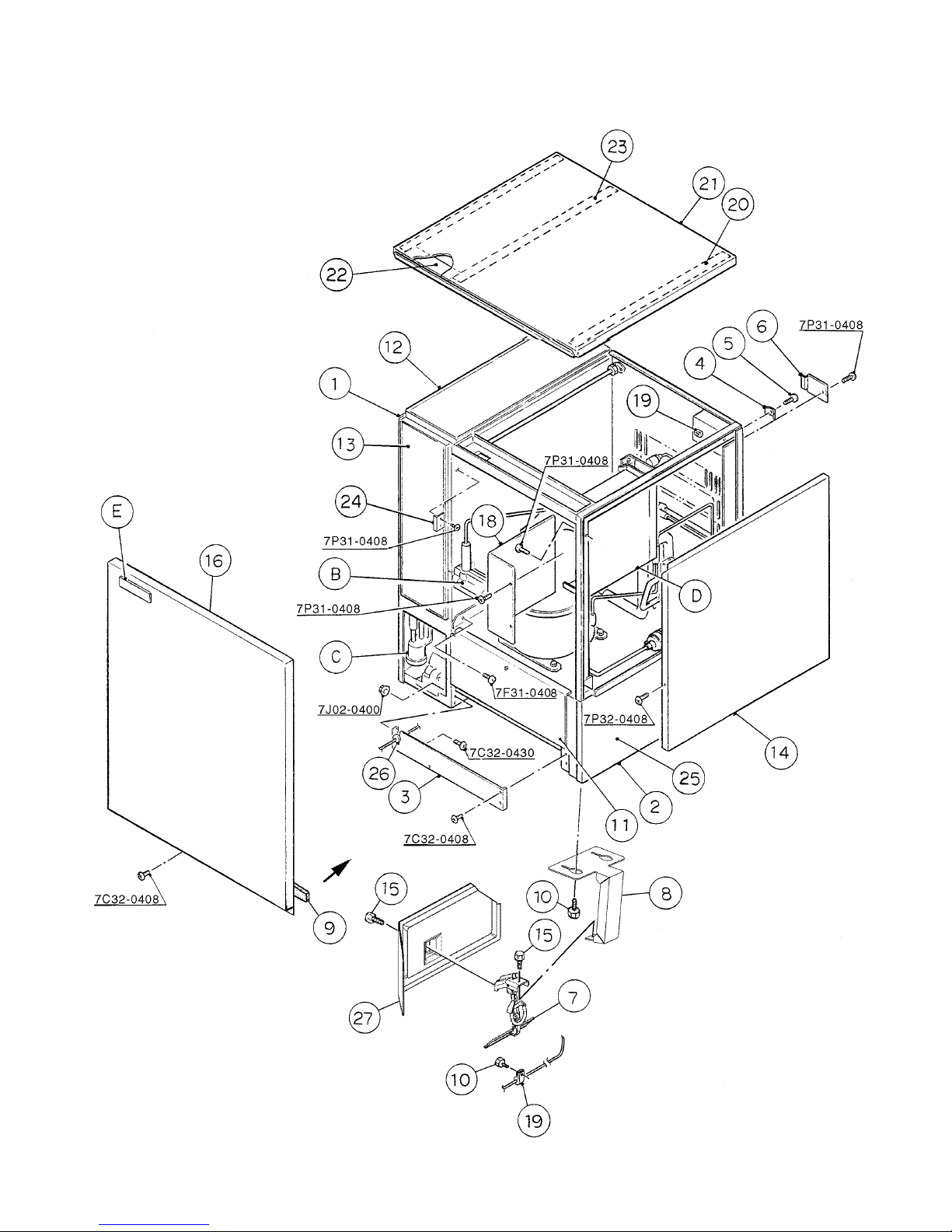

KM-900MWH A. ICE CUBERASSEMBLY L-0

MODEL: KM-900MWH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED

NUMBER

NUMBER L-0

B REFRIGERATION CIRCUIT - 1A0347A01 1

C WATER CIRCUIT - 1A0283A03 1

D CONTROL BOX ASSEMBLY - 2A2249A02 1

T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1926A01 1

1 EVAP. CASE - 1A0579G02 1

2 BASE - 1A0651G02 1

FT SCREW 4X8 7F31-0408 7

3 FRONT FRAME SS 322617-01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

TRUSS HEAD SCREW 4X30, SS 7C32-0430 2

FLANGE NUT 4, SS 7J02-0400 2

4 SQUARE WASHER BRASS 433537-02 1

5 SCREW - GROUNDING BRASS 433304-02 1

6 JUNCTION BOX COVER GS 433410-01 1

T2 SCREW 4X8 7P31-0408 1

7 BIN SWITCH - 4A2430-01 1

8 BRACKET (M) - 3A1675-01 1

9 GASKET L=762 4A0808L02 1

10 THUMBSCREW ABS, SS 415949G01 3

11 BASE COVER SS 322618G01 1

12 TOP INSULATION PP, PUR 215730G01 1

13 FRONT INSULATION PP, PUR 215731G02 1

14 SIDE PANEL (R) SS 2A2117G02 1

T2 SCREW 4X8, SS 7P32-0408 1

15 THUMBSCREW ABS, SS 415949G04 2

MODEL: KM-900MWH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED

NUMBER

NUMBER L-0

16 FRONT PANEL SS 2A2252G01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

17 STRAP NBR, NW372 435487-01 1

18 CONTROL BOX COVER GS 3A0174-01 1

19 BUSHING SR-34-2 420472-05 1

20 GASKET (3A1862A01) 427014-04 2

21 TOP PANEL SS 213543-01 1

22 INSULATION PE FOAM 438012-01 1

23 GASKET (A) - 324859-03 1

24 BARRIER - INSULATION GS 4A1167-01 1

T2 SCREW 4X8 7P31-0408 2

25 SIDE PANEL (R) BASE SS 2A2236-01 1

26 BUSHING - 4A2536-01 1

27 SHIELD - 3A2167-01 1

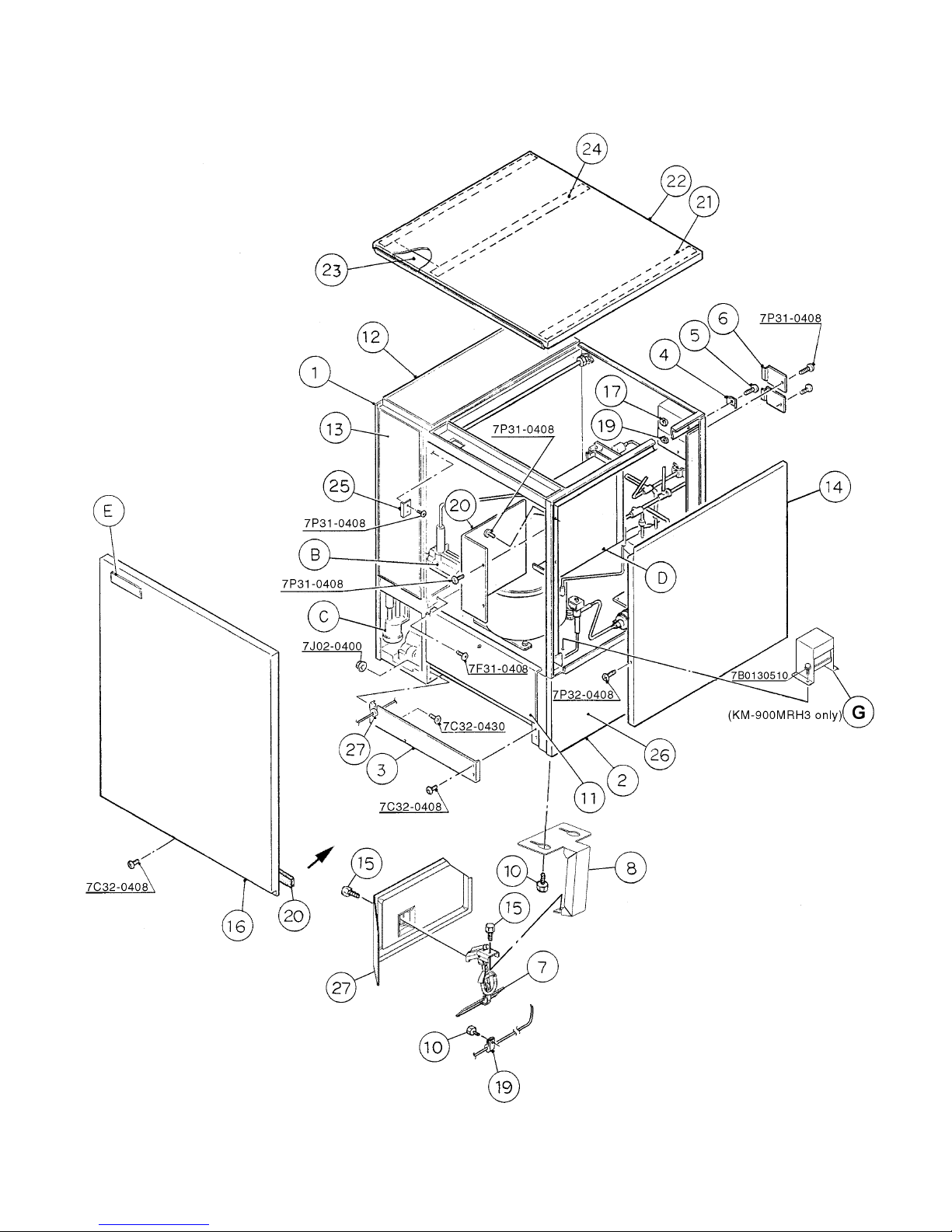

KM-900MRH, KM-900MRH3 A. ICE CUBER ASSEMBLY L-0
