Hoshizaki CF3B-FS Manuale utente

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

CR3B-FS

CR3B-HS

CF3B-FS

CF3B-HS

Commercial Series

Refrigerated Kitchen Equipment

Hoshizaki America, Inc.

Number: 71318

Issued: 3-4-2011

PARTS LIST

CONTENTS

Auxiliary Codes...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

A. Reach-In Assembly............................................................................................................ 4

B. Refrigeration Circuit........................................................................................................... 7

One Section: CR3B-FS, CR3B-HS.................................................................................... 7

Two Section: CR3B-FS, CR3B-HS .................................................................................... 9

One Section: CF3B-FS, CF3B-HS ...................................................................................11

Two Section: CF3B-FS, CF3B-HS .................................................................................. 13

C. Control Box Assembly ..................................................................................................... 15

One & Two Section: CR3B-FS, CR3B-HS ....................................................................... 15

One Section: CF3B-FS, CF3B-HS .................................................................................. 15

Two Section: CF3B-FS, CF3B-HS................................................................................... 16

D. Door-Right Hinged........................................................................................................... 17

Full Solid: CR3B-FS, CF3B-FS........................................................................................ 17

Half Solid: CR3B-HS, CF3B-HS...................................................................................... 18

E. Door-Left Hinged ............................................................................................................. 20

Full Solid: CR3B-FS, CF3B-FS........................................................................................ 20

Half Solid: CR3B-HS, CF3B-HS...................................................................................... 21

F. Accessories & Packaging ................................................................................................. 23

Auxiliary Codes

CR3B-FS

A-5 February 2011

CR3B-HS

A-5 March 2011

Auxiliary Code Breakdown

The auxiliary code is the rst two characters in the serial number. The rst character

indicates the year. Years progress or regress in alphabetical order. The series runs from

"A" through "V" and the letters "I" and "O" are skipped. The second character indicates

signicant part changes within a year. Base is "5" and this number advances for each

change.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

CF3B-FS

A-5 January 2011

CF3B-HS

A-5 TBD

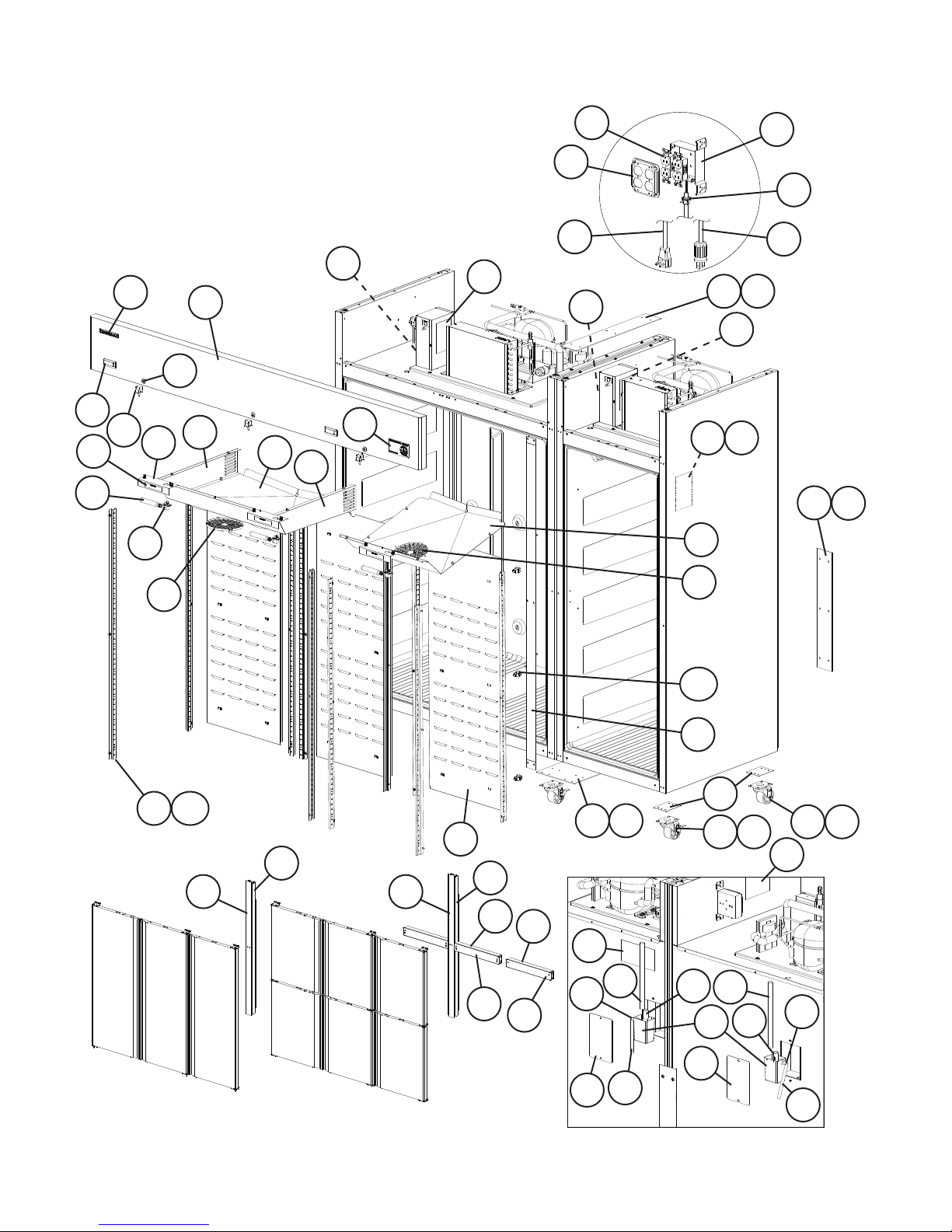

A. Reach-In Assembly

CR3B-FS, CR3B-HS, CF3B-FS, CF3B-HS

A-5

5 5a

For Float Switch, see Condensate

Water Pump in Section "B"

For Doors, see Section "D" and "E"

Half DoorsFull Doors

6 6a

14a

29 31

32 33

13a

47 47

Title: A. Reach-In Assembly Models: CR3B-FS, CR3B-HS, CF3B-FS, CF3B-HS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-5

Reach-In Assembly

Order Assembly Parts Individually

CR3B-FS 1A2148A01 1

CR3B-HS 1A2152A01 1

CF3B-FS 1A2150A01 1

CF3B-HS 1A2154A01 1

1 Top-Rear Plate 3A6405-01 2

1a Truss Head Screw 5×10, SS 7C32-0510 12

2 Base Plate 3A6403-01 1

2a Hex Head Tapping Bolt 1/4-20×3/4 4A5213-01 8

3 Caster Plate 3A6402-01 4

4 Front Plate 3A6404-01 1

5 4-Inch Locking Caster 4A4275-01 3

5a Hex Head Tapping Bolt 1/4-20×3/4 4A5213-01 12

6 4-Inch Non-Locking Caster 4A4275-02 2

6a Hex Head Tapping Bolt 1/4-20×3/4 4A5213-01 12

7 Nameplate Cover 4A3727-01 1

8 Evaporator Fan Shroud: One

Section

3A6446G01 1

9 Evaporator Fan Shroud: Two

Section

3A6212G01 1

10 Fan Guard 4A4860-01 4

11 Evaporator Fan Shroud Side

(R): Two Section

3A6629G01 1

12 Evaporator Fan Shroud Side

(L): Two Section

3A6638G01 1

13 Pilaster 3A0145-22 12

13a Truss Head Screw 5×10, SS 7C32-0510 36

14 Rear Duct Panel 2A5205-01 3

14a Duct Stand Off 4A4874-01 18

15 Light Plate 3A6530-01 3

16 Light Socket 4A4443-01 3

17 Light Bulb 4A4444-01 3

18 Warning Label 4A2968-03 3

19 Vertical Mullion Face: Two

Section (includes heater)

2A5906G01 1

20 Horizontal Mullion Face: One

Section (includes heater)

CR3B-HS

CF3B-HS

3A5684G01 1

21 Horizontal Mullion Face: Two

Section (includes heater)

CR3B-HS

CF3B-HS

3A5910G01 2

22 Front Panel 2A6416-01 1

23 Display Module (includes

mounting clips)

4A4862-01 2

24 Door Switch 3A1826-01 3

25 Lock (includes 2 keys) 4A4924-01 3

26 Commercial Label CR3B-FS

CR3B-HS

3A5816-01 1

CF3B-FS

CF3B-HS

3A5816-02 1

27 Emblem 4A0560-01 1

28 Drain Reservoir 3A5565-01 2

29 Drain Fitting 4A2792-01 2

30 Silicone Hose L=150 7730I3812 2

Title: A. Reach-In Assembly Models: CR3B-FS, CR3B-HS, CF3B-FS, CF3B-HS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-5

31 Drain Boot 4A4938-01 2

32 PVC Tubing: One Section L=650 7716I1438 1

33 PVC Tubing: Two Section L=860 7716I1438 1

34 Reservoir Cover 3A5898-01 2

35 Ground Screw 433304-02 2

36 Commercial Nameplate CR3B-FS 1A2155-01 1

CR3B-HS 1A2155-03 1

CF3B-FS 1A2155-02 1

CF3B-HS 1A2155-04 1

37 Caution Label 4A1931-01 1

38 Wiring Label: One Section CR3B-FS

CR3B-HS

3A6581-01 1

CF3B-FS

CF3B-HS

3A6583-01 1

39 Wiring Label: Two Section CR3B-FS

CR3B-HS

3A6582-01 1

CF3B-FS

CF3B-HS

3A6584-01 1

40 Wiring Label: Receptacle Box CR3B-FS

CR3B-HS

3A6623-01 1

CF3B-FS

CF3B-HS

3A6407-01 1

41 Receptacle Box 4A5314-01 1

42 Receptacle Cover 4A5315-01 1

43 Receptacle 4A5316-01 2

44 Receptacle Box Clamp 4A5317-01 1

45 Power Cord CR3B-FS

CR3B-HS

4A5379-01 1

46 Power Cord CF3B-FS

CF3B-HS

4A5318-01 1

47 Vertical Mullion Thermal

Breaker: Two Section

CR3B-FS

CF3B-FS

2A5908G01 1

CR3B-HS

CF3B-HS

2A5908G02 1

48 Horizontal Mullion Thermal

Breaker: One Section

CR3B-HS

CF3B-HS

3A5931G01 1

49 Horizontal Mullion Thermal

Breaker: Two Section

CR3B-HS

CF3B-HS

3A5951G01 2

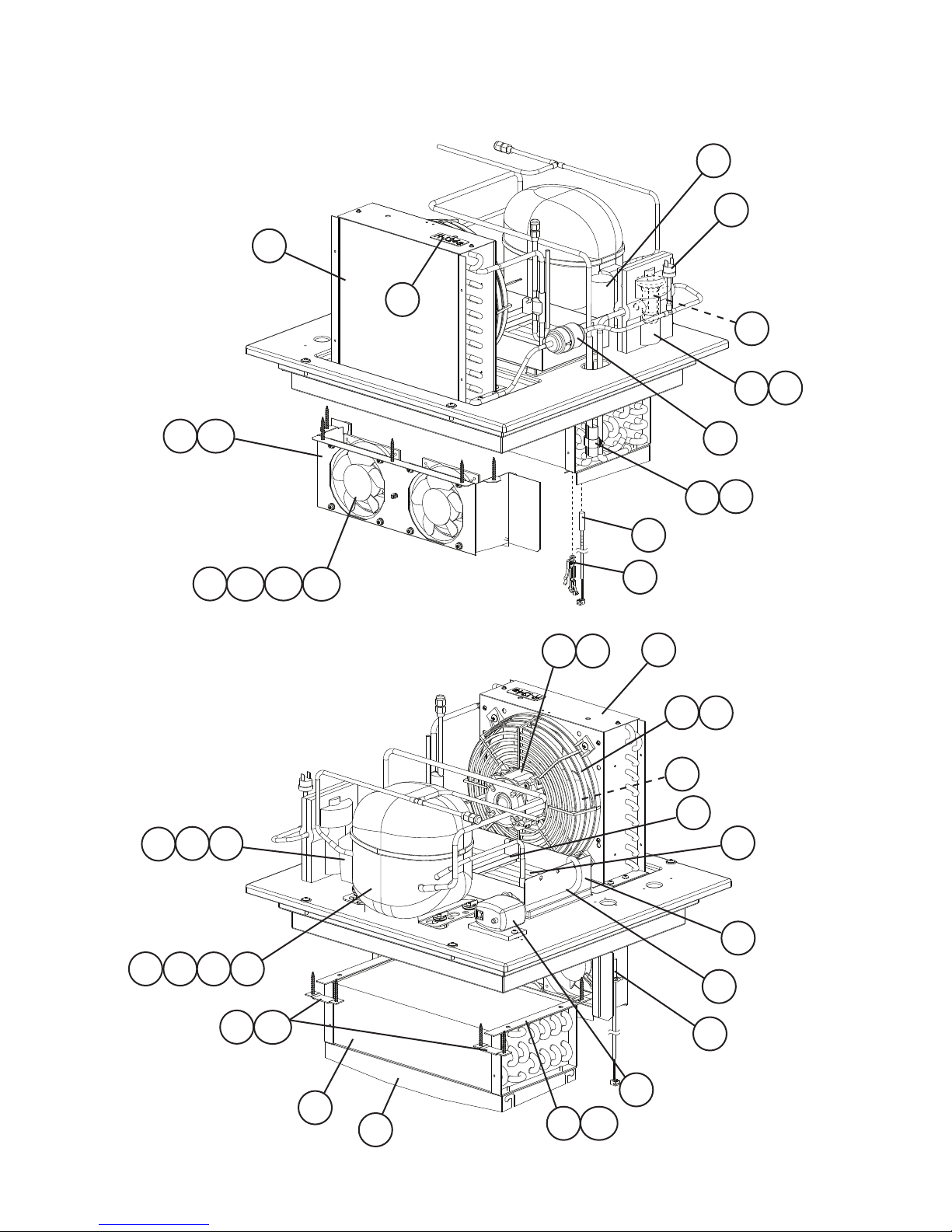

B. Refrigeration Circuit

One Section: CR3B-FS, CR3B-HS

A-5

23 4

27 28

11a 1b

20a 20c

20b

19a

15a

21 21a

Title: B. Refrigeration Circuit Model: One Section: CR3B-FS, CR3B-HS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-5

Refrigeration Circuit

Order Assembly Parts Individually

1A2160A01 1

1 Compressor 4A3177-01 1

1a Rubber Grommet 4A1452-01 4

1b Compressor Clip 4A4867-01 4

1c Screw 4A4993-01 4

2 Terminal Cover (includes clip) 4A2141-01 1

3 Cord Relief 4A2152-01 2

4 Start Relay 4A2135-03 1

5 Start Capacitor 280MFD,

125/165 VAC

4A2134-01 1

6 Condenser 2A6415-01 1

7 Condenser Shroud 3A6631G01 1

8 Condenser Fan Guard 2A5187-01 1

8a Truss Head Screw 5×12, SS 7C32-0512 4

9 Condenser Fan Motor 4A4869-01 1

9a Self-Locking Nut 8-32 7N21I0832 4

10 Condenser Fan Blade 3A5817-01 1

11 Condensate Pan 2A5218-01 1

12 Condensate Coil Strap 3A5672-01 1

13 Condensate Coil 3A6465G01 1

14 Evaporator 2A6463-01 1

15 Evaporator Bracket 3A5492-01 1

15a Screw 4A4993-02 2

16 Evaporator Drain Bracket 3A5495-01 1

17 Defrost Thermistor 4A4865-02 1

18 Thermistor Clip 4A3248G01 1

19 Evaporator Mount Bracket 3A5493-01 2

19a Screw 4A4993-02 4

20 Evaporator Fan 4A5343-01 2

20a Flat Washer 7W22-0500 8

20b Split Lock Washer 7L22-0500 8

20c Tapping Screw 4A3883-01 8

21 Evaporator Fan Bracket 2A6424-01 1

21a Screw 4A4993-02 5

22 Drier 4A1113-01 1

23 High-Pressure Switch 4A2516-01 1

24 Expansion Valve 4A4597-01 1

25 Expansion Valve Cover (A) 3A0372-01 1

26 Expansion Valve Cover (B) 3A0372-02 1

27 Expansion Valve Bulb Holder 3A0107-01 1

28 Clamp 443461-01 1

29 Condensate Water Pump

(includes oat switch)

3A6339G01 1

30 PVC Tubing L=350 7716I1438 1

31 R134a Label 444463-01 1

32 Cabinet Thermistor 4A4864-01 1

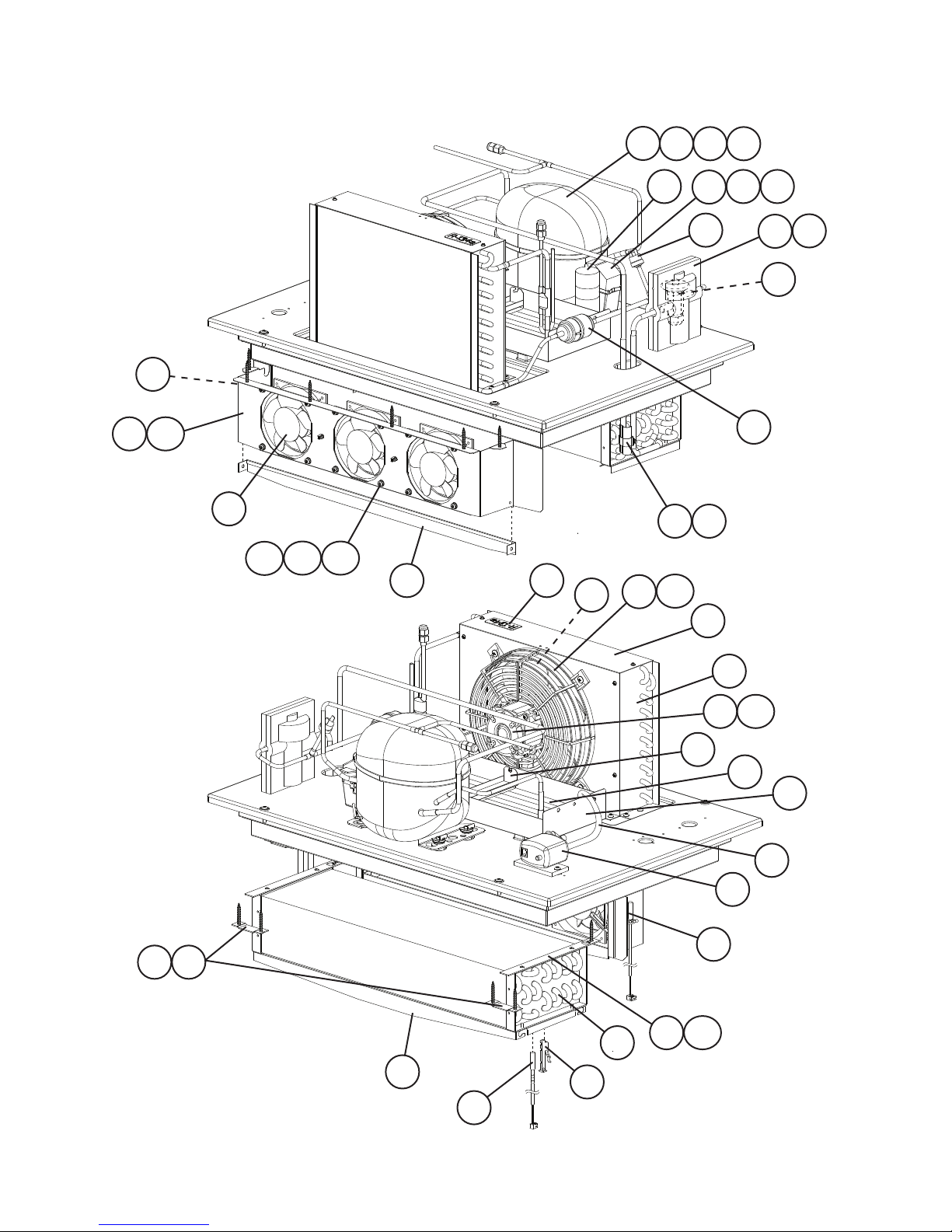

B. Refrigeration Circuit

Two Section: CR3B-FS, CR3B-HS

A-5 1c

7 8

3 4 5

17 15

1a 1b

27a 27c27b

26a

16a

22a

33 34

15a

Title: B. Refrigeration Circuit Model: Two Section: CR3B-FS, CR3B-HS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-5

Refrigeration Circuit

Order Assembly Parts Individually

1A2161A01 1

1 Compressor 4A3958-01 1

1a Screw 4A4993-01 4

1b Rubber Grommet 4A1452-01 4

1c Compressor Clip 4A4867-01 4

2 Start Relay 4A2135-04 1

3 Start Capacitor 4A2134-01 1

4 Terminal Cover (includes clip) 4A2141-01 1

5 Cord Relief 4A2152-01 2

6 Evaporator Mount Bracket 3A5493-01 2

6a Screw 4A4993-02 4

7 Expansion Valve Bulb Holder 3A0107-01 1

8 Clamp 443461-01 1

9Condensate Water Pump

(includes oat switch)

3A6339G01 1

10 PVC Tubing L=350 7716I1438 1

11 R134a Label 444463-01 1

12 Cabinet Thermistor 4A4864-01 1

13 Condenser 2A5862-01 1

14 Condenser Shroud 3A6630G01 1

15 Condenser Fan Guard 2A5187-01 1

15a Truss Head Screw 5×12, SS 7C32-0512 4

16 Condenser Fan Motor 4A4869-01 1

16a Self-Locking Nut 8-32 7N21I0832 4

17 Condenser Fan Blade 3A5817-01 1

18 Condensate Pan 2A5218-02 1

19 Condensate Coil 3A5598-02 1

20 Condensate Coil Strap 3A5672-01 1

21 Evaporator 2A6464-01 1

22 Evaporator Bracket 3A5492-01 2

22a Screw 4A4993-02 2

23 Evaporator Drain Bracket 3A5903-01 1

24 Defrost Thermistor 4A4865-01 1

25 Thermistor Clip 4A3248G01 1

26 Evaporator Fan Bracket 2A6173-01 1

26a Screw 4A4993-02 6

27 Evaporator Fan 4A5343-01 3

27a Flat Washer M5, SS 7W22-0500 12

27b Split Lock Washer M5, SS 7L22-0500 12

27c Tapping Screw 4A3883-01 12

28 Evaporator Shroud 3A5902-01 1

29 Ground Screw 433304-02 1

30 Drier 4A1113-01 1

31 High-Pressure Switch 4A2516-01 1

32 Expansion Valve 4A4598-01 1

33 Expansion Valve Cover (A) 3A0372-01 1

34 Expansion Valve Cover (B) 3A0372-02 1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hoshizaki Frigorifero

Hoshizaki

Hoshizaki RTC-A series Manuale utente

Hoshizaki

Hoshizaki HR-78MA-A Manuale utente

Hoshizaki

Hoshizaki Reach-In S-Series Manuale utente

Hoshizaki

Hoshizaki HRE-67B Series Manuale utente

Hoshizaki

Hoshizaki PTR1SSB-FGFG Manuale utente

Hoshizaki

Hoshizaki SafeTemp FH1-AAC Manuale utente

Hoshizaki

Hoshizaki HDD-1-24 Manuale utente

Hoshizaki

Hoshizaki SafeTemp RH1-AAC Manuale utente

Hoshizaki

Hoshizaki HR24A Manuale utente

Hoshizaki

Hoshizaki RTC-90 A Series Manuale utente

Hoshizaki

Hoshizaki FH1-SSB(-HD) Manuale utente

Hoshizaki

Hoshizaki Pass Thru Series PTR2SSB-HSHS Manuale utente

Hoshizaki

Hoshizaki HRFE-77B-CHD Manuale utente

Hoshizaki

Hoshizaki Temp Guard RH1-SSA Manuale

Hoshizaki

Hoshizaki Pass Thru Series PTR2SSB-FGFG Manuale utente

Hoshizaki

Hoshizaki HRE-140B Series Manuale utente

Hoshizaki

Hoshizaki Temp Guard PTR1SSB01-10 Manuale utente

Hoshizaki

Hoshizaki Temp Guard RH3-SSB-GD Manuale

Hoshizaki

Hoshizaki Temp Guard RIR1-SSB Manuale utente

Hoshizaki

Hoshizaki SafeTemp RH1-AAC Manuale utente

Hoshizaki

Hoshizaki PTR1SSB-FSFS Manuale utente

Hoshizaki

Hoshizaki ER1A-FS Manuale utente

Hoshizaki

Hoshizaki HR24A Manuale utente

Hoshizaki

Hoshizaki RF28A Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
